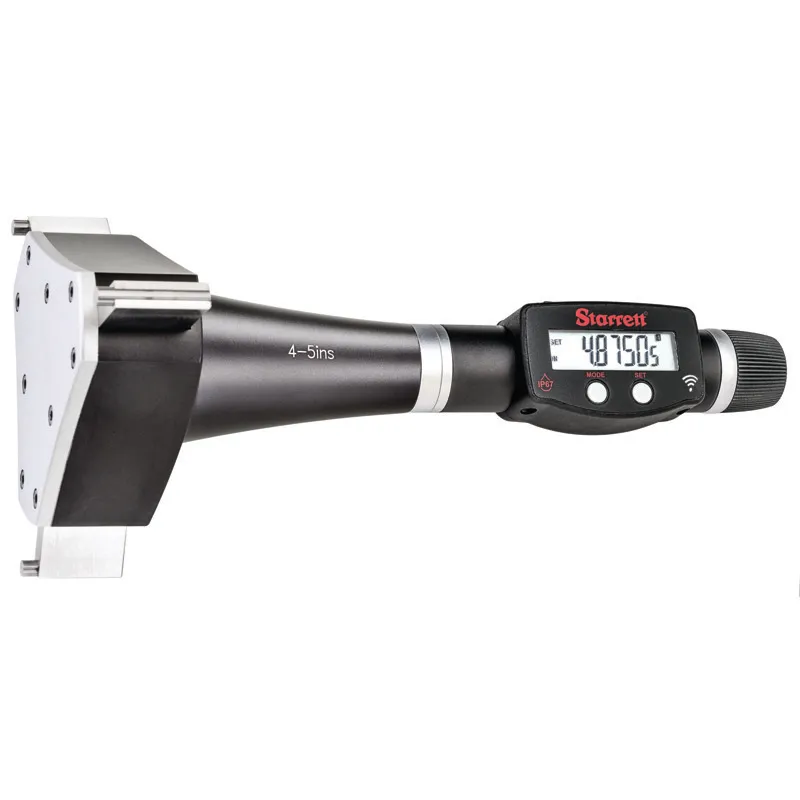

STARRETT 770BXTZ-5 72568 Digital 3-Point Inside Micrometer, 100 mm To 125 mm/4 Inch To 5 Inch Range, Ip65
5"
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3,852.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Inside Micrometer |
| Accuracy (in) | 0.00025" |
| Approximate Measuring Depth | 4 1/2" |
| Approximate Measuring Depth (in) | 4 1/2" |
| Case Included | Yes |
| Case Type | Wood Case |
| Contact Point Material | Carbide |
| Coolant Resistant | Yes |
| Data Output Type | Cable, Wireless With Transmitter |
| Display Type | LCD |
| Functions | In./Mm Conversion, Reducing The Need to Exchange Anvils |
| Includes | Adjusting Wrench, Contacts, Instructions, Setting Ring, Spare Battery |
| Includes Battery | Yes |
| Inside Micrometer Type | 3 Point Inside Micrometer |
| Ip Rating | IP65 |
| Maximum Measurement - Inch | 5" |
| Maximum Measurement - Mm | 125 mm |
| Maximum Measuring Depth | 4 1/2" |
| Minimum Measurement - Inch | 4" |
| Minimum Measurement - Mm | 100 mm |
| No. Of Batteries Required | 1 |
| Number Of Micrometers | 1 |
| Operation Type | Digital |
| Output | Cabled, Wireless |
| Range | 4" to 5" |
| Range (in) | 4" to 5" |
| Range (mm) | 100 mm to 125 mm |
| Resolution | 0.00005" |
| Resolution (in) | 0.00005" |
| Spc Output | Yes |
| Thimble Type | Ratchet Stop |
Shipping Info:
| Ship weight (kg) | 7.63 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 38.86 |
| Ship width (cm) | 31.24 |
| HS code | 9017304000 |
| Country of Origin | UK |
Product Variants
| Product | Model | Range | Inside Micrometer Type | Maximum Measuring Depth | Rod Dia. | Resolution | Spc Output | Ip Rating | Thimble Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
770BXTZ-100 | 0.08" to 0.1" | 2 Point Inside Micrometer | 3/8" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-120 | 0.1" to 0.12" | 2 Point Inside Micrometer | 3/8" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-160 | 0.12" to 0.16" | 2 Point Inside Micrometer | 15/32" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-200 | 0.16" to 0.2" | 2 Point Inside Micrometer | - | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-250 | 0.2" to 0.25" | 2 Point Inside Micrometer | - | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-312 | 1/4" to 5/16" | 3 Point Inside Micrometer | 2 1/4" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €2,334.33 | |
 |
770BXTZ-375 | 5/16" to 3/8" | 3 Point Inside Micrometer | 2 1/4" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €2,693.05 |
