Countersunk Washers

Filter

Countersunk washers are used with oval and flat head screws to provide a bearing surface and sealing functionality. Raptor Supplies offers a wide range of countersunk washers from brands...Read more

MICRO PLASTICS -

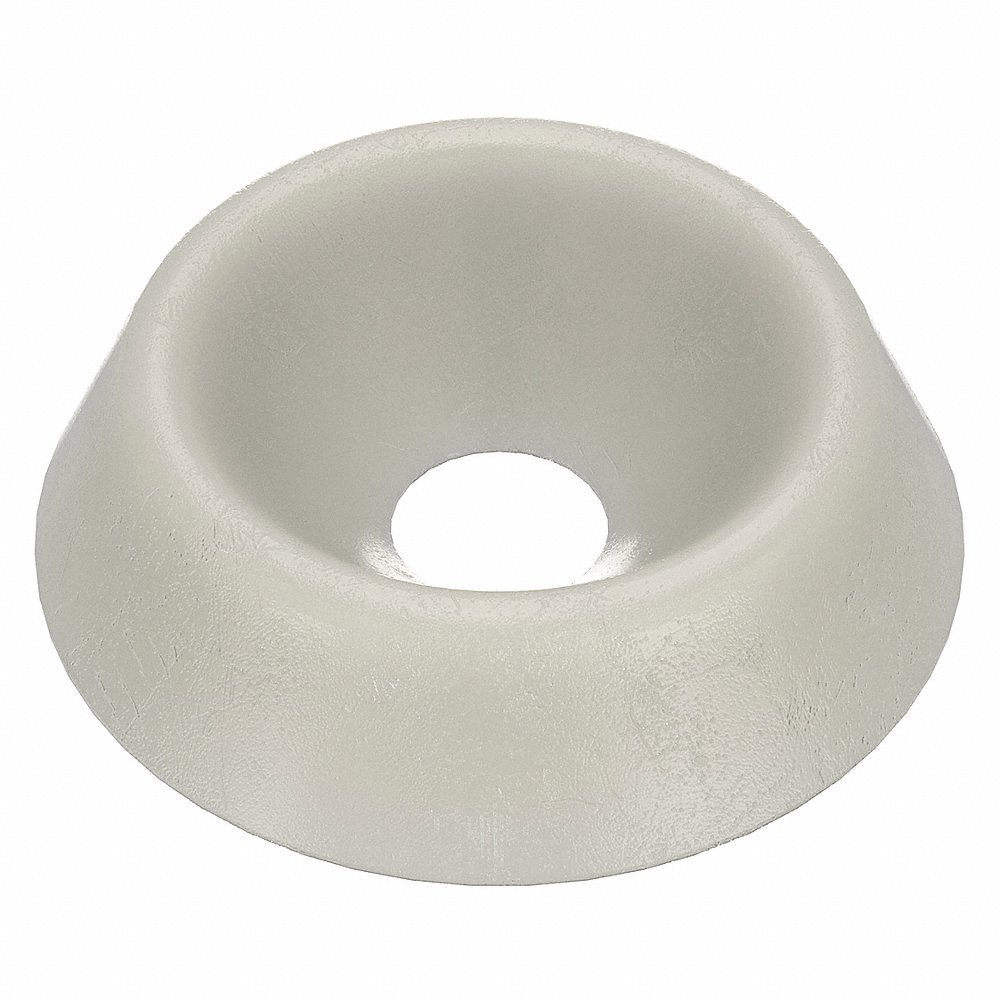

Plain Grade 6/6 Nylon Countersunk Washers

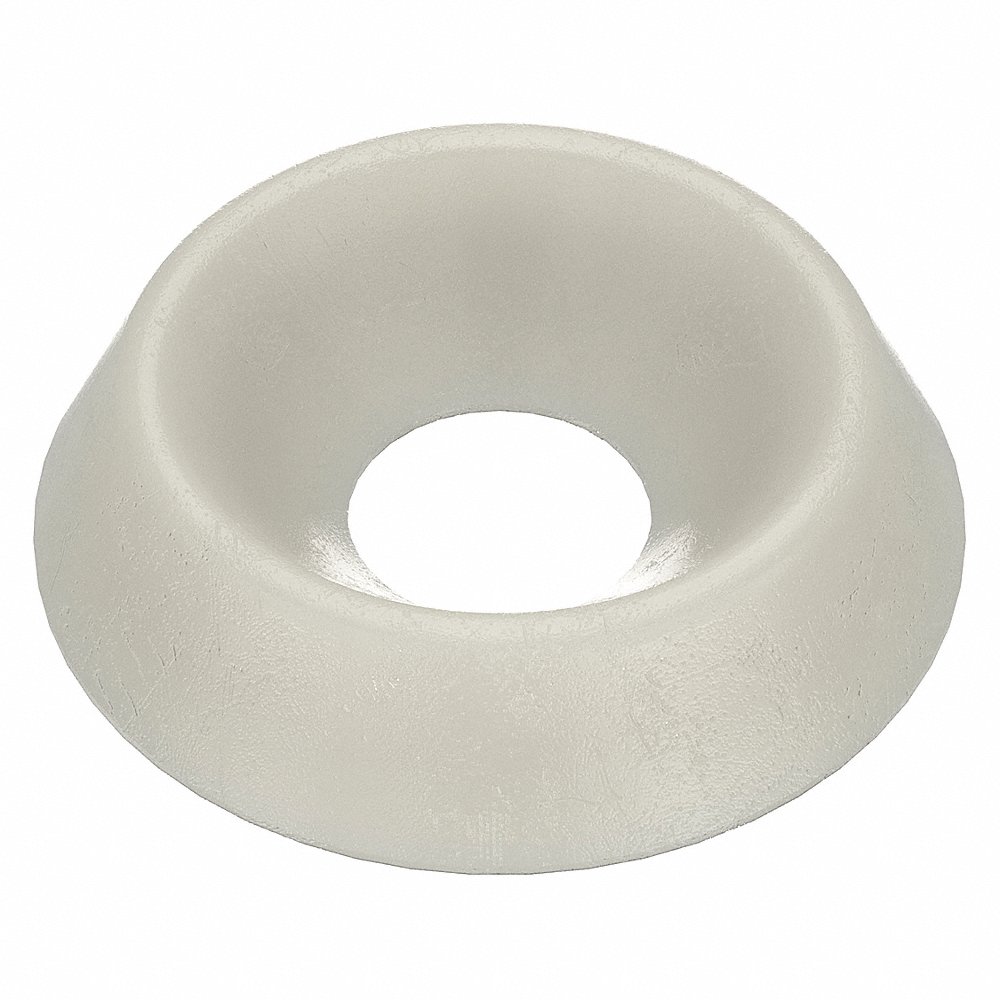

MICRO PLASTICS 11SFW0006BA

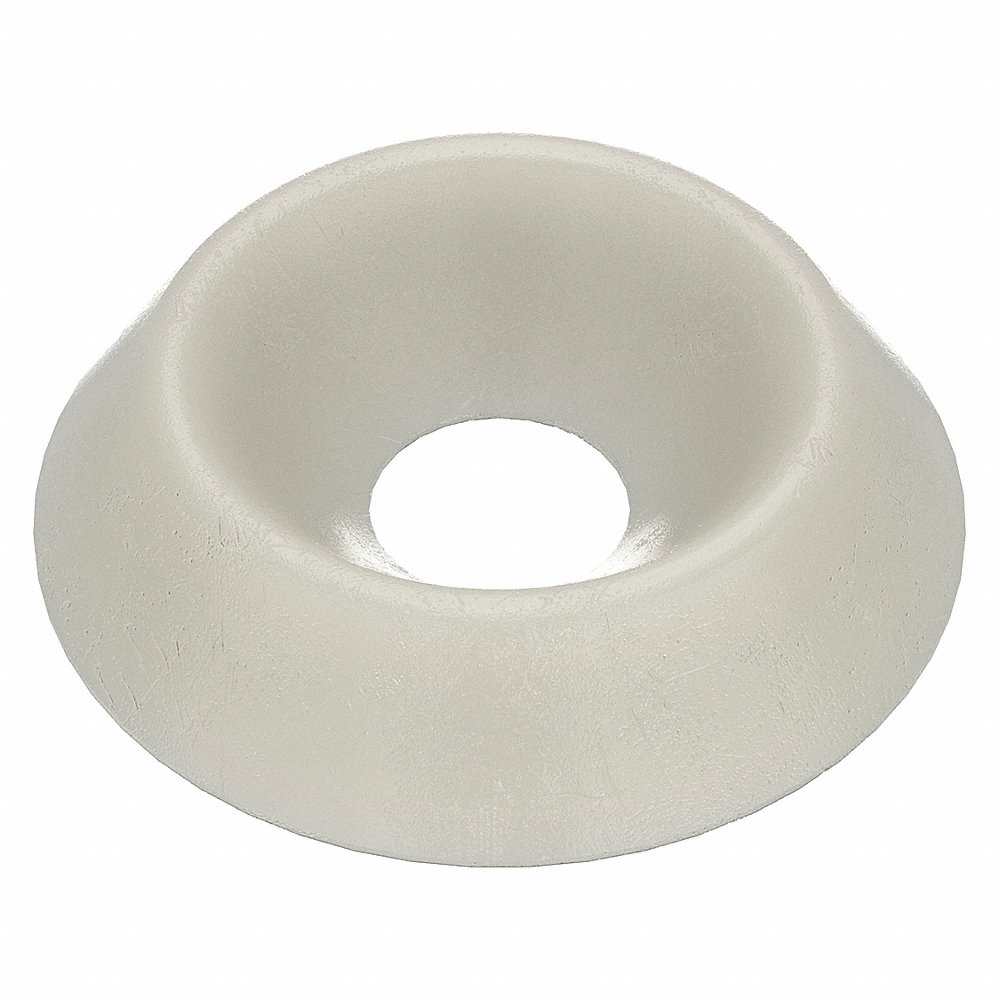

MICRO PLASTICS 11SFW0008BB
MICRO PLASTICS 11SFW0008C

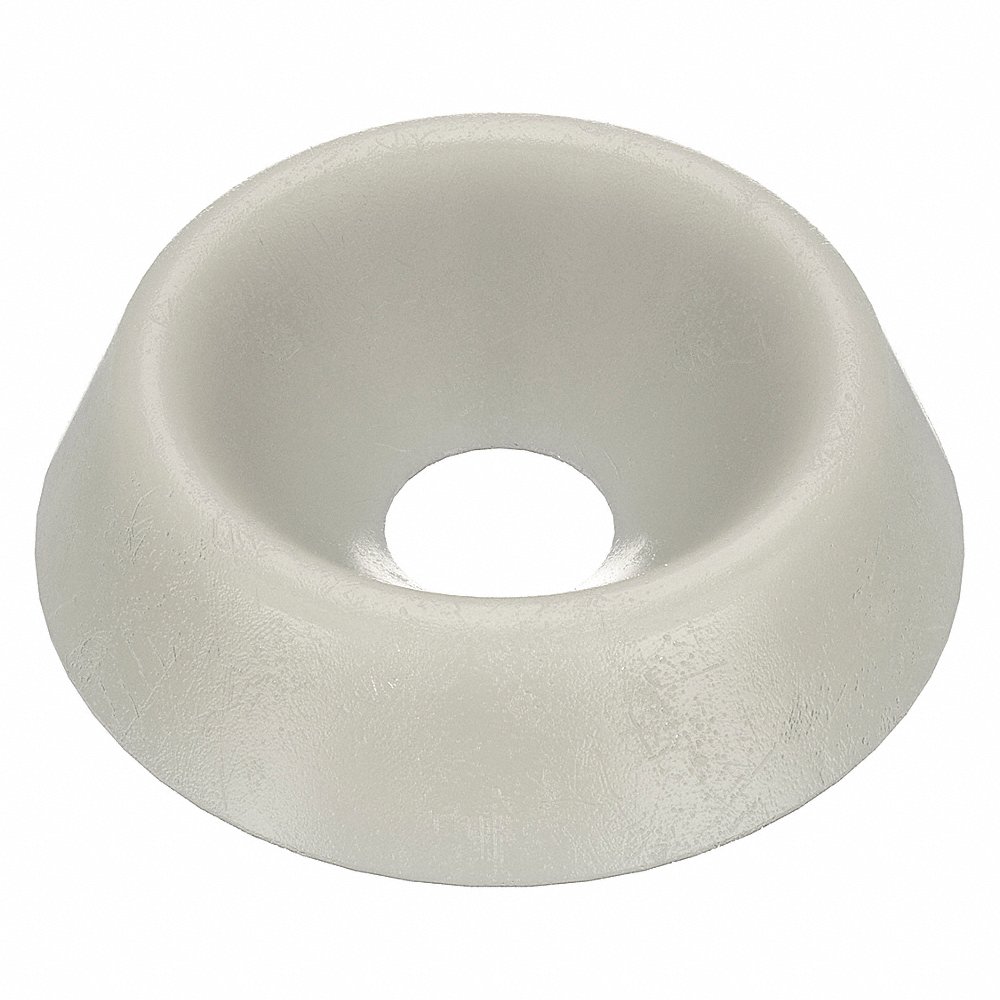

MICRO PLASTICS 11SFW0010D
MICRO PLASTICS 11SFW0012E
StyleModelFor Screw SizeOverall HeightOutside Dia.ColorCountersink AngleHeight ToleranceTemp. RangePricePkg. Qty.
A11SFW0006B#60.1"7/16"Black82°-0.005" to +0.005"-40°F€9.5020
B11SFW0008B#80.115"33/64"Black82°-0.005" to +0.005"-40°F€25.3520
C11SFW0008#80.115"33/64"Off White82°-0.005" to +0.005"-40°F€8.5520
D11SFW0010#100.152"37/64"Off White82°-0.005" to +0.005"-40°F€10.0620
E11SFW0012#124/25"39/64"Off White82°-0.005" to +0.005"-40°F€26.3020
APPROVED VENDOR -

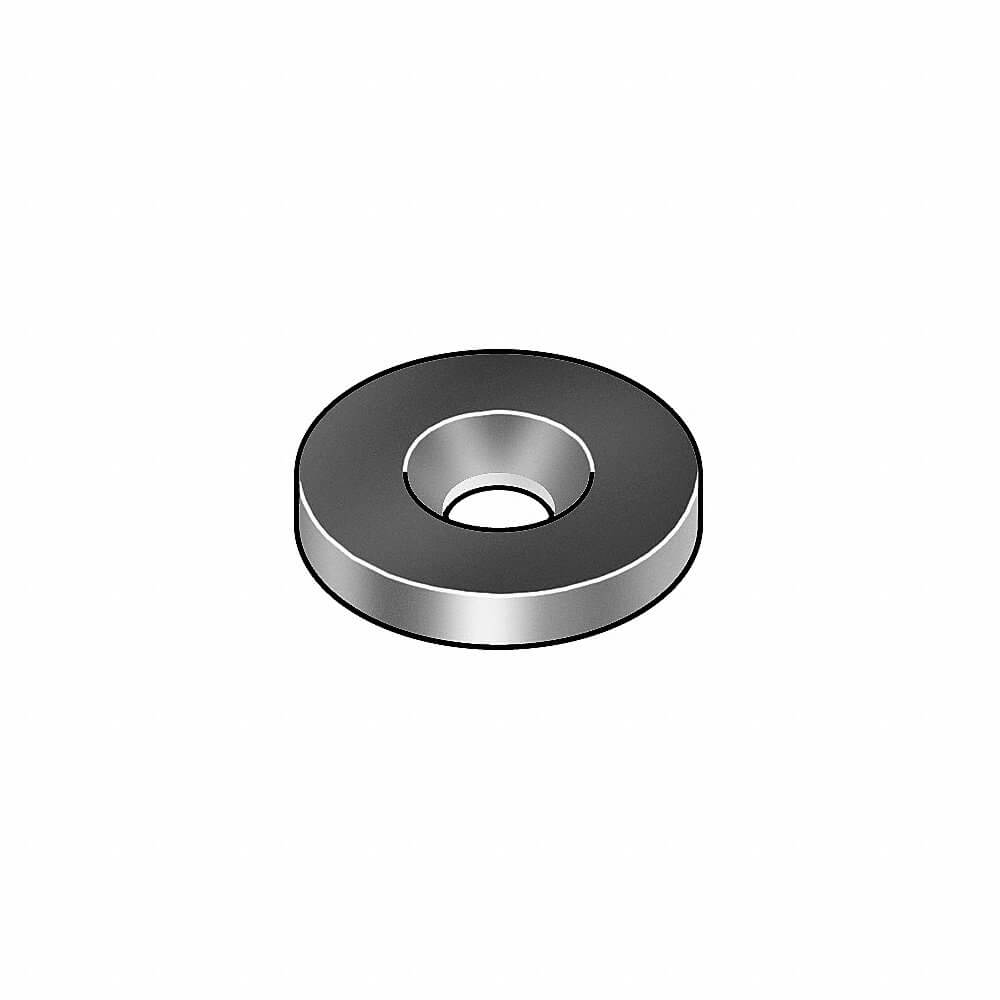

Black Oxide Steel Countersunk Washers

APPROVED VENDOR Z9930A
StyleModelFor Screw SizeOverall HeightOutside Dia.Countersink AngleHeight ToleranceHardnessColorPricePkg. Qty.
AZ9930#81/8"3/4"82°-0.01" to +0.01"Rockwell C40Black€31.615
AZ9931#81/8"1"82°-0.01" to +0.01"Rockwell C40Black€39.315
AZ9934#100.14"1 1/4"82°-0.01" to +0.01"Rockwell C40Black€13.671
AZ9933#100.14"1 1/8"82°-0.01" to +0.01"Rockwell C40Black€11.971
AZ9932#100.14"13/16"82°-0.01" to +0.01"Rockwell C40Black€45.905
AZ99381/4"0.281"1 3/4"82°-0.01" to +0.01"Rockwell C40Black€21.881
AZ99371/4"0.281"1 1/2"82°-0.01" to +0.01"Rockwell C40Black€15.811
AZ99361/4"0.281"1 3/8"82°-0.01" to +0.01"Rockwell C40Black€16.151
AZ99351/4"0.281"1 1/4"82°-0.01" to +0.01"Rockwell C40Black€14.131
AZ99391/4"0.281"2"82°-0.01" to +0.01"Rockwell C40Black€45.351
AZ9921M43 mm20 mm90°-0.3 mm to +0.3 mmRockwell C40Black€29.695
AZ9920M43 mm16 mm90°-0.3 mm to +0.3 mmRockwell C40Black€29.075
AZ9924M53.5 mm28 mm90°-0.3 mm to +0.3 mmRockwell C40Black€10.401
AZ9923M53.5 mm25 mm90°-0.3 mm to +0.3 mmRockwell C40Black€57.235
AZ9922M53.5 mm22 mm90°-0.3 mm to +0.3 mmRockwell C40Black€40.495
AZ9929M66 mm52 mm90°-0.3 mm to +0.3 mmRockwell C40Black€35.091
AZ9928M66 mm45 mm90°-0.3 mm to +0.3 mmRockwell C40Black€23.751
AZ9927M65 mm40 mm90°-0.3 mm to +0.3 mmRockwell C40Black€19.371
AZ9926M64 mm36 mm90°-0.3 mm to +0.3 mmRockwell C40Black€17.061
AZ9925M64 mm32 mm90°-0.3 mm to +0.3 mmRockwell C40Black€16.341
GRAINGER -

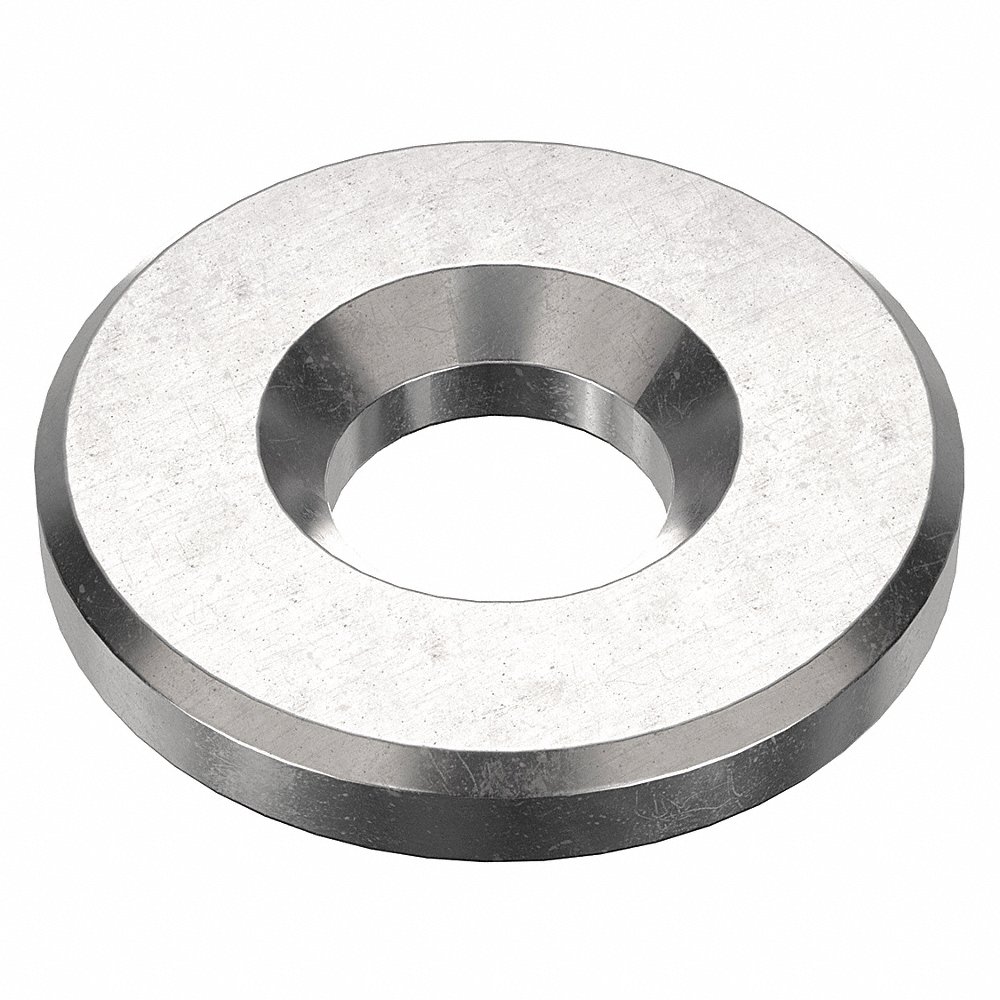

Plain Grade 316 Stainless Steel Countersunk Washers

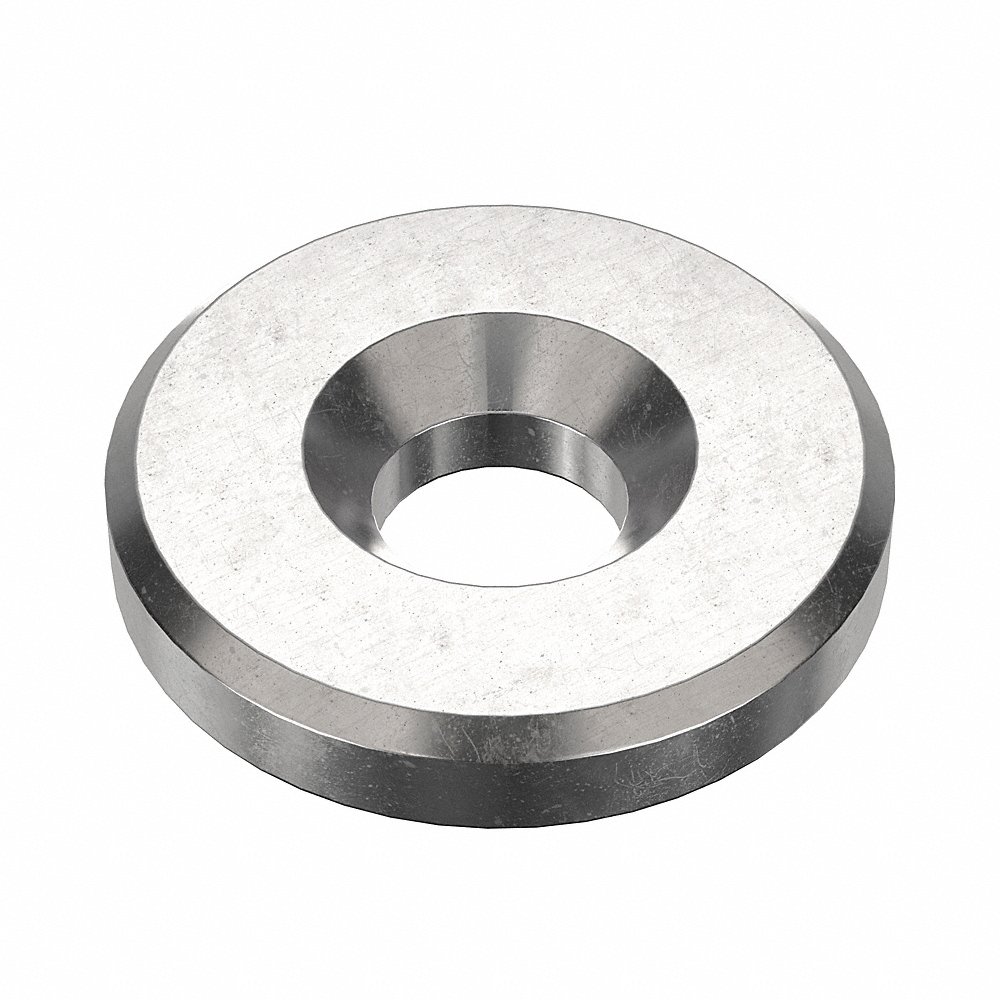

GRAINGER ZPYR#10625-316A
GRAINGER ZPYR14750-316B
StyleModelFor Screw SizeOutside Dia.Overall HeightCountersink AngleHeight ToleranceHardnessColorTensile StrengthPrice
AZPYR#10625-316#105/8"1/8"82°-0.01" to +0.01"Rockwell B85-B95Silver75000 psi€13.16
BZPYR14750-3161/4"3/4"1/8"82°-0.01" to +0.01"Rockwell B85-B95Silver75000 psi€14.13
APPROVED VENDOR -

Plain Grade 18-8 Stainless Steel Countersunk Washers

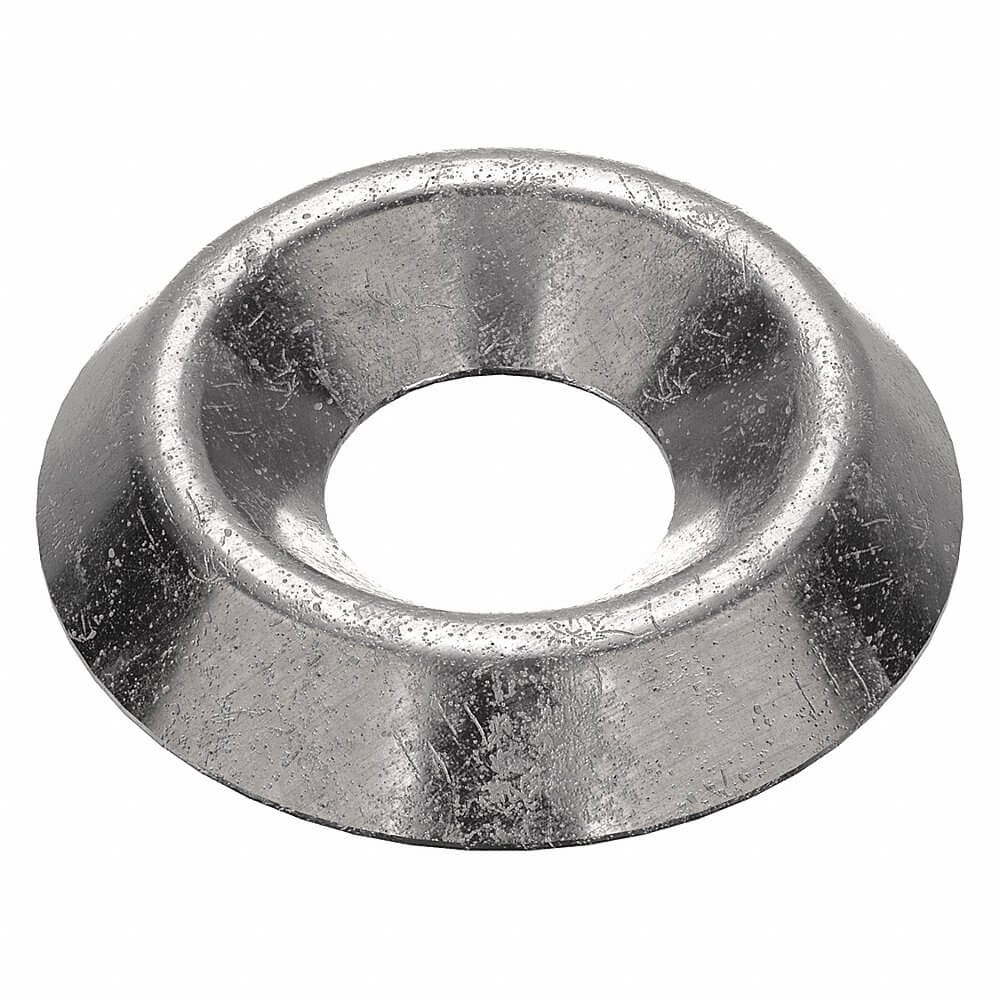

APPROVED VENDOR U51350.013.0001A
APPROVED VENDOR Z9930SSB

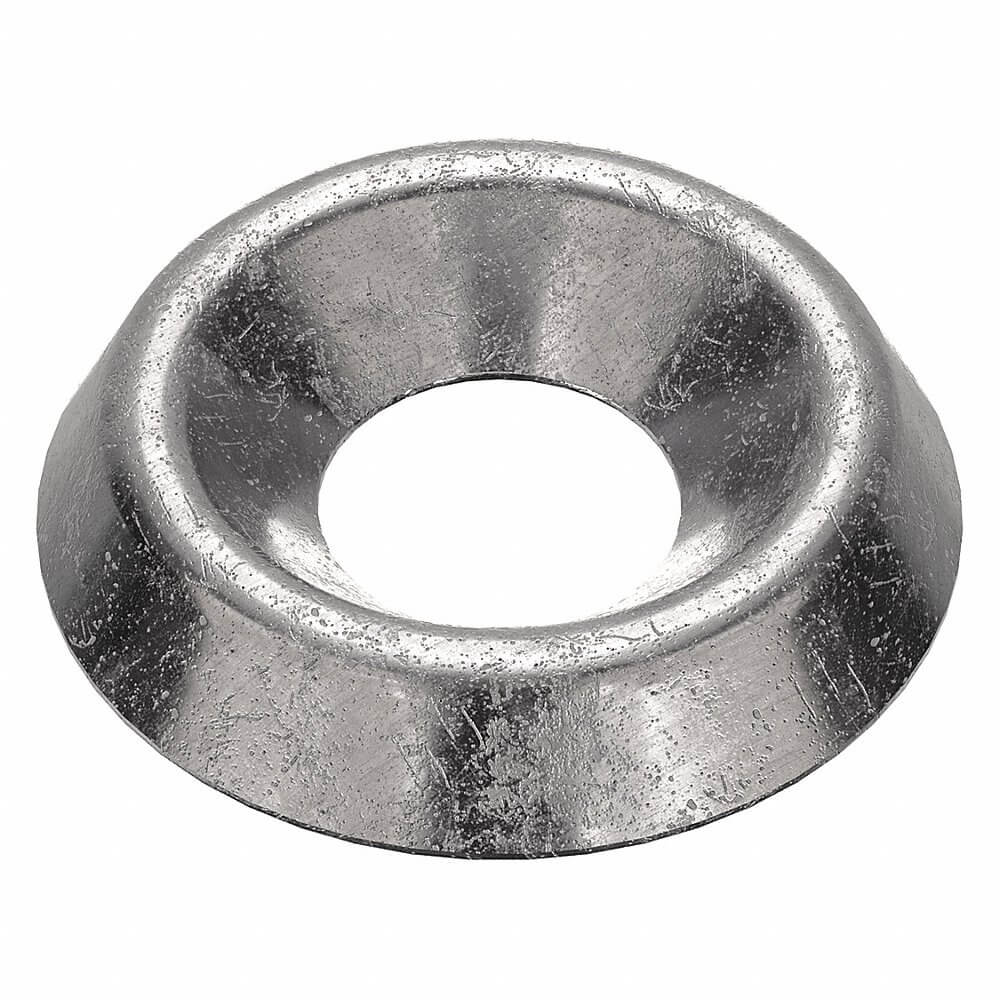

APPROVED VENDOR U51350.016.0001C

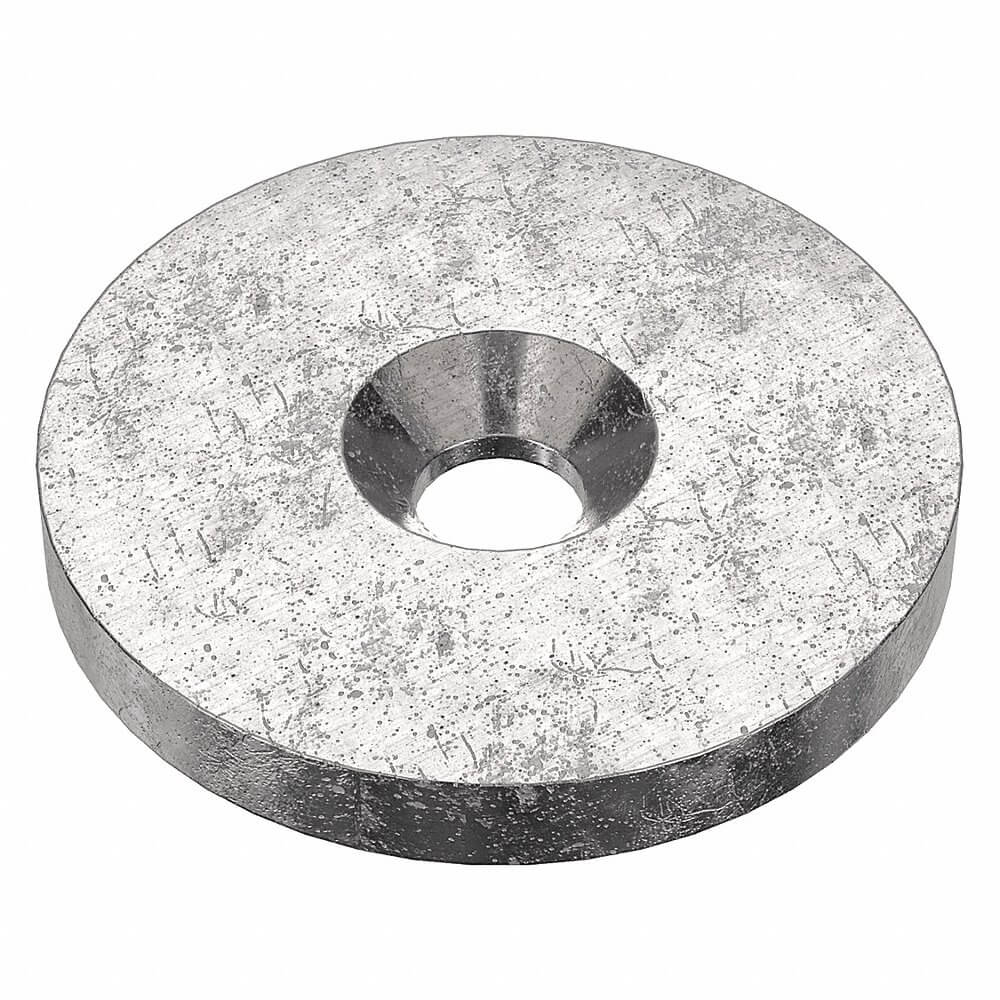

APPROVED VENDOR Z9931SSD

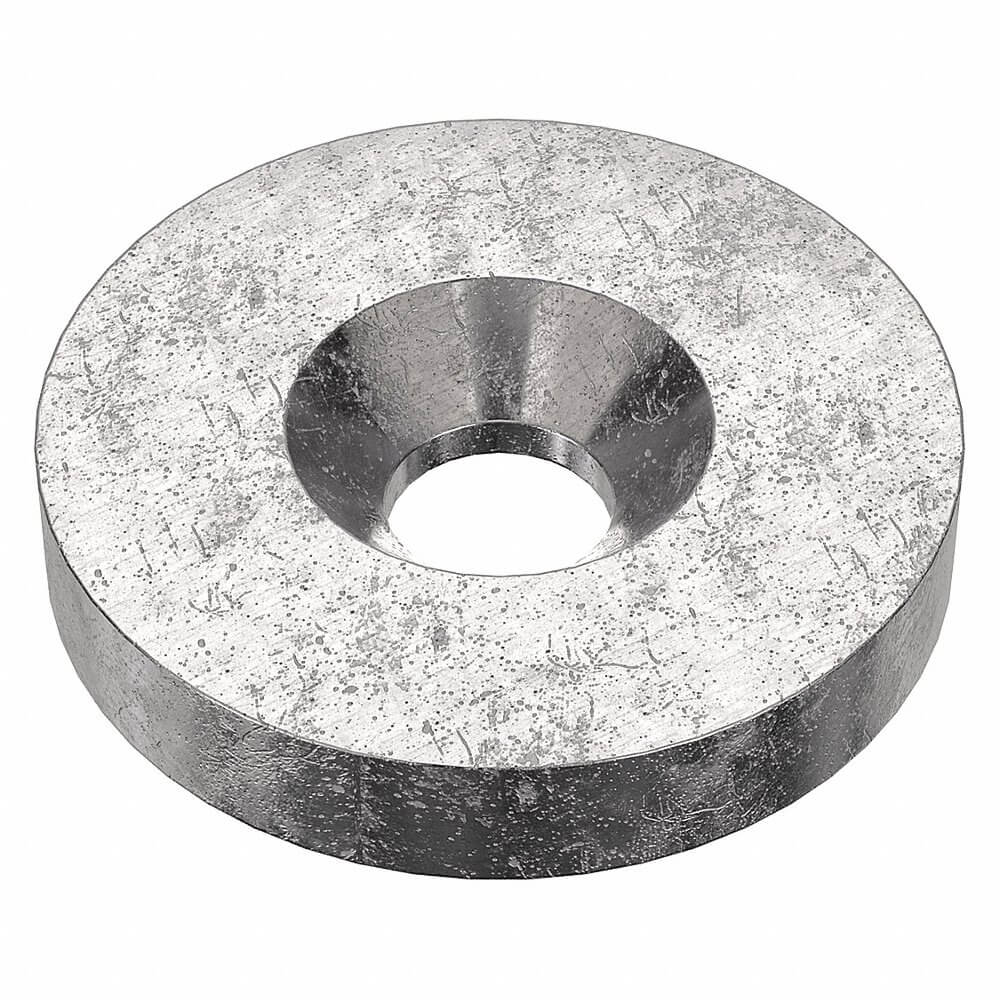

APPROVED VENDOR Z9932SSE

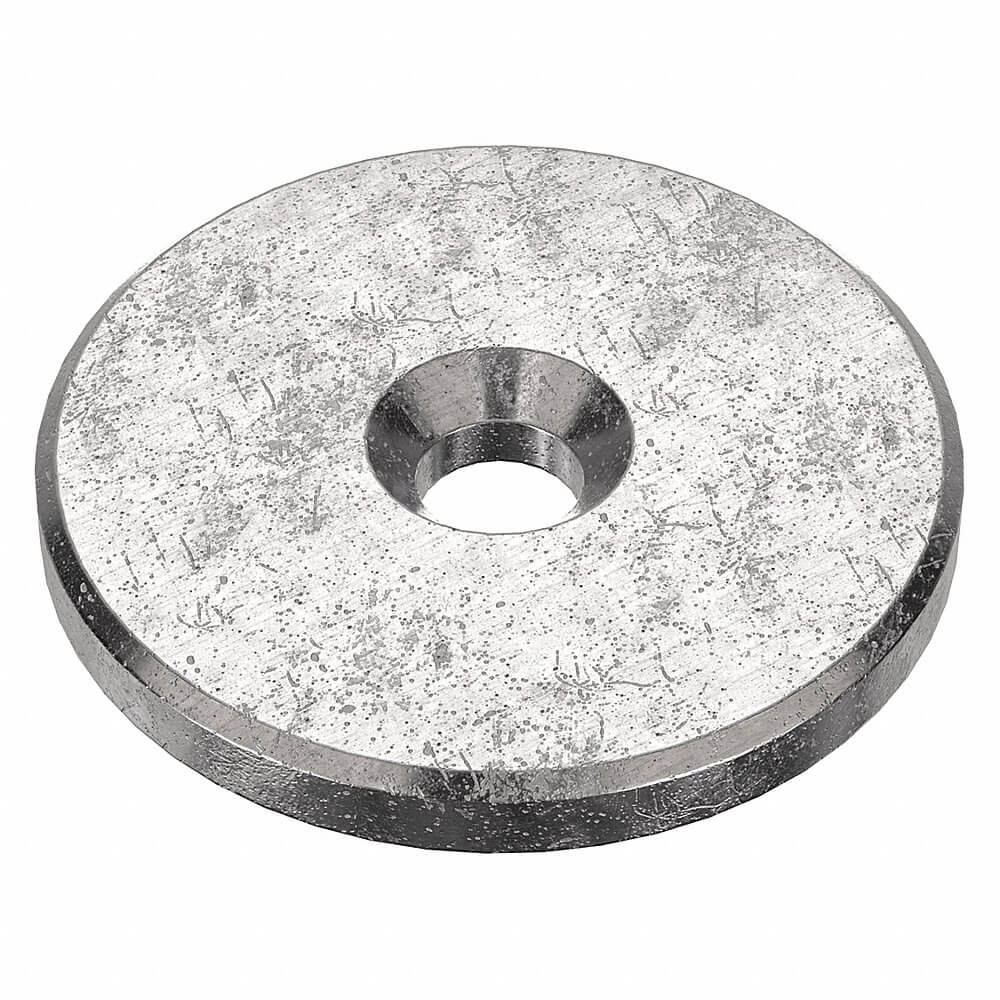

APPROVED VENDOR Z9933SSF

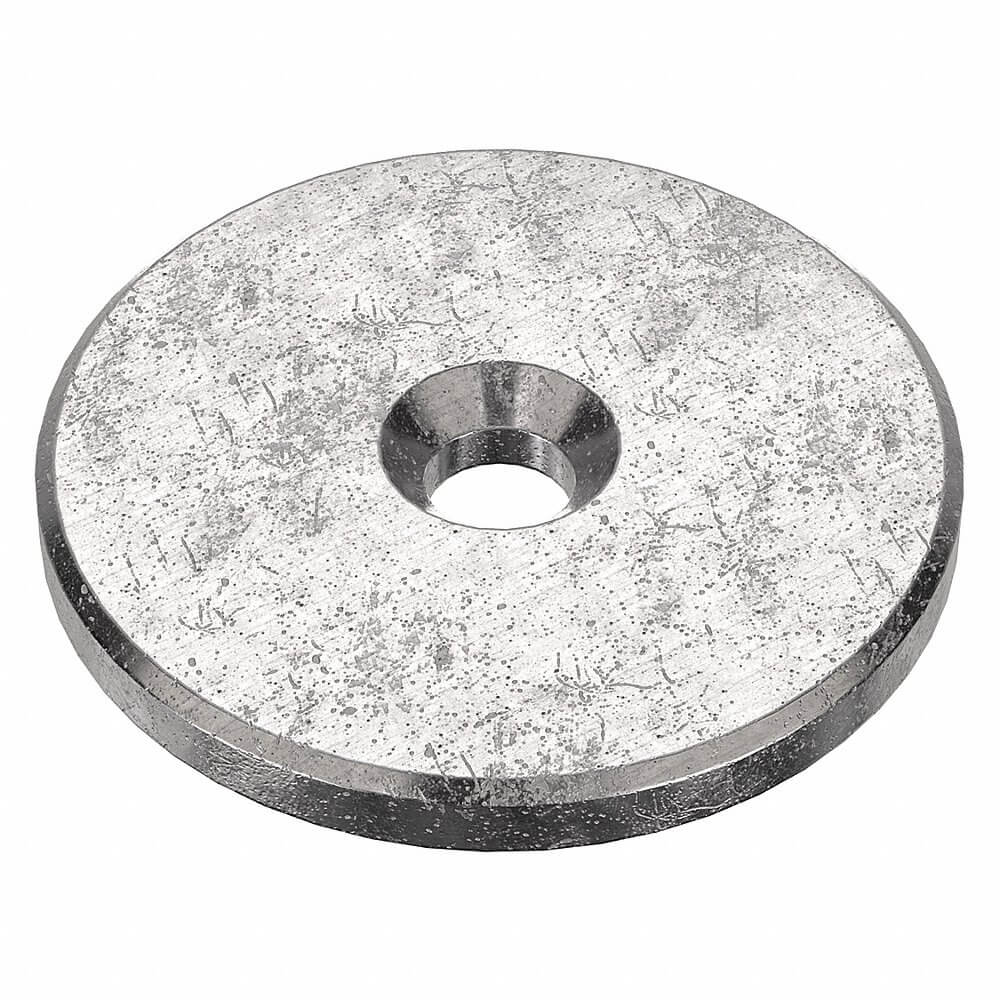

APPROVED VENDOR Z9934SSG
APPROVED VENDOR U51350.019.0001H

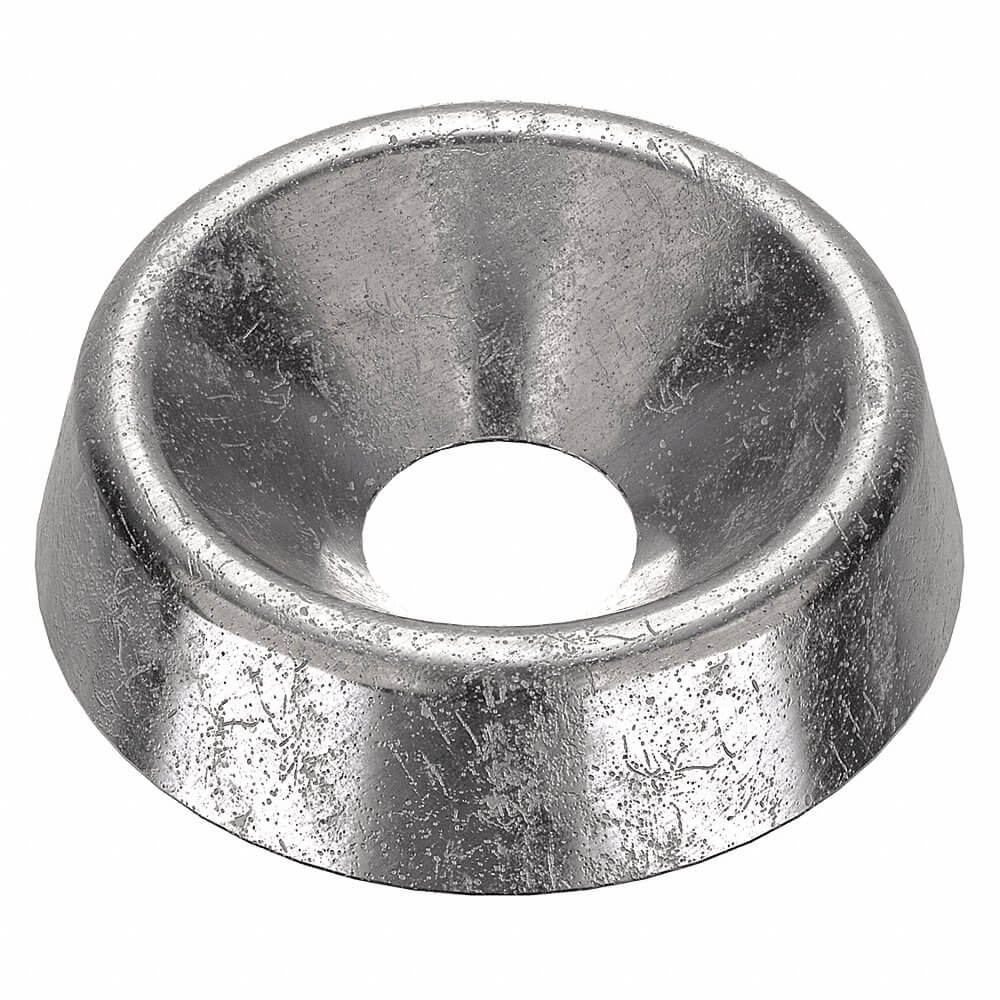

APPROVED VENDOR U51350.021.0001I

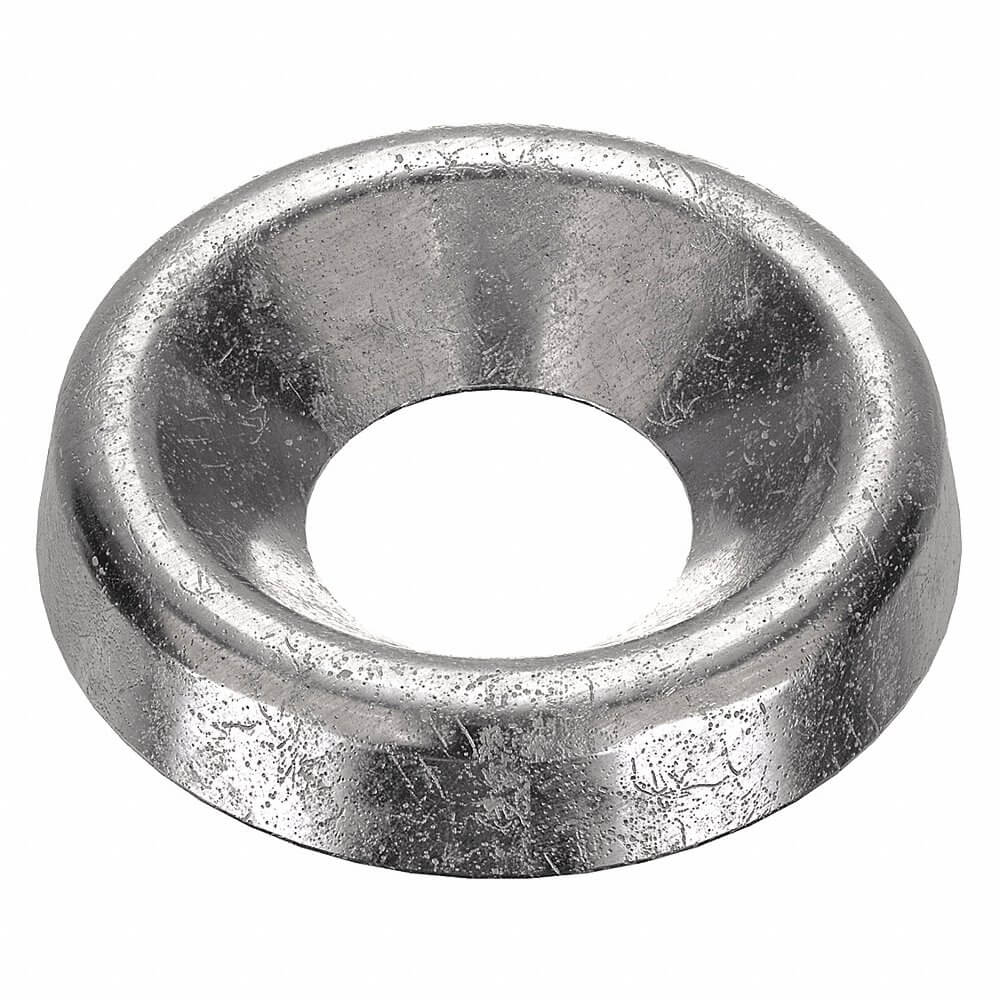

APPROVED VENDOR U51350.025.0001J

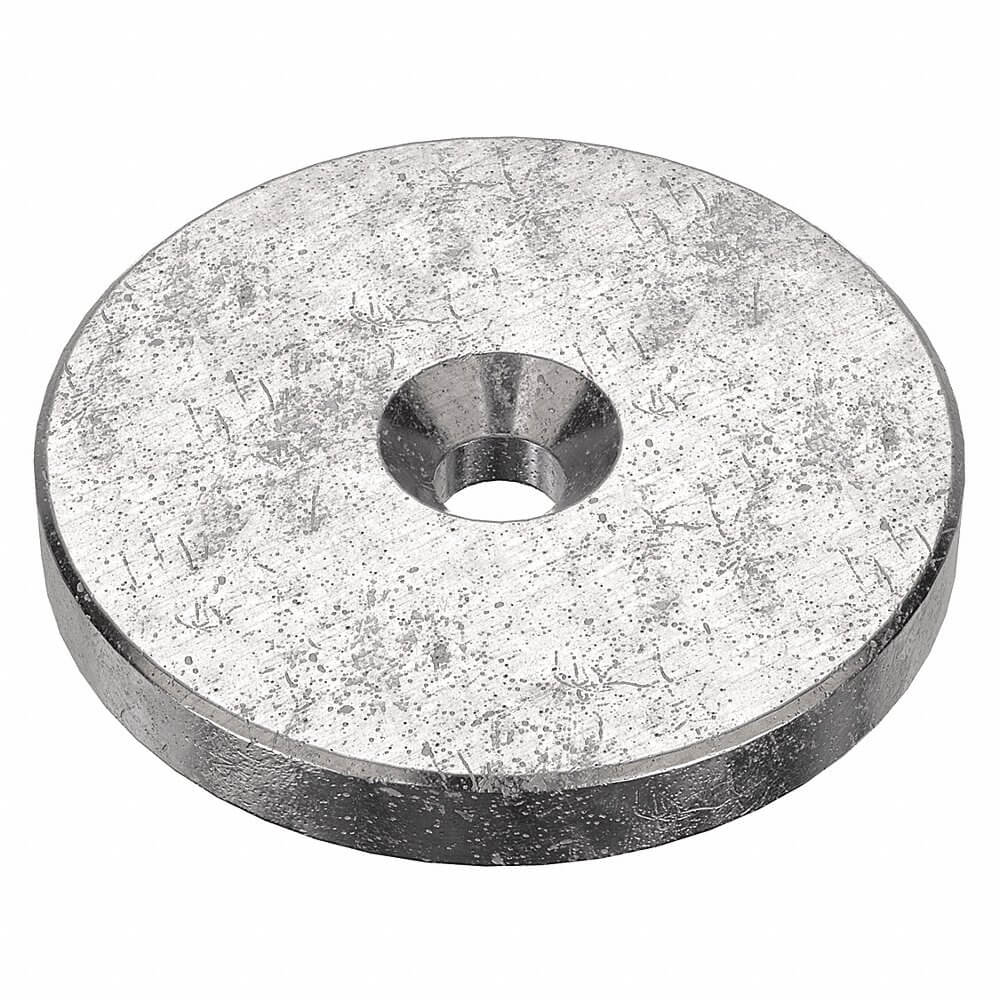

APPROVED VENDOR Z9939SSK
APPROVED VENDOR Z9938SSL

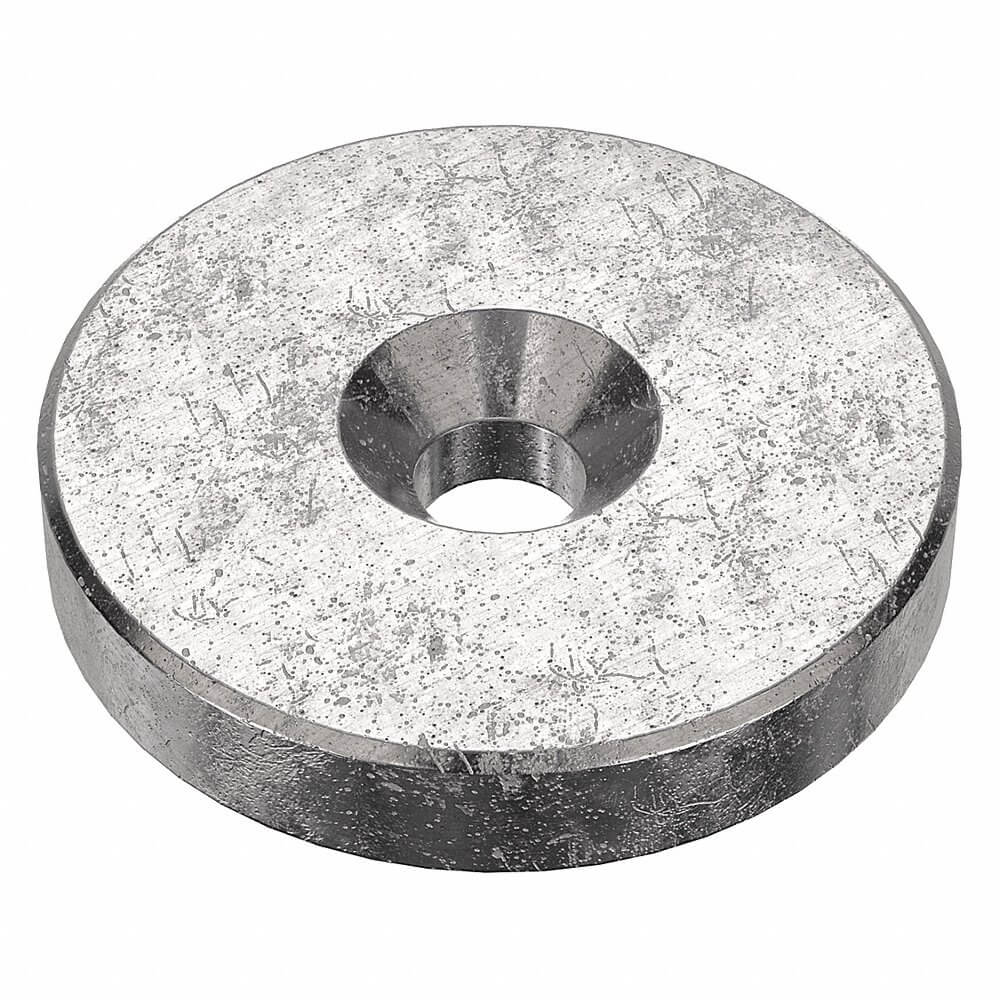

APPROVED VENDOR Z9937SSM
APPROVED VENDOR Z9936SSN

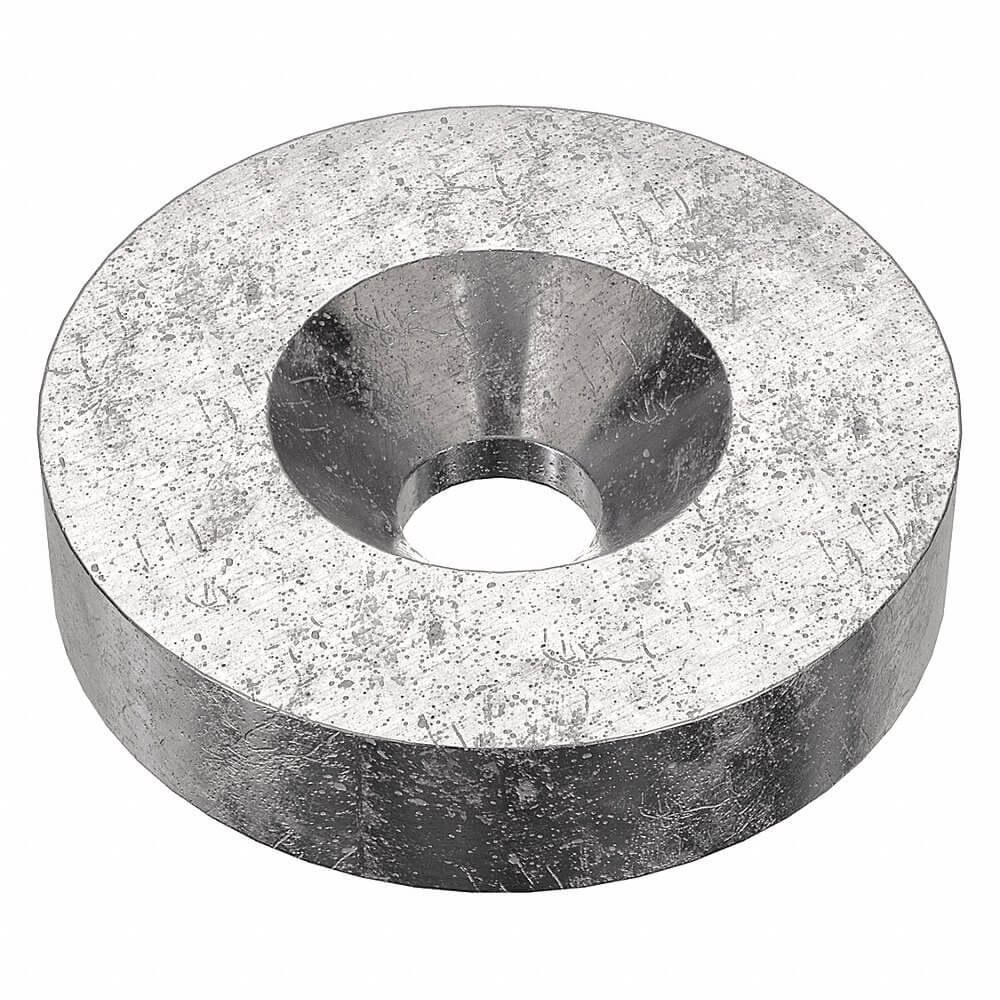

APPROVED VENDOR Z9935SSO

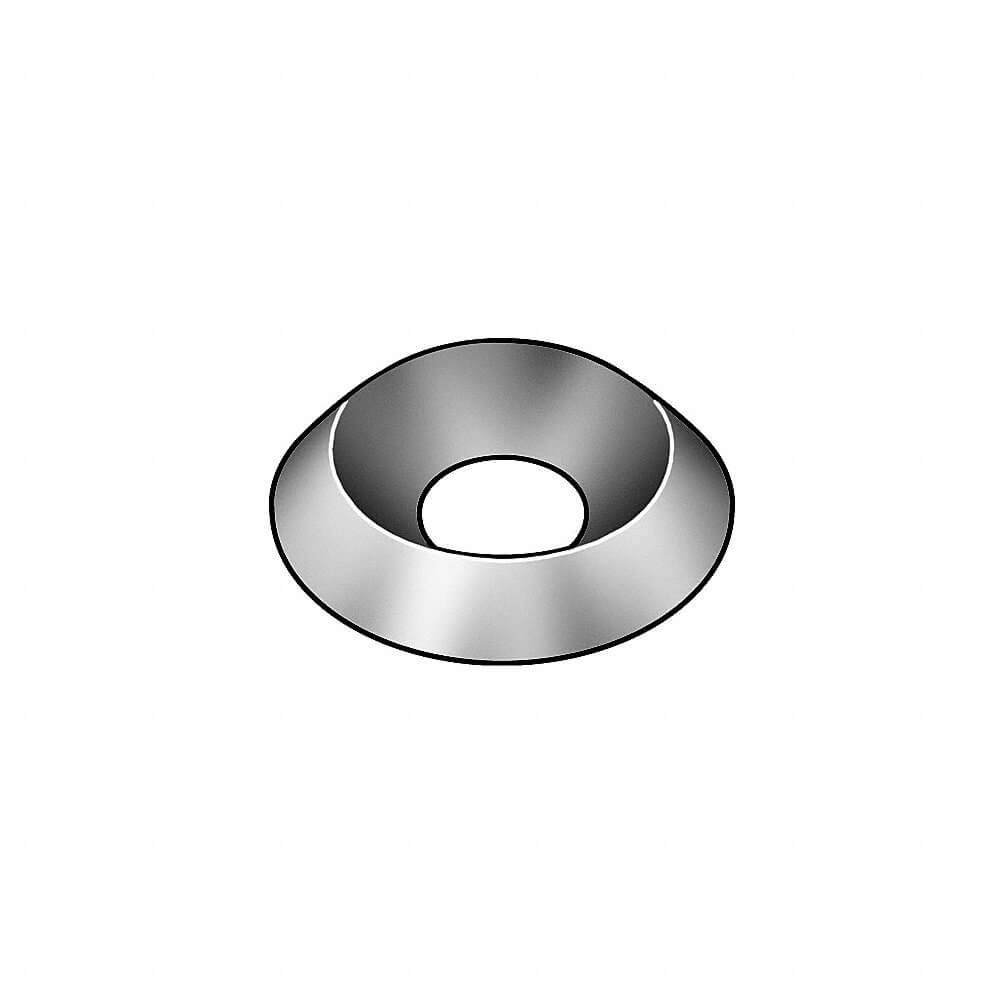

APPROVED VENDOR FINWX00300-010P1P
StyleModelFor Screw SizeOverall HeightOutside Dia.Countersink AngleHeight ToleranceHardnessColorTensile StrengthPricePkg. Qty.
AU51350.013.0001#60.078"29/64"82°+0.043"Rockwell B70Silver-€14.13100
BZ9930SS#81/8"3/4"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€14.131
CU51350.016.0001#80.094"33/64"82°+0.038"Rockwell B70Silver-€14.13100
DZ9931SS#81/8"1"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€18.971
EZ9932SS#100.14"13/16"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€21.081
FZ9933SS#100.14"1 1/8"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€34.741
GZ9934SS#100.14"1 1/4"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€30.011
HU51350.019.0001#100.109"19/32"82°+0.05"Rockwell B70Silver-€18.62100
IU51350.021.0001#120.265"11/16"82°-0.139"Rockwell B70Silver-€24.15100
JU51350.025.00011/4"0.156"25/32"82°-0.005" to +0.014"Rockwell B70Silver-€30.03100
KZ9939SS1/4"0.281"2"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€110.391
LZ9938SS1/4"0.281"1 3/4"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€69.791
MZ9937SS1/4"0.281"1 1/2"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€48.021
NZ9936SS1/4"0.281"1 3/8"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€49.171
OZ9935SS1/4"0.281"1 1/4"82°-0.01" to +0.01"Rockwell B85-B95-90000 psi€34.661
PFINWX00300-010P1M31.8 mm10 mm90°----€15.5510
PFINWX00400-010P1M42.3 mm14 mm90°----€20.2310
PFINWX00500-005P1M52.8 mm16 mm90°----€29.895
PFINWX00600-005P1M63.3 mm18 mm90°----€14.135
APPROVED VENDOR -

Countersunk Washer, 8 For Screw Size, Steel, 17/32 In O.D., 0.109 In Overall Ht., 100PK

Countersunk Washer, 8 For Screw Size, Steel, 17/32 In O.D., 0.109 In Overall Ht., 100PK
ModelItemPrice (ex. VAT)Pkg. Qty.
FINWIS0-85-100PAB9HNJ€6.76
100
RIDGID -

Washer, Counter Sunk

Washer, Counter Sunk
ModelItemPrice (ex. VAT)Pkg. Qty.
47073BL9DQJ€14.811
RFQ

Countersunk Washers

Countersunk washers are used with oval and flat head screws to provide a bearing surface and sealing functionality. Raptor Supplies offers a wide range of countersunk washers from brands like Grainger and Micro-Plastics. These washers work similar to flat washers, but feature a bearing surface for flat head screws.

Frequently Asked Questions

How do countersunk washers provide better protection against vibrations than flat washers?

  • When installed, these countersunk washers push against the object for resisting vibrations.
  • They essentially act as springs. Driving a threaded fastener through the centre will force the washer's sides to collapse, thus pushing against the object.

What are finishing countersunk washers?

  • Finishing countersunk washers are also known as dress washers.
  • These washers are machined to be sturdier and provide a better appearance than standard countersunk washers.
  • Oval and flat head screws sit flush within these countersunk washers.

What are countersunk external-tooth lock washers?

These washers feature teeth that firmly grip heads of 82-degree flat head countersunk screws, preventing joints from loosening due to vibration.

What is the significance of countersunk tight-grip external-tooth lock washers?

The teeth on these washers bite deeper into the screw head & joint than normal external-tooth lock washers. They provide a solid hold, preventing 90-degree countersunk screws from loosening due to vibrations.
