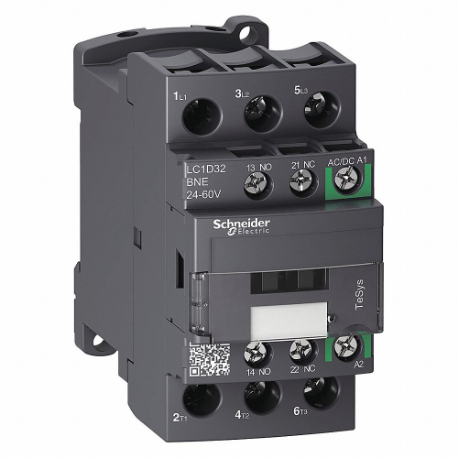

SCHNEIDER ELECTRIC LC1D32BNE Iec Magnetic Contactor, 24 To 60 VAC/Dc Coil Volts, 1No/1Nc
Item: CU2BNXModel: LC1D32BNECross Ref: 482Z32
7 In Stock
Ships within 2 days via
10.00% off
€288.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Application | Motor Control, Resistive Load |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Volts | 24-60V AC/DC |
| Contactor Style | IEC |
| Depth | 3.62" |
| Electrical Operating Durability | 2100000, 900000 |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Features | Built-In Bi-Directional Peak Limiting |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 32A |
| Full Load Amps-resistive | 50A |
| Full Load Current - Resistive | 50A |
| Height | 3.35" |
| Hold Va | 0.9 VA |
| Horsepower @ Single Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase (600 Vac) | 25 hp |
| Horsepower @ Three Phase - 208v Ac | 10 hp |
| Horsepower @ Three Phase - 480v Ac | 20 hp |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 240v | 5 hp |
| Hp @ 3 Phase - 208v | 10 hp |
| Hp @ 3 Phase - 240v | 10 hp |
| Hp @ 3 Phase - 480v | 20 hp |
| Hp @ 3 Phase - 575v | 25 hp |
| Impulse Withstand Voltage | 6 kV |
| Includes Auxiliary Contacts | Yes |
| Includes Protective Cover | Yes |
| Inrush Va | 15 VA |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 15000000 |
| Minimum Operating Temperature | -40°F |
| Mounts On | Plate, Rail |
| Nominal Coil Voltage @ 60hz | 24/48V AC |
| Non-overlap Time | 1.5 ms |
| Number Of Auxillary Contacts | 2 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 3.62" |
| Overall Height | 3.35" |
| Overall Width | 1.77" |
| Phase | Three |
| Rated Insulation Volts | 690V |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Series | Tesys Deca |
| Terminal Connection Type | Screw Clamp Terminals |
| Watts Loss | 0.6 W |
| Width | 1.77" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 8.51 |
| Ship length (cm) | 9.19 |
| Ship width (cm) | 4.5 |
| Country of Origin | FR |
