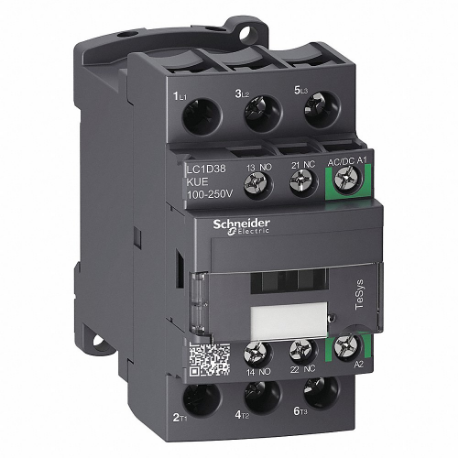

SCHNEIDER ELECTRIC LC1D38KUE Iec Magnetic Contactor, 100 To 250 VAC/Dc Coil Volts, 1No/1Nc
Item: CU2BMGModel: LC1D38KUECross Ref: 482Z37
7 In Stock
Ships within 2 days via
5.00% off
€608.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 100-250V AC/DC |
| Contactor Style | IEC |
| Depth | 3.62" |
| Electrical Operating Durability | 1800000, 900000 |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 38A |
| Full Load Amps-resistive | 50A |
| Height | 3.35" |
| Hp @ 1 Ph-240v | 5 hp |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 1 Phase-240v | 5 hp |
| Hp @ 3 Ph-480v | 20 hp |
| Hp @ 3 Phase-208v | 10 hp |
| Hp @ 3 Phase-240v | 10 hp |
| Hp @ 3 Phase-480v | 20 hp |
| Hp @ 3 Phase-575v | 25 hp |
| Hp @ 3 Phase-600v | 25 hp |
| Included Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Max. Operating Temp. | 140°F |
| Max. Voltage | 690V AC |
| Mechanical Operating Durability | 15000000 |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Material | Not Applicable |
| No. Of Auxillary Contacts | 2 |
| No. Of Normally Open Main Contacts | 3 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120/240V AC |
| Overall Depth | 3.62" |
| Overall Height | 3.35" |
| Overall Width | 1.77" |
| Phase | 3 |
| Product Datasheet | schneider-electric-lc1d38kue.pdf |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Series | Tesys Deca |
| Terminal Connection Type | Screw Clamp Terminals |
| Width | 1.77" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 8.51 |
| Ship length (cm) | 9.19 |
| Ship width (cm) | 4.5 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Coil Voltage | No. Of Poles | Height | Frequency | Full Load Amps-inductive | Full Load Amps-resistive | Included Auxiliary Contacts | Reversing Capability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LP1K1201BD | 24V | 3 | - | 50/60 Hz | 12A | 20A | Yes | Non Reversing | €144.86 | |
|
LP1K0601BD3 | 24V DC | 3 | 58 mm | - | 6A | 10A | - | - | €130.62 | |
 |
LC1D50AF7 | 110V AC | 3 | 122 mm | - | 50A | 80A | - | - | €442.20 | |
 |
LC1D18E7 | 48V | 3 | 77 mm | - | 18A | 32A | - | - | €286.66 | |
 |
LC1D18F7 | 110V AC | 3 | - | 50/60 Hz | 18A | - | Yes | Non Reversing | €126.17 | |
 |
LC1D258F7 | 110V AC | 4 | 4.13" | 50/60 Hz | 25A | 40A | Yes | Non Reversing | €315.79 | |
 |
LC1D25F7 | 110V AC | 3 | 3.35" | 50/60 Hz | 25A | 40A | Yes | Non Reversing | €268.74 |
