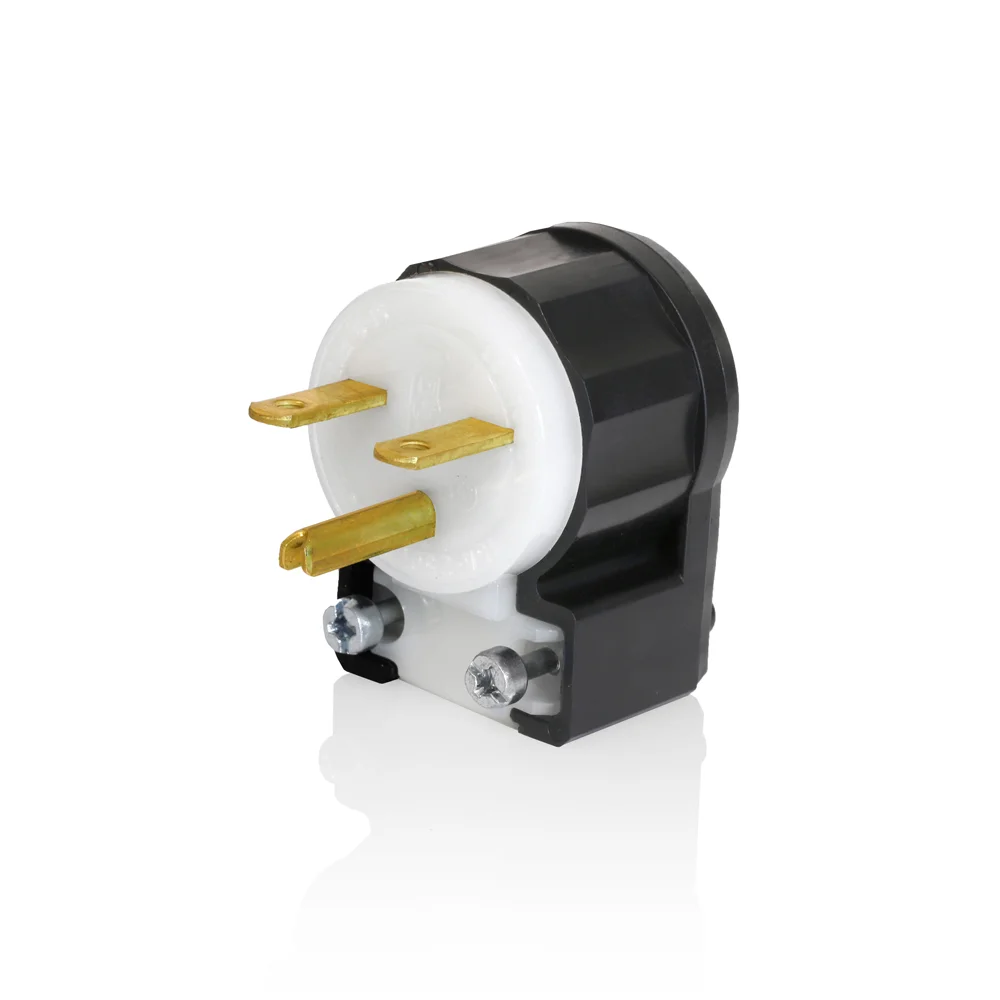

LEVITON 5666-CA Plug, 6-15P, 15 A, 250VAC, Black/White, 2 Poles | CR9HLA 792TV8

LEVITON 5666-CA Plug, 6-15P, 15 A, 250VAC, Black/White, 2 Poles

Item: CR9HLAModel: 5666-CACross Ref: 792TV8
7 In Stock
Color

Ships within 2 days via

€34.45
10.00% off
€31.01 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Plug
Amps 15A
Blade Material Brass
Body Material Nylon
Connection Orientation Angled
Current Rating 15A
Environment Dry
For Environment Dry
For Maximum Cable Diameter 0.7"
For Minimum Cable Diameter 0.245"
Grounding Grounded
Housing Color Black, White
Housing Material Impact Modified Nylon
Hp 2 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Operating Temp. 60°C
Maximum Operating Temperature 140°F
Maximum Wire Size 10 AWG
Min. Operating Temp. -40°C
Min. Wire Size 18 AWG
Minimum Operating Temperature -40°F
Nema Enclosure Rating Not Rated
Nema Plug Configuration 6-15P
No. Of Wires 3
Number Of Blades 3
Number Of Poles 2
Phase Single
Polarized Yes
Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant
Standards Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13393
Ul 94 Flammability Rating V-2
Voltage 250V AC
Voltage Rating 250V AC
Wire Connection Type Screw Terminals
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.78
Ship height (cm)73.66
Ship length (cm)3.3
Ship width (cm)2.54
Country of OriginMX
