GENERAL ELECTRIC Bolt-On Circuit Breakers: TEYH Series
Filter
A
B
C
D
E
F| Style | Model | Amps | Ac Voltage Rating | Phase | Min. Wire Size | Terminal Connection Type | Dc Voltage | Max. Wire Size | Circuit Breaker Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TEYH3015B | 15A | 277/480V AC | 3 | 14 AWG | Screw Clamp | Not Rated | 10 AWG | Standard | €1,012.18 | |
| B | TEYH1015B | 15A | 277V AC | 1 | 14 AWG | Screw Clamp | Not Rated | 10 AWG | Standard | €327.67 | |
| C | TEYH2015B | 15A | 277/480V AC | 1 | 14 AWG | Screw Clamp | Not Rated | 10 AWG | Standard | €896.02 | |
| C | TEYH2020B | 20A | 277/480V AC | 1 | 14 AWG | Screw Clamp | Not Rated | 10 AWG | Standard | €896.02 | |
| B | TEYH1020B | 20A | 277V AC | 1 | 14 AWG | Screw Clamp | Not Rated | 10 AWG | Standard | €327.67 | |
| D | TEYH3020B | 20A | 277/480V AC | 3 | 14 AWG | Screw Clamp | Not Rated | 10 AWG | Standard | €1,012.18 | |
| C | TEYH2025B | 25A | 277/480V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €866.65 | |
| E | TEYH3025B | 25A | 277/480V AC | 3 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €1,049.88 | |
| B | TEYH1025B | 25A | 277V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €894.24 | |

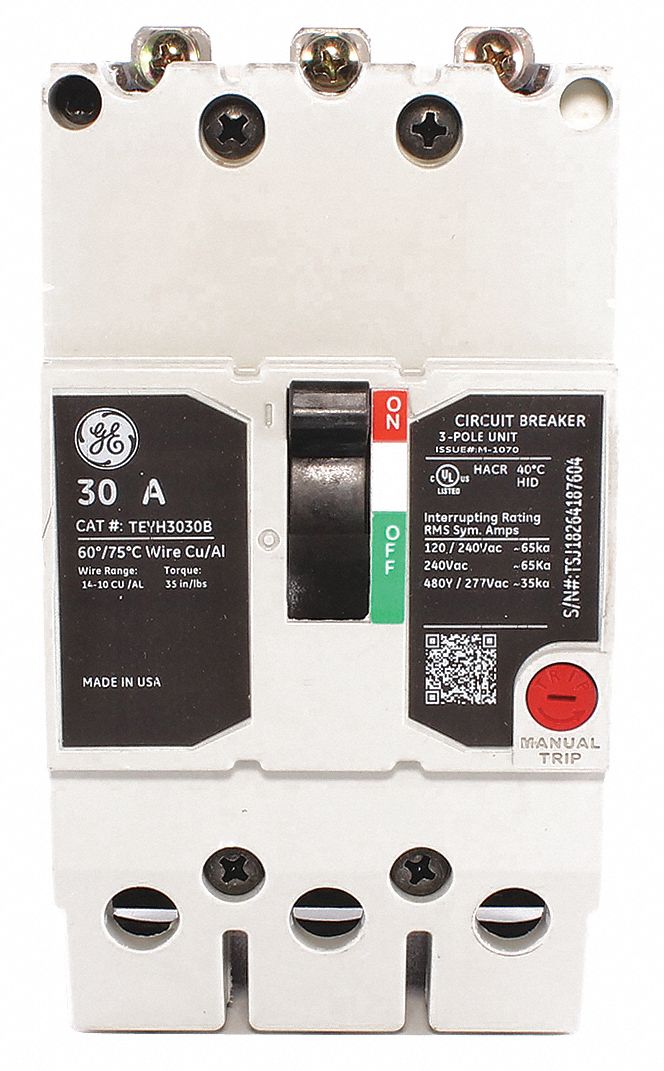

| F | TEYH3030B | 30A | 277/480V AC | 3 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €1,012.18 | |
| B | TEYH1030B | 30A | 277V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €327.67 | |
| C | TEYH2030B | 30A | 277/480V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €2,215.34 | |
| E | TEYH3035B | 35A | 277/480V AC | 3 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €1,049.88 | |
| B | TEYH1035B | 35A | 277V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €894.24 | |
| C | TEYH2035B | 35A | 277/480V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €2,215.34 | |
| C | TEYH2040B | 40A | 277/480V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €896.02 | |
| B | TEYH1040B | 40A | 277V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €337.30 | |
| E | TEYH3040B | 40A | 277/480V AC | 3 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €1,012.18 | |
| C | TEYH2045B | 45A | 277/480V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €2,215.34 | |
| B | TEYH1045B | 45A | 277V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €894.24 | |
| E | TEYH3045B | 45A | 277/480V AC | 3 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €1,049.88 | |
| C | TEYH2050B | 50A | 277/480V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €896.02 | |
| B | TEYH1050B | 50A | 277V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €894.24 | |
| E | TEYH3050B | 50A | 277/480V AC | 3 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €1,012.18 | |
| B | TEYH1060B | 60A | 277V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €894.24 | |
| E | TEYH3060B | 60A | 277/480V AC | 3 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €1,012.18 | |
| C | TEYH2060B | 60A | 277/480V AC | 1 | 10 AWG | Lug | Not Rated | 4 AWG | Standard | €896.02 | |
| E | TEYH3070B | 70A | 277/480V AC | 3 | 4 AWG | Lug | Not Rated | - | Standard | €1,081.40 | |
| B | TEYH1070B | 70A | 277V AC | 1 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €1,081.79 | |
| C | TEYH2070B | 70A | 277/480V AC | 1 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €2,673.91 | |
| C | TEYH2080B | 80A | 277/480V AC | 1 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €866.65 | |
| E | TEYH3080B | 80A | 277/480V AC | 3 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €1,081.40 | |
| C | TEYH2090B | 90A | 277/480V AC | 1 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €866.65 | |
| E | TEYH3090B | 90A | 277/480V AC | 3 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €1,081.40 | |
| E | TEYH3100B | 100A | 277/480V AC | 3 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €1,081.40 | |
| C | TEYH2100B | 100A | 277/480V AC | 1 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €866.65 | |
| E | TEYH3110B | 110A | 277/480V AC | 3 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €7,357.63 | |
| C | TEYH2110B | 110A | 277/480V AC | 1 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €6,208.29 | |
| C | TEYH2125B | 125A | 277/480V AC | 1 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €6,208.29 | |
| E | TEYH3125B | 125A | 277/480V AC | 3 | 4 AWG | Lug | Not Rated | 2 AWG | Standard | €7,182.09 |
Bolt-On Circuit Breakers: TEYH Series
General Electric TEYH Series circuit breakers are suitable for use with lighting panelboards or grounded 480Y / 277VAC systems to deliver complete protection against short-circuit conditions and current overloads. These UL-listed devices feature a thermal-magnetic, non-interchangeable trip unit for instantly reacting against severe power surges while avoiding tripping on mild overloads. They are further integrated with bolt-on mounting facility for ease-of-installation and compatibility with lug-lug / unit-mount applications. Choose from an extensive range of these single- / three-phase circuit breakers available in screw clamp and lug terminal connections on Raptor Supplies.
