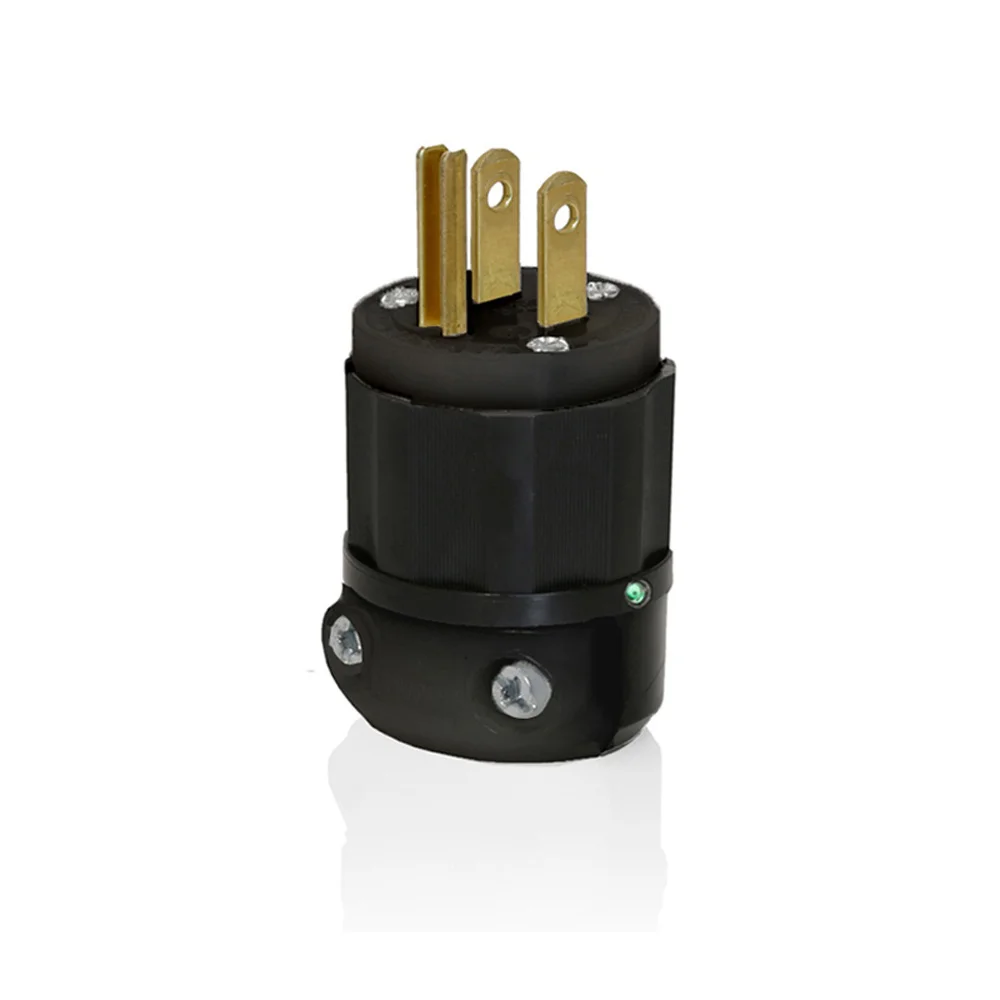

LEVITON 5266-PLB Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Item: CR9HJMModel: 5266-PLBCross Ref: 792TM5
7 In Stock
Ships within 2 days via
5.00% off
€43.44 /unit
This product can only be shipped in multiples of 20Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Length | 1.98" |
| Body Material | Nylon |
| Clamp Insert Material | Nylon |
| Color | Black |
| Connection Orientation | Straight |
| Cord Range | 0.245" to 0.7" |
| Cord-clamp | Nylon |
| Device Type | Straight Blade Plug |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 1.39" |
| Features | Power Indication |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Max. Cable Dia. | 0.7" |
| For Min. Cable Dia. | 0.245" |
| Grade | General Use |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Housing Material | Impact Modified Nylon |
| Hp | 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 60°C |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| No. Of Blades | 3 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 1.53" |
| Polarized | Yes |
| Power Indicating Light | Yes |
| Resistance Properties | Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 16.83 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Wiring Style | Nema Plug Configuration | Connection Orientation | Housing Color | Polarized | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7251-C | 20A | 120/208V AC | Standard | - | Straight | Yellow | Yes | Super Tough Nylon | €202.86 | |
 |
5266-PLC | 15A | 125V AC | Standard | 5-15P | Straight | Black, White | Yes | Impact Modified Nylon | €42.18 | |
 |
5266-C | 15A | 125V AC | Standard | 5-15P | Straight | Black, White | Yes | Impact Modified Nylon | €26.66 | |
 |
5266-CY | 15A | 125V AC | Standard | 5-15P | Straight | White, Yellow | Yes | Impact Modified Nylon | €23.11 | |
 |
5256-VY | 15A | 125V AC | Hinged | 5-15P | Straight | Yellow | Yes | Super Tough Nylon | €17.03 | |
 |
5366-C | 20A | 125V AC | Standard | 5-20P | Straight | Black, White | Yes | Impact Modified Nylon | €34.55 | |
 |
5366-CY | 20A | 125V AC | Standard | 5-20P | Straight | White, Yellow | Yes | Impact Modified Nylon | €46.12 |
