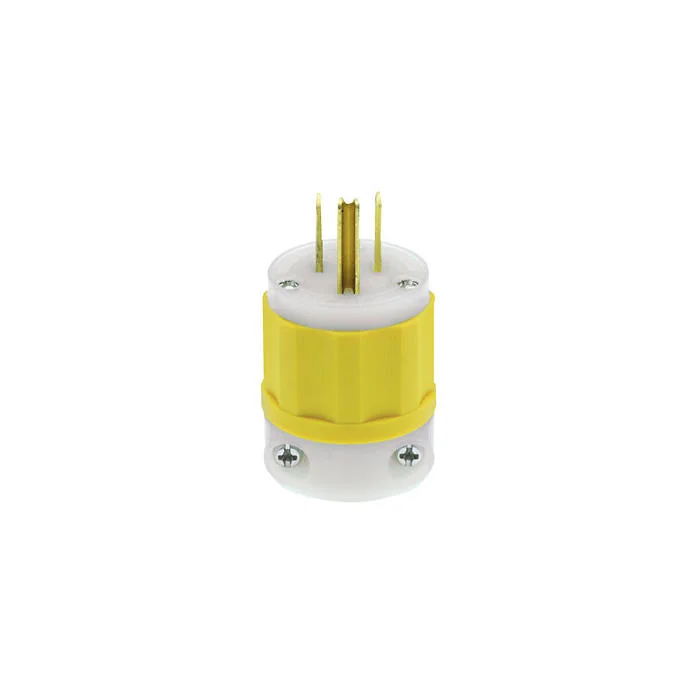

LEVITON 5266-CY Straight Blade Plug, 5-15P, 15 A, 125VAC, White/Yellow, 2 Poles
Item: CR9HJUModel: 5266-CYCross Ref: 792TM4
7 In Stock
Ships within 2 days via
10.00% off
€20.80 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Blade Material | Brass |
| Body Length | 1.98" |
| Body Material | Nylon |
| Connection Orientation | Straight |
| Current Rating | 15A |
| Environment | Dry |
| Face Dia. | 1.39" |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.7" |
| For Minimum Cable Diameter | 0.245" |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | White, Yellow |
| Housing Material | Impact Modified Nylon |
| Hp | 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | Not Rated |
| Nema Plug Configuration | 5-15P |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Outside Diameter | 1.53" |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13393 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.03 |
| Ship length (cm) | 3.89 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Wiring Style | Number Of Poles | Nema Plug Configuration | Connection Orientation | Housing Color | Number Of Blades | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7251-C | 20A | 120/208V AC | Standard | 4 | - | Straight | Yellow | 4 | €202.86 | |
 |
5266-PLB | 15A | 125V AC | Standard | 2 | - | Straight | Black | 3 | €45.73 | |
 |
5266-PLC | 15A | 125V AC | Standard | 2 | 5-15P | Straight | Black, White | 3 | €42.18 | |
 |
5266-C | 15A | 125V AC | Standard | 2 | 5-15P | Straight | Black, White | 3 | €26.66 | |
 |
5256-VY | 15A | 125V AC | Hinged | 2 | 5-15P | Straight | Yellow | 3 | €17.03 | |
 |
5366-C | 20A | 125V AC | Standard | 2 | 5-20P | Straight | Black, White | 3 | €34.55 | |
|
5366-CY | 20A | 125V AC | Standard | 2 | 5-20P | Straight | White, Yellow | 3 | €46.12 |
