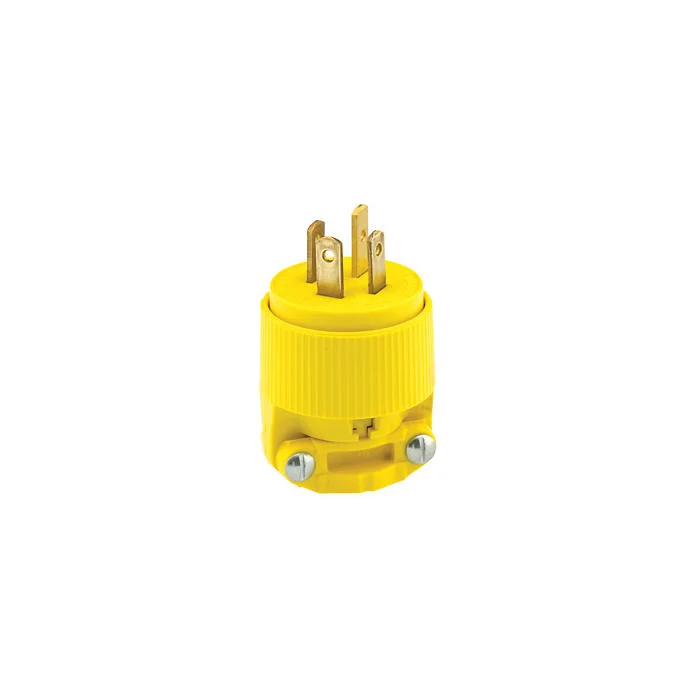

LEVITON 7251-C Straight Blade Plug, 18-20P, 20 A, 120/208VAC, Yellow, 4 Poles | CR9HJH 792TX8

LEVITON 7251-C Non-Grounding Straight Blade Plug, 3-Phase, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Yellow

Item: CR9HJHModel: 7251-CCross Ref: 792TX8
7 In Stock

Ships within 2 days via

€202.86
5.00% off
€192.71 /unit
This product can only be shipped in multiples of 30
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Plug
Ac Hp @ Rated Voltage 2 hp
Amps 20A
Amps Limiting Full Rated Current
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Blade Material Brass
Blades/contacts Solid Brass
Body Material Super Tough Nylon
Color Yellow
Connection Orientation Straight
Connection Type WYE
Cord Range 0.625" to 1.375"
Dielectric Voltage Withstands 2000V Per UL498
Flammability Rated V-2 Per UL 94
For Max. Cable Dia. 1 3/8"
For Min. Cable Dia. 5/8"
Grade General Use
Grounding Non Grounded , Non Grounding
Housing Color Yellow
Housing Material Super Tough Nylon
Hp 2 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Operating Temp. 140°F , 60°C
Max. Wire Size 10 AWG
Min. Operating Temp. -40°C , -40°F
Min. Wire Size 18 AWG
Nema Enclosure Rating Not Rated
Nema Rating NEMA WD-6
No. Of Blades 4
No. Of Phase 3
No. Of Poles 4
No. Of Wires 4
Operating Temp. -40°C to +60°C
Phase 3
Polarized Yes
Resistance Properties Corrosion Resistant
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399
Temp. Rise Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current
Terminal Accom. Up to 4 AWG
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Ul 94 Flammability Rating V-2
Voltage 120/208V AC
Wire Connection Type Screw Terminal
Wire Gauge 18 AWG to 10 AWG
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.96
Ship height (cm)31.12
Ship length (cm)40.01
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelAmpsVoltageWiring StyleNema Plug ConfigurationConnection OrientationHousing ColorPolarizedHousing MaterialPrice
LEVITON 5266-PLB Straight Blade Plug, 5-15P, 15 A, 125VAC, Black, 2 Poles, Screw Terminals, 5-15 | CR9HJM 792TM5 5266-PLB15A125V ACStandard-StraightBlackYesImpact Modified Nylon€45.73
LEVITON 5266-PLC Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJP 792TM6 5266-PLC15A125V ACStandard5-15PStraightBlack, WhiteYesImpact Modified Nylon€42.18
LEVITON 5266-C Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJQ 792TM2 5266-C15A125V ACStandard5-15PStraightBlack, WhiteYesImpact Modified Nylon€26.66
LEVITON 5266-CY Straight Blade Plug, 5-15P, 15 A, 125VAC, White/Yellow, 2 Poles | CR9HJU 792TM4 5266-CY15A125V ACStandard5-15PStraightWhite, YellowYesImpact Modified Nylon€23.11
LEVITON 5256-VY Straight Blade Plug, 5-15P, 15 A, 125VAC, Yellow, 2 Poles, Screw Terminals, 5-15 | CR9HJV 792TK3 5256-VY15A125V ACHinged5-15PStraightYellowYesSuper Tough Nylon€17.03
LEVITON 5366-C Straight Blade Plug, 5-20P, 20 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-20 | CR9HJY 792TT9 5366-C20A125V ACStandard5-20PStraightBlack, WhiteYesImpact Modified Nylon€34.55
LEVITON 5366-CY Straight Blade Plug, 5-20P, 20 A, 125VAC, White/Yellow, 2 Poles | CR9HKB 792TU0 5366-CY20A125V ACStandard5-20PStraightWhite, YellowYesImpact Modified Nylon€46.12
