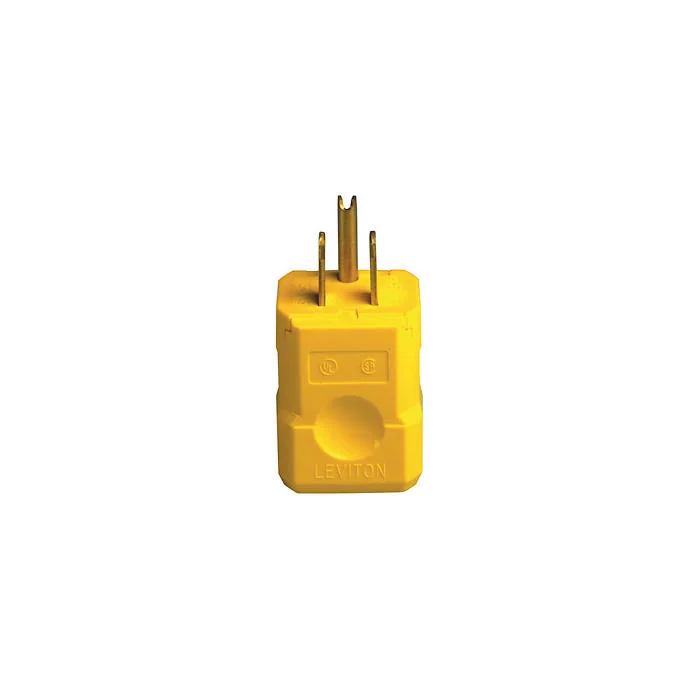

LEVITON 5256-VY Straight Blade Plug, 5-15P, 15 A, 125VAC, Yellow, 2 Poles, Screw Terminals, 5-15 | CR9HJV 792TK3

LEVITON 5256-VY Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow, Super Tough Nylon

Item: CR9HJVModel: 5256-VYCross Ref: 792TK3
7 In Stock
Color

Ships within 2 days via

€17.03
5.00% off
€16.18 /unit
This product can only be shipped in multiples of 30
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Plug
Amps 15A
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Back Cover Thermoplastic
Blade Material Brass
Blades/contacts Solid Brass
Body Length 1.81"
Body Material Super Tough Nylon
Clamp Insert Material Nylon
Color Yellow
Connection Orientation Straight
Cord Range 0.245" to 0.7"
Cord-clamp Nylon
Current Interrupting Certified For Current Interrupting At Full Rated Current
Current Rating 15A
Device Type Straight Blade Plug
Dielectric Voltage Withstands 2000V Per UL498
Environment Dry
Flammability Rated V-2 Per UL 94
For Environment Dry
For Maximum Cable Diameter 0.7"
For Minimum Cable Diameter 0.245"
Grade General Use
Grounding Grounded , Grounding
Housing Color Yellow
Housing Material Super Tough Nylon
Hp 1/2 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Operating Temp. 60°C
Max. Wire Size 10 AWG
Maximum Operating Temperature 140°F
Min. Operating Temp. -40°C
Min. Wire Size 18 AWG
Minimum Operating Temperature -40°F
Nema Enclosure Rating Not Rated
Nema Plug Configuration 5-15P
Nema Rating NEMA WD-6
No. Of Wires 3
Number Of Blades 3
Number Of Poles 2
Operating Temp. -40°C to +60°C
Phase Single
Polarized Yes
Product Datasheet leviton-5256-vy.pdf
Resistance Properties Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant
Standards Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 18 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Brass
Torque Range 12 lbs.-in. to 14 lbs.-in.
Ul 94 Flammability Rating V-2
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Type Screw Terminals
Wire Module Nylon
Wiring Style Hinged

Shipping Info:

Ship weight (kg) 0.32
Ship height (cm)22.86
Ship length (cm)23.81
Ship width (cm)7.62
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelAmpsVoltageWiring StyleNumber Of PolesNema Plug ConfigurationConnection OrientationHousing ColorNumber Of BladesPrice
LEVITON 7251-C Straight Blade Plug, 18-20P, 20 A, 120/208VAC, Yellow, 4 Poles | CR9HJH 792TX8 7251-C20A120/208V ACStandard4-StraightYellow4€202.86
LEVITON 5266-PLB Straight Blade Plug, 5-15P, 15 A, 125VAC, Black, 2 Poles, Screw Terminals, 5-15 | CR9HJM 792TM5 5266-PLB15A125V ACStandard2-StraightBlack3€45.73
LEVITON 5266-PLC Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJP 792TM6 5266-PLC15A125V ACStandard25-15PStraightBlack, White3€42.18
LEVITON 5266-C Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJQ 792TM2 5266-C15A125V ACStandard25-15PStraightBlack, White3€26.66
LEVITON 5266-CY Straight Blade Plug, 5-15P, 15 A, 125VAC, White/Yellow, 2 Poles | CR9HJU 792TM4 5266-CY15A125V ACStandard25-15PStraightWhite, Yellow3€23.11
LEVITON 5366-C Straight Blade Plug, 5-20P, 20 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-20 | CR9HJY 792TT9 5366-C20A125V ACStandard25-20PStraightBlack, White3€34.55
LEVITON 5366-CY Straight Blade Plug, 5-20P, 20 A, 125VAC, White/Yellow, 2 Poles | CR9HKB 792TU0 5366-CY20A125V ACStandard25-20PStraightWhite, Yellow3€46.12
