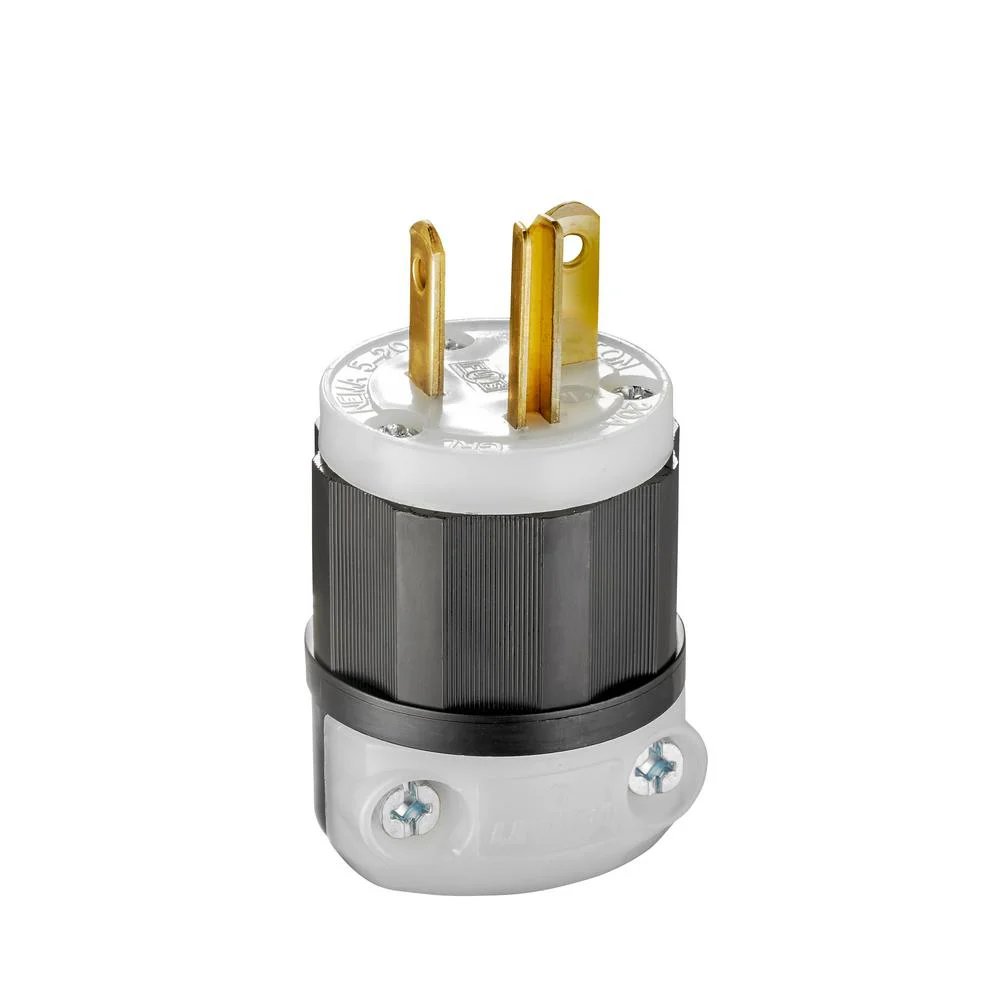

LEVITON 5366-C Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White, Super Tough Nylon

Item: CR9HJYModel: 5366-CCross Ref: 792TT9

7 In Stock

Ships within 2 days via

~~€34.55~~

5.00% off

€32.83 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Plug
Amps	20A
Amps Interrupting	Certified For Current Interrupting At Full Rated Current
Assembly Screws Finish	Zinc Plated
Assembly Screws Material	Steel
Back Cover	Thermoplastic
Blade Material	Brass
Blades/contacts	Solid Brass
Body Length	1.98"
Body Material	Nylon
Clamp Insert Material	Nylon
Color	Black And White
Connection Orientation	Straight
Cord Range	0.23" to 0.685"
Cord-clamp	Nylon
Device Type	Straight Blade Plug
Dielectric Voltage	Withstands 2000V Per UL498
Environment	Dry
Face Dia.	1.39"
Flammability	Rated HB Or Better UL94
For Environment	Dry
For Max. Cable Dia.	0.685"
For Min. Cable Dia.	0.23"
Grade	General Use
Grounding	Grounded , Grounding
Housing Color	Black, White
Housing Material	Impact Modified Nylon
Hp	1 hp
Insulation Material	Nylon
Ip Rating	Not Rated
Max. Operating Temp.	140°F , 60°C
Max. Wire Size	10 AWG
Min. Operating Temp.	-40°C , -40°F
Min. Wire Size	18 AWG
Nema Enclosure Rating	Not Rated
Nema Plug Configuration	5-20P
Nema Rating	NEMA WD-6
No. Of Blades	3
No. Of Poles	2
No. Of Wires	3
Operating Temp.	-40°C to +60°C
Outside Dia.	1.53"
Phase	1
Polarized	Yes
Product Datasheet	leviton-5366-c.pdf
Resistance Properties	Chemical Resistant, Impact Resistant, UV, Sunlight Resistant
Standards	Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13393
Temp. Rise	Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom.	18 AWG to 10 AWG
Terminal Inside Dia.	Brass Hot, Green Ground, Silver Neutral
Terminal Screws	Brass
Torque	10 lbs.-in. to 14 lbs.-in.
Ul 94 Flammability Rating	V-2
Voltage	125V AC
Wire Connection Type	Screw Terminal
Wire Module	Nylon
Wiring Style	Standard

Shipping Info:

Ship weight (kg)	0.07
Ship height (cm)	31.12
Ship length (cm)	37.47
Ship width (cm)	15.24
Country of Origin	MX

Documentation:

Datasheet

Product Variants

Model	Amps	Voltage	Wiring Style	Nema Plug Configuration	Connection Orientation	Housing Color	Polarized	Housing Material	Price
7251-C	20A	120/208V AC	Standard	-	Straight	Yellow	Yes	Super Tough Nylon	€202.86
5266-PLB	15A	125V AC	Standard	-	Straight	Black	Yes	Impact Modified Nylon	€45.73
5266-PLC	15A	125V AC	Standard	5-15P	Straight	Black, White	Yes	Impact Modified Nylon	€42.18
5266-C	15A	125V AC	Standard	5-15P	Straight	Black, White	Yes	Impact Modified Nylon	€26.66
5266-CY	15A	125V AC	Standard	5-15P	Straight	White, Yellow	Yes	Impact Modified Nylon	€23.11
5256-VY	15A	125V AC	Hinged	5-15P	Straight	Yellow	Yes	Super Tough Nylon	€17.03
5366-CY	20A	125V AC	Standard	5-20P	Straight	White, Yellow	Yes	Impact Modified Nylon	€46.12
