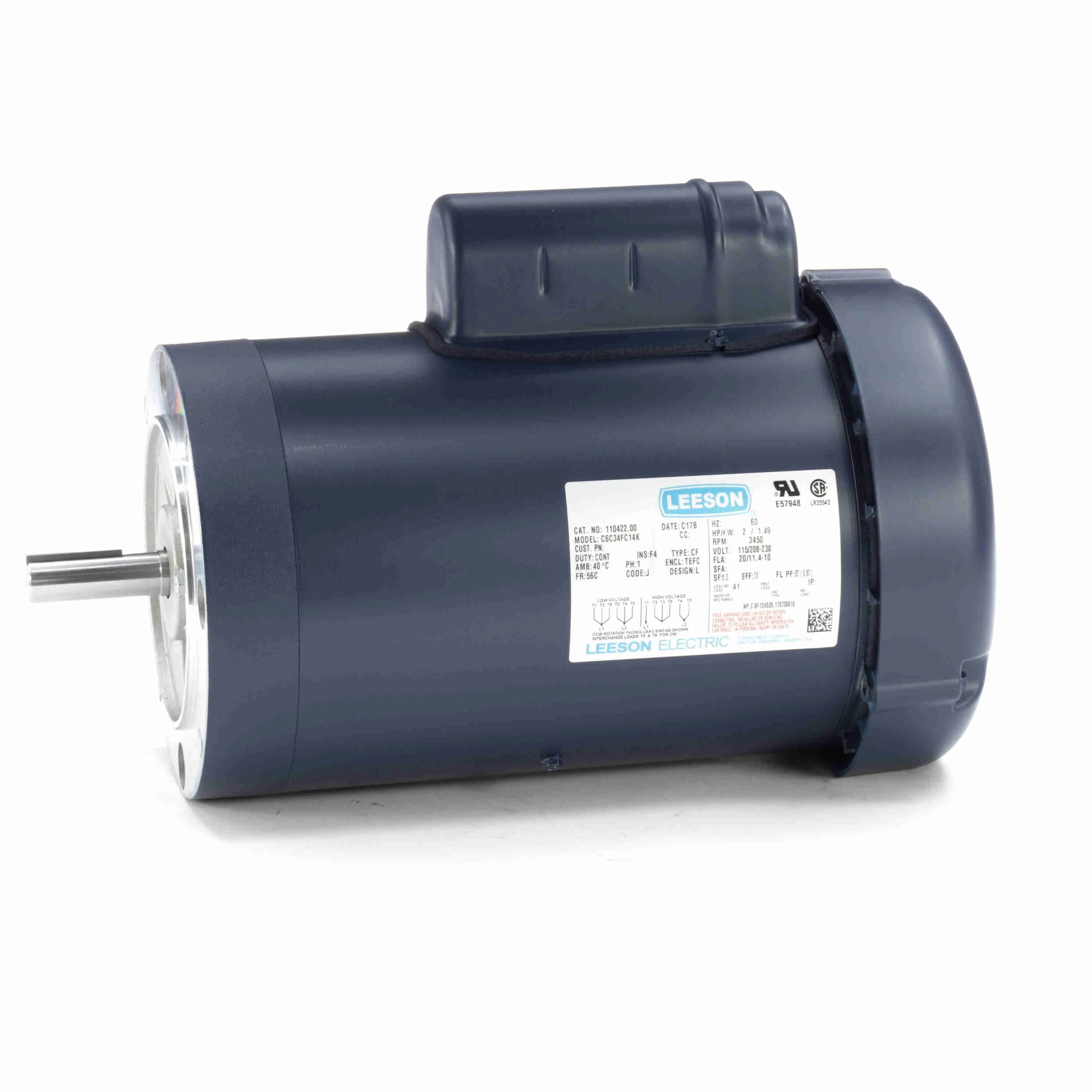

LEESON 110422.00 C6C34FC14K General Purpose Motor | AJ2QDB C6C34FC14K

LEESON 110422.00 C6C34FC14K General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM

Item: AJ2QDBModel: 110422.00Cross Ref: 820HP8 / C6C34FC14K
Check Availability
In Stock

Get it by Tuesday, Feb 17

€907.00 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Amps 20/10A
Code J
Conduit Box Position F1
Design Code L
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 73%
Electrical Type Capacitor Start, Induction Run
Enclosure Type Tefc
Frame 56C
Frame Length 8"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 20/11.4-10A
Grease Type Polyrex EM
Height 10 22/25"
Hp 2 hp
Insulation Class Class F
Ip Code IP43
Kva Code J
Kw 1.5 kW
Length 19 1/2"
Lubrication Polyrex EM
Max. Rpm 3450 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start
Mounting Type C Face, Footless
Nameplate Rpm 3600 RPM
Nema Design J, L
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 1.49 kW
Packaging B
Phase 1
Power Factor 87
Resistance Main 0.92 ohms
Rpm 3400-3600 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Across The Line
Thermal Protection No Protection
Type CF
Voltage 115/208-230V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 19.35
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 73
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 993500
    • Winding: C632213
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelVoltageHpFull Load AmpsMounting TypeService FactorNameplate RpmMotor TypeFramePrice
LEESON 101765.00 C4C17FC10C Single Phase Motor | AJ2PMD C4C17FC10C 101765.00115/208-230V1/4 hp5.4/2.4-2.7AC Face, Footless1.151800 RPMCapacitor Start48CZ€678.46
LEESON 101766.00 C4C17FC9C Single Phase Motor | AJ2PME C4C17FC9C 101766.00115/208-230V33/100 hp6.6/2.9-3.3AFace1.151725 RPMCapacitor StartS56C€416.65
LEESON 102864.00 C4C34FC12B Single Phase Motor | AJ2PNZ C4C34FC12B 102864.00115/208-230V1/2 hp7/3.4-3.5AFace1.153450 RPMCapacitor StartS56C€417.09
LEESON 102865.00 M4C17FC33B Single Phase Motor | AJ2PPA M4C17FC33B 102865.00115/208-230V1/2 hp8/3.8-4AC Face, Footless1.15--56C€821.61
LEESON 102868.00 C4C17NC26B Single Phase Motor | AJ2PPD C4C17NC26B 102868.00115/208-230V1/4 hp4.6/2.4-2.3AC Face, Footless1.151800 RPMCapacitor StartS56C€432.70
LEESON 102869.00 M4C17NC27B Single Phase Motor | AJ2PPE M4C17NC27B 102869.00115/208-230V33/100 hp5.2/2.6AC Face, Footless1.151800 RPM-S56C€489.02
LEESON 102872.00 M4C34FC14B Single Phase Motor | AJ2PPH M4C34FC14B 102872.00115/208-230V1/2 hp7/3.4-3.5AC Face, Footless1.153600 RPMCapacitor StartS56C€688.06
