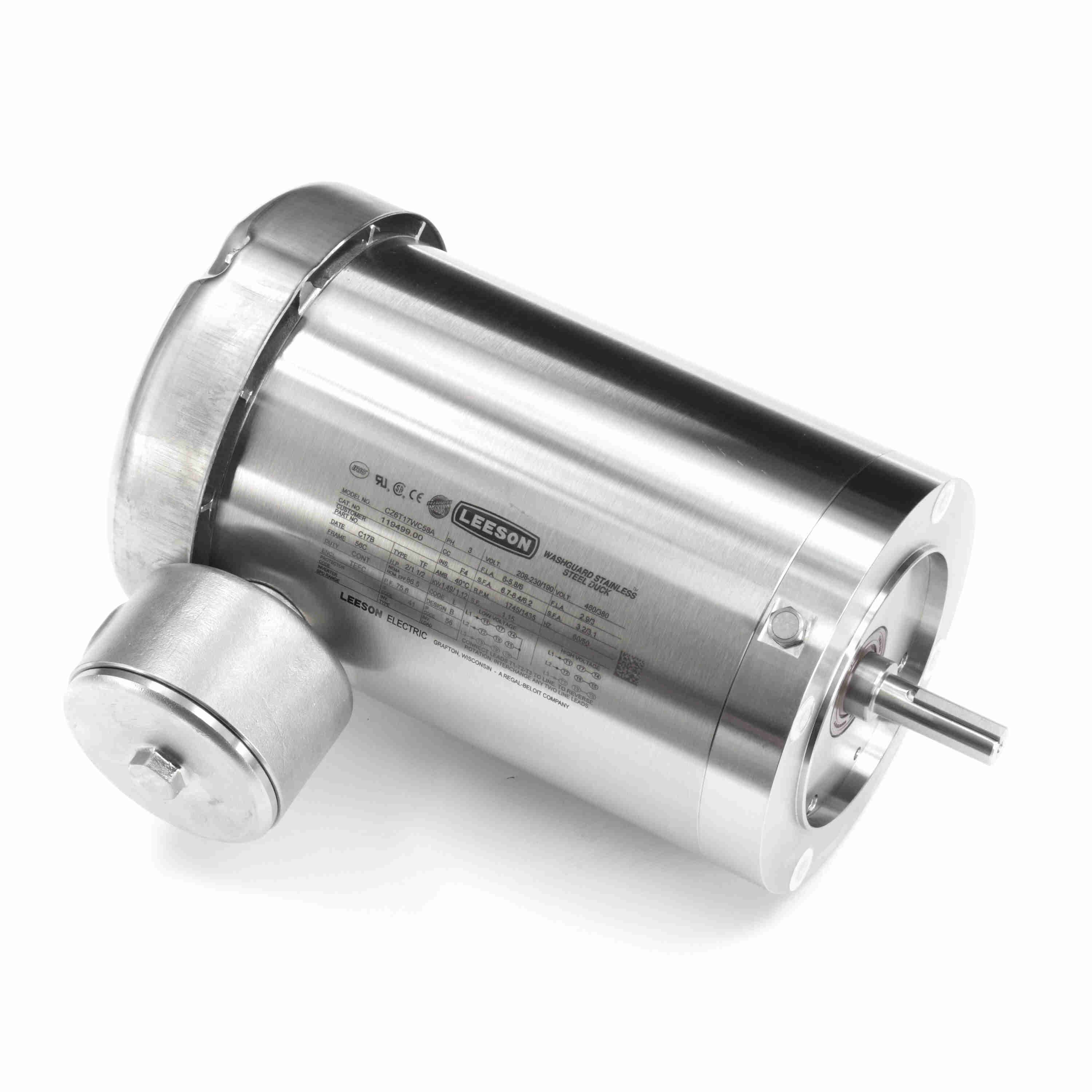

LEESON 119499.00 CZ6T17WC58A General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Monday, Dec 22
10.00% off
€3,577.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 5.8/2.9A |
| Application | Washdown |
| Assembly | 42542 |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Code | L |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B |
| Design Code | B |
| Drain Plug | (1) Drain Plugs In Conduit Box |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 8 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 6-5.8/2.9A |
| Grease Type | Polyrex EM |
| Height | 12 22/25" |
| Hp | 2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rating | 6:1 |
| Ip Code | IP56 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 17.94" |
| Length Less Shaft | 11 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1745 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | T Stat |
| Nameplate Rpm | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 3 |
| Power | 1.5 kW |
| Power Factor | 75.6 |
| Product Type | Washdown Motor |
| Removable Base | Yes |
| Resistance Main | 6 ohms |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Standards | Ce, Csa Certified, Ul Recognized |
| Starting Method | Line Or Inverter |
| Thermal Protection | Thermostat |
| Type | TF |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 53 lbs. |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 117283.00 / CZ6T17WC29A
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081120
- Winding: T634340
- GROUP: 3
- S. F Amps: 6.7-6.4 / 3.2
- Eff 100%: 86.5 / 84
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Full Load Amps | Ambient Temp. | Type | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103389.00 | 208-230/460V | 1/2 hp | 1800/1500 RPM | S56C | 1.9-1.8/0.9A | 40°C | TN | 5/8" | €1,211.93 | |
 |
117270.00 | 208-230/460V | 1/2 hp | 1725 RPM | 56C | 1.6-1.7/0.8A | 104°F | TN | 5/8" | €2,555.31 | |
 |
117272.00 | 208-230/460V | 3/4 hp | 1725 RPM | 56C | 2.3-2.4/1.2A | 104°F | TN | 5/8" | €1,374.72 | |
 |
117281.00 | 230/460V | 1 hp | 3600/3000 RPM | 56C | 2.6/1.3A | 40°C | TN | 5/8" | €3,050.80 | |
 |
119497.00 | 208-230/460V | 1 hp | 1725 RPM | 56C | 3.2/1.6A | 104°F | TF | 5/8" | €3,076.25 | |
 |
119498.00 | 208-230/460V | 1 1/2 hp | 1800/1500 RPM | 56C | 4.6-4.8/2.4A | 40°C | TF | 5/8" | €1,758.40 | |
 |
122202.00 | 208-230/460V | 1 hp | 1725 RPM | 143TC | 3.2/1.6A | 40°F | TF | 7/8" | €1,681.01 |
