LEESON 120376.00 C145K34NB1G General Purpose Motor | AJ2RFN C145K34NB1G

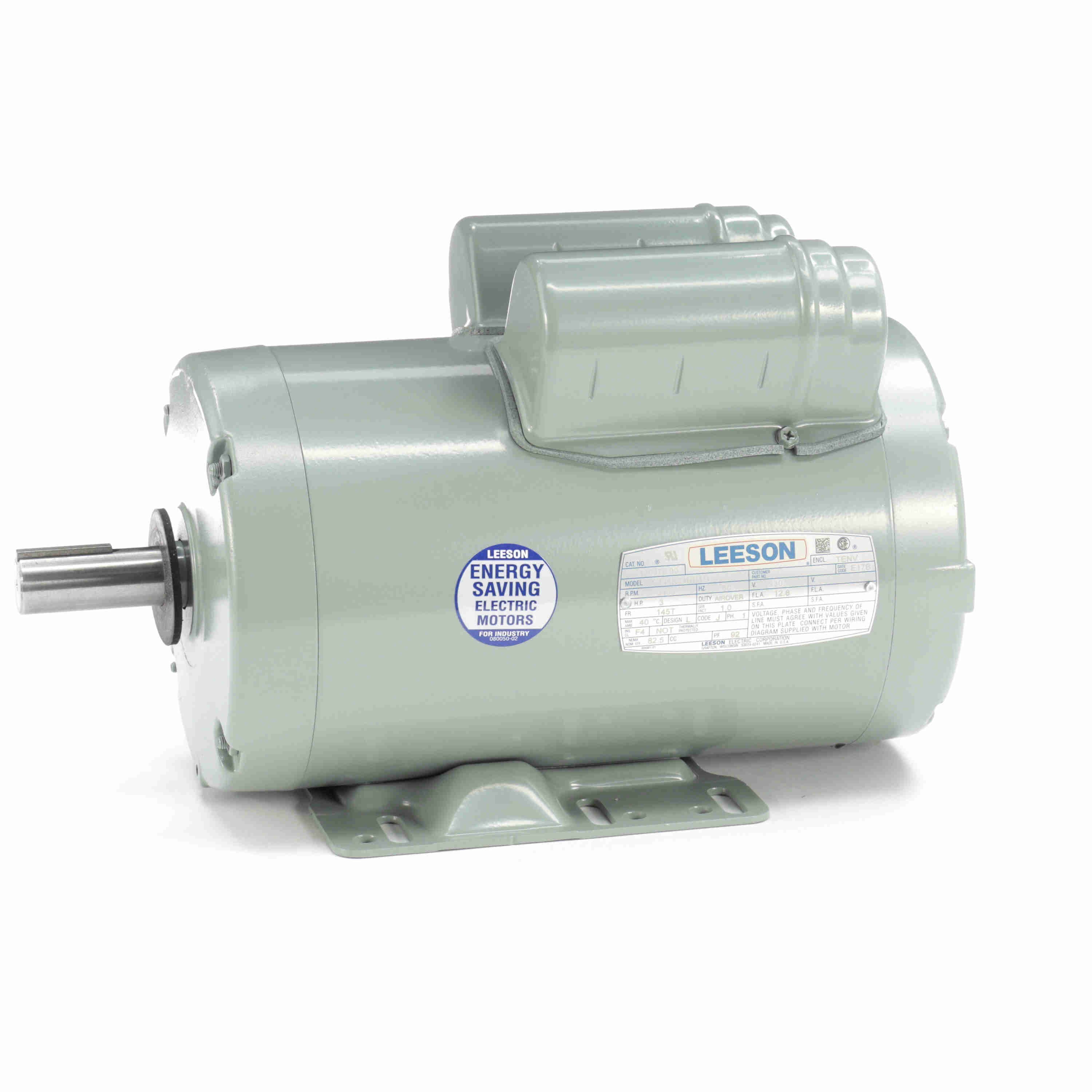

LEESON 120376.00 C145K34NB1G Agricultural Motor, 3 HP, 1 Phase, 60 Hz, 230V, 3600 RPM

Item: AJ2RFNModel: 120376.00Cross Ref: 798KM9 / C145K34NB1G
Check Availability
In Stock
Power Factor

Get it by Tuesday, May 19

€1,528.41
5.00% off
€1,451.99 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Single Phase Motor
Ambient Temp. 40°C
Amps 12.8A
Application Farm Duty
Bearing Type Ball
Capacitor Required Yes
Code J
Design J, L
Design Code L
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 82.5%
Electrical Type Capacitor Start, Capacitor Run
Enclosure Type Teao
Frame 145T
Frame Length 8 1/2"
Frame Material Rolled Steel
Frame Type 145T
Frequency 60 Hz
Full Load Amps 12.8A
Grease Type Polyrex EM
Height 10 22/25"
Hp 3 hp
Hz 60 Hz
Ins. Class Class F
Insulation Class Class F
Ip Code IP43
Kva Code J
Kw 2.2 kW
Length 19 1/2"
Lubrication Polyrex EM
Max. Ambient Temp. 40°C
Max. Rpm 3450 RPM
Motor Application Farm Duty
Motor Bearings Ball
Motor Design Capacitor Start
Motor Enclosure Design Totally Enclosed Air Over
Motor Frame Material Steel
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Service Factor 1
Motor Shaft Design T
Motor Shaft Rotation Selective Counter Clockwise
Motor Shaft Rotation CCW
Motor Sub Application Aeration Fan Motor
Motor Thermal Protection No Protection
Motor Type Capacitor Start
Mounting Type Rigid Base
Nameplate Rpm 3450 RPM
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 82.5%
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 2.24 kW
Overall Length 13 13/16"
Packaging B
Phase 1
Power 2.24 kW
Power Factor 92
Product Datasheet leeson-120376-00.pdf
Resistance Main 0.71 ohms
Rpm 3400-3600 RPM
Service Factor 1
Shaft Dia. 7/8"
Shaft Length 2 1/4"
Shaft Type T
Standards Csa, Ul
Starting Method Across The Line
Thermal Protection No Protection
Type KN
Voltage 230V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 21.6
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 82.5
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 004001
    • Winding: K632141
    • GROUP: 2
    • Paint: GRAY - LIGHT (EPOXY)
