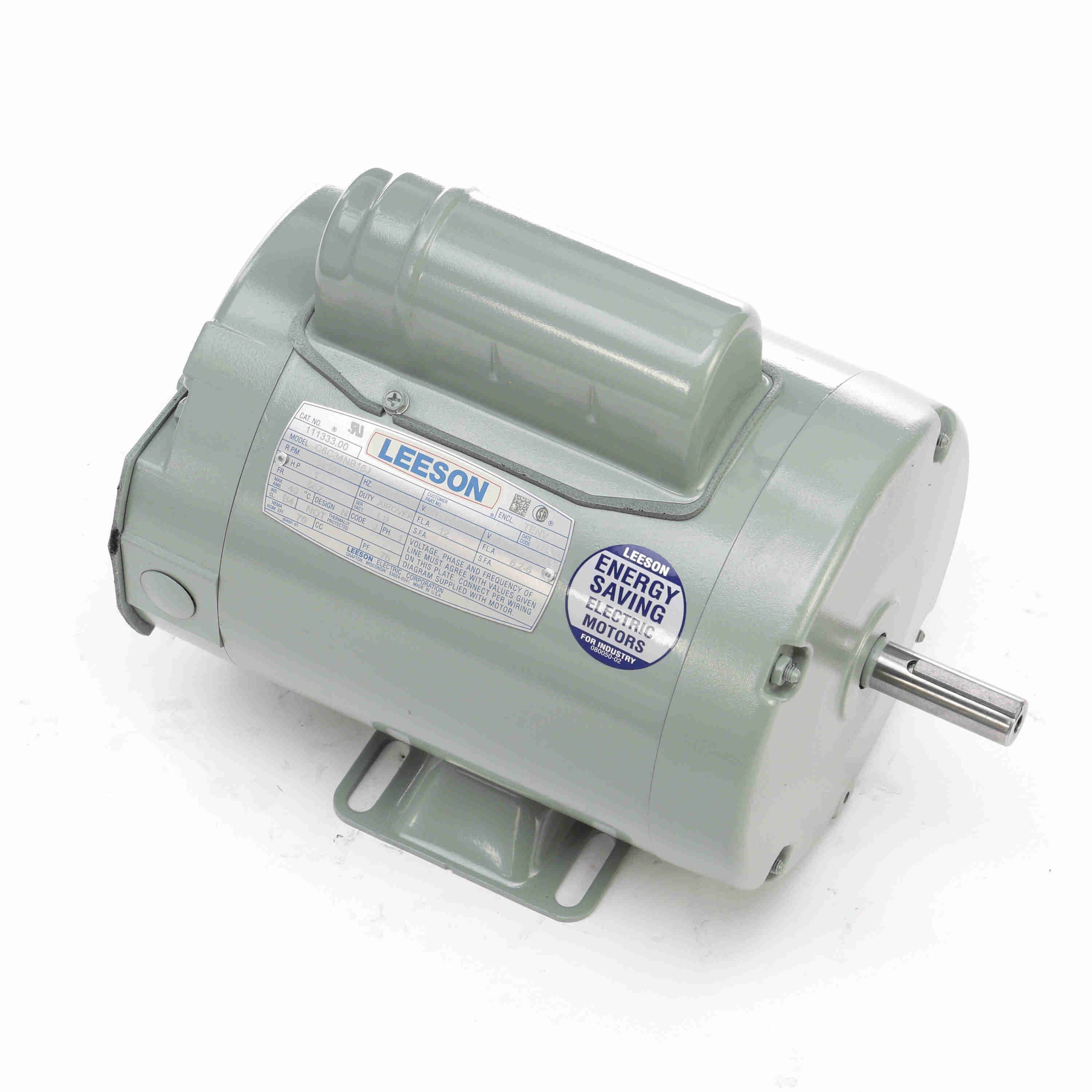

LEESON 111333.00 C6C34NB16J Agricultural Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Friday, Dec 19
10.00% off
€741.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 12/6A |
| Code | J |
| Design | J, N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Teao |
| Frame | 56Z |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 56Z |
| Frequency | 60 Hz |
| Full Load Amps | 12/6-6.2A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | J |
| Kw | 0.75 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.75 kW |
| Power Factor | 76 |
| Resistance Main | 1.92 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.87" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CN |
| Voltage | 115/208-230V |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 20.17 |
| Country of Origin | US |
Product Details:
- Eff 100%: 70
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 004001
- Winding: C632211
- GROUP: 3
- Paint: GRAY - LIGHT (EPOXY)
