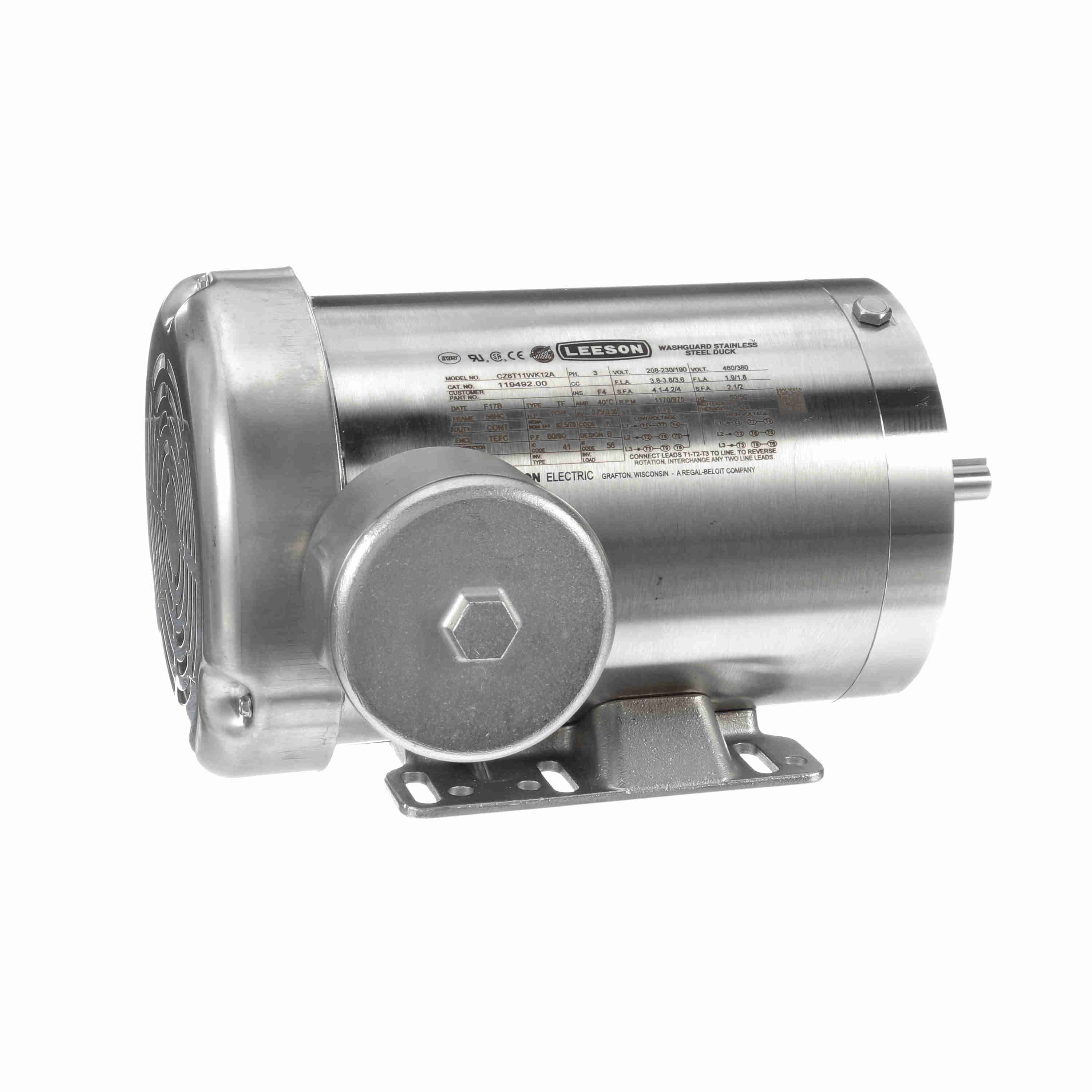

LEESON 119492.00 CZ6T11WK12A General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1200 RPM
Get it by Tuesday, Dec 23
€1,900.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 3.8/1.9A |
| Application | Washdown |
| Assembly | 42542 |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 7.3" |
| Bolt Circle Dia. | 5 7/8" |
| Code | K |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drain Plug | (1) Drain Plugs In Conduit Box |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Endshield Material | Stainless Steel |
| Finish | Unfinished |
| Frame | 56HC |
| Frame Length | 7 3/4" |
| Frame Material | Stainless Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Full Load Amps | 3.8/1.9A |
| Grease Type | Polyrex EM |
| Height | 12 22/25" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rating | 6:1 |
| Ip Code | IP56 |
| Kva Code | K |
| Kw | 0.75 kW |
| Length | 17.94" |
| Length Less Shaft | 10 3/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1170 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1170 RPM |
| Nema Design | B |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 12 11/16" |
| Packaging | B |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 60 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Resistance Main | 1.63 ohms |
| Rotation | Reversible |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Standards | Ce, Csa Certified, Ul Recognized |
| Starting Method | Line Or Inverter |
| Thermal Protection | Thermostat |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 54 lbs. |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 24.3 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 117277.00 / CZ6T11WK7A
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081120
- Winding: T63681
- GROUP: 3
- S. F Amps: 4.1-4.2 / 2.1
- Eff 100%: 82.5 / 70
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Full Load Amps | Motor Mounting Type | Insulation Class | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103388.00 | 208-230/460V | 3/4 hp | S56C | 1800/1500 RPM | 2.5-2.4/1.2A | - | Class F | 40°C | €1,590.84 | |
 |
117267.00 | 208-230/460V | 3/4 hp | 56C | 1800/1500 RPM | 2.4-2.3/1.15A | - | Class F | 40°C | €3,202.74 | |
 |
117273.00 | 230/460V | 1 hp | 56HC | 3600/3000 RPM | 2.6/1.3A | - | Class F | 40°C | €1,486.68 | |
 |
117275.00 | 208-230/460V | 1/2 hp | 56HC | 1200/1000 RPM | 2.3-2.35/1.15A | - | Class F | 40°C | €1,697.55 | |
 |
119491.00 | 208-230/460V | 1 hp | 56C | 1760 RPM | 3.2/1.6A | Face, Base | Class F | 104°F | €1,713.66 | |
 |
119494.00 | 230/460V | 1 1/2 hp | 56HC | 1750 RPM | 3.8/1.9A | Rigid Base | Class F | 104°F | €1,783.20 | |
 |
119495.00 | 230/460V | 2 hp | 56HC | - | - | Rigid Base | Class F | 104°F | €4,053.57 |
