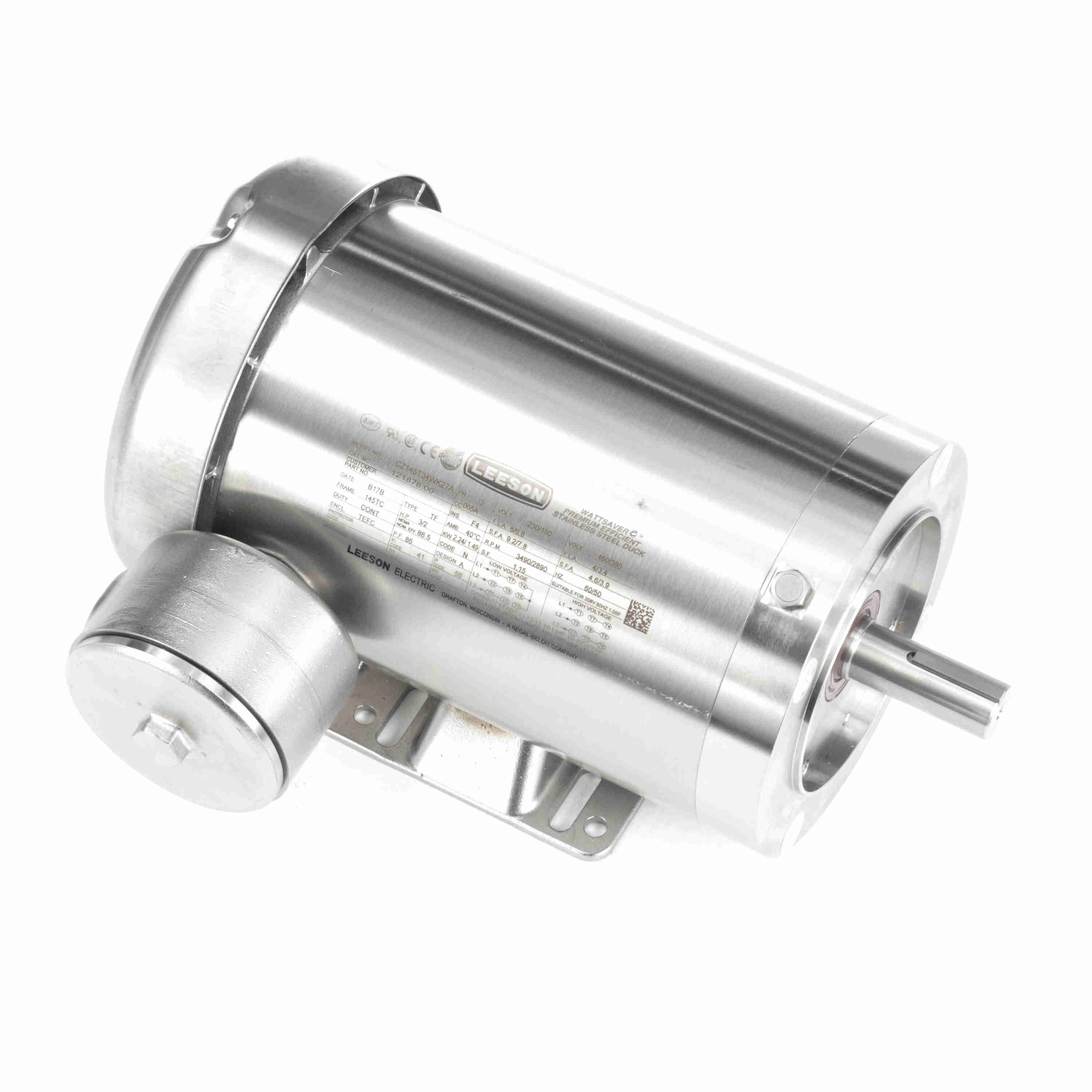

LEESON 121878.00 CZ145T34WK27A General Purpose Motor, 3/2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
Get it by Tuesday, Apr 7
5.00% off
€5,023.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 8/4A |
| Code | N |
| Design | A |
| Design Code | A |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Finish | Unfinished |
| Frame | 145TC |
| Frame Length | 8" |
| Frame Material | Stainless Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 8/4A |
| Grease Type | Polyrex EM |
| Height | 12 22/25" |
| Hp | 3 hp |
| Insulation Class | Class F |
| Ip Code | IP56 |
| Kva Code | No |
| Kw | 2.2 kW |
| Length | 17.94" |
| Max. Rpm | 3490 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600/3000 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 3 |
| Power | 2.2 kW |
| Power Factor | 86 |
| Product Datasheet | leeson-121878-00.pdf |
| Resistance Main | 3.83 ohms |
| Rotation | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Voltage | 230/460V |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Details:
- Eff 100%: 86.5
- Bearing OPE: 6205
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: 081344
- Winding: T632209
- GROUP: 3
- S. F Amps: 9.2 / 4.6
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Full Load Amps | Motor Mounting Type | Insulation Class | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
132203.00 | 230/460V | 3 hp | 182TC | 3515 RPM | 7.6/3.8A | Rigid Base | Class F | 104°F | €2,758.96 | |
 |
132206.00 | 230/460V | 3 hp | 182TC | 1760 RPM | 7.8/3.9A | Rigid Base | Class F | 104°F | €3,575.19 | |
 |
132207.00 | 230/460V | 5 hp | 184TC | 3515 RPM | 12/6A | Rigid Base | Class F | 104°F | €4,630.02 | |
 |
132208.00 | 230/460V | 5 hp | 184TC | 1760 RPM | 12.6/6.3A | Rigid Base | Class F | 104°F | €4,517.71 | |
 |
132565.00 | 230/460V | 1 1/2 hp | 182TC | 1170 RPM | 2.6A | Rigid Base | Class H | 104°F | €4,141.68 | |
 |
140825.00 | 230/460V | 7 1/2 hp | 213TC | 3540 RPM | 17.8/8.9A | Rigid Base | Class F | 104°F | €4,486.12 | |
 |
140826.00 | 230/460V | 7 1/2 hp | 213TC | 1765 RPM | 21.6/10.8A | Rigid Base | Class F | 104°F | €7,583.11 |
