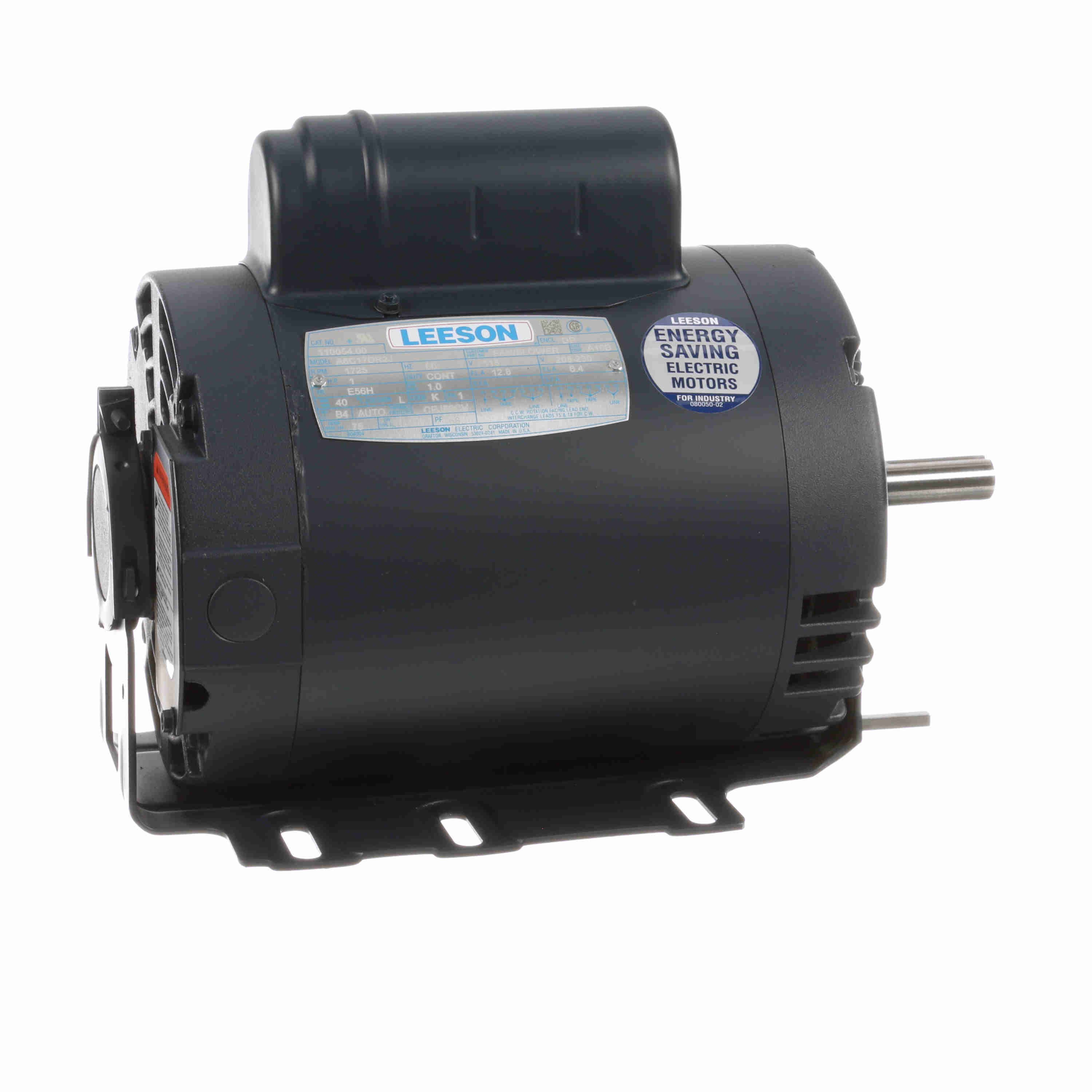

LEESON 110054.00 A6C17DR2J General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, Dec 24
10.00% off
€926.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 12.8/6.4A |
| Assembly | 42506 |
| Code | K |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 75% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | ODP |
| Frame | E56H |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 56H |
| Frequency | 60 Hz |
| Full Load Amps | 12.8/6.4A |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class B |
| Ip Code | IP22 |
| Kva Code | K |
| Kw | 0.75 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Mounting Type | Resilient Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | CD |
| Mounting Type | Resilient Base |
| Nema Design | L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 1 |
| Power | 0.75 kW |
| Power Factor | 68 |
| Resistance Main | 1.9 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Voltage | 115/208-230V |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 20.17 |
| Country of Origin | US |
Product Details:
- Eff 100%: 75
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 004004
- Winding: C634256
- GROUP: 3
- Paint: VERIFY
Product Variants
| Product | Model | Voltage | Hp | Frame | Thermal Protection | Motor Type | Efficiency | Power Factor | Nema Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102965.00 | 277V | 1/2 hp | S56 | Automatic | CD | 62% | 59 | N | €773.34 | |
 |
102966.00 | 277V | 3/4 hp | S56H | Automatic | CD | 70% | 64 | N | €971.05 | |
 |
E119362.00 | 115/230V AC | 3/4 hp | 56 | No Protection | KD | 81.8% | 97.2 | L, N | €206.92 |
