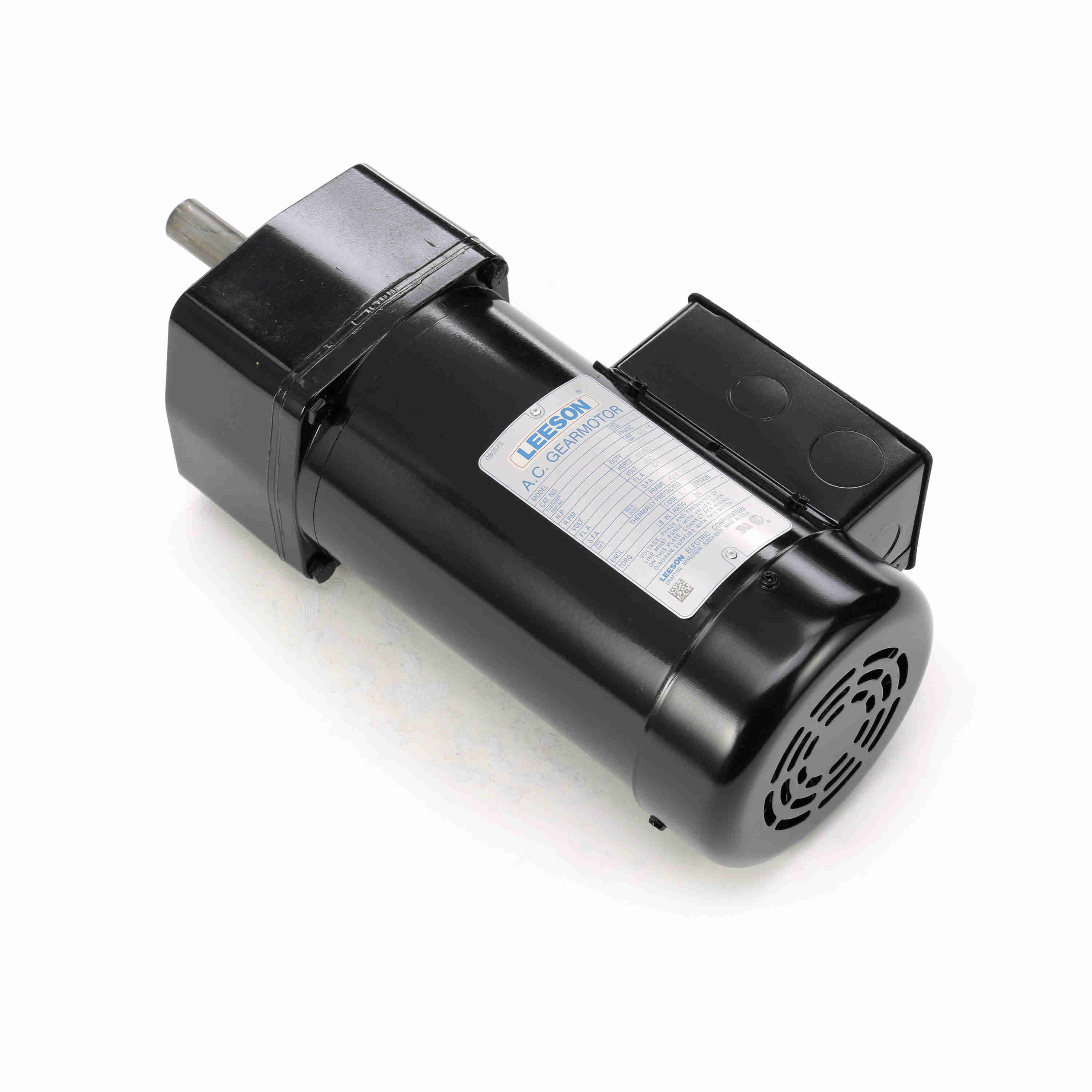

LEESON 096013.00 C42T17FZ14B Parallel Shaft Gearmotor, 0.33 HP, 3 Phase, 60/50 Hz, 230V, 58 RPM
Get it by Tuesday, Dec 23
€1,166.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 1.6/0.8A |
| Base To Center Of Shaft | 4" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame | 42Y |
| Frame Length | 6 3/4" |
| Frame Type | 42Y |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.6/0.8A |
| Gear Ratio | 30:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 33/100 hp |
| Includes | Conduit Box |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 0.33 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kva Code | L |
| Kw | 0.25 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11.81" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 58 RPM |
| Maximum Torque | 320 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 42Y |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Hole Center-to-center Length | 2.5" |
| Mount Hole Center-to-center Width | 5" |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Nameplate Speed | 58 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 230V AC |
| Opp. Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Height | 5.57" |
| Overall Length | 13.81" |
| Overall Width | 6" |
| Overhung Load Capacity | 300 lbs.-ft. |
| Packaging | B |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm | 58 RPM |
| Seal Type | Heavy Duty Industrial |
| Series | PE350 |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 5/8" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 320 lbs.-in. |
| Type | TF |
| Voltage | 230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .33/.33
- Nameplate: 080573
- Overrlung Ld.: 300
- Winding: T47413
- GROUP: 3 A
- Paint: M1305027.01
Product Variants
| Product | Model | Gear Ratio | Rpm | Maximum Output Speed | Starting Torque | Shaft Orientation | Number Of Output Shafts | Motor Type | Motor Enclosure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
096015.00 | 10:1 | 173 RPM | 173 RPM | 109 lbs.-in. | Parallel | 1 | 3-Phase | Totally Enclosed Fan Cooled | €1,687.28 | |
 |
096016.00 | 5:1 | 345 RPM | 345 RPM | 55 lbs.-in. | Parallel | 1 | 3-Phase | Totally Enclosed Fan Cooled | €1,094.91 |
