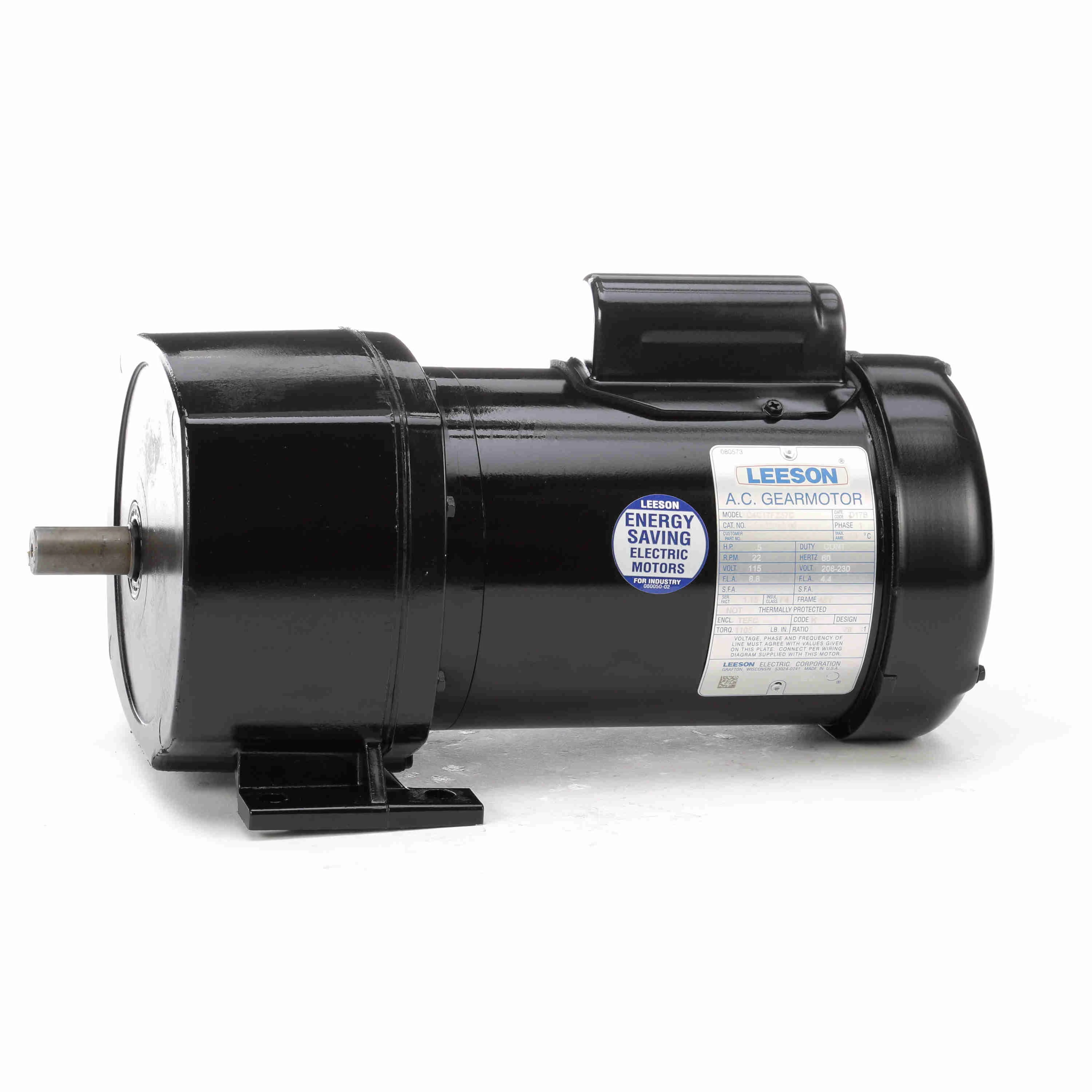

LEESON 107013.00 C4C17FZ37C Parallel Shaft Gearmotor, 0.50 HP, 1 Phase, 60 Hz, 115/208-230V, 22 RPM
Get it by Tuesday, Aug 18
€1,569.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 8.8/4.4A |
| Code | K |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame | 48Y |
| Frame Length | 6 1/4" |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.4A |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Kva Code | K |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 1 |
| Product Datasheet | leeson-107013-00.pdf |
| Rotation | Reconn |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Type | Parallel |
| Speed | 22 RPM |
| Thermal Protection | No Protection |
| Type | RP_CF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .5
- S. F Amps: 9.2/4.6
- Nameplate: 080573
- Overrlung Ld.: 700
- Winding: C554112
- GROUP: 3 E
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Phase | Full Load Amps | Frequency | Voltage | Mounting | Overhung Load Capacity | Nameplate Speed | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145122.00 | 3 | 0.72A | 50/60 Hz | 190V | All Position Except Shaft Up | 237 lbs.-ft. | 16 RPM | 5/8" | €1,366.90 | |
 |
096065.00 | 3 | 1/0.5A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 9 RPM | 3/4" | €1,297.11 | |
 |
096066.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 29 RPM | 3/4" | €936.95 | |
 |
096067.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 58 RPM | 3/4" | €936.95 | |
 |
096068.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 85 RPM | 3/4" | €1,137.02 | |
 |
096069.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 173 RPM | 3/4" | €1,240.08 | |
 |
096070.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 345 RPM | 3/4" | €926.85 |
