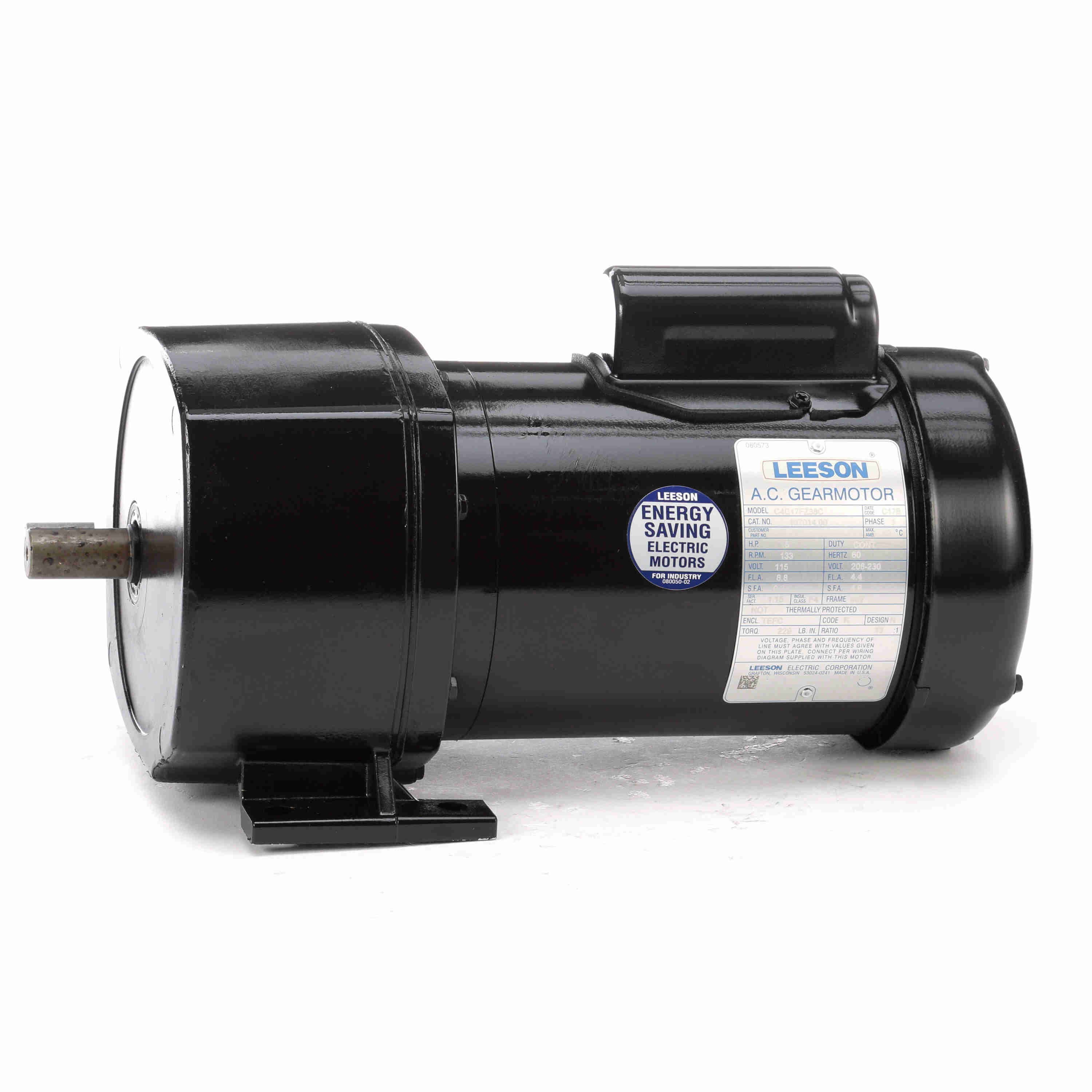

LEESON 107014.00 C4C17FZ38C Parallel Shaft Gearmotor, 0.50 HP, 1 Phase, 60 Hz, 115/208-230V, 133 RPM
Get it by Wednesday, Dec 24
10.00% off
€1,874.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 8.8/4.4A |
| Base To Center Of Shaft | 2.94" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | K |
| Design | N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Efficiency | 64% |
| Enclosure Type | Tefc |
| Features | Rugged Die Cast Aluminium Gear Housing Supplies Maximum Gear And Bearing Support. Heavy Duty Industrial Oil Seals Keep Lubricant In And Dirt Out. All Gearing Designed And Rated To Agma Class 9 Standards, To Withstand Momentary Shock Overload Of 200%. Capacitor Start Designs Rated For 115/230 Vac 60 Hz Input |
| Frame | 48Y |
| Frame Length | 6 1/4" |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.4A |
| Gear Ratio | 13:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 1/2 hp |
| Includes | Conduit Box |
| Includes Capacitor | Capacitor Included |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 1/2 hp |
| Insulation Class | Class F |
| Keyway Depth | 1 1/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 15/79" |
| Kva Code | K |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12.67" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 133 RPM |
| Maximum Torque | 229 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | Capacitor-Start |
| Mount Hole Center-to-center Length | 2.5" |
| Mount Hole Center-to-center Width | 7.13" |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Nameplate Speed | 133 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/208-230V AC |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 7.69" |
| Overall Length | 14.17" |
| Overall Width | 8.13" |
| Overhung Load Capacity | 525 lbs.-ft. |
| Packaging | B |
| Phase | 1 |
| Power Factor | 60.0 |
| Rotation | CW/CCW |
| Rpm | 133 RPM |
| Seal Type | Heavy Duty Industrial |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 229 lbs.-in. |
| Type | RP_CF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .5
- S. F Amps: 9.2/4.6
- Nameplate: 080573
- Overrlung Ld.: 525
- Winding: C554112
- GROUP: 3 F
- Paint: M1305027.01
Product Variants
| Product | Model | Rotation | Shaft Orientation | Overhung Load Capacity | Gear Ratio | Rpm | Full Load Amps | Insulation Class | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
107000.00 | CW/CCW | Parallel | 700 lbs.-ft. | 212:1 | 8 RPM | 5.4/2.7A | Class B | 11.92" | €1,425.26 | |
 |
107002.00 | Reconn | - | - | - | 26 RPM | 5.4/2.7A | Class B | - | €1,425.26 | |
 |
107003.00 | CW/CCW | Parallel | 700 lbs.-ft. | 95:1 | 18 RPM | 5.4/2.7A | Class B | 11.92" | €1,861.81 | |
 |
107004.00 | CW/CCW | Parallel | 700 lbs.-ft. | 143:1 | 12 RPM | 5.4/2.7A | Class B | 11.92" | €1,929.40 | |
 |
107005.00 | CW/CCW | Parallel | 625 lbs.-ft. | 29:1 | 59 RPM | 5.4/2.7A | Class B | 11.92" | €1,392.08 | |
 |
107007.00 | CW/CCW | Inline | 400 lbs.-ft. | 6:1 | 288 RPM | 6.2/3.1A | Class B | 12.7" | €1,844.24 | |
 |
107010.00 | Reconn | - | - | - | 59 RPM | 6.2/3.1A | Class B | - | €1,903.23 |
