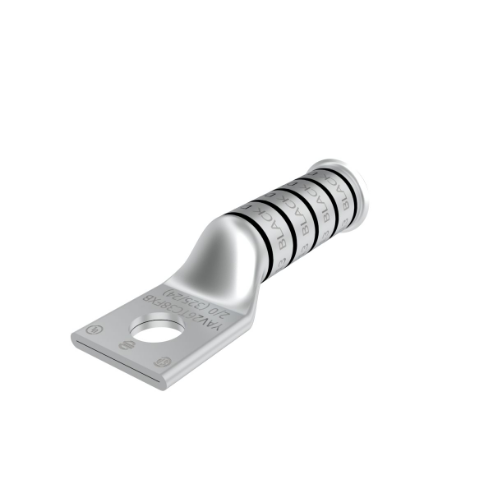

BURNDY YAV26TC38FXB Compression Lug
75 mm
Black
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Wire Termination |
| Bolt Hole Size | 0.39" |
| Certification - Csa Approved | Yes |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Black |
| Conductor - Copper Dlo Size | 2/0 AWG |
| Conductor - Copper Dlo Size Range | 2/0 AWG |
| Conductor - Copper Flex G Size | 2/0 AWG |
| Conductor - Copper Flex G Size Range | 2/0 AWG |
| Conductor - Copper Flex H Size | 0.3648 AWG |
| Conductor - Copper Flex H Size Range | 2/0 AWG |
| Conductor - Copper Flex I Size | 0.3648 AWG |
| Conductor - Copper Flex I Size Range | 2/0 AWG |
| Conductor - Copper Flex K Size | 2/0 AWG |
| Conductor - Copper Flex K Size Range | 2/0 AWG |
| Conductor - Copper Flex M Size | 2/0 AWG |
| Conductor - Copper Str Compact Size | 2/0 AWG |
| Conductor - Copper Str Navy Size | 125 |
| Conductor - Copper Str Navy Size Range | 125 NAVY |
| Conductor - Copper Str Size | 2/0 AWG |
| Conductor - Copper Str Size Range | 2/0 AWG |
| Conductor - Material | Copper |
| Conductor Size | 2/0 AWG |
| Conductor Type | Code, Flex |
| Connector Type | Long Barrel |
| Die Index | 13 |
| Dimension N | 0.41" |
| Dimension - B Length | 1.63" |
| Dimension - Bolt Size Fraction | 3/8" |
| Dimension - Bolt Size Inch | 0.38 |
| Dimension - Hole Size Fraction | 3/8 |
| Dimension - Hole Size Mm | 10.4 mm |
| Dimension - L Length Overall Mm | 75 mm |
| Dimension - P Inch | 2.05" |
| Dimension - Strip Length Inch | 1 13/16" |
| Dimension - Stud Size Fraction | 0.375 |
| Dimension - Stud Size Inch | 0.75 |
| Dimension - Z | 0.42" |
| Dimesion-b Length | 1 5/8" |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Outside Diameter | 0.63" |
| Overall Length | 2.95" |
| Pad Width | 0.93" |
| Physical Attribute - Number Of Holes | 1 |
| Physical Attribute - Tongue Angle | Straight |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin Electro Plated |
| Standards - Rohs Compliance Status | CM |
| Trade Name | Hylug |
| Type | Long Barrel, Tin Plated |
| Ul Listed | Yes |
| Voltage - Maximum | 35000V |
| Voltage Rating | 35 kV |
| Wire Size | 2/0 AWG |
Shipping Info:
| Ship height (cm) | 1.6 |
| Ship length (cm) | 7.49 |
| Ship width (cm) | 2.36 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Material | Connector Type | Wire Size | Overall Length | Number Of Holes | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ6CTC14 | Blue | 1/4" | - | - | - | 3 1/2" | 1 | 1.188" | - | RFQ
|
 |
YA4CL3BOX | Gray | 0.312" | - | - | - | 1.79" | 1 | 7/8" | - | RFQ
|
 |
YAEV8CL2 | Red | 0.312" | - | - | - | 1.54" | 1 | - | - | RFQ
|
 |
YAZV102TC14 | - | 1/4" | - | - | - | 2 4/25" | 2 | 3/4" | - | RFQ
|
 |
YA27A1 | Ruby | - | - | - | - | 2 22/25" | 1 | 1 1/2" | - | RFQ
|
 |
YA1CLBOX | Green | 0.312" | - | - | - | 1.94" | 1 | 0.938" | - | RFQ
|
 |
YA27L | Orange | 1/2" | - | - | - | 2.54" | 1 | - | - | RFQ
|
