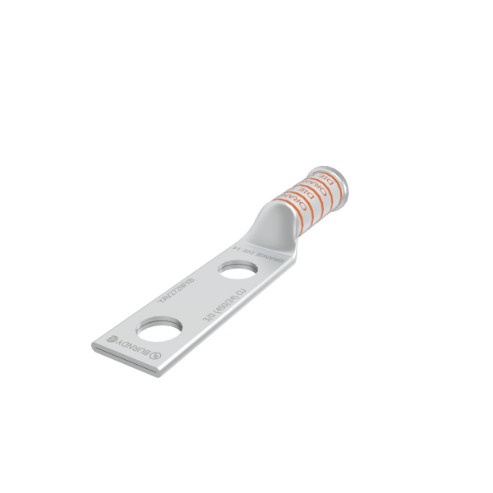

BURNDY YAV272NFXB Compression Lug, 1/2 Inch Stud Size, 5.2 Inch Overall Length, Orange
132 mm
Orange
Get it by Friday, Feb 20
€62.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Wire Termination |
| Certification - Csa Approved | Yes |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Orange |
| Conductor - Copper Dlo Size | 3/0 AWG |
| Conductor - Copper Dlo Size Range | 3/0 AWG |
| Conductor - Copper Flex G Size | 3/0 AWG |
| Conductor - Copper Flex G Size Range | 3/0 AWG |
| Conductor - Copper Flex H Size | 0.4096 AWG |
| Conductor - Copper Flex H Size Range | 3/0 AWG |
| Conductor - Copper Flex I Size | 0.4096 AWG |
| Conductor - Copper Flex I Size Range | 3/0 AWG |
| Conductor - Copper Flex K Size | 3/0 AWG |
| Conductor - Copper Flex K Size Range | 3/0 AWG |
| Conductor - Copper Flex M Size | 3/0 AWG |
| Conductor - Copper Str Compact Size | 3/0 AWG |
| Conductor - Copper Str Navy Size | 150 |
| Conductor - Copper Str Size | 3/0 AWG |
| Conductor - Copper Str Size Range | 3/0 AWG |
| Conductor - Material | Copper |
| Conductor Size | 3/0 AWG |
| Conductor Type | Code, Flex |
| Connector Type | Long Barrel |
| Die Index | 14 |
| Dimension N | 0.62" |
| Dimension - B Length | 1.64" |
| Dimension - Bolt Size Fraction | 1/2" |
| Dimension - Bolt Size Inch | 0.5" |
| Dimension - Hole Size Fraction | 1/2 |
| Dimension - Hole Size Mm | 14 mm |
| Dimension - L Length Overall Mm | 132 mm |
| Dimension - Strip Length Inch | 1 13/16" |
| Dimension - Stud Size Fraction | 0.5 |
| Dimension - Stud Size Inch | 1/2 |
| Dimension - Z | 0.64" |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Outside Diameter | 0.7" |
| Overall Length | 5.2" |
| Pad Width | 1.03" |
| Physical Attribute - Number Of Holes | 2 |
| Physical Attribute - Tongue Angle | Straight |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin Electro Plated |
| Standards - Rohs Compliance Status | CM |
| Trade Name | Hylug |
| Type | Long Barrel, Tin Plated |
| Ul Listed | Yes |
| Voltage - Maximum | 35000V |
| Voltage Rating | 35 kV |
| Wire Size | 3/0 AWG |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 2.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Material | Connector Type | Wire Size | Overall Length | Number Of Holes | Strip Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ6CTC14 | Blue | 1/4" | - | - | - | 3 1/2" | 1 | 1.188" | 1 | - | RFQ
|
 |
YA4CL3BOX | Gray | 0.312" | - | - | - | 1.79" | 1 | 7/8" | 1 | - | RFQ
|
 |
YAEV8CL2 | Red | 0.312" | - | - | - | 1.54" | 1 | - | 1 | - | RFQ
|
 |
YAZV102TC14 | - | 1/4" | - | - | - | 2 4/25" | 2 | 3/4" | 1 | €16.48 | |
 |
YA27A1 | Ruby | - | - | - | - | 2 22/25" | 1 | 1 1/2" | 1 | - | RFQ
|
 |
YA1CLBOX | Green | 0.312" | - | - | - | 1.94" | 1 | 0.938" | 1 | - | RFQ
|
 |
YA27L | Orange | 1/2" | - | - | - | 2.54" | 1 | - | 1 | - | RFQ
|
