BURNDY

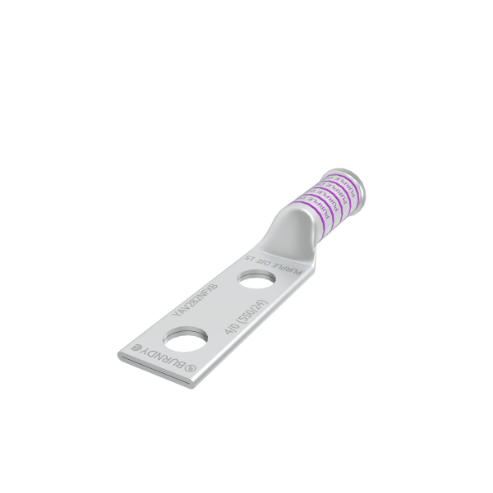

BURNDY YAV282NFXB Compression Lug, 1.77 Inch Barrel Length, Purple

Item: CF4DAJModel: YAV282NFXB

Check Availability

In Stock

137 mm

137 mm
35 mm
46 mm
38 mm
54 mm
45 mm
18 mm
30 mm
161 mm
24 mm
118 mm
62 mm
67 mm
130 mm
4 mm
47 mm
13 mm
126 mm
61 mm
42 mm
75 mm
57 mm
74 mm
49 mm
56 mm
44 mm
31 mm
131 mm
120 mm
65 mm
79 mm
60 mm
32 mm
50 mm
86 mm
132 mm
85 mm
66 mm
59 mm
87 mm
117 mm
73 mm
58 mm
34 mm
92 mm
81 mm
121 mm
103 mm
41 mm
25 mm
43 mm
3 mm
116 mm
53 mm
37 mm
55 mm
52 mm
33 mm
36 mm
122 mm
110 mm
91 mm
72 mm
76 mm
70 mm
97 mm
77 mm
71 mm
101 mm
82 mm
40 mm
142 mm
143 mm
113 mm
94 mm
148 mm
153 mm
123 mm
104 mm
166 mm
171 mm
145 mm
173 mm
175 mm
180 mm
155 mm
68 mm
63 mm
39 mm
112 mm
51 mm
96 mm
83 mm
80 mm

Overall Length

Purple

Color Code

Get it by Friday, Dec 19

Request a Quote

Payment

Delivery

Product Specifications:

Item	Compression Lug
Application	Wire Termination
Bolt Hole Size	0.52"
Certification - Csa Approved	Yes
Certification - Culus	No
Certification - Etl	No
Certification - Ul Recognized	No
Color Code	Purple
Conductor - Copper Dlo Size	4/0 AWG
Conductor - Copper Flex G Size	4/0 AWG
Conductor - Copper Flex G Size Range	4/0 AWG
Conductor - Copper Flex H Size	0.46 AWG
Conductor - Copper Flex H Size Range	4/0 AWG
Conductor - Copper Flex I Size	0.46 AWG
Conductor - Copper Flex I Size Range	4/0 AWG
Conductor - Copper Flex K Size	4/0 AWG
Conductor - Copper Flex K Size Range	4/0 AWG
Conductor - Copper Flex M Size	4/0 AWG
Conductor - Copper Flex M Size Range	4/0 AWG
Conductor - Copper Str Compact Size	4/0 AWG
Conductor - Copper Str Navy Size	200
Conductor - Copper Str Size	4/0 AWG
Conductor - Copper Str Size Range	4/0 AWG
Conductor - Material	Copper
Conductor Size	4/0 AWG
Conductor Type	Code, Flex
Connector Type	Long Barrel
Die Index	15
Dimension N	0.62"
Dimension - B Length	1.77"
Dimension - B Length Fraction	1 3/4"
Dimension - Bolt Size Fraction	1/2"
Dimension - Bolt Size Inch	0.5"
Dimension - Hole Size Fraction	1/2
Dimension - Hole Size Mm	14 mm
Dimension - L Length Overall Mm	137 mm
Dimension - Stud Size Fraction	0.5
Dimension - Stud Size Inch	1/2
Dimension - Thread Size	0.5
Dimension - Z	0.64"
Dimensions-d	3.01"
Eu Rohs Indicator	Yes
Feature - Barrel Style	Belled
Feature - Barrel Type	Long
Finish Type	Tin-Plated
Material	Copper
Outside Diameter	0.77"
Overall Length	5.39"
Pad Width	1.14"
Physical Attribute - Number Of Holes	2
Physical Attribute - Tongue Angle	Straight
Physical Attribute - Tongue Type	Standard
Plated	Y
Plating Type	Tin Electro Plated
Standards - Rohs Compliance Status	CM
Strip Length	1.875"
Temperature Rating	194
Trade Name	Hylug
Type	Long Barrel, Tin Plated
Ul Listed	Yes
Voltage - Maximum	35000V
Voltage Rating	35 kV
Wire Size	4/0 AWG

Shipping Info:

Ship weight (kg)	0.12
Ship height (cm)	1.96
Ship length (cm)	13.69
Ship width (cm)	2.9
Country of Origin	US

Product Variants

Model	Color Code	Stud Size	Material	Connector Type	Wire Size	Overall Length	Number Of Holes	Strip Length	Price
YAZ6CTC14	Blue	1/4"	-	-	-	3 1/2"	1	1.188"	-	RFQ
YA4CL3BOX	Gray	0.312"	-	-	-	1.79"	1	7/8"	-	RFQ
YAEV8CL2	Red	0.312"	-	-	-	1.54"	1	-	-	RFQ
YAZV102TC14	-	1/4"	-	-	-	2 4/25"	2	3/4"	-	RFQ
YA27A1	Ruby	-	-	-	-	2 22/25"	1	1 1/2"	-	RFQ
YA1CLBOX	Green	0.312"	-	-	-	1.94"	1	0.938"	-	RFQ
YA27L	Orange	1/2"	-	-	-	2.54"	1	-	-	RFQ
