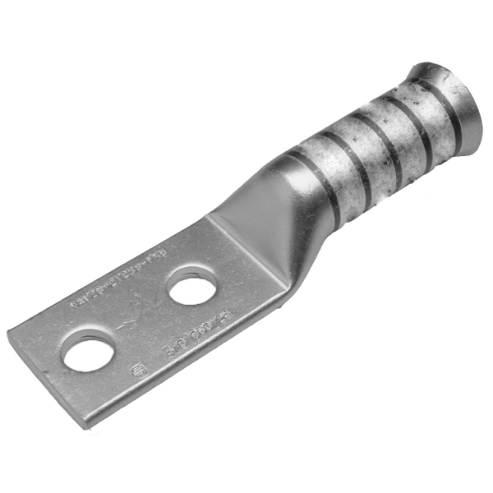

BURNDY YAV252NFXB Compression Lug, 1.5 Inch Barrel Length, Pink
126 mm
Pink
Get it by Friday, Dec 19
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Wire Termination |
| Bolt Hole Size | 0.56" |
| Certification - Csa Approved | Yes |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Pink |
| Conductor - Copper Dlo Size | 1/0 AWG |
| Conductor - Copper Dlo Size Range | 1/0 AWG |
| Conductor - Copper Flex G Size | 1/0 AWG |
| Conductor - Copper Flex G Size Range | 1/0 AWG |
| Conductor - Copper Flex H Size | 0.3249 AWG |
| Conductor - Copper Flex H Size Range | 1/0 AWG |
| Conductor - Copper Flex I Size | 0.3249 AWG |
| Conductor - Copper Flex I Size Range | 1/0 AWG |
| Conductor - Copper Flex K Size | 1/0 AWG |
| Conductor - Copper Flex K Size Range | 1/0 AWG |
| Conductor - Copper Flex M Size | 1/0 AWG |
| Conductor - Copper Flex M Size Range | 1/0 AWG |
| Conductor - Copper Str Compact Size | 1/0 AWG |
| Conductor - Copper Str Navy Size | 100 |
| Conductor - Copper Str Navy Size Range | 100 (61) Navy |
| Conductor - Copper Str Size | 1/0 AWG |
| Conductor - Copper Str Size Range | 1/0 AWG |
| Conductor - Material | Copper |
| Conductor Size | 1/0 AWG |
| Conductor Type | Code, Flex |
| Connector Type | Long Barrel |
| Construction Material - Main | Copper Tubing |
| Die Index | 12 |
| Dimension N | 0.62" |
| Dimension - B Length | 1.5" |
| Dimension - B Length Fraction | 1 1/2" |
| Dimension - Bolt Size Fraction | 1/2" |
| Dimension - Bolt Size Inch | 0.5" |
| Dimension - Hole Size Fraction | 1/2 |
| Dimension - Hole Size Mm | 14 mm |
| Dimension - L Length Overall Mm | 126 mm |
| Dimension - Stud Size Fraction | 0.5 |
| Dimension - Z | 0.64" |
| Dimensions-d | 3.01" |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Outside Diameter | 0.56" |
| Overall Length | 4.96" |
| Pad Width | 0.83" |
| Physical Attribute - Number Of Holes | 2 |
| Physical Attribute - Tongue Angle | Straight |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin Electro Plated |
| Standards - Rohs Compliance Status | CM |
| Strip Length | 1.5625" |
| Trade Name | Hylug |
| Type | YA, Long Barrel Belled End |
| Ul Listed | Yes |
| Voltage - Maximum | 35000V |
| Voltage Rating | 35 kV |
| Wire Size | 1/0 AWG |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.42 |
| Ship length (cm) | 12.6 |
| Ship width (cm) | 2.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Material | Connector Type | Wire Size | Overall Length | Number Of Holes | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ6CTC14 | Blue | 1/4" | - | - | - | 3 1/2" | 1 | 1.188" | - | RFQ
|
 |
YA4CL3BOX | Gray | 0.312" | - | - | - | 1.79" | 1 | 7/8" | - | RFQ
|
 |
YAEV8CL2 | Red | 0.312" | - | - | - | 1.54" | 1 | - | - | RFQ
|
 |
YAZV102TC14 | - | 1/4" | - | - | - | 2 4/25" | 2 | 3/4" | - | RFQ
|
 |
YA27A1 | Ruby | - | - | - | - | 2 22/25" | 1 | 1 1/2" | - | RFQ
|
 |
YA1CLBOX | Green | 0.312" | - | - | - | 1.94" | 1 | 0.938" | - | RFQ
|
 |
YA27L | Orange | 1/2" | - | - | - | 2.54" | 1 | - | - | RFQ
|
