Lug Compression Connectors

BURNDY -

Two Hole NEMA Tongue Long Barrel CU Lugs

A

B

C

Style	Model	Color Code	Cable Size	Overall Length	Strip Length	Max. Wire Size	Connector Type	Stud Size	Material	Price
A	YA2C2N	Brown	2 AWG	4.64"	1 5/16"	2 AWG	Straight Barrel	1/2"	Copper	€30.22
B	YA342N	Brown	500 kcmil	6.06"	2 5/16"	500 kcmil	Straight Barrel	1/2"	Copper	€104.32
C	YA282N	Purple	-	5.17"	1 11/16"	4/0 AWG	Straight Barrel	1/2"	Copper	€48.55

EATON -

Lugs

A

B

C

D

Style	Model	Amps	Frame Type	Voltage	Accessory Type	Type	Height	Voltage Type	Price
A	WTX5	-	-	-	-	-	-	-	€266.63
A	WTX34	-	-	-	-	-	-	-	€266.63

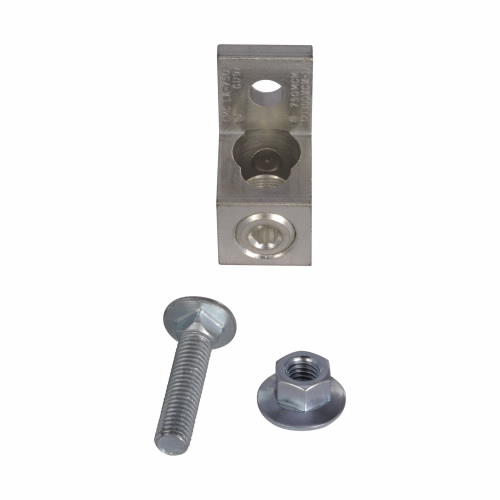

B	1MCB1200NLK	-	-	-	-	Neutral Lug	2"	-	€69.56

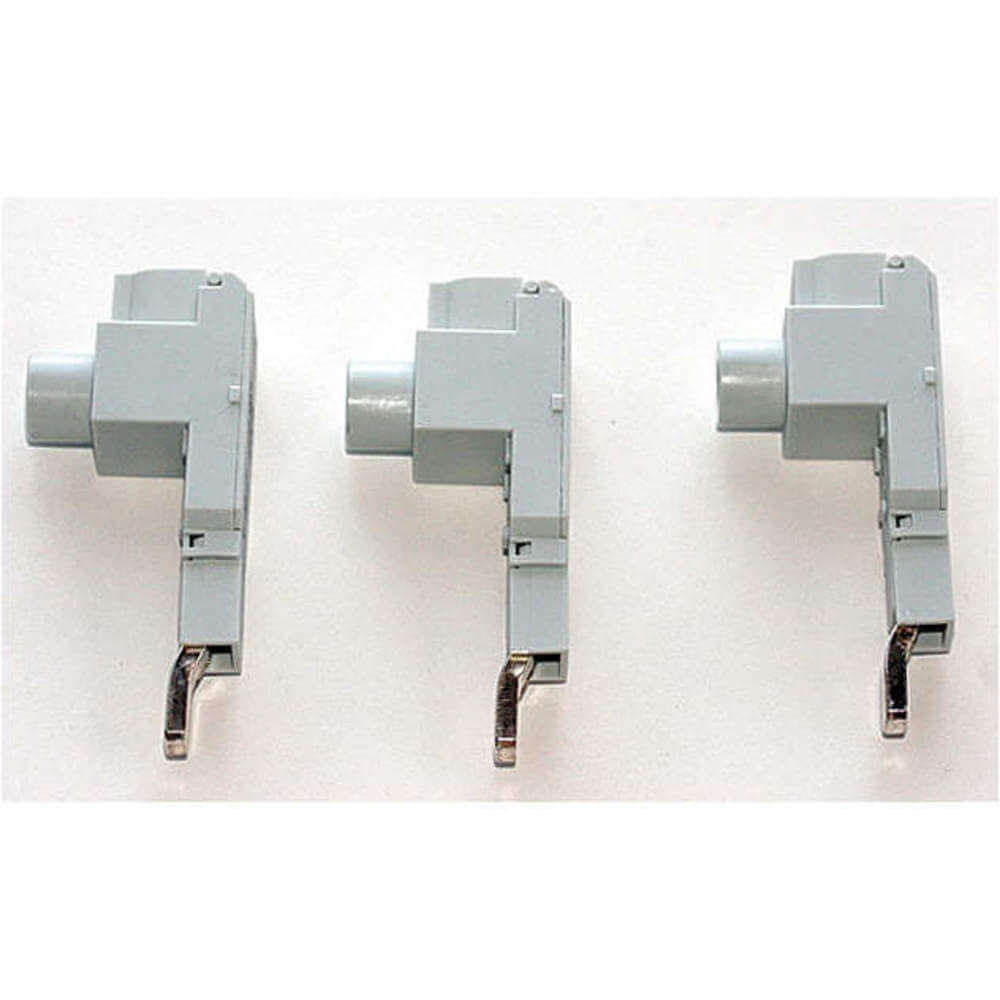

C	Z-EK/35/UL	80A	40A	-	Lug	-	-	-	-	RFQ
C	Z-EK/50	160A	40A	277-480V AC	Extension Terminal	-	-	-	€134.27
D	TA225CA2	225A	CA	600V AC	-	-	-	AC	-	RFQ

BURNDY -

Narrow Tongue Barrel Compression Lugs, 1 Hole
Burndy compression lugs having a narrow tongue design allow the terminal to fit into tight spaces and withstand current surges, extreme temperatures, corrosion & vibrations. These units are CSA certified & UL listed and feature high-conductivity copper construction with electro-tin plating to resist overheating and corrosion. They come with colour-coded end caps for easy identification & facilitating a reliable connection. These units are available in widths ranging from 0.29 to 0.96 inches on Raptor Supplies.

A

B

C

D

E

F

G

Style	Model	Color Code	Stud Size	Cable Size	Hole Center To End	Style	Hole Size	Overall Length	Strip Length	Price

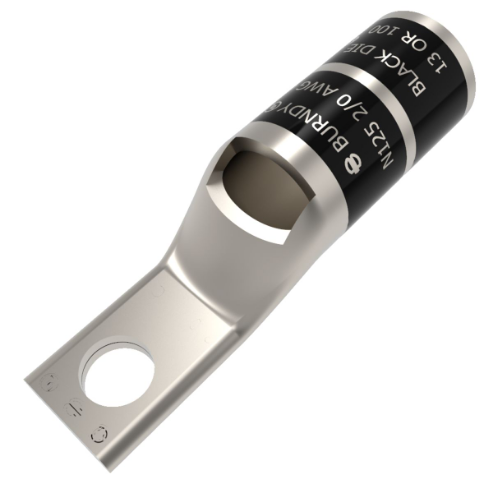

A	YA26LNT516	Black	5/16"	-	0.33"	Narrow	0.33"	2.62"	1"	€30.69
B	YA6CLNT6	Blue	#6	6 AWG	0.19"	Standard	0.17"	1.17"	7/8"	€24.66

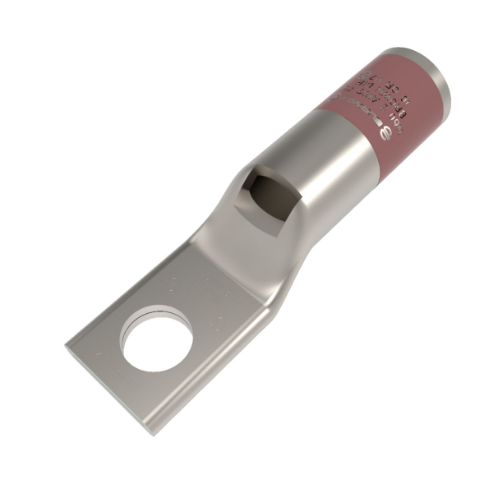

C	YA2CLNT14	Brown	1/4"	2 AWG	1/4"	Narrow	0.27"	-	-	€23.90

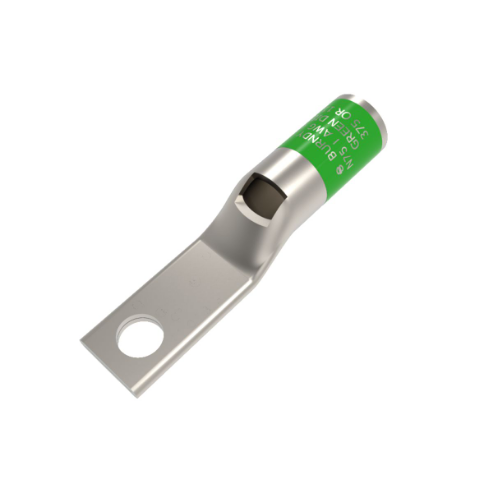

D	YA1CLNT14	Green	1/4"	1 AWG	1/4"	Narrow	0.27"	2.23"	15/16"	€28.27

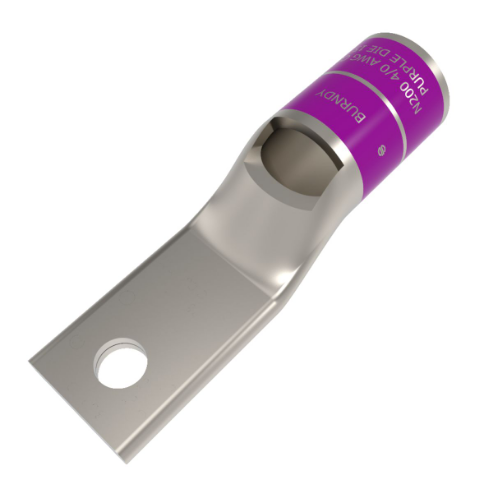

E	YA28LNT38	Purple	3/8"	-	0.41"	Narrow	0.39"	2.67"	1 1/8"	€44.44

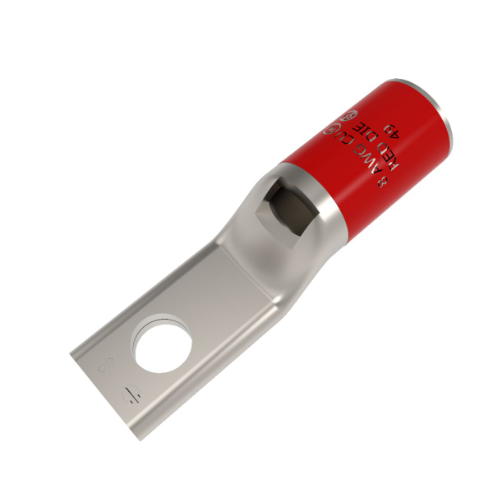

F	YA8CLNT6	Red	#6	8 AWG	0.19"	Narrow	0.15"	1.08"	1/2"	€24.75

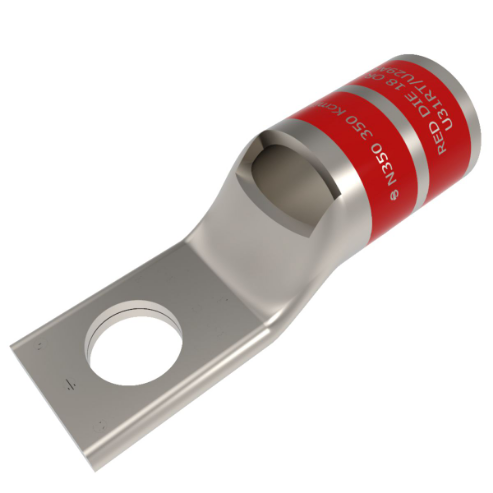

G	YA31LNT38	Red	3/8"	350 kcmil	0.41"	Narrow	0.39"	3.31"	1 3/16"	€63.17

GENERAL ELECTRIC -

Lug Kits

A

B

C

D

Style	Model	Amps	Voltage	Accessory Type	Min. Wire Size	Mounting Location	Max. Wire Size	Type	Frame Type	Price

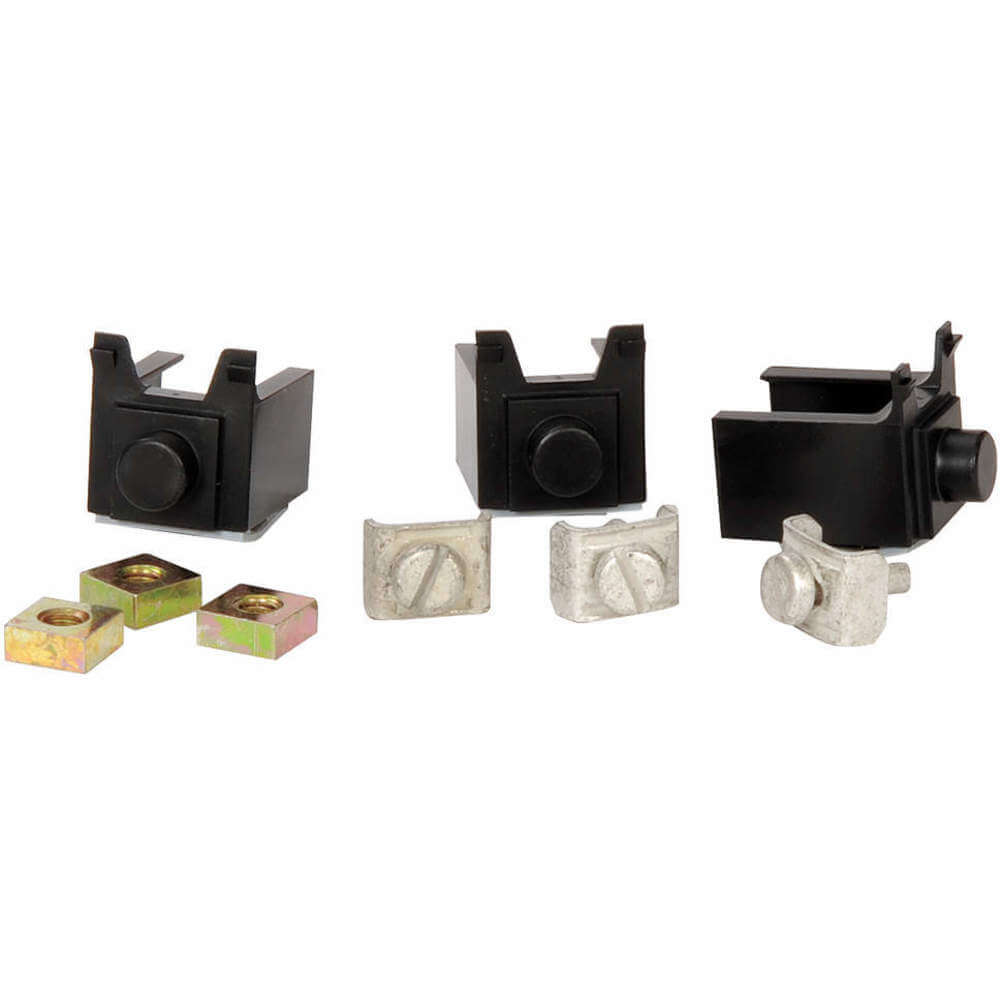

A	FCALK12	15/20A	600V AC	Lug Kit	14 AWG	Breaker	10 AWG	15-20A, FB Breaker	15A, 20A	€67.97
A	FCALK13	25/60A	600V AC	Lug Kit	4 AWG	Breaker	1/0 AWG	25-60A, FB Breaker	25A, 60A	€67.97

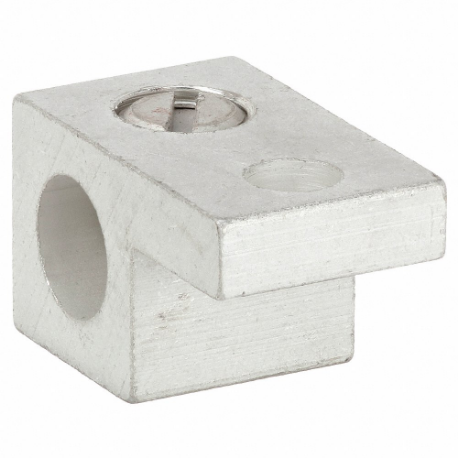

B	TLK20	125A	120/240V AC	Neutral And Ground Lug Kit	6 AWG	Panel Mount	-	-	-	€27.43
C	THLK150	150A	240V AC	-	-	-	-	-	-	€39.49
C	THLK200	200A	240V AC	-	-	-	-	-	-	€62.26

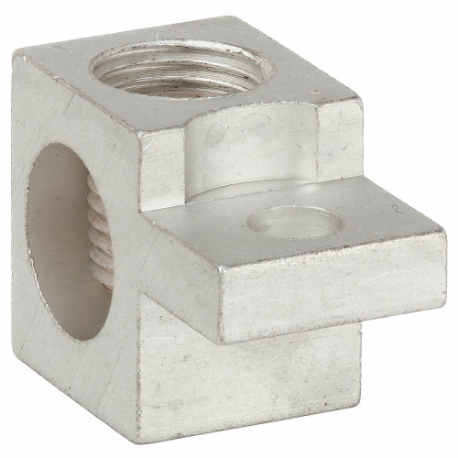

D	TLK250	200A	120/240V AC	Neutral And Ground Lug Kit	6 AWG	Panel Mount	250 mcm	-	-	€31.66

BURNDY -

Two Hole Lug Compression Connectors, Copper, Straight Barrel
Burndy narrow tongue lugs are suitable for connecting electrical devices and cables in electrical & telecommunication facilities. They have high-conductivity copper construction for withstanding current surges, extreme temperatures, vibrations and corrosi) feature a chamfered barrel design.

A

B

Style	Model	Cable Size	Color Code	Stud Size	Hole Center To End	Overall Length	Strip Length	Hole Size	Cable Size Code	Price
A	YAZ342NT38FX	374 kcmil	Blue	3/8"	0.41"	4.85"	2 5/16"	0.39"	350 kcmil	€148.16

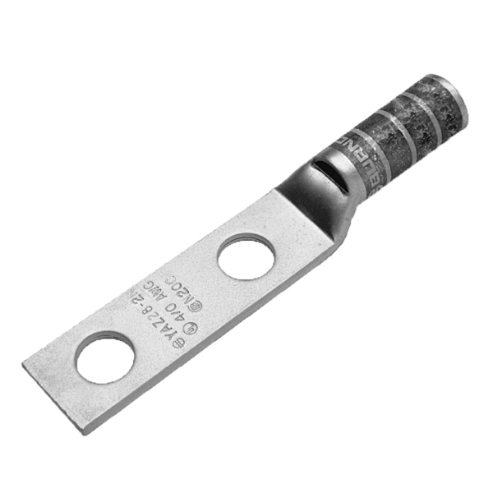

B	YAZ382NNTFX	500 kcmil	Pink	1/2"	0.62"	6.72"	2 7/8"	0.53"	500 kcmil	€194.34

BLACKBURN (T&B) -

Compression Lug Awg Colour Code

A

B

C

D

Style	Model	Color Code	Stud Size	Cable Size	Hole Center To End	Overall Length	Color	Max. Wire Size	Connector Type	Price
A	60103-TB	Blue	5/16"	8 AWG	11/25"	1.56"	Blue	8 AWG	Straight Barrel	€17.20
B	60104-TB	Blue	3/8"	8 AWG	11/25"	1.6"	Blue	8 AWG	Straight Barrel	€13.18
C	60122	Gold	1/4"	1 AWG	0.34"	2.3"	Gold	-	Straight Barrel	€28.27
C	60123	Gold	5/16"	-	11/25"	2.39"	Gold	-	Straight Barrel	€26.33
D	60126	Gold	1/2"	1 AWG	0.69"	2.89"	Gold	-	Straight Barrel	€38.48
D	60106-TB	Gray	#10	6 AWG	0.22"	1.52"	Gray	6 AWG	Straight Barrel	€17.06
C	60108-TB	Gray	5/16"	6 AWG	11/25"	1.83"	Gray	6 AWG	Straight Barrel	€18.18
C	60134	Olive	1/4"	2/0 AWG	0.34"	2.48"	Olive	2/0 AWG	Straight Barrel	€33.83
C	60135	Olive	5/16"	-	11/25"	2.64"	Olive	2/0 AWG	Straight Barrel	€40.79
D	60120	Pink	1/2"	2 AWG	0.69"	2.25"	Pink	2 AWG	Straight Barrel	€18.41
C	60140	Ruby	1/4"	-	0.34"	2.58"	Ruby	3/0 AWG	Straight Barrel	€45.95
C	60141	Ruby	5/16"	-	11/25"	2.83"	Ruby	-	Straight Barrel	€29.86
C	60128	Tan	1/4"	-	0.34"	2.36"	Tan	1/0 AWG	Straight Barrel	€37.00
C	60147	White	5/16"	-	0.38"	3.53"	White	-	Straight Barrel	€33.75

THOMAS & BETTS -

LT6XES05B Series Flexible Metal Conduit Fittings

A

Style	Model	MPN	Price	Pkg. Qty.
A	MCCNT25M5	MCCNT25M5	€24.45	100
A	MCCNT70M6	MCCNT70M6	€13.17	50

EATON -

Safety Switch Crimp Lug Pad Kits

A

Style	Model	Amps	Height	Type	Price
A	DS800CNK	400-800A	7"	Crimp Lug Pad Kit	€1,482.52
A	DS76CK	800A	3 1/5"	Crimp Lug Pad Kit	€499.72

EATON -

S611 Series Mechanical Lug Kits

A

B

Style	Model	Wire Size	Amps	Type	Height	Price
A	S611-LUG-M03	#2 AWG to 600 kcmil	156-242A	Mechanical Lug Kit	4"	€298.45
A	S611-LUG-M04	#2 AWG to 600 kcmil	302-414A	Mechanical Lug Kit	4"	€497.42
A	S611-LUG-M02	#6 AWG to 300 kcmil	99-125A	Mechanical Lug Kit	4"	€198.97
B	S611-LUG-M01	#14 AWG to 2/0 AWG	52-77A	Mechanical Lug Kit	4"	€99.48

EATON -

Safety Switch Ground Lug Kits

A

B

C

D

Style	Model	Height	Amps	Voltage	Material	Type	Price
A	DG030GB	2"	30-100A	240V AC	Steel	Ground Lug Kit	€50.20
B	DS468GK	2"	-	-	-	Ground Lug Kit	€144.27
C	DS200GK	4"	200A	600V AC	Steel	Ground Lug Kit	€102.04
D	DS100GK	5"	30-100A	600V AC	Steel	Ground Lug Kit	€59.87

EATON -

Safety Switch Copper Lug Kits

A

B

Style	Model	Amps	Height	Type	Price
A	DS16CL	30A	4"	Copper Lug Kit	€100.82
A	DS26CL	60A	4"	Copper Lug Kit	€129.17
A	DS36CL	100A	4"	Copper Lug Kit	€217.79
B	DS46CL	200A	3 1/2"	Copper Lug Kit	€693.98
B	DS56CL	400A	4"	Copper Lug Kit	€727.79

EATON -

Molded Case Circuit Breaker Line and Load Terminals

A

B

C

D

E

F

G

H

I

J

K

L

M

N

Style	Model	Height	Amps	Price
A	T1200NB1	-	-	€410.73
B	3T20FB	0.7"	20A	€15.82
C	3TA150FB	0.9"	150A	€47.32
D	3TA150EF	1 1/2"	160A	€19.07
E	T350LK	1 1/2"	400A	€84.80
F	4TA402K	1 2/5"	400A	€267.72
G	B2016RDLM	1"	2000A	€473.08
F	4TA603LDK	1"	600A	€491.42
E	T350K	1.3"	400A	€101.58
H	3T225FD	1/2"	225A	€395.84
H	3TA100FD	1/2"	100A	-	RFQ
I	3TA50FB	1/2"	50A	€30.31
H	3TA225FD	1/2"	225A	€165.85
D	3TA125EF	1/2"	125A	€19.07
G	B2016RDL	2 1/2"	2000A	€473.08
G	B2016RD	2 1/2"	2000A	€396.08
J	T1200NB3	2 2/5"	1200A	€434.57
G	B2016RDM	2 3/4"	2000A	€427.24
K	B2500RD	2"	2500A	€1,028.69
L	4TA401K	2"	400A	€267.72
K	B2500RDM	2"	2500A	€1,028.69
M	3TA632LK	3 1/2"	630A	€468.25
N	3TA631LK	3 1/2"	400A	€292.49
N	3T631LK	3"	400A	€322.98
F	3T632LKW	3"	-	€478.59

EATON -

BR Series Sub Feed Lugs

A

B

C

D

Style	Model	Wire Size	Height	Amps	Type	Price
A	BRSF125CS	-	1"	-	Sub Feed Lug	-	RFQ
B	BRS225	#2 AWG to 300 kcmil	3 1/2"	225A	Sub Feed Lug	€213.26
C	BRS125CLX	#6 AWG to 2/0 AWG	1"	125A	Sub Feed Lug	€34.45
A	BRSF125	#8 AWG to 2/0 AWG	1"	125A	Sub Feed Lug	€110.59
D	BRSF150	#8 AWG to 2/0 AWG	2 1/4"	150A	Sub Feed Lug	€128.50

EATON -

Lug Kits

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

Style	Model	Wire Size	Height	Type	Amps	Mounting	Voltage	Price
A	HPBLK750	-	1"	Lug Kit	-	-	-	€401.26
B	3MTB800BLK	-	3 1/2"	Lug Kit	-	-	-	€170.38
C	CH350LUGKIT	-	0.01"	#350 Kcmil Lug Kit	-	-	-	€304.61
D	C325KAL9	-	-	-	-	-	-	€1,802.07
E	C325KAL8	-	-	-	-	-	-	€1,221.26
F	C325KAL12	-	3 7/8"	-	-	-	-	€180.26
F	C325KAL11	-	3 7/8"	-	-	-	-	€188.86
F	C325KAL10	-	3 7/8"	-	-	-	-	€196.98
G	ARP00119CH	-	1"	#6-350 Kcmil Lug Kit	-	-	-	€57.25
H	3MTB600CLK	-	3"	Lug Kit	-	-	-	€812.42
I	ARP00427CH	-	1.938"	#6-350 Kcmil Lug Kit	-	-	-	€247.61
H	3MTB600BLK	-	3"	#1/0-250 Kcmil Lug Kit	-	-	-	€1,557.89
J	1MFS600BLK	-	3 1/2"	Lug Kit	-	-	-	€371.61
K	1MCB800BLK	-	2 1/2"	Box Lug Kit	1600/2000A	-	-	€863.81
L	3MTB1200BLK	-	5"	Lug Kit	-	-	-	€561.86
M	CH68752-1	-	0.01"	(3) #6-250 Kcmil Lug	-	-	-	-	RFQ
N	3MTB1600BLK	-	3"	Box Lug Kit	-	-	-	€1,360.59
O	BRL200	#1 AWG to 300 kcmil	1"	Main Lug Kit	200A	Stud	120/208/240V	€61.22
P	MCBL300	#2 AWG to 300 kcmil	1.1"	Main Breaker Lug Kit	300A	-	-	€54.91
Q	MCBK225	#2 AWG to 300 kcmil	3"	Lug Tree Kit	225A	-	-	€259.00
R	3BRL225	#2/0 AWG to 300 kcmil	1"	Lug Kit	225A	-	-	€256.03
F	C325KAL15	#2/0 AWG to 600 kcmil	4 1/5"	-	-	-	-	€393.99
F	C325KAL16	#2/0 AWG to 600 kcmil	3 3/5"	-	-	-	-	€393.99
F	C325KAL18	#3/0 AWG to 750 kcmil	6 3/8"	-	-	-	-	€1,615.61
F	C325KAL19	#3/0 AWG to 750 kcmil	6 3/8"	-	-	-	-	€1,774.11

EATON -

Compression Lug Landing Kits

A

B

C

Style	Model	Height	Type	Price
A	3MTB1600CLK	6"	Compression Lug Landing Kit	€1,199.20
B	3MFS800CLKT	7.313"	Compression Lug Landing Kit	€1,040.45
B	3MFS800CLK	7.313"	Compression Lug Landing Kit	€754.65
C	3MTB1200CLK	7.313"	Compression Lug Landing Kit	€991.39
