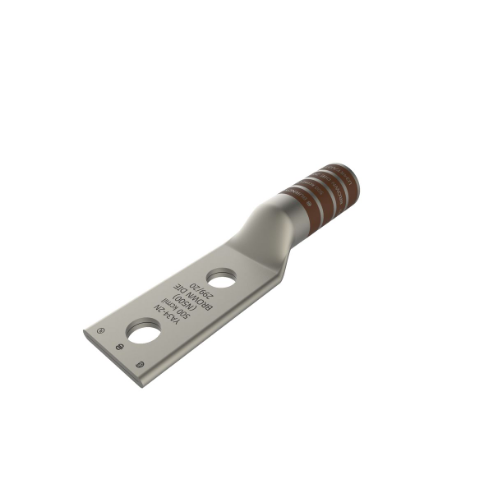

BURNDY YA342N Nema Cu Lug 2 Hole 500 Kcmil
Item: AB6RJWModel: YA342NCross Ref: 22C332
7 In Stock
Ships within 2 days via
10.00% off
€74.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Two Hole NEMA Tongue Long Barrel CU Lug |
| Barrel Od | 1.06" |
| Barrel Outside Diameter | 1.06" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 500 kcmil |
| Cable Size Code | 500 kcmil |
| Color Code | Brown |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 20 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 500 kcmil |
| For Stranded Copper Wire Size - Minimum | 500 kcmil |
| For Stud Size | 1/2" |
| For Wire Size | 500 kcmil |
| For Wire Type | Stranded |
| Hole Center To Center | 1 3/4" |
| Hole Center To End | 0.63" |
| Hole Size | 14/25" |
| Hole To Hole Center (in.) | 1-3/4 |
| Inspection Hole | No |
| Length | 6.06" |
| Length (straight Wireway) | 6.06" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 500 kcmil |
| Number Of Holes | 2 |
| Overall Length | 6.06" |
| Overall Width | 1.55" |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Terminal |
| Strip Length | 2 5/16" |
| Stud Size | 1/2" |
| Style | Chamfered Barrel, Crimp Termination |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.27" |
| Tongue Style | Standard |
| Tongue Thickness | 0.22" |
| Tongue Width | 1.55" |
| Width | 1 13/25" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 15.39 |
| Ship width (cm) | 3.94 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Details:
- Blackburn LCN500, T&B 54876BE
