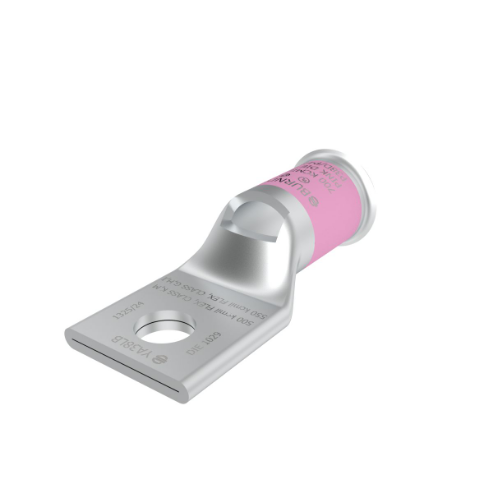

BURNDY YA38LB Compression Lug, 1.85 Inch Barrel Length, Pink
109 mm
Pink
Get it by Wednesday, Dec 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Wire Termination |
| Bolt Hole Size | 0.66" |
| Certification - Csa Approved | Yes |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Pink |
| Conductor - Copper Dlo Size | 535 kcmil |
| Conductor - Copper Dlo Size Range | 535 kcmil |
| Conductor - Copper Flex G Size | 550 kcmil |
| Conductor - Copper Flex G Size Range | 550 kcmil |
| Conductor - Copper Flex H Size | 550 kcmil |
| Conductor - Copper Flex H Size Range | 500 kcmil, 550 kcmil |
| Conductor - Copper Flex I Size | 500 kcmil to 550 kcmil |
| Conductor - Copper Flex I Size Range | 500/550 kcmil |
| Conductor - Copper Flex K Size | 500 kcmil |
| Conductor - Copper Flex K Size Range | 500 kcmil |
| Conductor - Copper Flex M Size | 500 |
| Conductor - Copper Flex M Size Range | 500 |
| Conductor - Copper Str Size | 700 |
| Conductor - Copper Str Size Range | 500 kcmil, 550 kcmil |
| Conductor - Material | Copper |
| Conductor Size | 700 kcmil |
| Conductor Type | Code |
| Connector Type | Terminal |
| Die Index | 400 |
| Dimension N | 0.88" |
| Dimension - B Length | 1.85" |
| Dimension - Bolt Size Fraction | 5/8" |
| Dimension - Bolt Size Inch | 0.63" |
| Dimension - Hole Size Fraction | 5/8" |
| Dimension - Hole Size Inch | 0.69" |
| Dimension - Hole Size Mm | 17.5 mm |
| Dimension - L Length Overall Mm | 109 mm |
| Dimension - Strip Length Inch | 1 15/16" |
| Dimension - Stud Size Fraction | 5/8" |
| Dimension - Z | 0.87" |
| Dimesion-b Length | 1 7/8" |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Outside Diameter | 1 1/4" |
| Overall Length | 4.31" |
| Pad Width | 1.81" |
| Physical Attribute - Number Of Holes | 1 |
| Physical Attribute - Tongue Angle | Straight |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin Electro Plated |
| Standards - Rohs Compliance Status | CM |
| Trade Name | Hylug |
| Type | Standard Belled Barrel, Tin Plated |
| Ul Listed | Yes |
| Voltage - Maximum | 35000V |
| Voltage Rating | 35 kV |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 10.95 |
| Ship width (cm) | 4.6 |
| Country of Origin | US |
