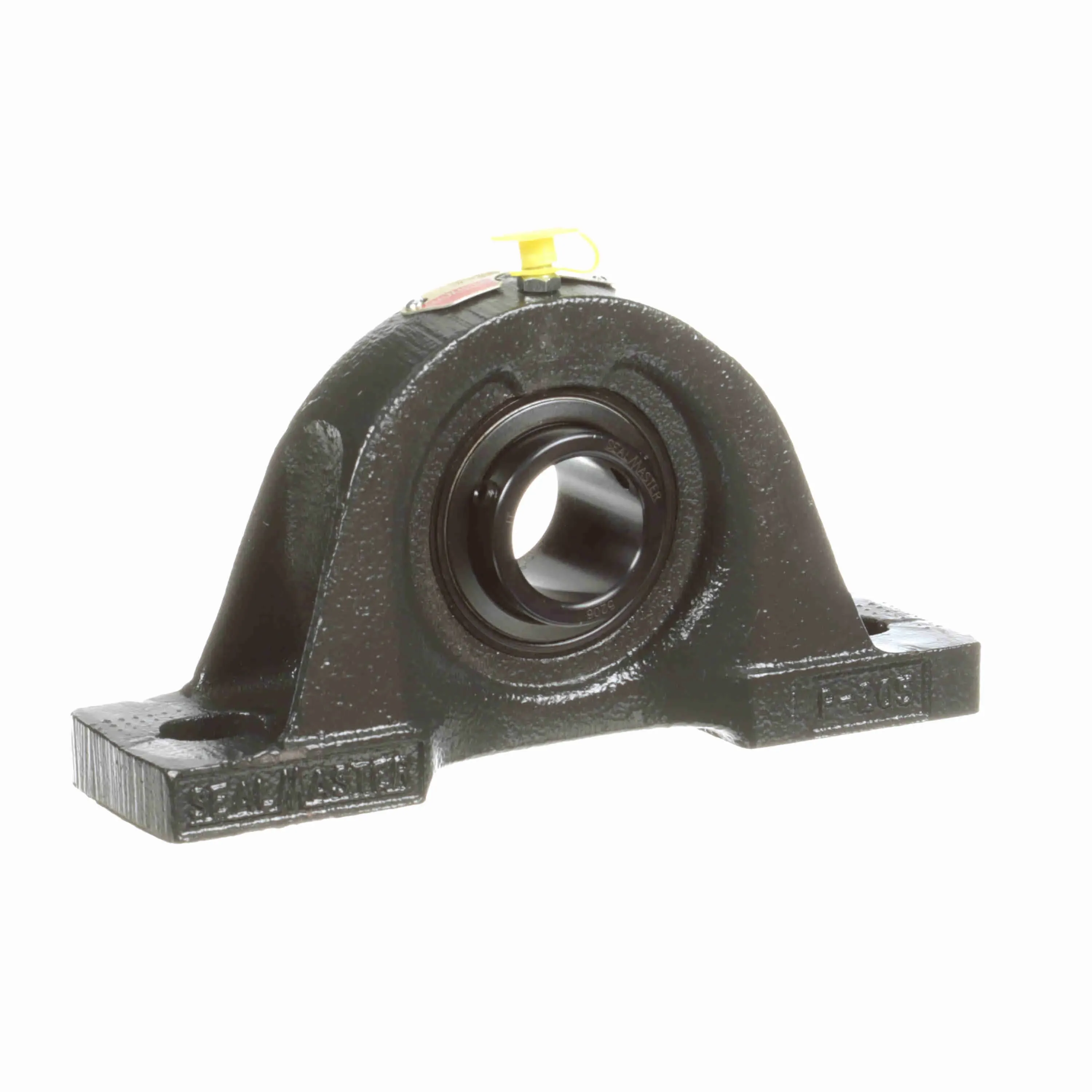

SEALMASTER SP-206 710036 Pillow Block Ball Bearing Unit, 2-Bolt Base, 30 Mm Bore
Get it by Friday, Dec 19
€335.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 7 1/2" |
| Base To Center Height | 2" |
| Base Width | 2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5 3/4" |
| Bolt Spacing Max | 6.13" |
| Bolt Spacing Min | 5.38" |
| Bore Dia. | 30 mm |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 7/8" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.63" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.594" |
| Insert | 5206 |
| Length Through Bore | 1.497" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5450 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 22/25" |
| Overall Length | 7 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 5.41 |
| Ship width (cm) | 19.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP-25C | - | - | - | - | - | Contact Seal | - | - | €1,737.20 | |
|
SP-24C | Set Screw | 1 1/2" | 8 1/2" | 2.38" | 4 14/25" | Single Lip Contact Seal | 2-18C | 4150 RPM | €353.35 | |
|
SP-47C | Set Screw | 2 15/16" | 13" | 3.38" | 7.19" | - | 2-215C | 2100 RPM | €1,246.01 | |
 |
SP-31 CXU | - | - | - | - | - | - | - | - | €486.17 | |
 |
SP-23 CSK | - | - | - | - | - | Standard Felt Seal | - | - | €455.12 | |
 |
SP-14C | - | - | - | - | - | - | - | - | €266.55 | |
 |
SP-31 | Set Screw | 1 15/16" | 10 1/2" | 2 1/2" | 5.31" | Felt Labyrinth Seal | 2-115 | 3550 RPM | €463.00 |
