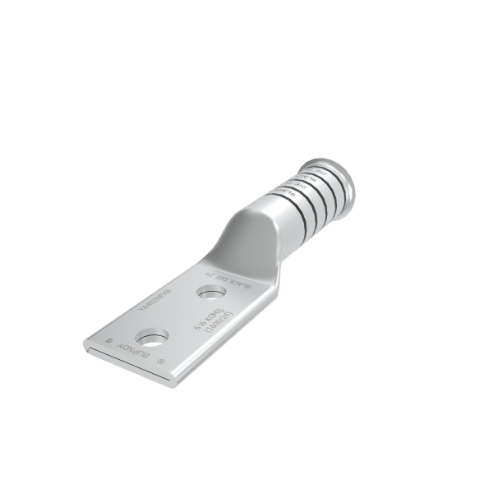

BURNDY YA402NFXB Compression Lug, 3.24 Inch Barrel Length, Black
183 mm
Black
Get it by Wednesday, Dec 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Wire Termination |
| Bolt Hole Size | 0.52" |
| Certification - Csa Approved | Yes |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Black |
| Conductor - Copper Dlo Size | 646 kcmil |
| Conductor - Copper Dlo Size Range | 646 kcmil |
| Conductor - Copper Flex G Size | 650 kcmil |
| Conductor - Copper Flex G Size Range | 650 kcmil |
| Conductor - Copper Str Size | 650 kcmil |
| Conductor - Copper Str Size Range | 650 kcmil |
| Conductor - Material | Copper |
| Conductor Size | 650 kcmil |
| Conductor Type | Flex |
| Connector Type | Long Barrel |
| Die Index | 24 |
| Dimension N | 0.62" |
| Dimension - B Length | 3.24" |
| Dimension - Bolt Size Fraction | 1/2" |
| Dimension - Bolt Size Inch | 0.5" |
| Dimension - Hole Size Fraction | 1/2 |
| Dimension - Hole Size Mm | 14 mm |
| Dimension - L Length Overall Mm | 183 mm |
| Dimension - Stud Size Fraction | 0.5 |
| Dimension - Stud Size Inch | 1/2 |
| Dimension - Z | 0.64" |
| Dimensions-d | 3.01" |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Outside Diameter | 1.35" |
| Overall Length | 7.22" |
| Pad Width | 1.98" |
| Physical Attribute - Number Of Holes | 2 |
| Physical Attribute - Tongue Angle | Straight |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin Plated |
| Standards - Rohs Compliance Status | CM |
| Strip Length | 3.3125" |
| Temperature Rating | 194 |
| Trade Name | Hylug |
| Type | Long Barrel, Tin Plated |
| Ul Listed | Yes |
| Voltage - Maximum | 35000V |
| Voltage Rating | 35 kV |
| Wire Size | 650 kcmil |
Shipping Info:
| Ship weight (kg) | 0.58 |
| Ship height (cm) | 3.43 |
| Ship length (cm) | 18.34 |
| Ship width (cm) | 5.03 |
| Country of Origin | US |
