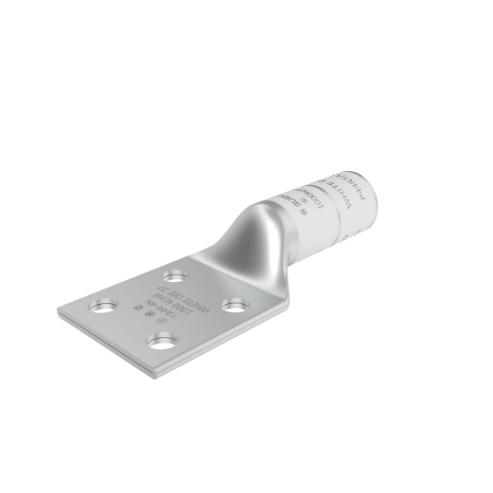

BURNDY YA444N Compression Lug, 3 Inch Barrel Length, White
181 mm
White
Get it by Tuesday, Aug 18
€398.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Wire Termination |
| Bolt Hole Size | 0.52" |
| Certification-csa Approved | Yes |
| Certification-culus | No |
| Certification-etl | No |
| Certification-ul Recognized | No |
| Color Code | White |
| Conductor Copper Str Size | 1000 kcmil |
| Conductor Material | Copper |
| Conductor Size | 1000 kcmil |
| Conductor Type | Code |
| Connector Type | Long Barrel |
| Die Index | 27 |
| Dimension-b Length | 3" |
| Dimension-b Length Fraction | 3" |
| Dimension-bolt Size Fraction | 1/2" |
| Dimension-bolt Size Inch | 0.5" |
| Dimension-d Inch | 3.02" |
| Dimension-f Width Center To Center | 1.75" |
| Dimension-hole Size Fraction | 1/2 |
| Dimension-hole Size Mm | 14 mm |
| Dimension-l Length Overall Mm | 181 mm |
| Dimension-pad Width | 3.00" |
| Dimension-strip Length Inch | 3 1/16" |
| Dimension-stud Size Fraction | 0.5 |
| Dimension-stud Size Inch | 1/2" |
| Dimensions D | 3.02" |
| Dimensions N | 0.63" |
| Dimensions-outside Dia. Inch | 1 1/2" |
| Dimensions-z | 0.64" |
| Eu Rohs Indicator | Yes |
| Feature-barrel Style | Chamfered |
| Feature-barrel Type | Long |
| Finish Type | Tin-Plated |
| Industry Standards | UL 486A-486B |
| Material | Copper |
| Max. Voltage | 35000V |
| No. Of Holes | 4 |
| Outside Dia. | 1 1/2" |
| Overall Length | 7.14" |
| Pad Width | 3" |
| Plated | Y |
| Plating Type | Tin |
| Product Datasheet | burndy-ya444n.pdf |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards-rohs Compliance Status | CM |
| Temp. | 194 |
| Tongue Angle | Straight |
| Trade Name | Hylug |
| Type | Long Barrel, Tin Plated |
| Ul Listed | Yes |
| Voltage | 35 kV |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 18.14 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Holes | Color Code | Strip Length | Stud Size | Material | Terminal Material | Conductor Material | Hole Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ6CTC14 | 1 | Blue | 1.188" | 1/4" | - | Copper | Copper | 1/2" | €5.31 | |
 |
YA4CL3BOX | 1 | Gray | 7/8" | 0.312" | - | Copper | Copper | - | €6.18 | |
 |
YAEV8CL2 | 1 | Red | - | 0.312" | - | Copper | - | - | €2.77 | |
 |
YAZV102TC14 | 2 | - | 3/4" | 1/4" | - | Copper | Copper | 1/2" | €11.00 | |
 |
YA27A1 | 1 | Ruby | 1 1/2" | - | - | Aluminium | - | - | €39.55 | |
 |
YA1CLBOX | 1 | Green | 0.938" | 0.312" | - | Copper | Copper | 13/25" | €12.37 | |
 |
YA27L | 1 | Orange | - | 1/2" | - | Copper | Copper | - | - | RFQ
|
