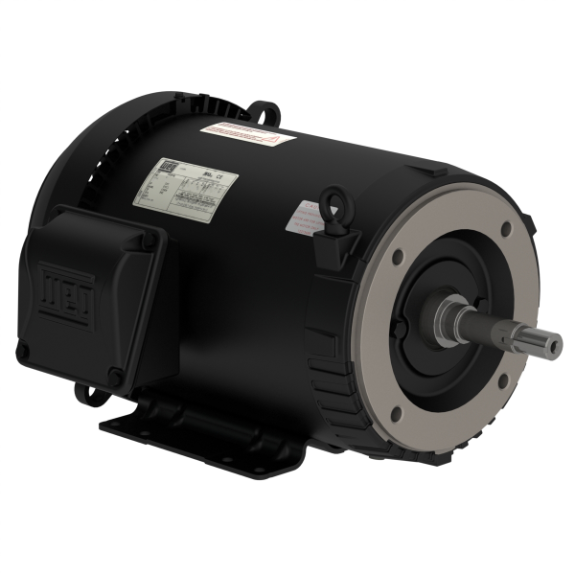

WEG 02018ET3E256JM-SG 13221592 Pump Motor, 20 HP, 1800 RPM, 208/230/460V, TEFC, 254/6JM, Footed, Close CoupLED Pump With Bearing Protection
1800 rpm
20 hp
256JM
Get it by Wednesday, Aug 19
€3,685.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 21.6A , 49.4/24.7A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% , 390% |
| Cold Locked Rotor Time | 0 sec. , 28 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Automatic, Rubber , Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency @ 1 % | 82% |
| Efficiency @ 75 % | 77% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 256JM |
| Frame Type | 254/6JM |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Superior |
| Grounding Lugs Type | Superior |
| Hot Locked Rotor Time | 16 sec. |
| Hp | 20 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 184A , 331/165A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 270% , 340% |
| Lrc | 6.7X(Code H) , 8.5x(Code K) |
| Main Terminal Box Hole Size | 1.732" |
| Material | Carbon Steel |
| Max. Ambient Temp. | -20°C to +40°C |
| Moment Of Inertia | 2.64 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 12.8A , 22.2/11.1A |
| No. Of Poles | 4 |
| Noise Level | 65 dBA , 68 dBA |
| Output Hp | 20 hp |
| Output Power | 15 kW |
| Output Rating | 11 kW , 20 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor @ 1 % | 93 |
| Power Factor @ 50 % | 91.7 |
| Power Factor @ 75 % | 92.4 |
| Product Datasheet | weg-02018et3e256jm-sg.pdf |
| Rated Speed | 1475 RPM |
| Rated Torque | 53.4 lbs.-ft. |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Shaft Grade | Grade SAE 1040/45 |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Slip | 1.67% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 59.5 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 126.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 63.09 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | Frequency | Service Factor | Hp | Duty Cycle | Frame Material | No. Of Poles | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
03018ET3E286T-W22G | 60 Hz | - | 30 hp | Continuous | Cast Iron | 4 | 1800 RPM | 22.4-26/13A | €6,374.11 | |
 |
10018ET3E405T-W22G | 60 Hz | 1.25 | 100 hp | S1 | Cast Iron | 4 | 1800 RPM | 76/38A | €14,765.27 | |
 |
04018ET3E324T-W22G | 60 Hz | - | 40 hp | S1 | Cast Iron | 4 | 1800 RPM | 34/17A | €7,977.95 | |
 |
01518ET3E254JM-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 4 | 1800 RPM | 17.3/8.65A | €3,390.61 | |
 |
01518ET3E254T-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 4 | 1800 RPM | 17.3/8.65A | €3,122.55 | |
|
02536ET3E284TS-W22G | 60 Hz | 1.25 | 25 hp | S1 | Cast Iron | 2 | 3600 RPM | 16/8A | €5,968.17 | |
 |
00152ET3E182T-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 6 | 1200 RPM | 2.73/1.36A | €985.49 |
