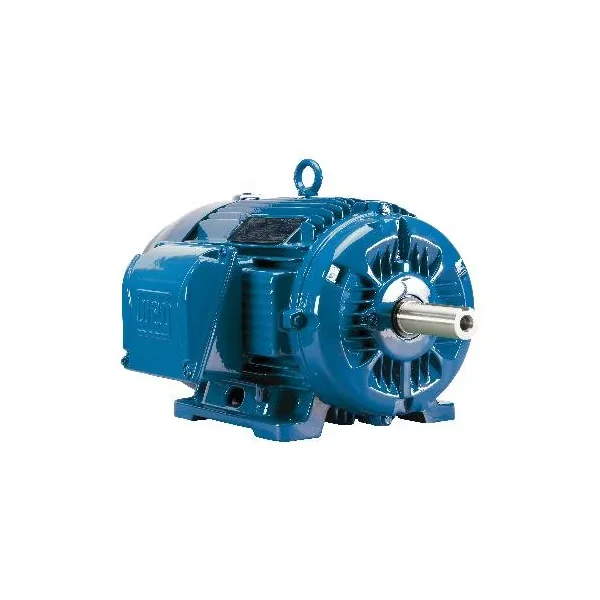

WEG 03036ET3E286TS-W22G 12769958 Air Handling Motor, 30 HP, 3600 RPM, 208/230/460 V, 3 Phase, TEFC, 284/6TS Frame, Footed, HVAC with Internal Shaft Grounding Rings
3600 rpm
30 hp
286TS
Get it by Tuesday, Jul 14
€4,474.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 68.4/34.2A |
| Bearing Cap | Yes |
| Break Down Torque | 250% |
| Cold Locked Rotor Time | 27 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency 50% | 80% |
| Efficiency @ 1 % | 88% |
| Efficiency @ 75 % | 86% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 286TS |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz , 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 30 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 431/215A |
| Locked Rotor Torque | 200% |
| Lrc | 6.3X(Code G) |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 3.37 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3540 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 20/10A |
| No. Of Poles | 2 |
| Noise Level | 72 dBA |
| Output | 30 hp |
| Output Rating | 30 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 91.7 |
| Power Factor @ 50 % | 91.7 |
| Power Factor @ 75 % | 91.7 |
| Product Datasheet | weg-03036et3e286ts-w22g.pdf |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | CW, CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Speed | 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 44.5 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 193.5 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | L. R. Amps | Amps | Duty Cycle | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
03018ET3E286T-W22G | 208-230/460V AC | 60 Hz | - | 30 hp | 473-428/214A | 77.6-70.2/35.1A | Continuous | Cast Iron | €6,374.11 | |
 |
10018ET3E405T-W22G | 230/460V AC | 60 Hz | 1.25 | 100 hp | 1650/825A | 226/113A | S1 | Cast Iron | €14,765.27 | |
 |
04018ET3E324T-W22G | 230/460V AC | 60 Hz | - | 40 hp | 575/287A | 94.2/47.1A | S1 | Cast Iron | €7,977.95 | |
 |
01518ET3E254JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 237/118A | 36.4/18.2A | S1 | Rolled Steel | €3,390.61 | |
 |
01518ET3E254T-SG | 230/460V AC | 60 Hz | 1.15 | - | 237/118A | 36.4/18.2A | S1 | Rolled Steel | €3,122.55 | |
|
02536ET3E284TS-W22G | 230/460V AC | 60 Hz | 1.25 | 25 hp | 363/181A | 57.6/28.8A | S1 | Cast Iron | €5,968.17 | |
 |
00152ET3E182T-SG | 230/460V AC | 60 Hz | 1.15 | - | 30.6/15.3A | 4.44/2.22A | S1 | Rolled Steel | €985.49 |
