NICHOLSON Steam Traps
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q| Style | Model | Steam Trap Type | Body Material | Distance Between Inlet And Outlet Port | Condensate Capacity | Operating Pressure - Maximum | Configuration | Port Connection Size | Allowable Pressure - Maximum | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | FTN-C1H9A | - | - | - | - | - | - | - | - | €1,467.22 | |
| B | 1 FTE-65 | Float and Thermostatic | Cast Iron | 8 1/2" | 5200 lbs./hr. | 65 psi | In-Line | 1" | 232 psi | €794.28 | |

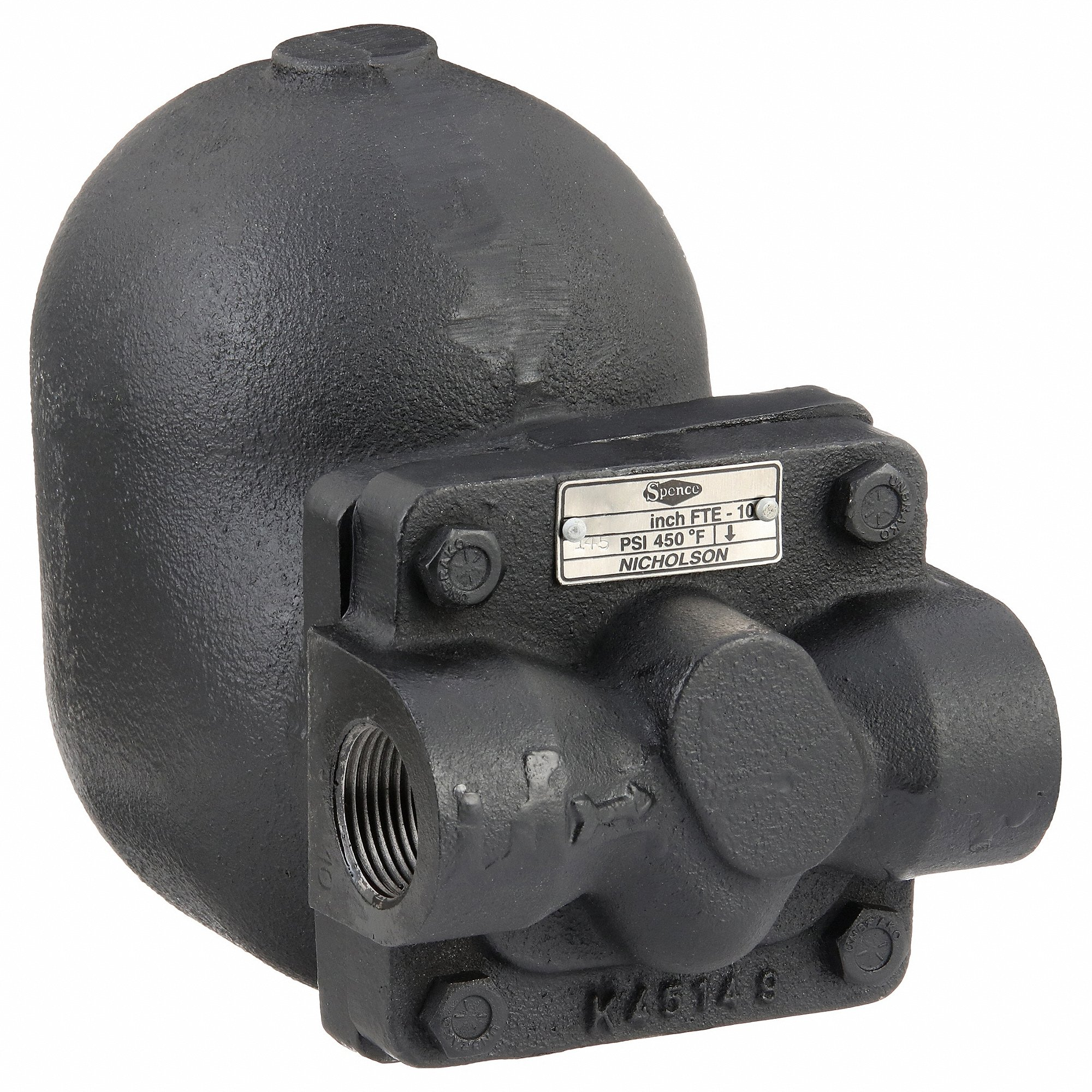

| C | 1 FTE-145 | Float and Thermostatic | Cast Iron | 5 1/16" | 4100 lbs./hr. | 145 psi | In-Line | 1" | 232 psi | €847.19 | |
| A | FTN-C4G9A | Float and Thermostatic | Cast Iron | 8 1/2" | 5400 lbs./hr. | 75 psi | C Pattern | 1 1/2" | 250 psi | €961.87 | |
| B | 3/4 FTE-200 | Float and Thermostatic | Cast Iron | 6 11/16" | 1300 lbs./hr. | 200 psi | In-Line | 3/4" | 232 psi | €677.95 | |
| A | FTN-C5H9A | Float and Thermostatic | Cast Iron | 9 13/16" | 6600 lbs./hr. | 125 psi | C Pattern | 2" | 250 psi | €1,911.78 | |
| D | 3/4 NFT250-100 | Float and Thermostatic | Cast Iron | 4 1/4" | 710 lbs./hr. | 100 psi | In-Line | 3/4" | 250 psi | €1,121.38 | |
| A | FTN-C2H9A | Float and Thermostatic | Cast Iron | 9 13/16" | 10000 lbs./hr. | 30 psi | H Pattern | 2" | 250 psi | €1,689.64 | |
| A | FTN-C1G9A | Float and Thermostatic | Cast Iron | 6 1/4" | 7600 lbs./hr. | 15 psi | H Pattern | 1 1/2" | 250 psi | €842.55 | |
| A | FTN-C1D9A | Float and Thermostatic | Cast Iron | 6 1/4" | 1075 lbs./hr. | 15 psi | H Pattern | 3/4" | 250 psi | €562.08 | |
| A | FTN-C1F9A | Float and Thermostatic | Cast Iron | 6 1/4" | 2340 lbs./hr. | 15 psi | H Pattern | 1 1/4" | 250 psi | €662.42 | |
| B | 1/2 FTE-65 | Float and Thermostatic | Cast Iron | 6 11/16" | 1150 lbs./hr. | 65 psi | In-Line | 1/2" | 232 psi | €698.36 | |
| B | 1 FTE-200 | Float and Thermostatic | Cast Iron | 8 1/2" | 3100 lbs./hr. | 200 psi | In-Line | 1" | 232 psi | €953.36 | |
| E | DUA-SXC9A | Float and Thermostatic | Carbon Steel | 2 7/16" | - | 3000 psi | - | 1/2" | - | €738.81 | |
| B | 1/2 FTE-145 | Float and Thermostatic | Cast Iron | 6 11/16" | 1380 lbs./hr. | 145 psi | In-Line | 1/2" | 232 psi | €676.82 | |
| A | FTN-C4H9A | Float and Thermostatic | Cast Iron | 9 13/16" | 7700 lbs./hr. | 75 psi | C Pattern | 2" | 250 psi | €1,864.72 | |
| D | 3/4 NFT250-50 | Float and Thermostatic | Cast Iron | 4 1/4" | 1400 lbs./hr. | 50 psi | In-Line | 3/4" | 250 psi | €1,121.38 | |
| D | 1 NFT250-50 | Float and Thermostatic | Cast Iron | 5 1/2" | 2460 lbs./hr. | 50 psi | In-Line | 1" | 250 psi | €1,494.44 | |
| D | 1/2 NFT250-100 | Float and Thermostatic | Cast Iron | 4 1/4" | 710 lbs./hr. | 100 psi | In-Line | 1/2" | 250 psi | €1,067.09 | |
| D | 1/2 NFT250-20 | Float and Thermostatic | Cast Iron | 4 1/4" | 1200 lbs./hr. | 20 psi | In-Line | 1/2" | 250 psi | €1,113.34 | |
| B | 3/4 FTE-145 | Float and Thermostatic | Cast Iron | 6 11/16" | 1380 lbs./hr. | 145 psi | In-Line | 3/4" | 232 psi | €999.13 | |
| D | 1 NFT250-100 | Float and Thermostatic | Cast Iron | 5 1/2" | 1400 lbs./hr. | 100 psi | In-Line | 1" | 250 psi | €1,494.44 | |
| D | 1/2 NFT250-250 | Float and Thermostatic | Cast Iron | 4 1/4" | 500 lbs./hr. | 250 psi | In-Line | 1/2" | 250 psi | €1,146.06 | |

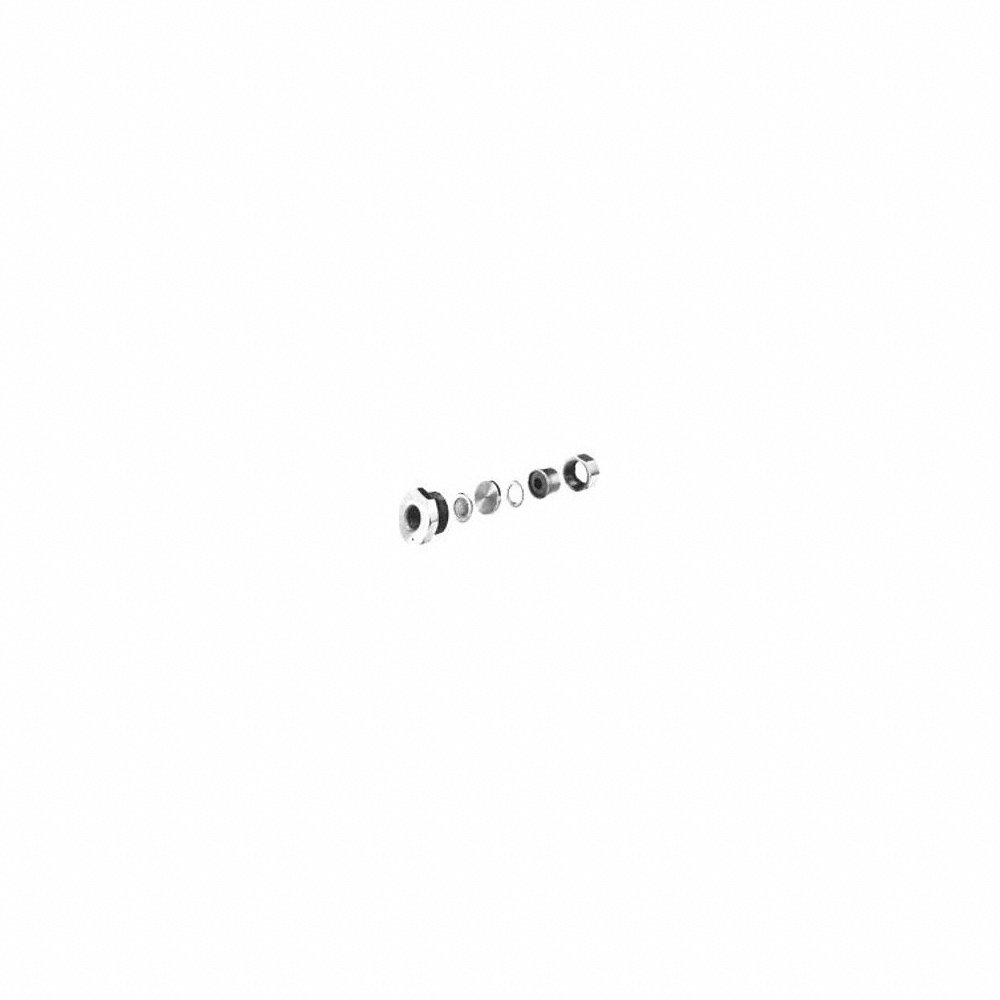

| E | DUA-SXD9A | Float and Thermostatic | Carbon Steel | 2 3/4" | - | 3000 psi | - | 3/4" | - | €867.91 | |

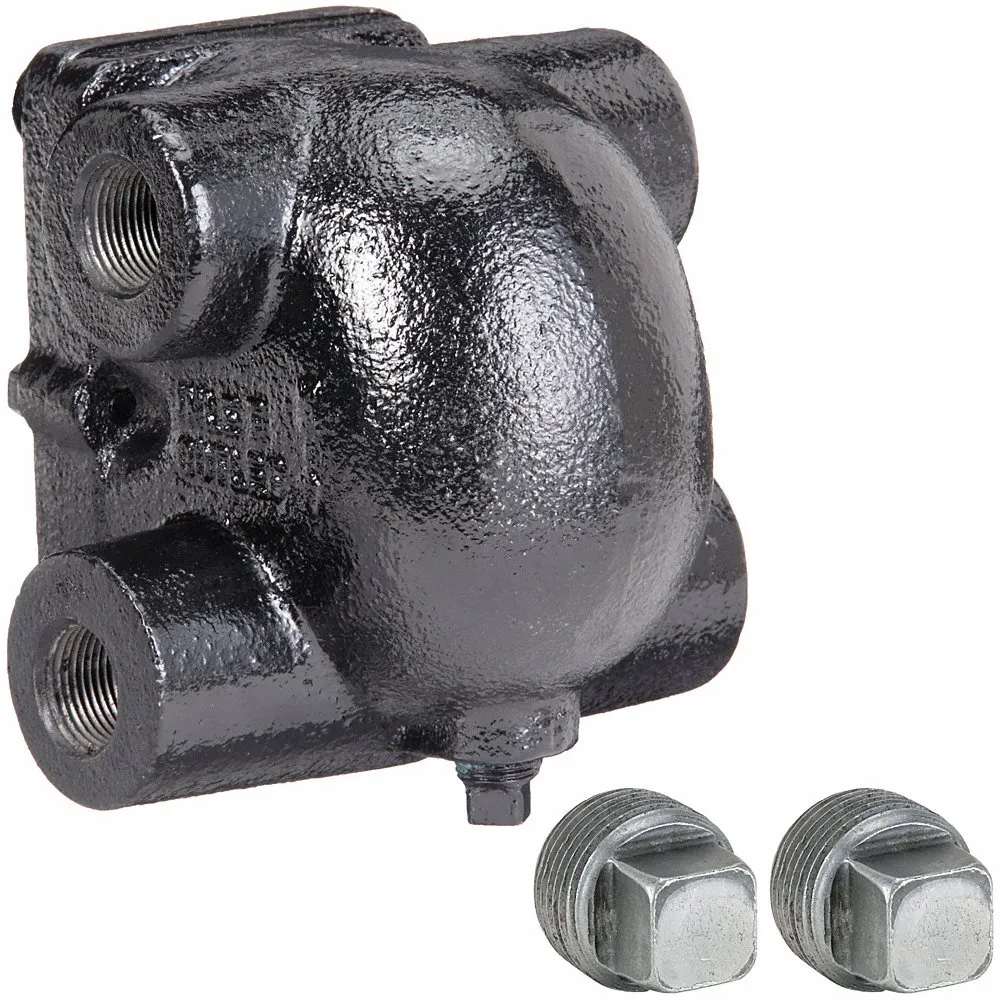

| F | FTN-C5D9A | Float and Thermostatic | Cast Iron | 6 1/4" | 1190 lbs./hr. | 125 psi | C Pattern | 3/4" | 250 psi | €493.57 | |
| E | DUA-SXE9A | Float and Thermostatic | Carbon Steel | 2 15/16" | - | 3000 psi | - | 1" | - | €1,426.07 | |
| A | FTN-C2E9A | Float and Thermostatic | Cast Iron | 6 1/4" | 1370 lbs./hr. | 30 psi | H Pattern | 1" | 250 psi | €673.88 | |
| D | 3/4 NFT250-250 | Float and Thermostatic | Cast Iron | 4 1/4" | 500 lbs./hr. | 250 psi | In-Line | 3/4" | 250 psi | €1,198.62 | |
| A | FTN-C2H9A-FTN 2" NPT CI 30PSI | Float and Thermostatic | Cast Iron | 6 1/4" | 10000 lbs./hr. | 30 psi | H Pattern | 2" | 250 psi | €1,656.11 | |
| D | 1 NFT250-150 | Float and Thermostatic | Cast Iron | 5 1/2" | 1415 lbs./hr. | 150 psi | In-Line | 1" | 250 psi | €1,721.01 | |

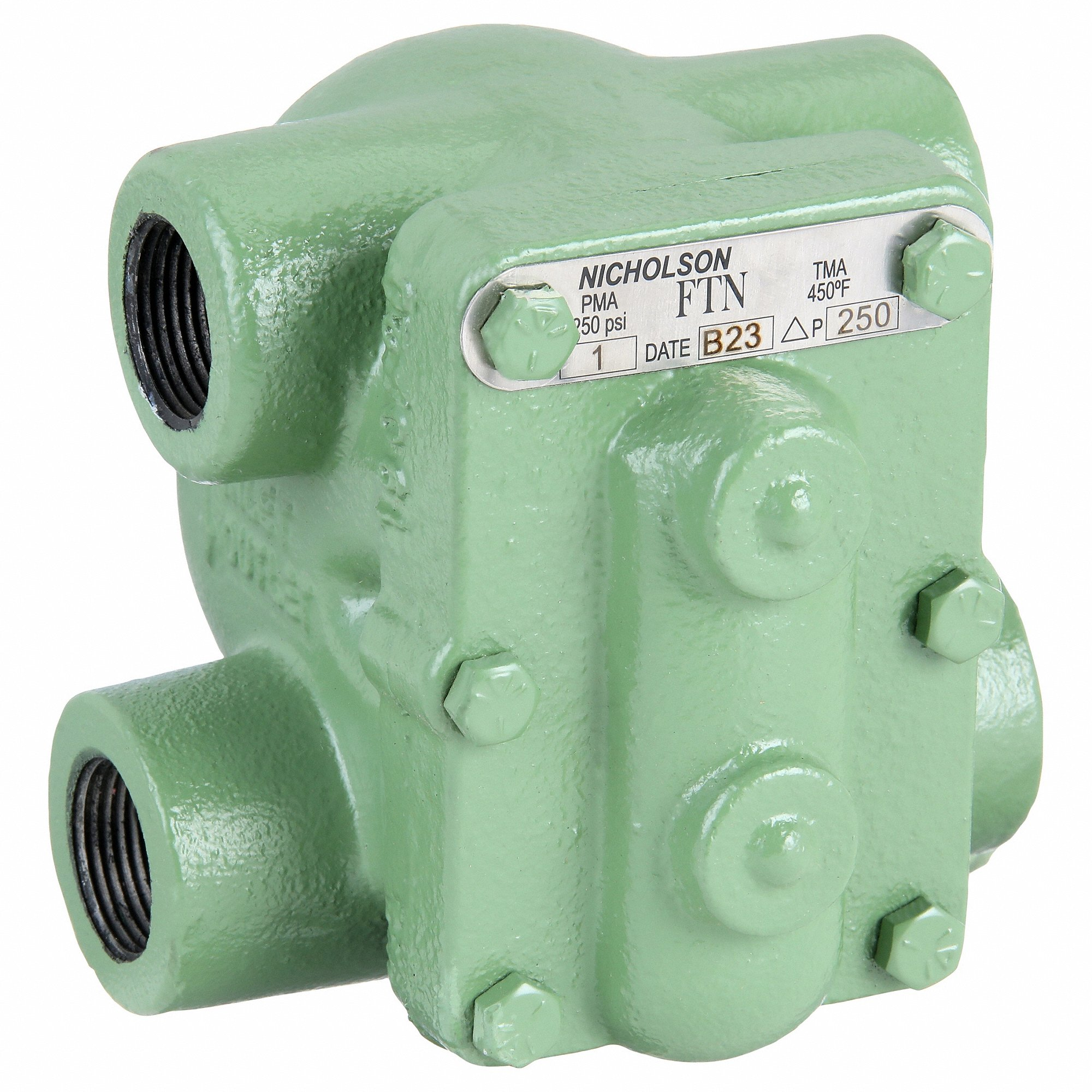

| G | FTN-C4E9A | Float and Thermostatic | Cast Iron | 6 1/4" | 1450 lbs./hr. | 75 psi | C Pattern | 1" | 250 psi | €578.00 | |
| D | 1/2 NFT250-150 | Float and Thermostatic | Cast Iron | 4 1/4" | 590 lbs./hr. | 150 psi | In-Line | 1/2" | 250 psi | €1,247.57 | |
| D | 1/2 NFT250-50 | Float and Thermostatic | Cast Iron | 4 1/4" | 1400 lbs./hr. | 50 psi | In-Line | 1/2" | 250 psi | €1,067.09 | |
| D | 1 NFT250-250 | Float and Thermostatic | Cast Iron | 5 1/2" | 1200 lbs./hr. | 250 psi | In-Line | 1" | 250 psi | €1,662.63 | |
| B | 3/4 FTE-65 | Float and Thermostatic | Cast Iron | 6 11/16" | 1150 lbs./hr. | 65 psi | In-Line | 3/4" | 232 psi | €665.87 | |

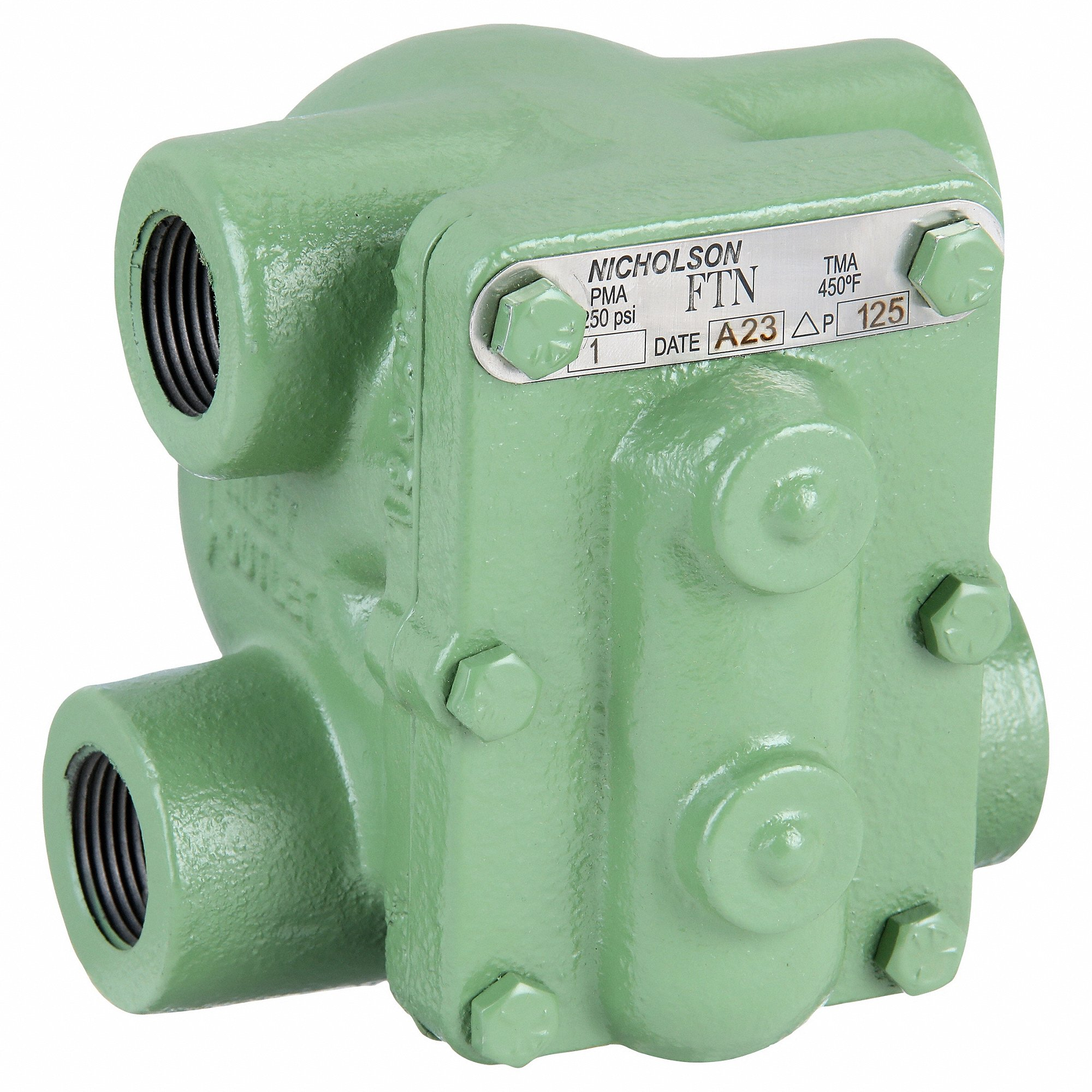

| H | FTN-C5E9A | Float and Thermostatic | Cast Iron | 6 1/4" | 1190 lbs./hr. | 125 psi | C Pattern | 1" | 250 psi | €608.01 | |
| D | 3/4 NFT250-150 | Float and Thermostatic | Cast Iron | 4 1/4" | 590 lbs./hr. | 150 psi | In-Line | 3/4" | 250 psi | €1,291.40 | |
| A | FTN-C2D9A | Float and Thermostatic | Cast Iron | 6 1/4" | 1370 lbs./hr. | 30 psi | H Pattern | 3/4" | 250 psi | €509.71 | |
| B | 1/2 FTE-200 | Float and Thermostatic | Cast Iron | 6 11/16" | 1300 lbs./hr. | 200 psi | In-Line | 1/2" | 232 psi | €691.23 | |
| A | FTN-C1E9A | Float and Thermostatic | Cast Iron | 6 1/4" | 1075 lbs./hr. | 15 psi | H Pattern | 1" | 250 psi | €652.31 | |
| I | FTN-C5G9A | Float and Thermostatic | Cast Iron | 8 1/2" | 4500 lbs./hr. | 125 psi | C Pattern | 1 1/2" | 250 psi | €849.92 | |
| A | FTN-C4D9A | Float and Thermostatic | Cast Iron | 6 1/4" | 1450 lbs./hr. | 75 psi | C Pattern | 3/4" | 250 psi | €515.27 | |
| D | 3/4 NFT250-20 | Float and Thermostatic | Cast Iron | 4 1/4" | 1200 lbs./hr. | 20 psi | In-Line | 3/4" | 250 psi | €1,146.06 | |
| D | 1 NFT250-20 | Float and Thermostatic | Cast Iron | 5 1/2" | 2450 lbs./hr. | 20 psi | In-Line | 1" | 250 psi | €1,553.51 | |
| A | FTN-C2F9A | Float and Thermostatic | Cast Iron | 6 1/4" | 2000 lbs./hr. | 30 psi | H Pattern | 1 1/4" | 250 psi | €669.83 | |
| A | FTN-C2G9A | Float and Thermostatic | Cast Iron | 6 1/4" | 7000 lbs./hr. | 30 psi | H Pattern | 1 1/2" | 250 psi | €952.24 | |

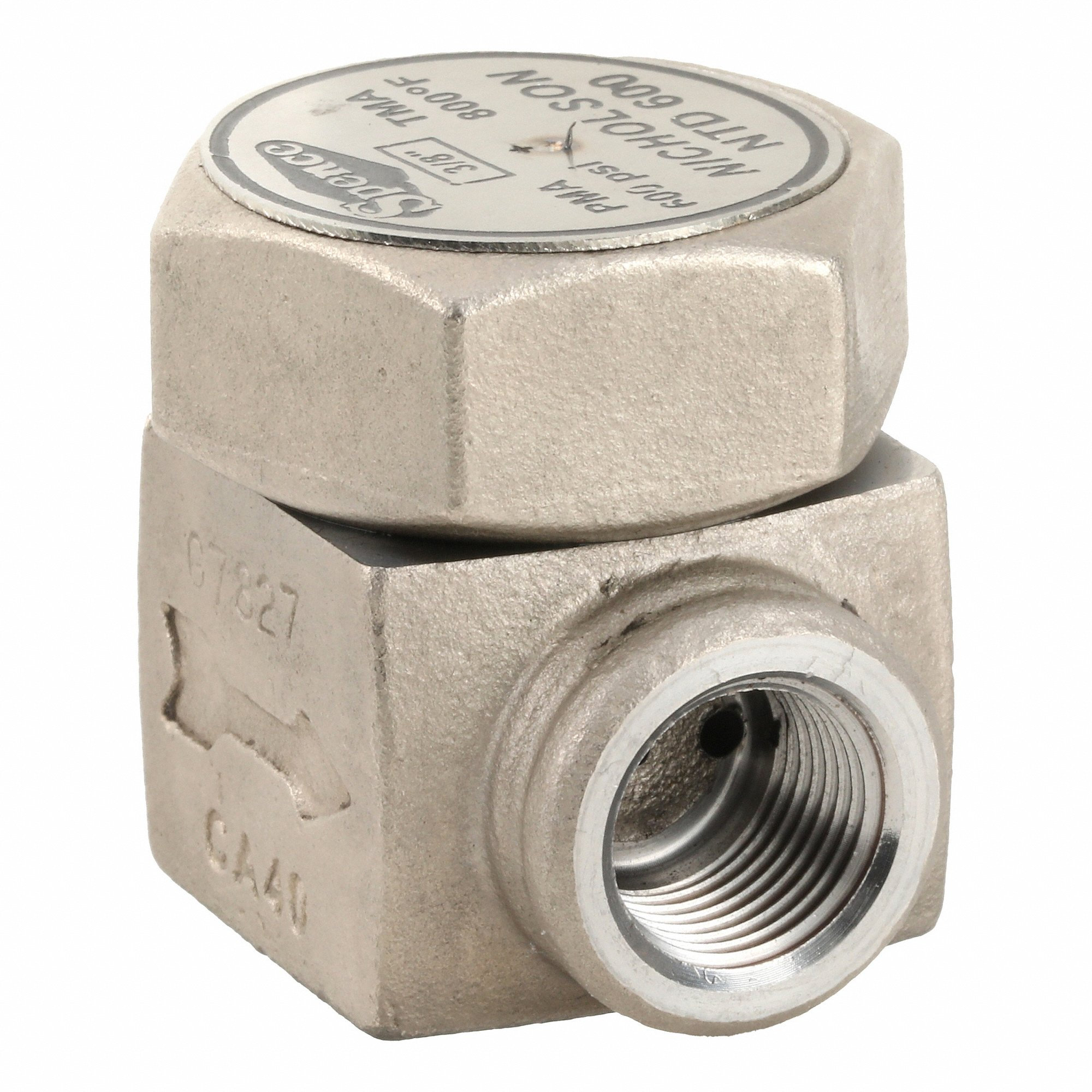

| J | NTD600-N1B9A | Thermodynamic | Stainless Steel | 2" | 1250 lbs./hr. | 600 psi | In-Line | 3/8" | - | €438.86 | |

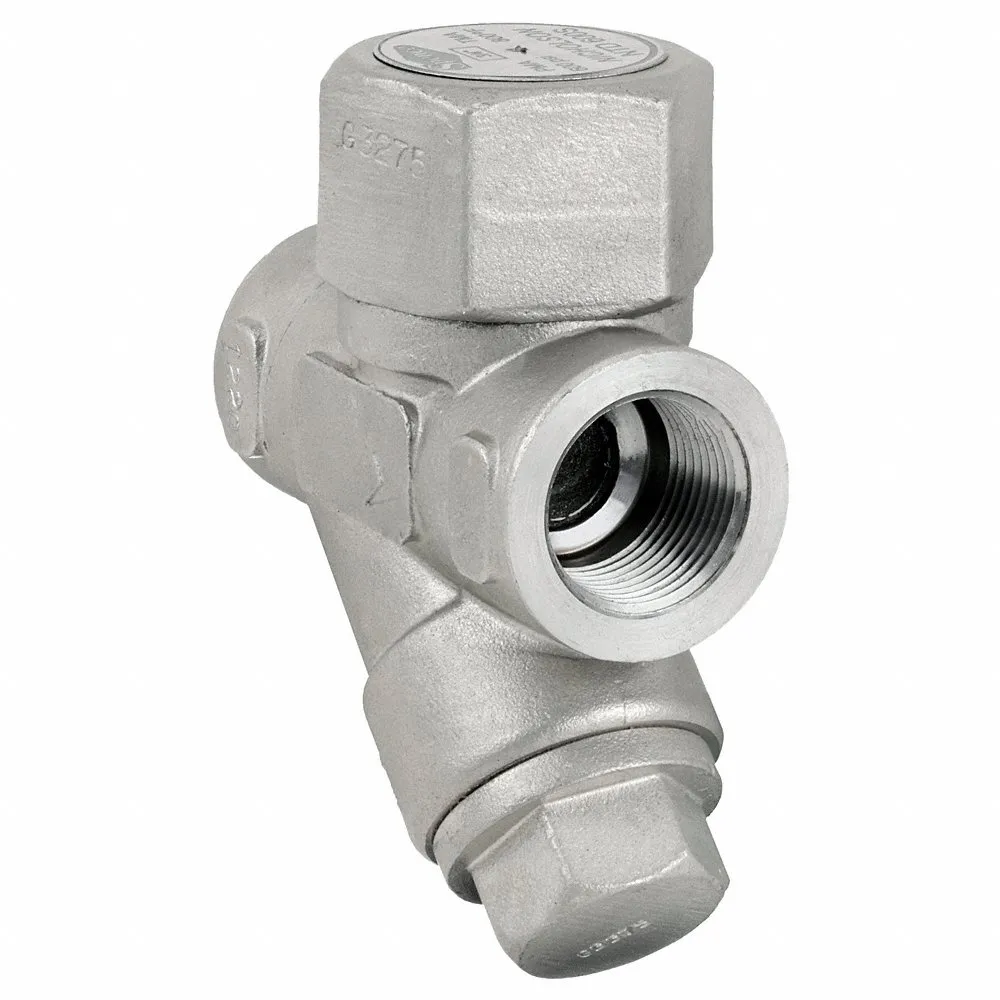

| K | NTD600-N1D9S | Thermodynamic | Stainless Steel | 3" | 3050 lbs./hr. | 600 psi | In-Line | 3/4" | - | €635.25 | |

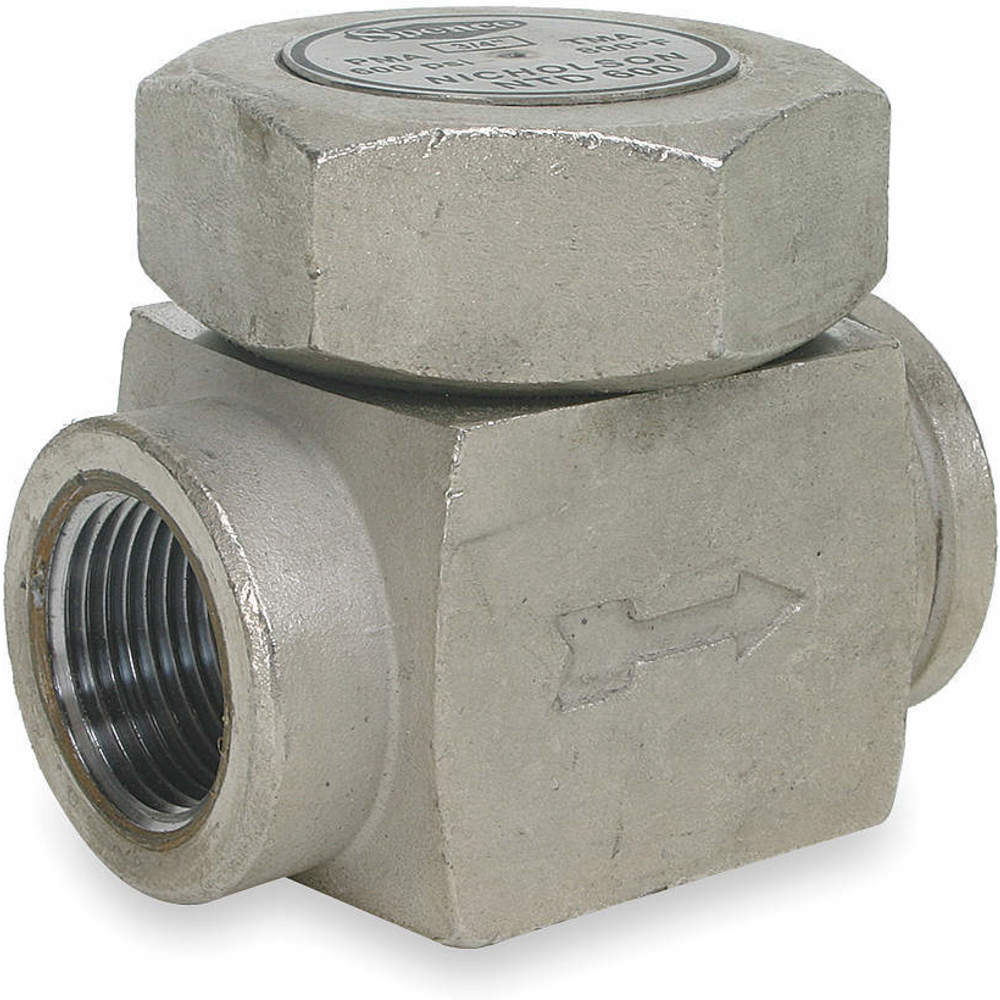

| L | NTD600-N1C9A | Thermodynamic | Stainless Steel | 2 11/16" | 2000 lbs./hr. | 600 psi | In-Line | 1/2" | - | €483.18 | |
| L | NTD600-N1D9A | Thermodynamic | Stainless Steel | 2 13/16" | 3050 lbs./hr. | 600 psi | In-Line | 3/4" | - | €584.13 | |
| M | NTD600-N1C9S | Thermodynamic | Stainless Steel | 3" | 2000 lbs./hr. | 600 psi | In-Line | 1/2" | - | €590.11 | |

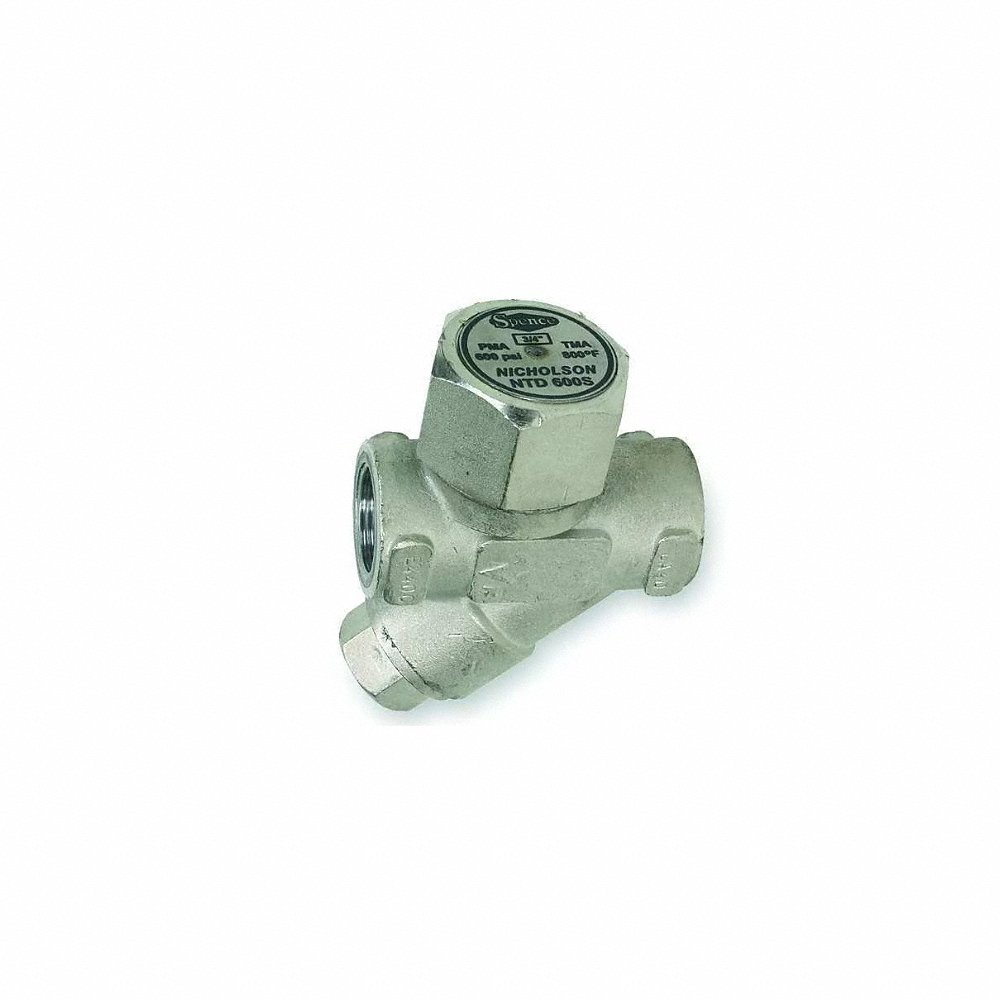

| M | NTD600-N1B9S | Thermodynamic | Stainless Steel | 3" | 1250 lbs./hr. | 600 psi | In-Line | 3/8" | - | €545.43 | |

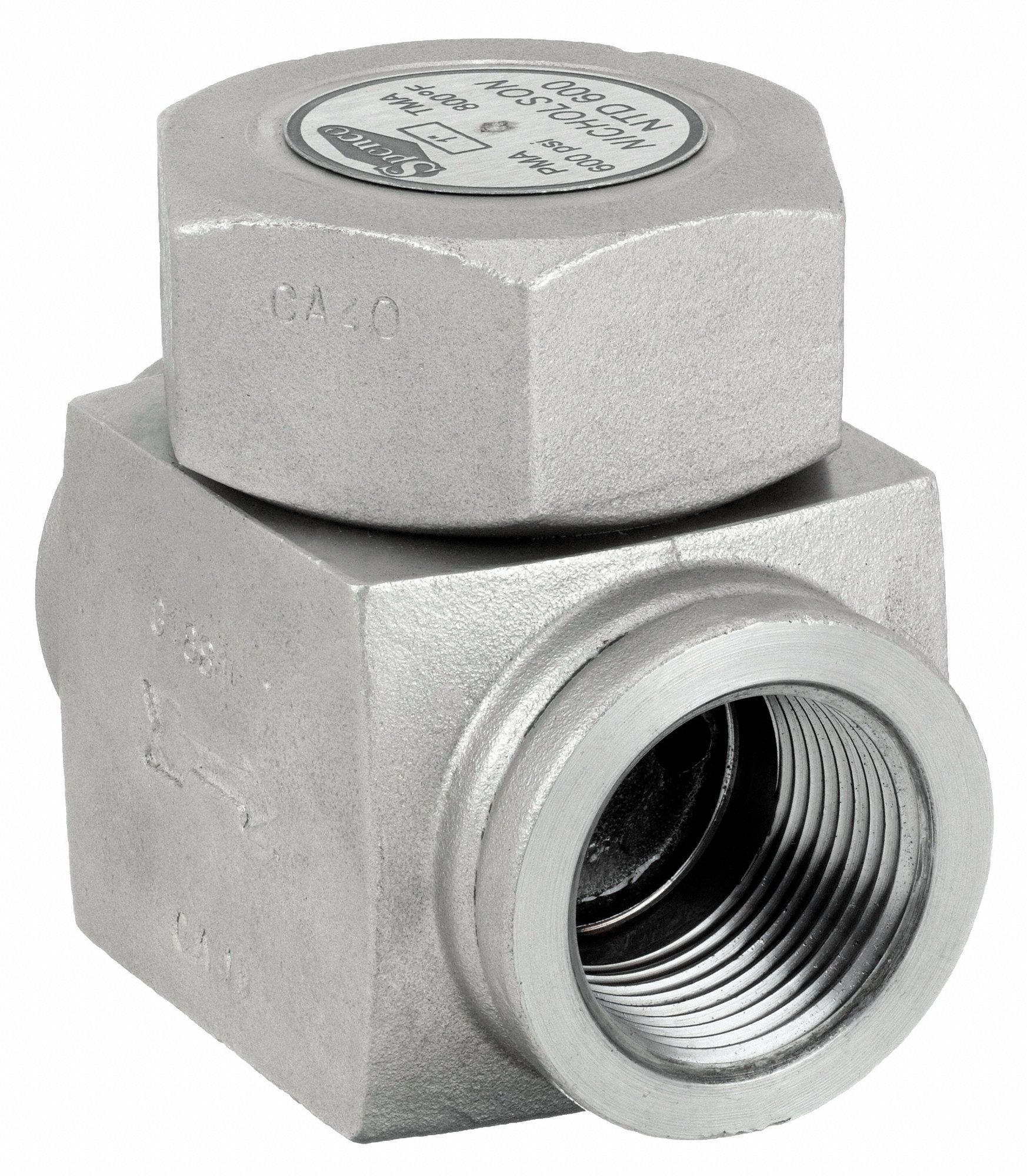

| N | NTD600-N1E9S | Thermodynamic | Stainless Steel | 3 1/4" | 4700 lbs./hr. | 600 psi | In-Line | 1" | - | €738.54 | |
| L | NTD600-N1E9A | Thermodynamic | Stainless Steel | 3 5/16" | 4700 lbs./hr. | 600 psi | In-Line | 1" | - | €660.30 | |

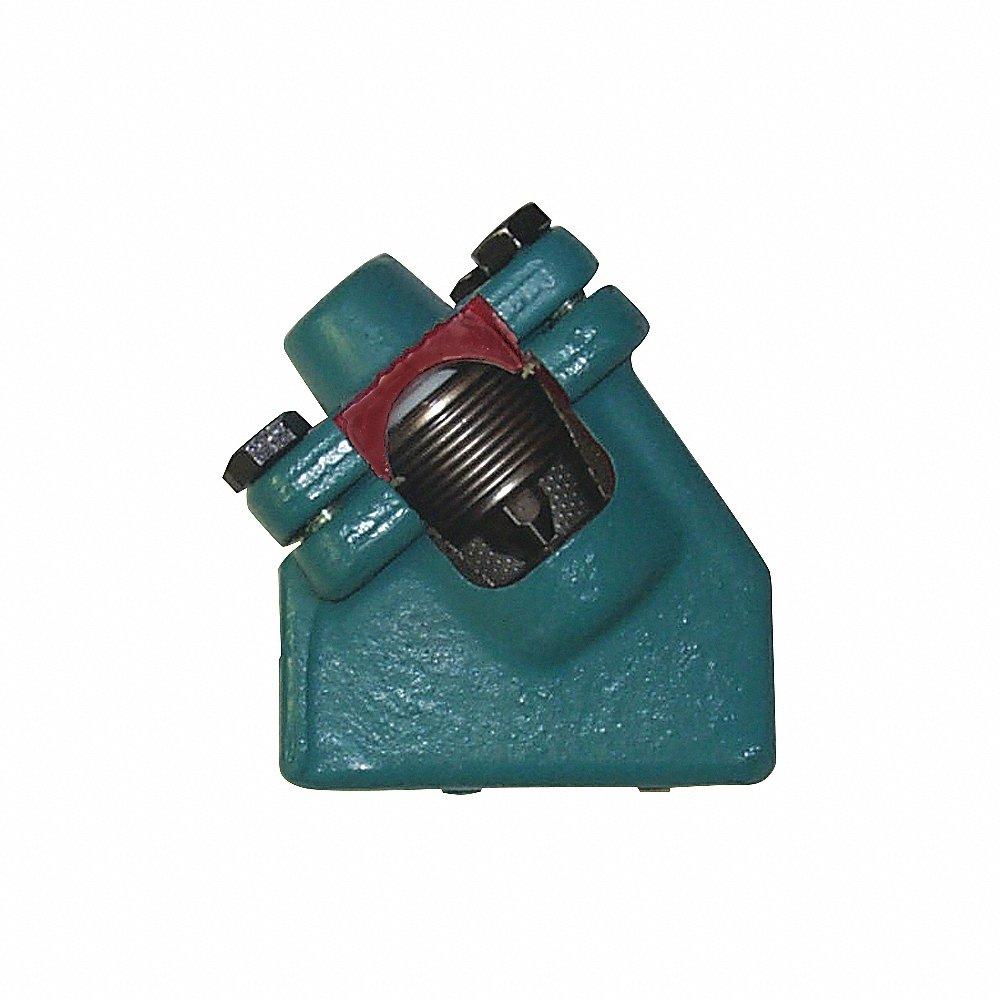

| O | N450-S4D92A0 | Thermostatic | Forged Steel | 3" | 5900 lbs./hr. | 450 psi | Straight-Thru | - | 450 psi | €864.83 | |
| P | TA500-T4D92A0 | Thermostatic | Stainless Steel | 3 15/16" | 6625 lbs./hr. | 650 psi | Straight-Thru | - | - | €801.12 | |
| Q | A-B1D9A | Thermostatic | Bronze | 2" | 6210 lbs./hr. | 200 psi | Angle | - | - | €1,097.12 | |

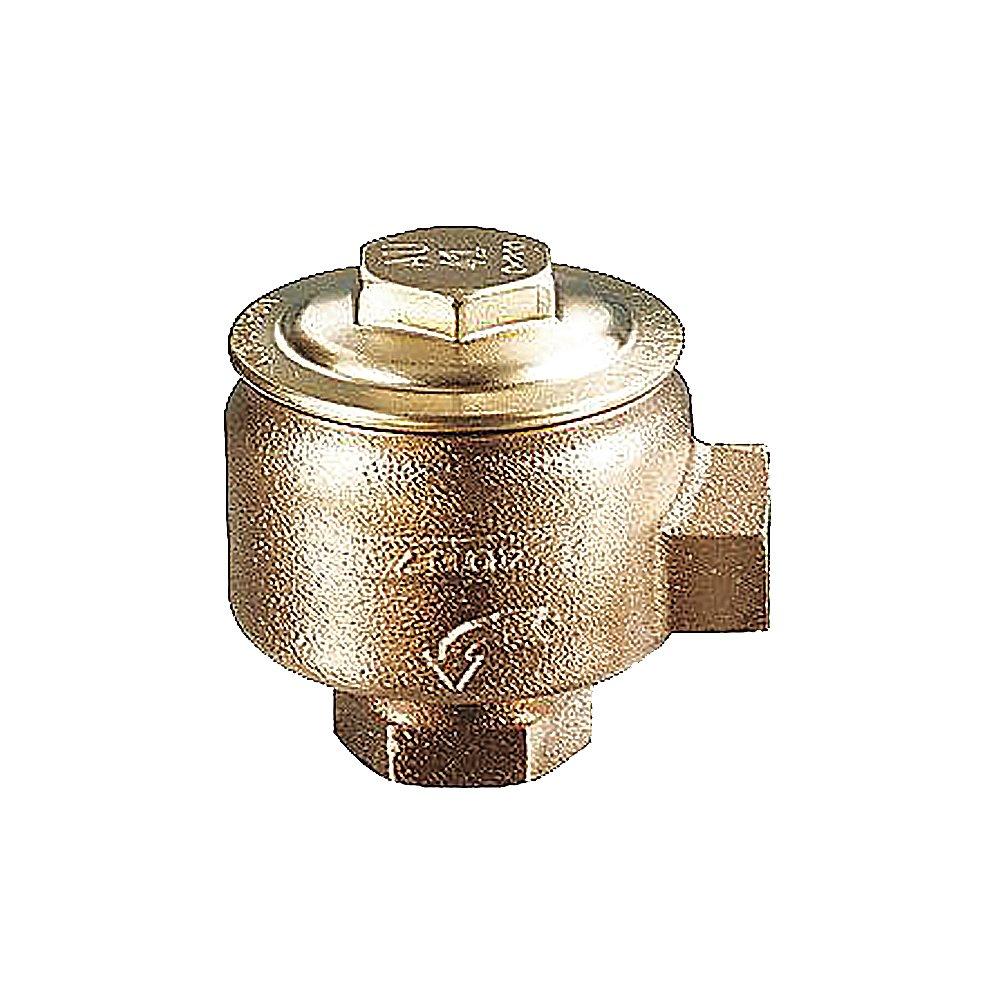

| Q | A-B1E9A | Thermostatic | Bronze | 2 13/16" | 8200 lbs./hr. | 200 psi | Angle | - | - | €1,228.71 | |
| O | N450-S4C92A0 | Thermostatic | Forged Steel | 3" | 5900 lbs./hr. | 450 psi | Straight-Thru | - | 450 psi | €864.83 | |
| P | TA500-T4E92A0 | Thermostatic | Stainless Steel | 4 3/8" | 6625 lbs./hr. | 650 psi | Straight-Thru | - | - | €1,322.60 | |

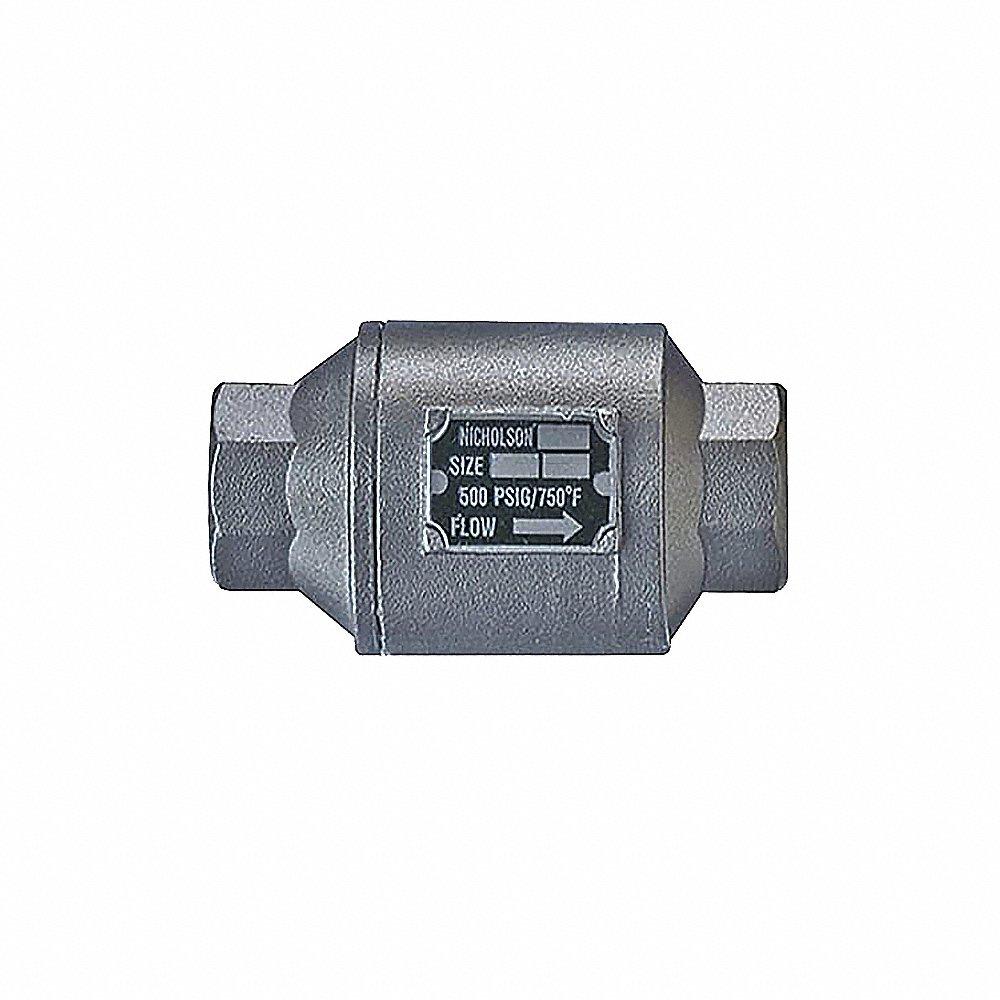

| P | TA500-T4C92A0 | Thermostatic | Stainless Steel | 3 1/4" | 6625 lbs./hr. | 650 psi | Straight-Thru | - | - | €808.70 |
Steam Traps
Nicholson steam traps are designed to control steam & condensate movement, and maximise the removal of latent heat from steam for efficient operation. These compact traps feature stainless steel internal components that can handle water hammer, superheat and operating pressure up to 600 psig. The audible discharge makes it easy to check operation. These traps can be installed in any position and are suitable for kettles, steam main drips & steam tracing.
