NICHOLSON FTN-C2E9A Steam Trap, 1 Inch FNPT, 6 1/4 Inch Length, 30 psi Max. Operating Pressure
Item: CJ3NBLModel: FTN-C2E9ACross Ref: 20CA72
7 In Stock
Ships within 2 days via
10.00% off
€606.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Steam Trap |
| Air Vent Material | Stainless Steel |
| Allowable Pressure - Maximum | 250 psi |
| Allowable Temperature - Maximum | 450°F |
| Application | Steam Lines |
| Body Material | Cast Iron |
| Condensate Capacity | 1370 lbs./hr. |
| Configuration | H Pattern |
| Distance Between Inlet And Outlet Port | 6 1/4" |
| Float Material | Cast Iron |
| Includes Air Vent | Air Vent Included |
| Includes Strainer | Strainer Not Included |
| Installation Orientation | Horizontal |
| Manufacturer Series | FTN Series |
| Maximum Capacity At Maximum Pressure Load | 1370 lbs./hr. @ 30 psi |
| Operating Pressure - Maximum | 30 psi |
| Port Connection Gender | Female |
| Port Connection Size | 1" |
| Port Connection Type | NPT |
| Resistance Properties | Water Hammer Resistant |
| Steam Trap Type | Float and Thermostatic |
Shipping Info:
| Ship weight (kg) | 4.05 |
Product Variants
| Product | Model | Steam Trap Type | Body Material | Distance Between Inlet And Outlet Port | Condensate Capacity | Operating Pressure - Maximum | Configuration | Port Connection Size | Allowable Pressure - Maximum | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NTD600-N1C9A | Thermodynamic | Stainless Steel | 2 11/16" | 2000 lbs./hr. | 600 psi | In-Line | 1/2" | - | €483.18 | |
|
NTD600-N1D9A | Thermodynamic | Stainless Steel | 2 13/16" | 3050 lbs./hr. | 600 psi | In-Line | 3/4" | - | €584.13 | |
|
NTD600-N1E9A | Thermodynamic | Stainless Steel | 3 5/16" | 4700 lbs./hr. | 600 psi | In-Line | 1" | - | €660.30 | |
 |

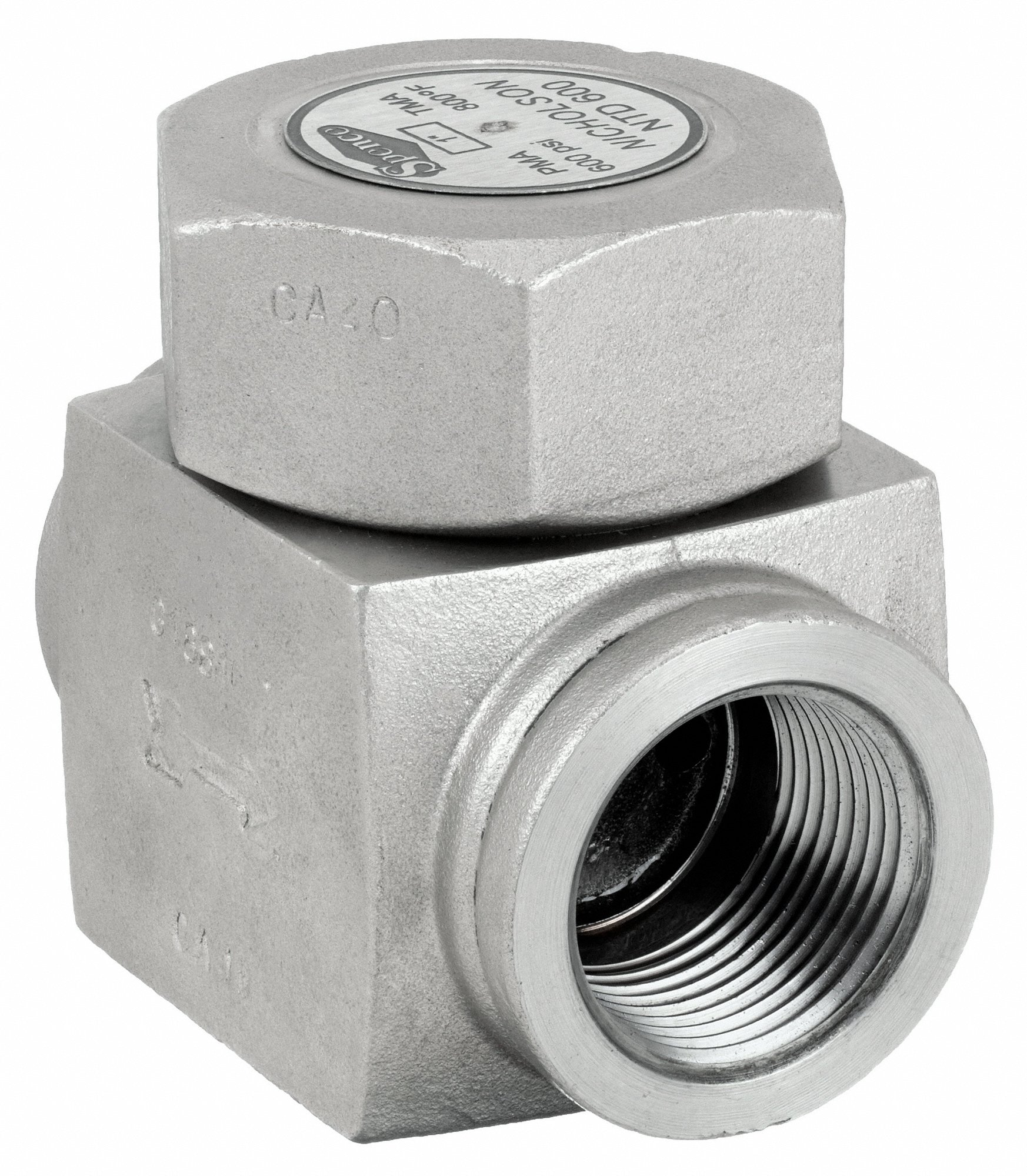

NTD600-N1E9S | Thermodynamic | Stainless Steel | 3 1/4" | 4700 lbs./hr. | 600 psi | In-Line | 1" | - | €738.54 | |
 |
3/4 NFT250-250 | Float and Thermostatic | Cast Iron | 4 1/4" | 500 lbs./hr. | 250 psi | In-Line | 3/4" | 250 psi | €1,198.62 | |
 |

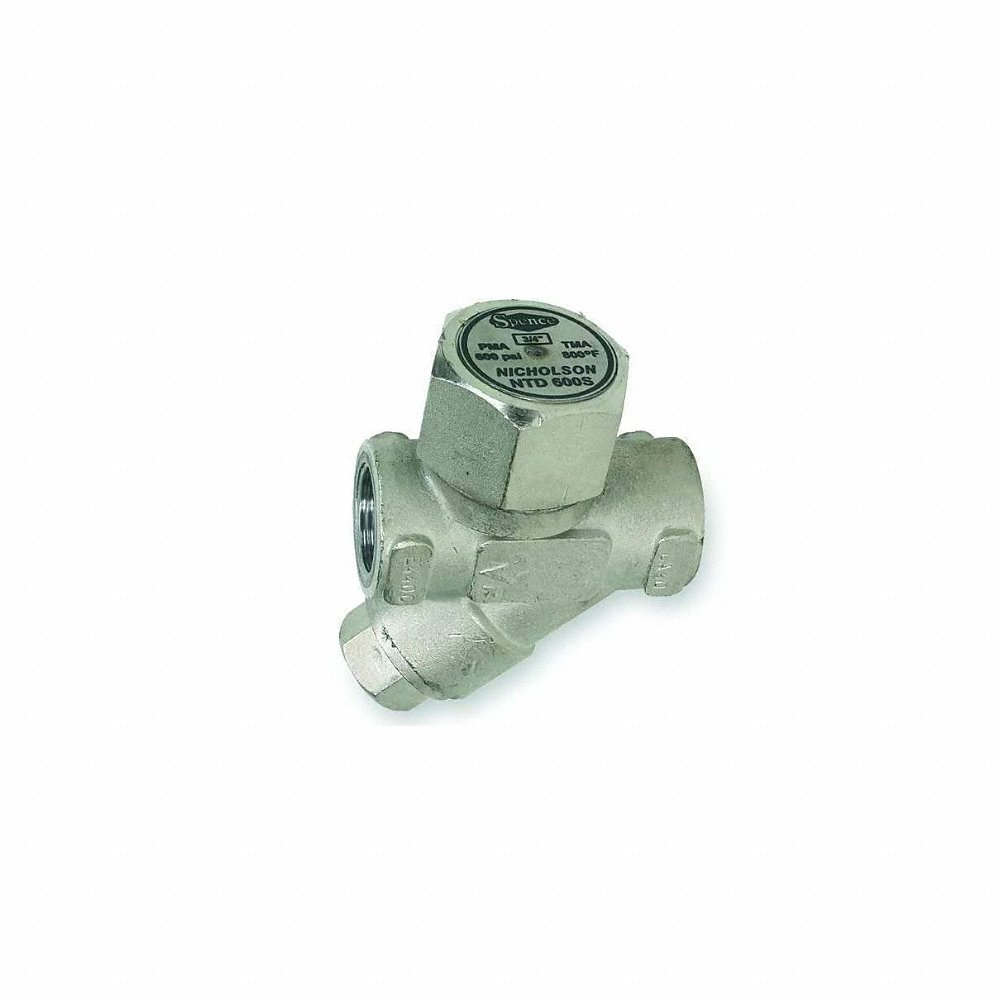

NTD600-N1B9S | Thermodynamic | Stainless Steel | 3" | 1250 lbs./hr. | 600 psi | In-Line | 3/8" | - | €545.43 | |
 |
N450-S4C92A0 | Thermostatic | Forged Steel | 3" | 5900 lbs./hr. | 450 psi | Straight-Thru | - | 450 psi | €864.83 |
