LEESON Vector Motors

UL recognised and CSA certified motors designed for machines requiring constant and variable torque. Feature capacitor start / run design for higher efficiency and Class F & H inverter-rated insulation system for temperature ranges up to 180 degrees C. Equipped with normally closed thermostats

Filter

-

Black Max Inverter Duty Motors, TENV

A

B

C

D

E

F

G

H

I

J

Style	Model	Voltage	Hp	Frame	Full Load Amps	Nameplate Rpm	Motor Application	Nominal Efficiency	Efficiency Group	Price
A	056H17T2001	230/460V AC	1/4 hp	56C	1.15/0.58A	1725 RPM	Crane	70%	-	€664.38

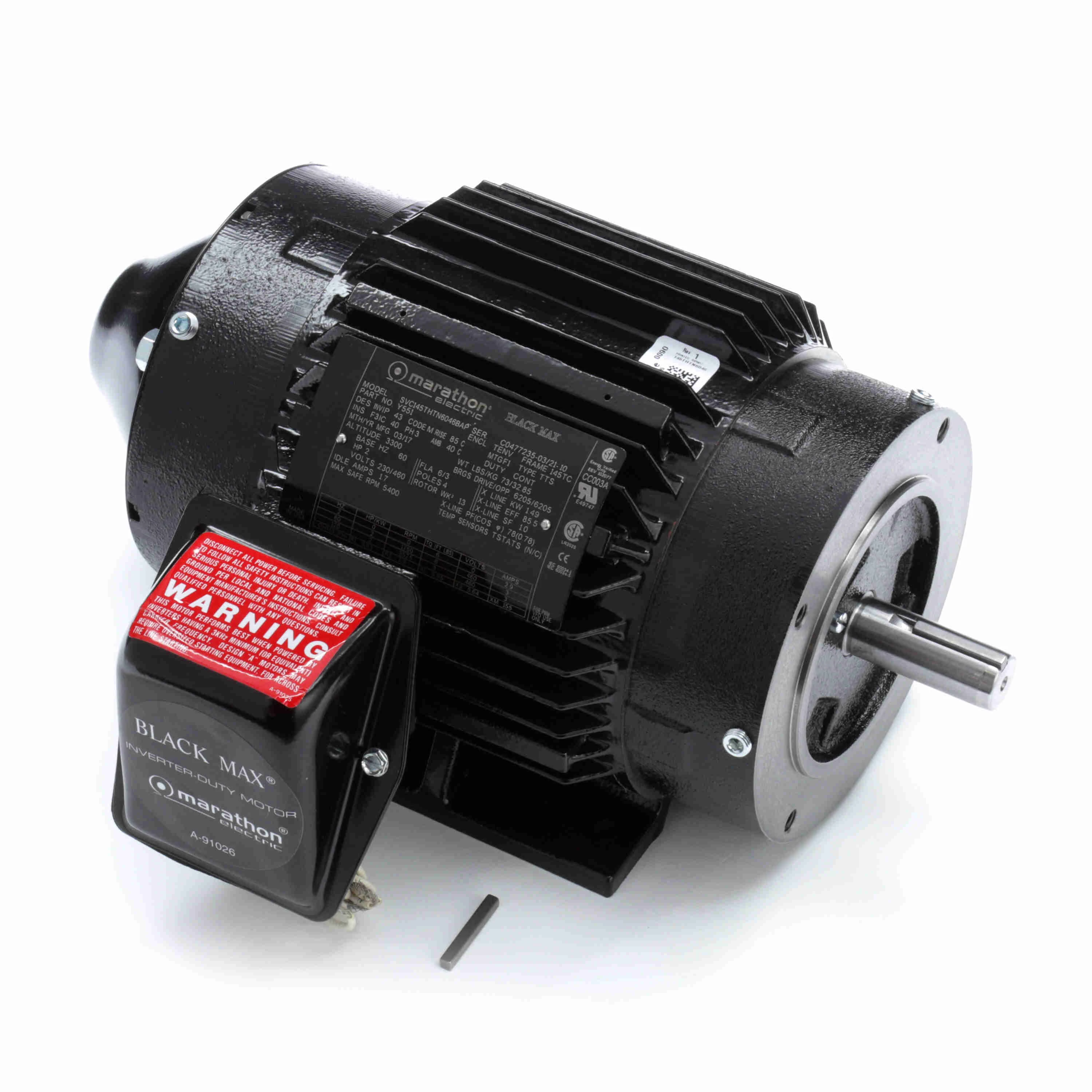

B	145THTN6046	230/460V AC	2 hp	145TC	6/3A	1750 RPM	Crane	85.5%	Epact	€1,754.70
C	145THTR5376	230/460V AC	1 hp	145TC	3.8/1.9A	1145 RPM	Crane	80%	Epact	€1,096.88
D	056H17T5301	230/460V AC	1/2 hp	56C	1.6/0.8A	1735 RPM	Crane	80%	-	€937.54

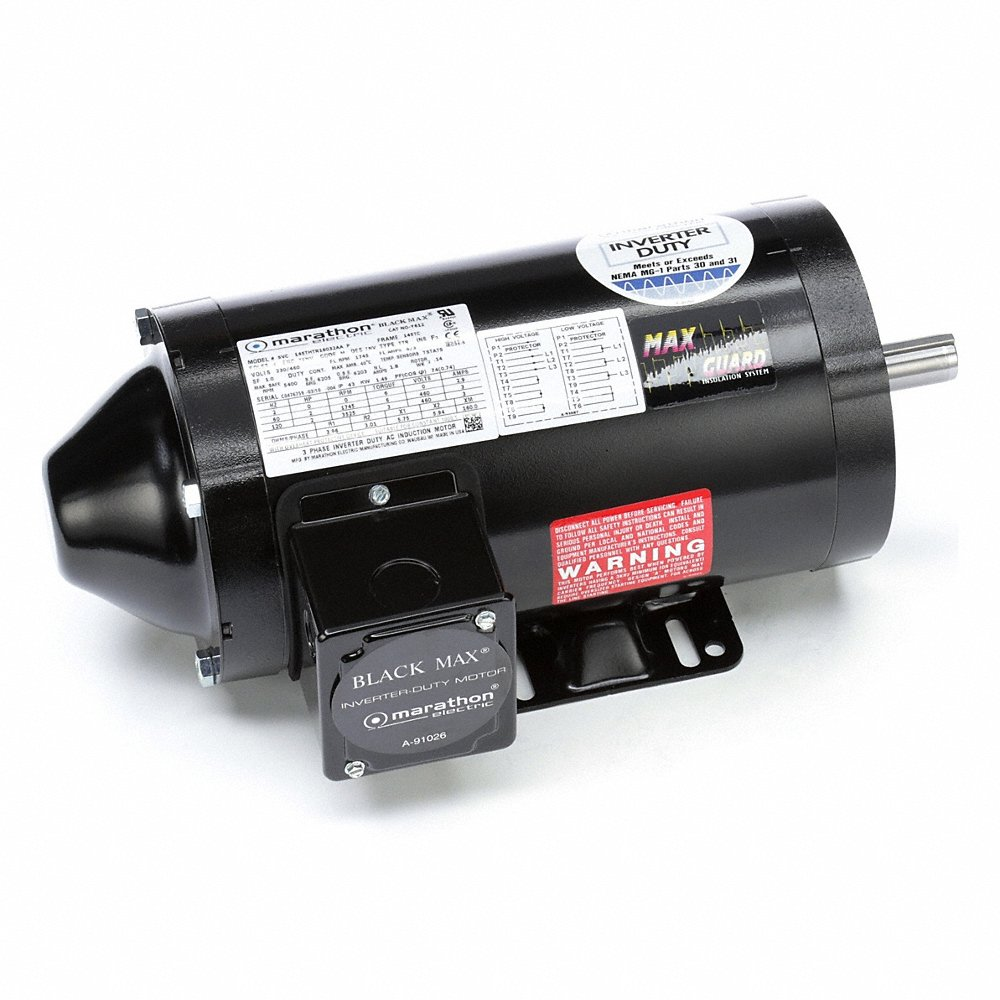

E	145THTR16032	230/460V AC	2 hp	145TC	6/3A	1800 RPM	-	-	-	€2,107.64
F	145THTR5326	230/460V AC	1 1/2 hp	145TC	4.8/2.4A	1755 RPM	Crane	85.5%	Epact	€1,004.92
G	143THTR5326	230/460V AC	1 hp	143TC	3/1.5A	1750 RPM	Crane	84%	Epact	€1,290.38
H	056H17T5302	230/460V AC	1 hp	56C	3/1.5A	1725 RPM	Crane	84%	-	€1,157.66
I	145THTN6060	575V AC	2 hp	145TC	2.4A	1750 RPM	Crane	85.5%	Epact	€1,587.99
J	056H17T5311	575V AC	1/2 hp	56C	0.65A	1725 RPM	Crane	80%	-	€878.74

-

Blue Max 2000 Inverter Duty Motors, Totally Enclosed, Rigid Base

A

B

C

Style	Model	Voltage	Frame	Hp	Full Load Amps	Efficiency Group	Nominal Efficiency	Motor Thermal Protection	Nameplate Rpm	Price
A	145THTN8037	230/460V AC	143TC	1 hp	3/1.5A	Premium	82.5%	Thermostat	1756 RPM	€1,894.77

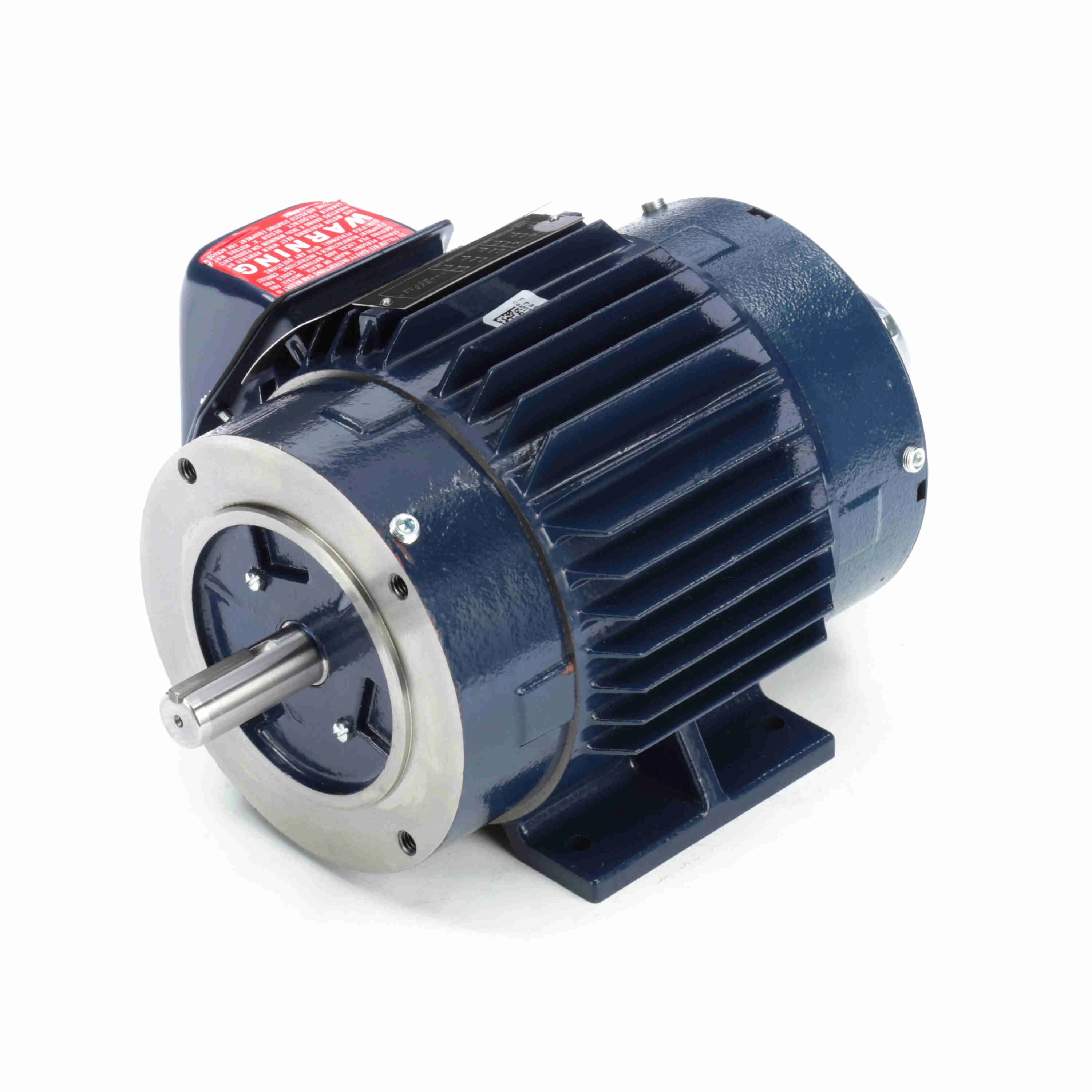

B	143THTN8028	230/460V AC	143TC	1 hp	3/1.5A	Premium	85.5%	T Stat	-	€1,906.25
C	145THTN8029	230/460V AC	143TC	2 hp	3/1.5A	Premium	85.5%	T Stat	1756 RPM	€1,866.76

LEESON -

Black Max Inverter Duty Motors, Hazardous Duty, Explosion Proof

LEESON 056H17E5305

A

LEESON 056H17E5303

B

LEESON 056H17E5302

C

LEESON 056H17E5301

D

LEESON 056H17E5304

E

Style	Model	Hp	Efficiency Group	Nominal Efficiency	Full Load Amps	Efficiency	Overall Length	Full Load Torque	Torque	Price
A	056H17E5305	1 hp	Epact	84%	3/1.5A	84%	14"	3 lbs.-ft.	3 lbs.-ft.	€1,409.55
B	056H17E5303	1/2 hp	Standard	80%	1.6/0.8A	80%	12 1/2"	1.52 lbs.-ft.	1.52 lbs.-ft.	€1,371.25
C	056H17E5302	1/3 hp	Standard	74%	1.2/0.6A	74.5%	12"	1 lbs.-ft.	1 lbs.-ft.	€1,078.24
D	056H17E5301	1/4 hp	Standard	71%	1.1/0.55A	71%	12"	0.75 lbs.-ft.	0.75 lbs.-ft.	€919.47
E	056H17E5304	3/4 hp	Standard	82.5%	2.4/1.2A	82.5%	13 1/2"	2.25 lbs.-ft.	2.25 lbs.-ft.	€1,287.06

-

microMAXTM Inverter Duty Motors, Totally Enclosed, Three Phase

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Voltage	Hp	Nameplate Rpm	Motor Mounting Type	Full Load Amps	Frame	Nominal Efficiency	Max. Speed	Price
A	145THTR5329	230/460V AC	1 1/2 hp	1755 RPM	Rigid Base	4.8/2.4A	145TC	-	5400 RPM	€909.69
B	056H17F2021	230/460V AC	1 hp	1725 RPM	Rigid Base	3.2/1.6A	56C	78.5%	5400 RPM	€741.02
C	145THFR5329	230/460V AC	2 hp	1740 RPM	Rigid Base	5.8/2.9A	145TC	82.5%	4000 RPM	€1,206.57
D	056H17F2022	230/460V AC	1 hp	1725 RPM	Face	3.2/1.6A	56C	78.5%	5400 RPM	€886.55
E	056H17F2017	230/460V AC	3/4 hp	1725 RPM	Rigid Base	2.8/1.4A	56C	75.5%	5400 RPM	€657.75
F	056H17T2017	230/460V AC	1/2 hp	1725 RPM	Rigid Base	1.8/0.9A	56C	74%	5400 RPM	€746.30
G	056H17F2018	230/460V AC	3/4 hp	1725 RPM	Face	2.8/1.4A	-	-	5400 RPM	€690.51
H	056H17T2011	230V AC	1/4 hp	1725 RPM	Rigid Base	1A	56C	72%	5400 RPM	€420.54
I	056H17T2016	230V AC	1/2 hp	1725 RPM	Face	1.8A	56C	74%	5400 RPM	€532.31
J	056H17F2011	230V AC	3/4 hp	1725 RPM	Rigid Base	2.8A	56C	75.5%	5400 RPM	€1,703.69
K	056H17T2012	230V AC	1/4 hp	1725 RPM	Face	1A	56C	72%	5400 RPM	€449.97
L	056H17T2013	230V AC	1/3 hp	1725 RPM	Rigid Base	1.2A	56C	74%	5400 RPM	€462.64

LEESON -

Inverter Duty Motors, Three Phase, Totally Enclosed, Rigid Base And Rigid C Face

A

B

C

D

Style	Model	Hp	Speed Range	Frame	Full Load Amps	Type	Frame Material	Efficiency	Overall Length	Price
A	LM10340	1 hp	Not Available	56HC	1.9/3.8A	TS	Rolled Steel	77%	12 8/25"	€2,273.55
B	LM10339	3/4 hp	Not Available	56HC	1.5/3A	TS	Rolled Steel	75.5%	11.82"	€767.25
C	LM06125	5 hp	2 x Base Speed	213TC	7.8A	TTL	Aluminum	82.5%	17.94"	€2,793.47
D	LM10336	33/100 hp	Not Available	56C	0.8A	TS	Rolled Steel	65.5%	11.31"	€589.73

LEESON -

Vector Duty Motors With 1024 ppr Encoder, Three Phase, Totally Enclosed, Rigid Base And Rigid C Face

A

B

Style	Model	Hp	Frame	Full Load Amps	Type	Efficiency	Shaft Length	Power	Power Factor	Price
A	LM04003	5 hp	213TC	7.8A	TTL	82.5%	3.38"	3.7 kW	73	€4,926.10
B	LM31463	7 1/2 hp	215TC	21/10.5A	Continuous Duty	90.2%	3.13"	5.6 kW	76	€5,856.11

-

Blue Max 2000 Brakemotors, Inverter Duty, 2000:1 Constant Torque, TENV, Three Phase

A

B

Style	Model	Hp	Nameplate Rpm	Frame	Efficiency Group	Nominal Efficiency	Full Load Amps	Motor Thermal Protection	Max. Rpm	Price
A	143THTN8036	1 hp	1756 RPM	143TC	Premium	85.5%	3/1.5A	T Stat	5400 RPM	€3,441.88
B	145THTN8043	2 hp	1750 RPM	145TC	Epact	85.5%	6/3A	None	5400 RPM	€2,971.12

-

Blue Max 2000 Hazardous Duty Inverter Motors, Explosion Proof, TENV

A

B

Style	Model	Hp	Nameplate Rpm	Frame	Nominal Efficiency	Full Load Amps	Efficiency Group	Motor Thermal Protection	Max. Rpm	Price
A	143THEN8034	1 hp	1756 RPM	143TC	85.5%	3/1.5A	Premium	T Stat	3600 RPM	€8,548.89
B	145THEN8034	2 hp	1750 RPM	145TC	85.5%	5.8/2.9A	Epact	Thermostat	3600 RPM	€11,025.45

LEESON -

Max+ Inverter Duty Motors, 1000:1 Constant Torque, Totally Enclosed, Three Phase

LEESON 145THTR15540

A

LEESON 056H17T15527

B

LEESON 143THTR15535

C

LEESON 056H17T15526

D

LEESON 145THTN17034

E

LEESON 056H17T15528

F

Style	Model	Hp	Nameplate Rpm	Motor Mounting Type	Frame	Full Load Amps	Nominal Efficiency	Efficiency Group	Conduit Box Position	Price
A	145THTR15540	1 1/2 hp	1755 RPM	Rigid Base	145TC	4.8/2.4A	85.5%	Standard	F1	€2,529.50
B	056H17T15527	1 hp	1725 RPM	Rigid Base	56C	3/1.5A	84%	-	F1	€1,818.30
C	143THTR15535	1 hp	1800 RPM	Cradle	143TC	3/1.5A	-	-	F1 Only	€1,740.13
D	056H17T15526	1/2 hp	1725 RPM	Rigid Base	56C	1.6/0.8A	80%	-	F1	€1,626.66
E	145THTN17034	2 hp	1750 RPM	Rigid Base	145TC	6/3A	-	Epact	F1, F2	€3,319.02
F	056H17T15528	3/4 hp	1725 RPM	Rigid Base	56C	2.4/1.2A	82.5%	-	F1	€1,717.35

LEESON -

Speed Ratio Motor, 7.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Speed Ratio Motor, 7.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Model	Item	Price (ex. VAT)
LM21196	AJ2VRG	€1,931.62

LEESON -

Speed Ratio Motor, 1.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Speed Ratio Motor, 1.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Model	Item	Price (ex. VAT)
LM22665	AJ2VUF	€862.20

LEESON -

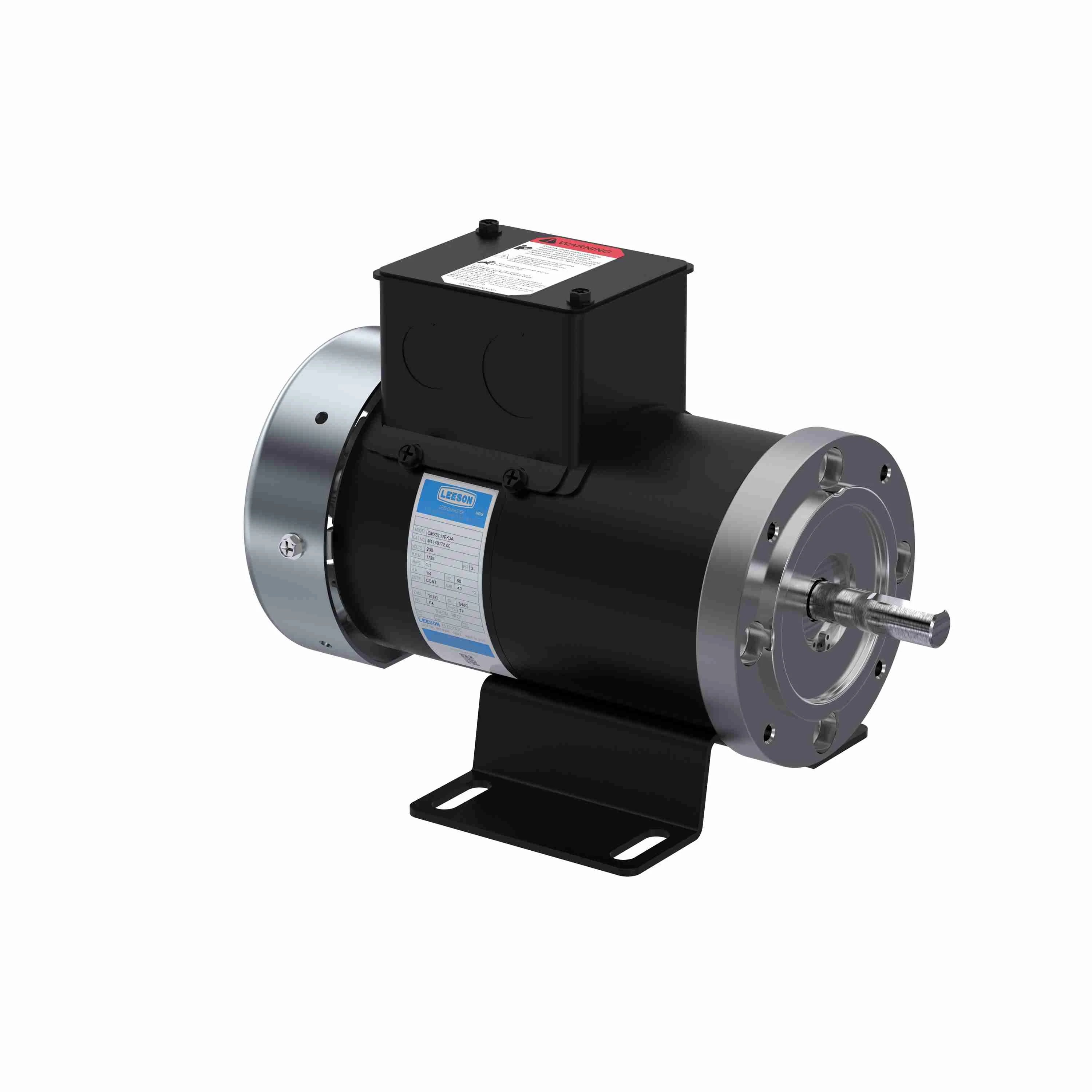

Speed Ratio Motor, 0.25 HP, 3 Phase, 60 Hz, 230V, 1800 RPM

Speed Ratio Motor, 0.25 HP, 3 Phase, 60 Hz, 230V, 1800 RPM

Model	Item	Price (ex. VAT)
M1140172.00	EC3LVU	€733.79

LEESON -

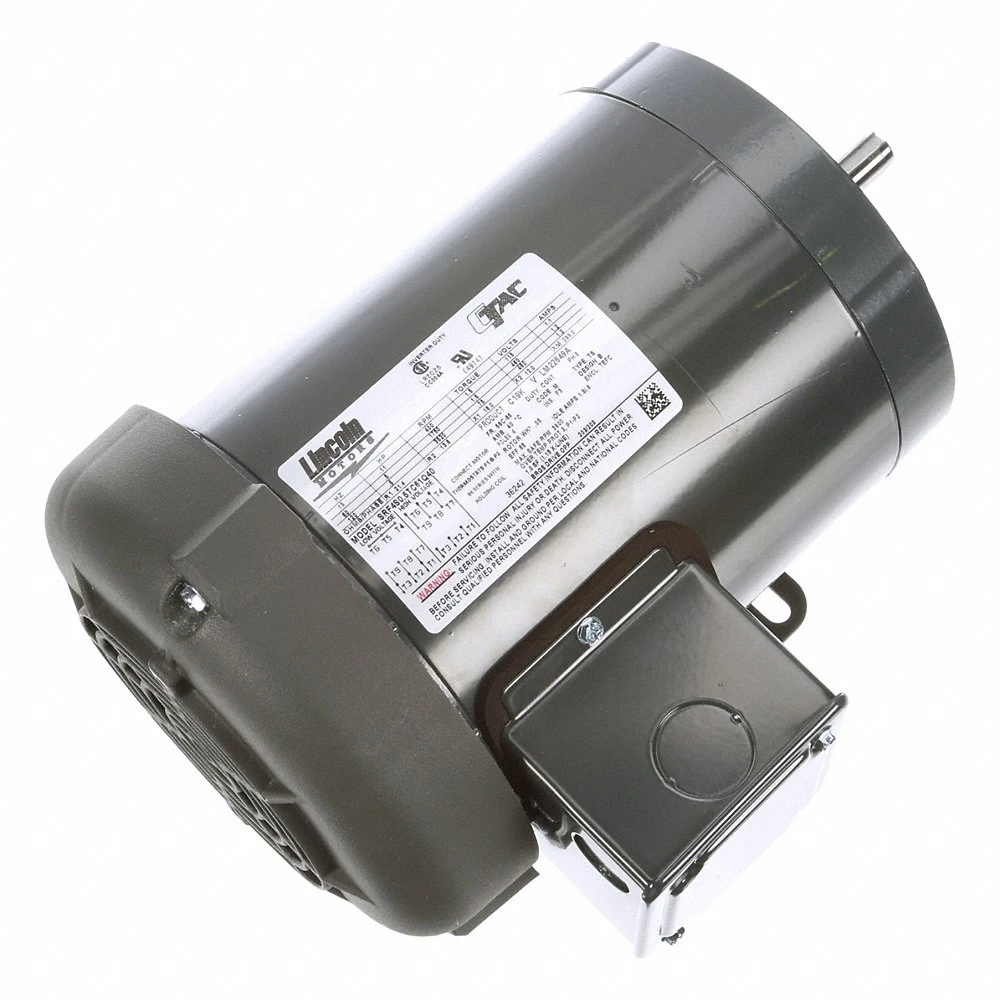

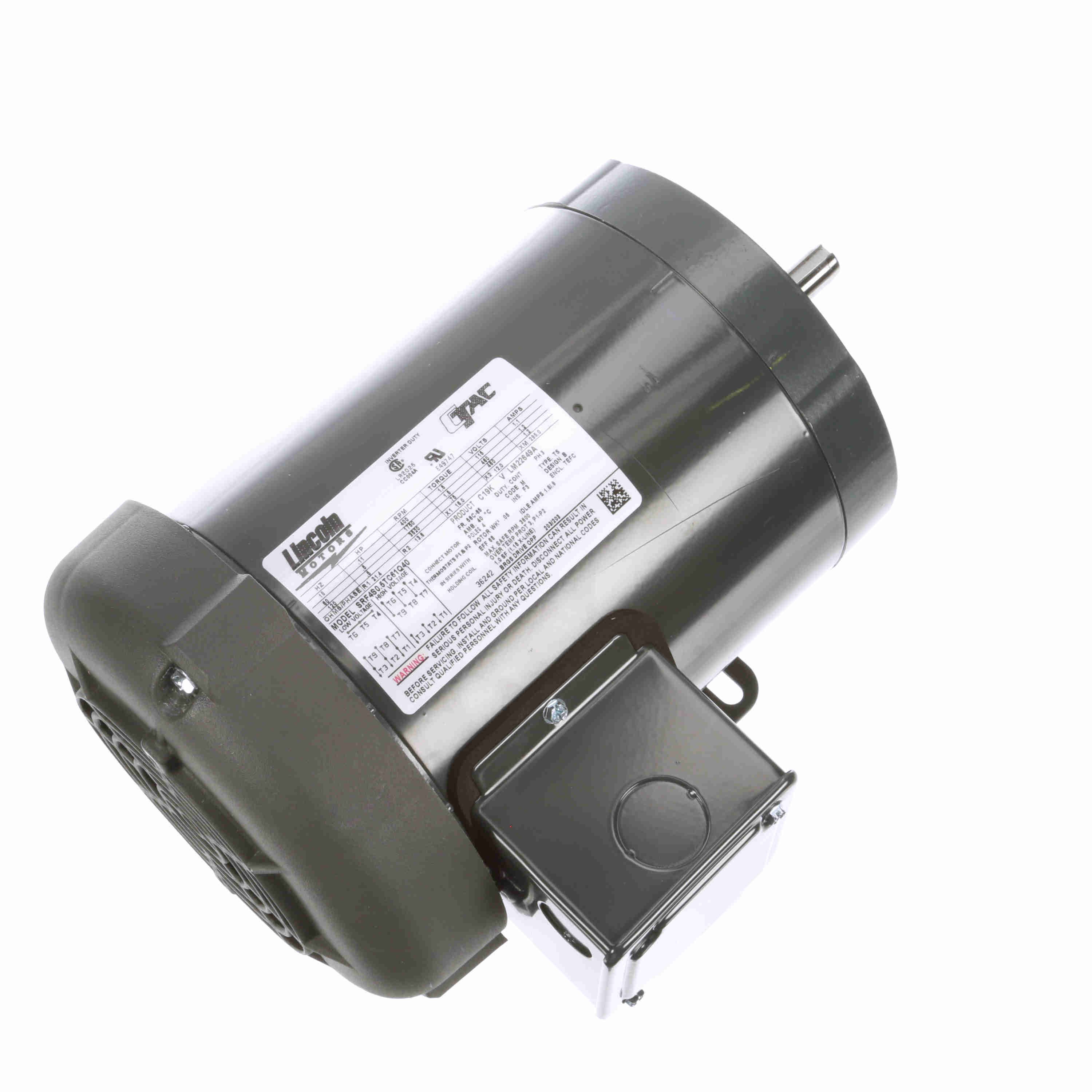

Variable Speed Motor, 60 hz, 56C

Variable Speed Motor, 60 hz, 56C

Model	Item	Price (ex. VAT)
LM22649	EA7UFJ	€1,103.10

LEESON -

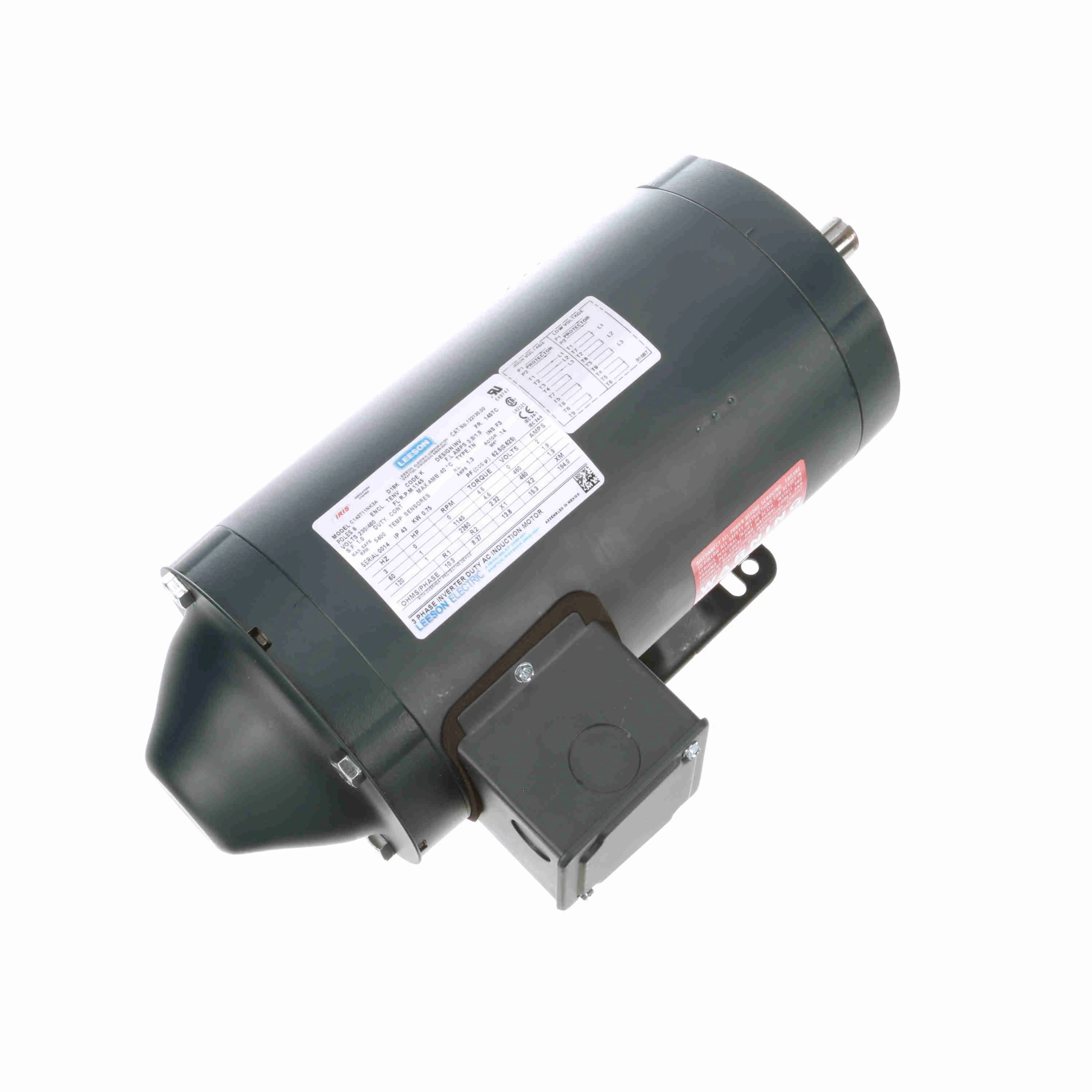

Speed Ratio Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1200 RPM

Speed Ratio Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1200 RPM

Model	Item	Price (ex. VAT)
122130.00	EC3LGV	-	RFQ
