LEESON Speed Ratio Motors, Three Phase, TENV
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S| Style | Model | Hp | Full Load Amps | Voltage | Mounting Type | Constant Torque | Shaft Dia. | Speed | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

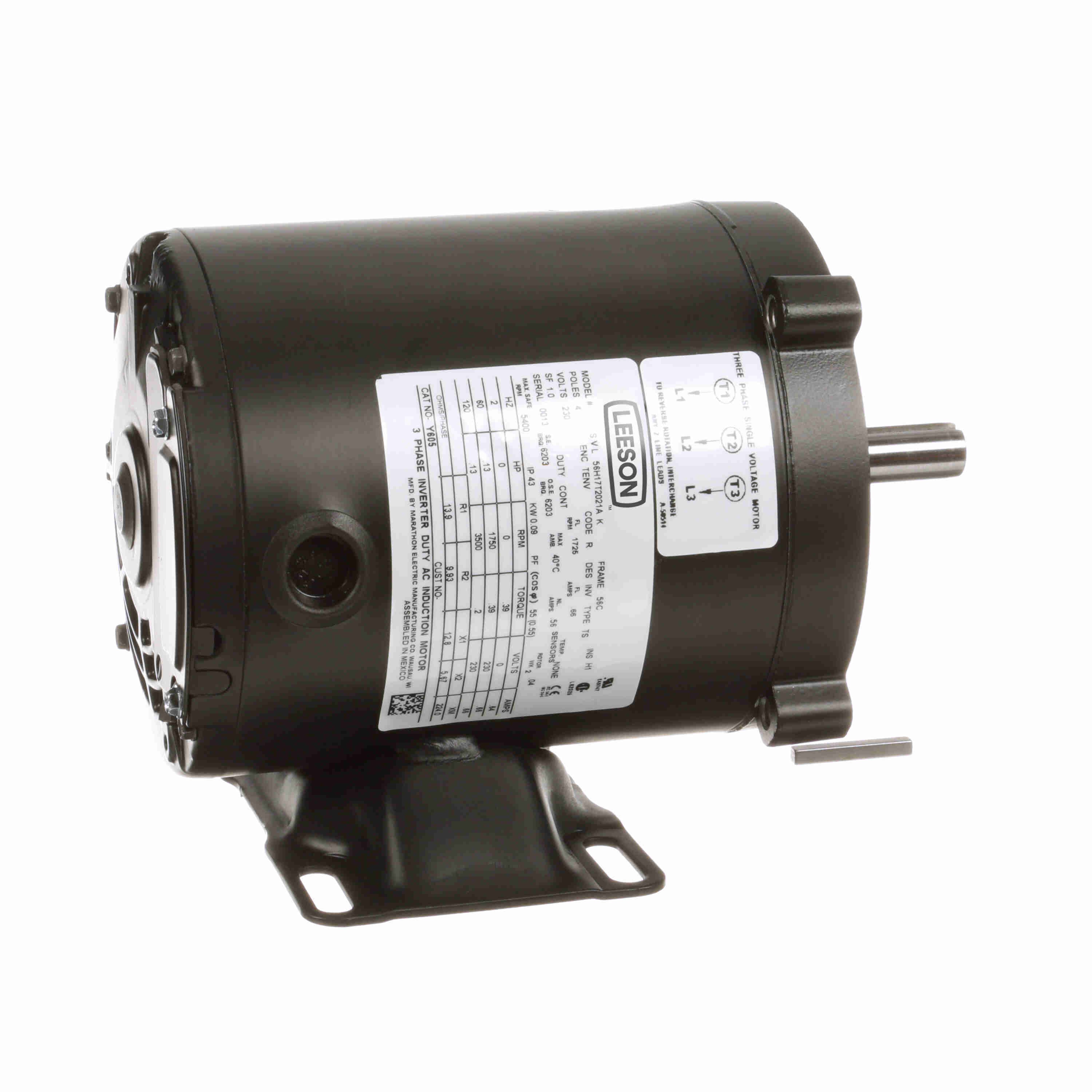

| A | 056H17T2021 | - | - | - | - | - | - | - | - | €411.15 | |

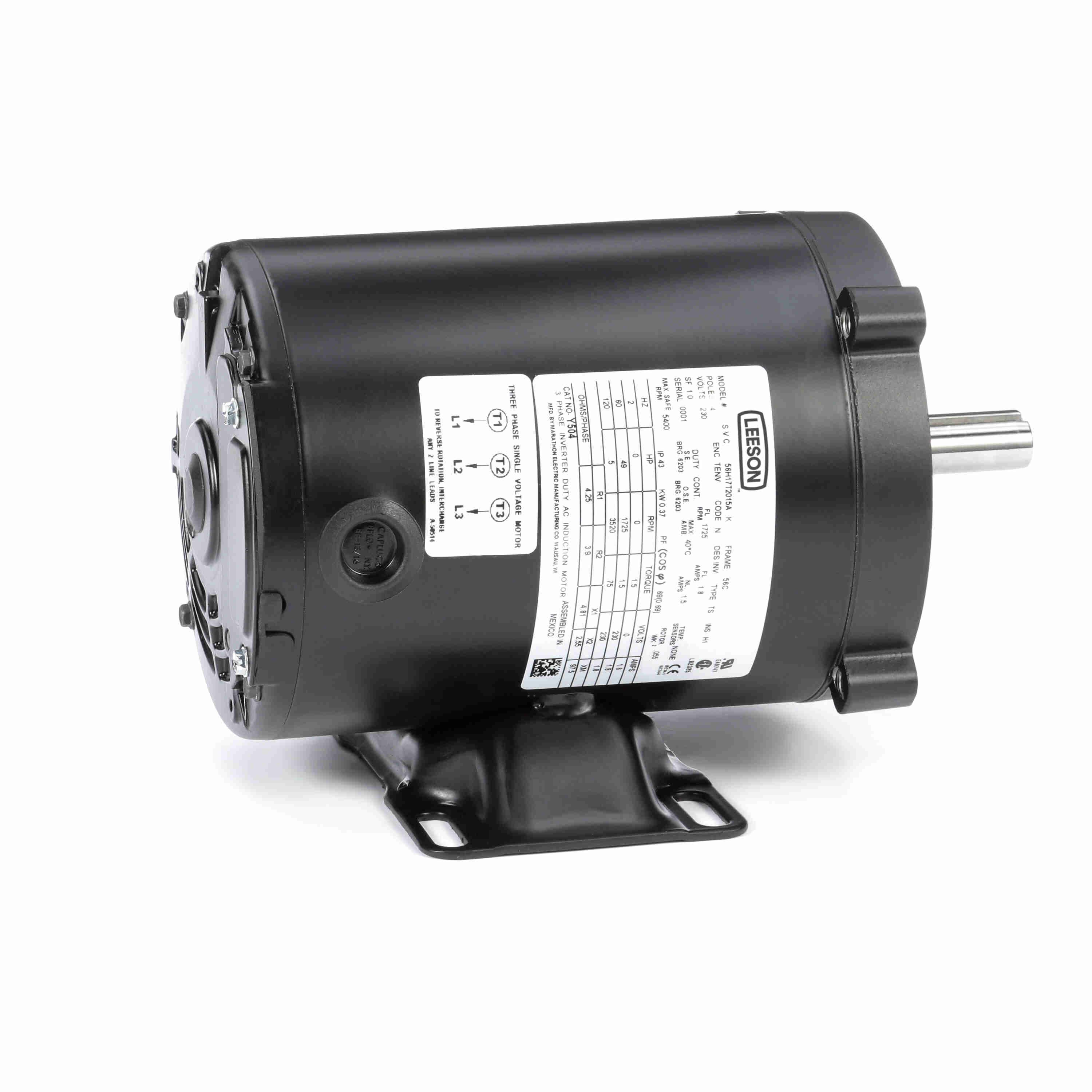

| B | 056H17T2015 | - | - | - | - | - | - | - | - | €532.31 | |
| C | 145THTR5329 | 1 1/2 hp | 4.8/2.4A | 230/460V AC | Base, Face | 1000:1 | 7/8" | 1701-1800 RPM | Rolled Steel | €963.34 | |
| D | 145THTR5326 | 1 1/2 hp | 4.8/2.4A | 230/460V AC | Base, Face | 1000:1 | 7/8" | 1701-1800 RPM | Rolled Steel | €1,004.92 | |
| E | 056H17T5312 | 1 hp | - | - | - | - | - | - | - | €921.39 | |
| F | 143THTR5326 | 1 hp | 3/1.5A | 230/460V AC | Face, Base | 1000:1 | 7/8" | 1701-1800 RPM | Rolled Steel | €1,366.46 | |
| G | 145THTR5376 | 1 hp | 3.8/1.9A | 230/460V AC | Face, Base | 1000:1 | 7/8" | 1101-1200 RPM | Steel | €1,096.88 | |
| H | 056H17T5302 | 1 hp | 3/1.5A | 230/460V AC | C Face, Removable Base | 1000:1 | 5/8" | 1000:1 | Steel | €1,225.91 | |
| I | 056H17T5311 | 1/2 hp | 0.65A | 575V AC | C Face, Rigid Base | 1000:1 | 5/8" | 1000:1 | Steel | €930.58 | |
| J | 056H17T2016 | 1/2 hp | 1.8A | 230V AC | C Face, Footless | 1000:1 | 5/8" | 1000:1 | Steel | €532.31 | |
| K | 056H17T5301 | 1/2 hp | 1.6/0.8A | 230/460V AC | C Face, Removable Base | 1000:1 | 5/8" | 1000:1 | Steel | €992.81 | |
| L | 056H17T2017 | 1/2 hp | 1.8/0.9A | 230/460V AC | C Face, Rigid Base | 1000:1 | 5/8" | 1000:1 | Steel | €802.70 | |
| M | 056H17T2013 | 1/3 hp | 1.2A | 230V AC | C Face, Rigid Base | 1000:1 | 5/8" | 1000:1 | Steel | €497.56 | |
| N | 056H17T2001 | 1/4 hp | 1.15/0.58A | 230/460V AC | C Face, Rigid Base | 1000:1 | 5/8" | 1000:1 | Steel | €703.56 | |
| O | 056H17T2012 | 1/4 hp | 1A | 230V AC | C Face, Footless | 1000:1 | 5/8" | 1000:1 | Steel | €483.96 | |
| P | 056H17T2011 | 1/4 hp | 1A | 230V AC | C Face, Rigid Base | 1000:1 | 5/8" | 1000:1 | Steel | €420.54 | |
| Q | 145THTR16032 | 2 hp | 6/3A | 230/460V AC | C Face, Rigid Base | 2000:1 | - | - | - | €2,231.88 | |
| R | 145THTN6060 | 2 hp | 2.4A | 575V AC | Face, Base | 1000:1 | 7/8" | 1701-1800 RPM | Cast Iron | €1,587.99 | |
| S | 145THTN6046 | 2 hp | 6/3A | 230/460V AC | Base, Face | 1000:1 | 7/8" | 1701-1800 RPM | Cast Iron | €1,858.17 |
