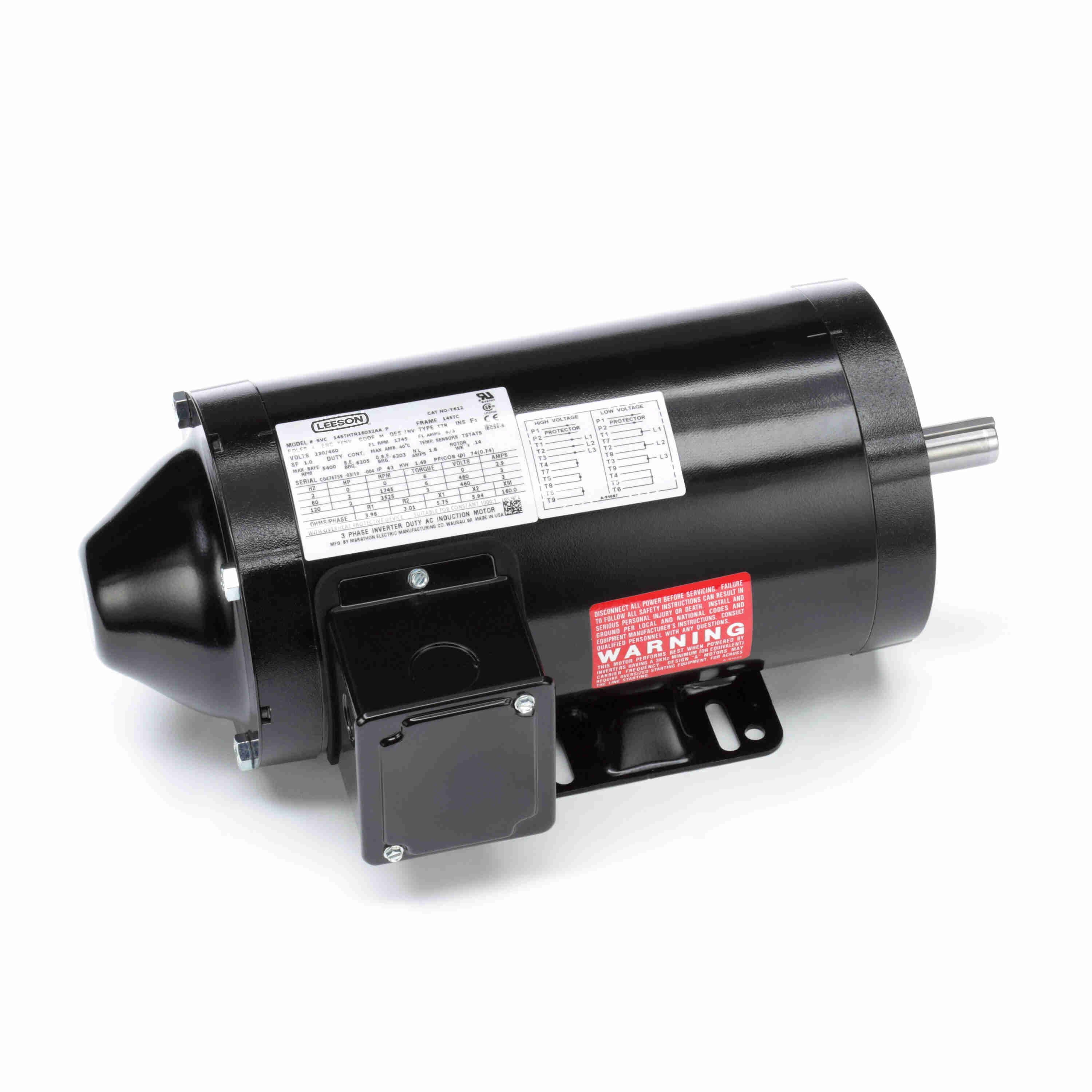

LEESON 145THTR16032 145THTR16032AA / Y612 Inverter Duty Speed Ratio Motor, 2 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Wednesday, Apr 1
5.00% off
€2,002.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient (c) | 40 |
| Ambient Temp. | 40°C |
| Conduit Box Position | F1 Only |
| Constant Torque | 2000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Frame | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 6/3A |
| Hp | 2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Phase | 3 |
| Power | 1.49 kW |
| Service Factor | 1 |
| Thermal Protection | Thermostat |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Details:
- Starting Type: INVERTER ONLY
- KVA Code: M
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6205
- Opposite End Bearing Size: 6203
- Inverter Speed Range: CONSTANT 1000:1
Product Variants
| Product | Model | Voltage | Hp | Frame | Full Load Amps | Nameplate Rpm | Motor Application | Nominal Efficiency | Efficiency Group | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
213THTL7736 | 575V AC | 7 1/2 hp | 213TC | 8.4A | 1765 RPM | Crane | 90.2% | Epact | €3,368.66 | |
 |
213THTL7776 | 230/460V AC | 3 hp | 213TC | 9.4/4.7A | 1160 RPM | Crane | 82.5% | Standard | €2,907.68 | |
 |
215THTL7736 | 575V AC | 10 hp | 215TC | 10.8A | 1774 RPM | Crane | 90.2% | Epact | €4,116.38 | |
 |
254THTL5736 | 575V AC | 15 hp | 254TC | 16A | 1765 RPM | Crane | 91.7% | Epact | €5,661.13 | |
 |
184THTL7776 | 230/460V AC | 2 hp | 184TC | 6.6/3.3A | 1160 RPM | Crane | 82.5% | Standard | €2,402.59 | |
 |
182THTY7726 | 230/460V AC | 3 hp | 182TC | 8.2/4.1A | 1755 RPM | Crane | 87.5% | Standard | €2,047.96 | |
 |
215THTL7776 | 230/460V AC | 5 hp | 215TC | 15.4/7.7A | - | Crane | - | Standard | €3,463.42 |
