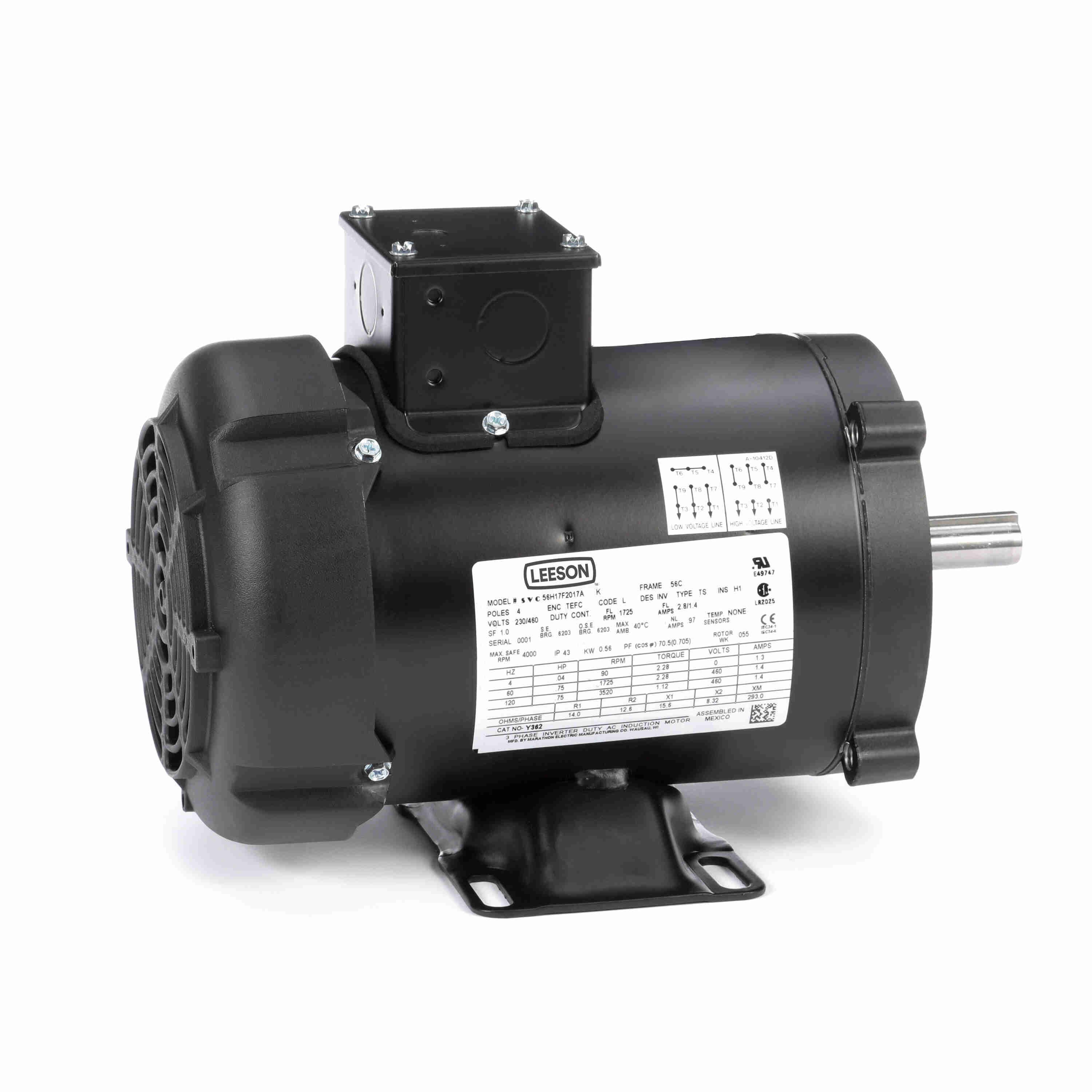

LEESON 056H17F2017 56H17F2017A / Y362 Inverter Duty Speed Ratio Motor, 0.75 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Monday, May 18
€657.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient (c) | 40 |
| Ambient Temp. | 40°C |
| Application | Crane |
| Assembly | F3 |
| Color | Black |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Constant Torque | 1000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Encoder Acceptable | No |
| Finish | Black |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.8/1.4A |
| Full Load Efficiency | 75.5% |
| Full Load Torque | 2.3 lbs.-ft. |
| Hp | 3/4 hp |
| Insulation Class | Class H |
| Length Less Shaft | 9 1/8" |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 5400 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | A |
| Nominal Efficiency | 75.5% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Overall Length | 11 3/16" |
| Phase | 3 |
| Power | 0.56 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Speed Range | 1000:1 |
| Standards | Ce, Ul Recognized |
| Torque | 2.3 lbs.-ft. |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Starting Type: INVERTER ONLY
- KVA Code: L
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
- Inverter Speed Range: CONSTANT 20:1
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Nameplate Rpm | Speed Range | Frame | Motor Mounting Type | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
145THFR5329 | 230/460V AC | 2 hp | 5.8/2.9A | 1740 RPM | 1000:1 | 145TC | Rigid Base | 4000 RPM | €1,206.57 | |
 |
056H17F2021 | 230/460V AC | 1 hp | 3.2/1.6A | 1725 RPM | 1000:1 | 56C | Rigid Base | 5400 RPM | €741.02 | |
 |
056H17F2022 | 230/460V AC | 1 hp | 3.2/1.6A | 1725 RPM | 1000:1 | 56C | Face | 5400 RPM | €886.55 | |
 |
056H17F2018 | 230/460V AC | 3/4 hp | 2.8/1.4A | 1725 RPM | 1000:1 | - | Face | 5400 RPM | €690.51 | |
 |
056H17F2011 | 230V AC | 3/4 hp | 2.8A | 1725 RPM | 1000:1 | 56C | Rigid Base | 5400 RPM | €1,703.69 | |
 |
102792.00 | 115-230V | 17/100 hp | 2.5/1.25A | 1800 RPM | - | 48C | - | - | €363.12 | |
 |
LM22665 | 230/460V | 1 1/2 hp | 2.5A | - | Not Available | 56HC | - | - | €862.20 |
