LEESON 056H17T5302 56H17T5302E / Y535 Inverter Duty Speed Ratio Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Friday, Aug 21
5.00% off
€1,164.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient (c) | 40 |
| Ambient Temp. | 40°C |
| Application | Crane |
| Assembly | F1 Only |
| Color | Black |
| Conduit Box Position | F1 |
| Constant Torque | 1000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Encoder Acceptable | Yes |
| Encoder Shaft Dimensions | 5/8" x 1 3/4" |
| Finish | Black |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3/1.5A |
| Full Load Efficiency | 84% |
| Full Load Torque | 3 lbs.-ft. |
| Hp | 1 hp |
| Insulation Class | Class F |
| Length Less Shaft | 12 15/16" |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 5400 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Removable Base |
| Nameplate Speed | 1725 RPM |
| Nema Design | A |
| No. Of Speed | 1 |
| Nominal Efficiency | 84% |
| Orientation | Horizontal |
| Overall Length | 15" |
| Phase | 3 |
| Power | 0.75 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Speed | 1000:1 |
| Thermal Protection | Thermostat |
| Torque | 3 lbs.-ft. |
| Usable @ 200v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Details:
- Provisions: PROVISIONS ONLY
- Pulse Count: NONE
- Series: 56,000
- Starting Type: INVERTER ONLY
- KVA Code: P
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
- Inverter Speed Range: CONSTANT 1000:1
Product Variants
| Product | Model | Hp | Full Load Amps | Voltage | Mounting Type | Constant Torque | Shaft Dia. | Speed | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
145THTN6060 | 2 hp | 2.4A | 575V AC | Face, Base | 1000:1 | 7/8" | 1701-1800 RPM | Cast Iron | €1,587.99 | |
 |
145THTR5329 | 1 1/2 hp | 4.8/2.4A | 230/460V AC | Base, Face | 1000:1 | 7/8" | 1701-1800 RPM | Rolled Steel | €963.34 | |
 |

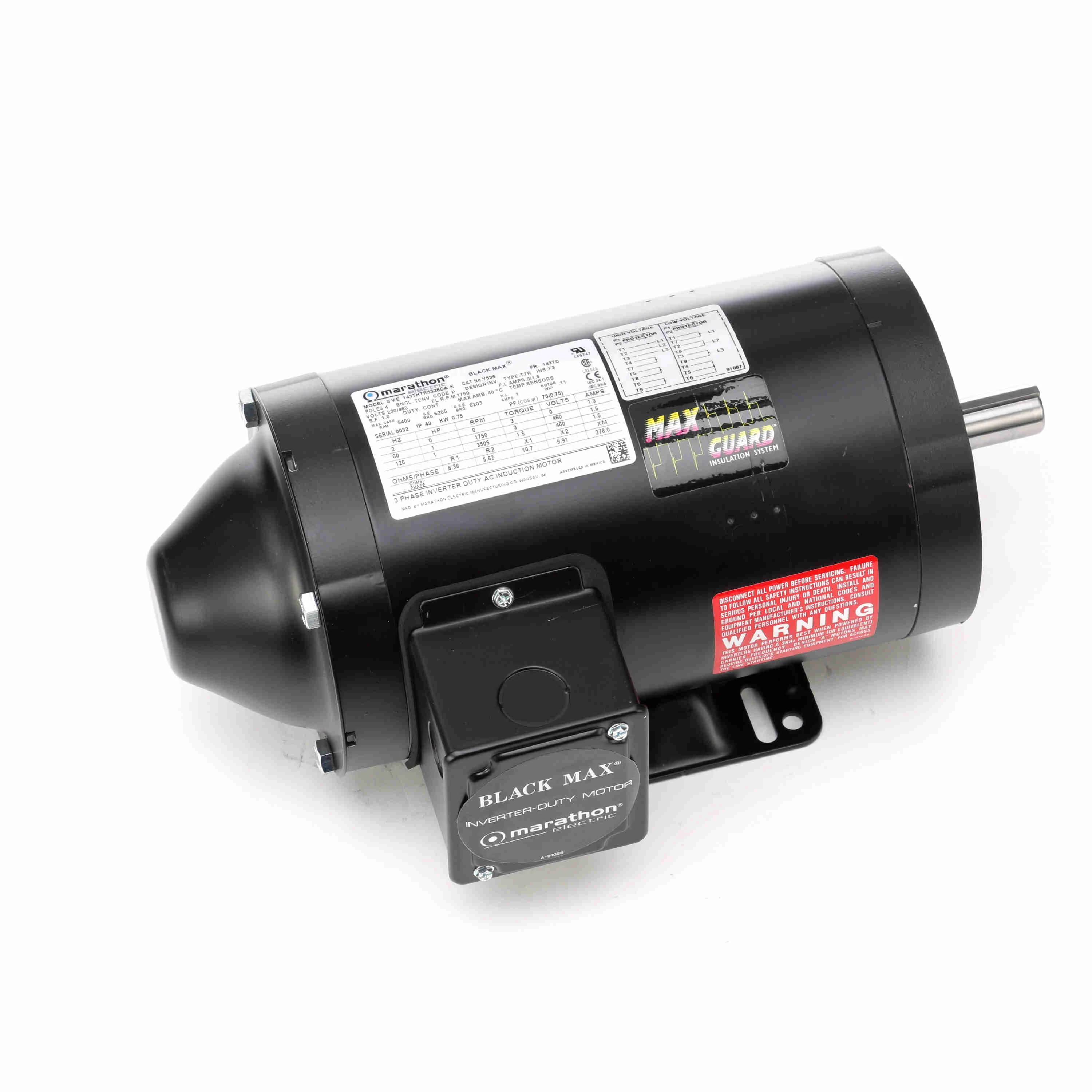

143THTR5326 | 1 hp | 3/1.5A | 230/460V AC | Face, Base | 1000:1 | 7/8" | 1701-1800 RPM | Rolled Steel | €1,366.46 | |
 |
145THTR5376 | 1 hp | 3.8/1.9A | 230/460V AC | Face, Base | 1000:1 | 7/8" | 1101-1200 RPM | Steel | €1,096.88 | |
 |
145THTR5326 | 1 1/2 hp | 4.8/2.4A | 230/460V AC | Base, Face | 1000:1 | 7/8" | 1701-1800 RPM | Rolled Steel | €1,004.92 | |
 |
145THTN6046 | 2 hp | 6/3A | 230/460V AC | Base, Face | 1000:1 | 7/8" | 1701-1800 RPM | Cast Iron | €1,858.17 | |
 |
056H17T5301 | 1/2 hp | 1.6/0.8A | 230/460V AC | C Face, Removable Base | 1000:1 | 5/8" | 1000:1 | Steel | €992.81 |
