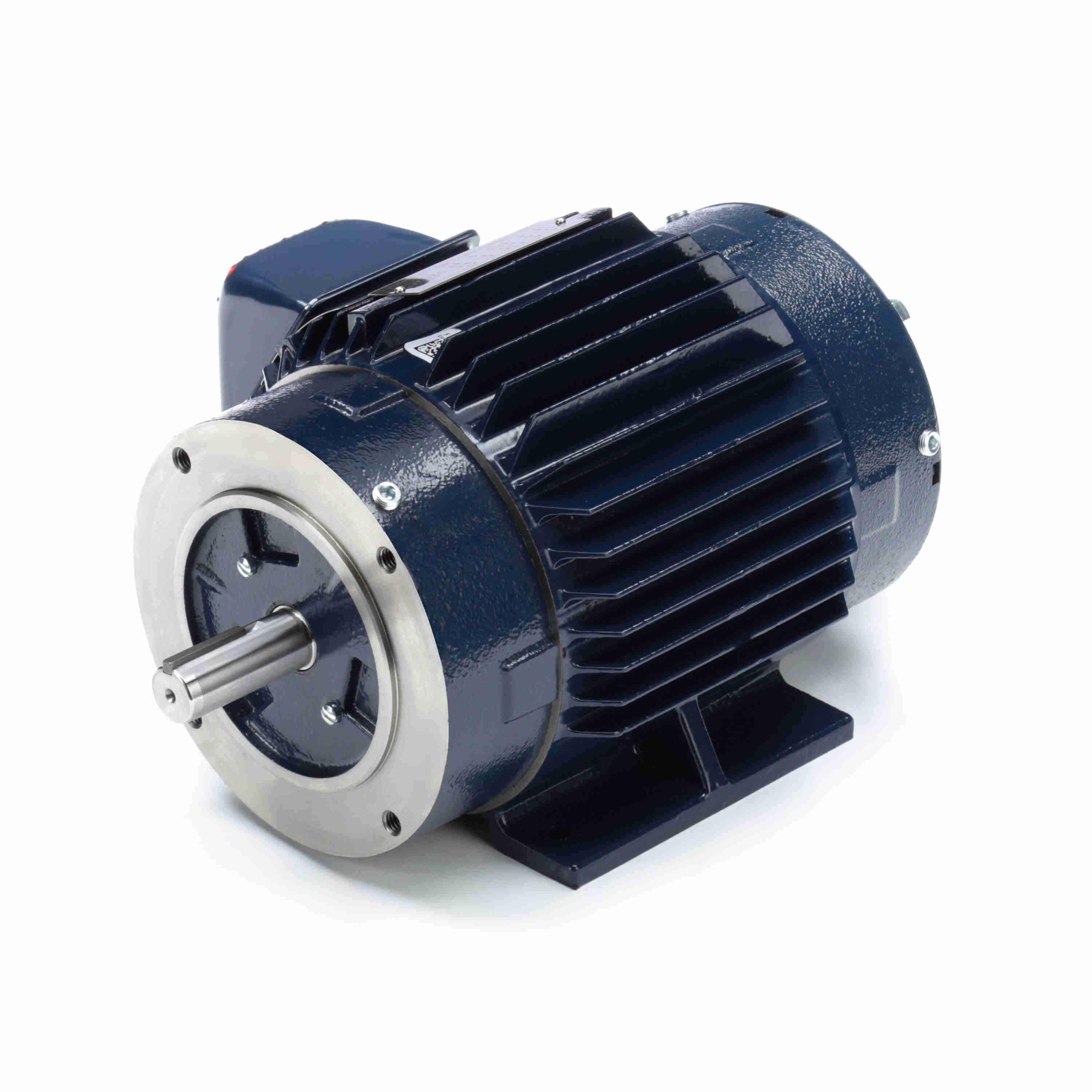

LEESON 145THTN8029 Y526 / 145THTN8029AB Inverter Duty Encoder Motor, 2 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,680.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Position | F1, F2 |
| Constant Torque | 2000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | Premium |
| Encoder Acceptable | Yes |
| Encoder Shaft | 5/8" x 1-3/4" |
| Encoder Shaft Dimension | 5/8" x 1 3/4" |
| Finish | Enamel |
| Frame | 143TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 3/1.5A |
| Hp | 2 hp |
| Insulation Class | Class H |
| Insulation Feature | Class F |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 5400 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Face, Base |
| Nameplate Rpm | 1756 RPM |
| Nema Design | NEMA A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 14 11/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed Range | 2000:1 |
| Speed Range | 2000:1 CT |
| Speed Ratio | 2000:1 |
| Standards | Ce, Ul Recognized |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Weight | 72 lbs. |
Shipping Info:
| Ship weight (kg) | 32.4 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Frame | Hp | Full Load Amps | Efficiency Group | Nominal Efficiency | Motor Thermal Protection | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143THTN8028 | 230/460V AC | 143TC | 1 hp | 3/1.5A | Premium | 85.5% | T Stat | - | €1,906.25 | |
 |
145THTN8037 | 230/460V AC | 143TC | 1 hp | 3/1.5A | Premium | 82.5% | Thermostat | 1756 RPM | €1,894.77 | |
 |
184THTS8028 | 230/460V AC | 182TC | 3 hp | 8/4A | Premium | 88.5% | T Stat | 1760 RPM | €2,403.94 | |
 |
254THTNA8058 | 230/460V AC | 254TC | 15 hp | 40.5/20.2A | Premium | 93% | T Stat | 1772 RPM | €5,527.86 | |
 |
284THFPA8028 | 230/460V AC | 284T | 25 hp | 63/31.5A | Epact | 91.7% | T Stat | 1765 RPM | €7,566.87 | |
 |
284THFPA8038 | 230/460V AC | 284TC | 25 hp | 63/31.5A | Epact | 91.7% | T Stat | 1765 RPM | €8,456.13 | |
 |
284THFPA8086 | 230/460V AC | 284TC | 25 hp | 63/31.5A | Epact | - | - | - | €12,202.24 |
