LEESON 145THFR5329 Y368 / 145THFR5329AA Inverter Duty Speed Ratio Motor, 2 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,085.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base Type | Removable |
| Bearing Type | Ball |
| Color | Black |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Constant Torque | 1000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency Group | Standard |
| Encoder Acceptable | No |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.8/2.9A |
| Full Load Torque | 6 lbs.-ft. |
| Hp | 2 hp |
| Insulation Class | Class H |
| Insulation Feature | Patented Max Guard |
| Length Less Shaft | 12.812" |
| Max. Ambient Temp. | 40°C |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 4000 RPM |
| Max. Speed | 4000 RPM |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Three Phase |
| Mounting Type | Face, Base |
| Nameplate Rpm | 1740 RPM |
| Nema Design | A |
| Nominal Efficiency | 82.5% |
| Number Of Speeds | 1 |
| Overall Length | 14 15/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed Range | 20:1 CT |
| Speed Range | 1000:1 |
| Speed Ratio | 20:1 |
| Thermal Protection | None |
| Torque | 6 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 49.05 |
| Ship width (cm) | 28.42 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Mounting Type | Full Load Amps | Frame | Nominal Efficiency | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

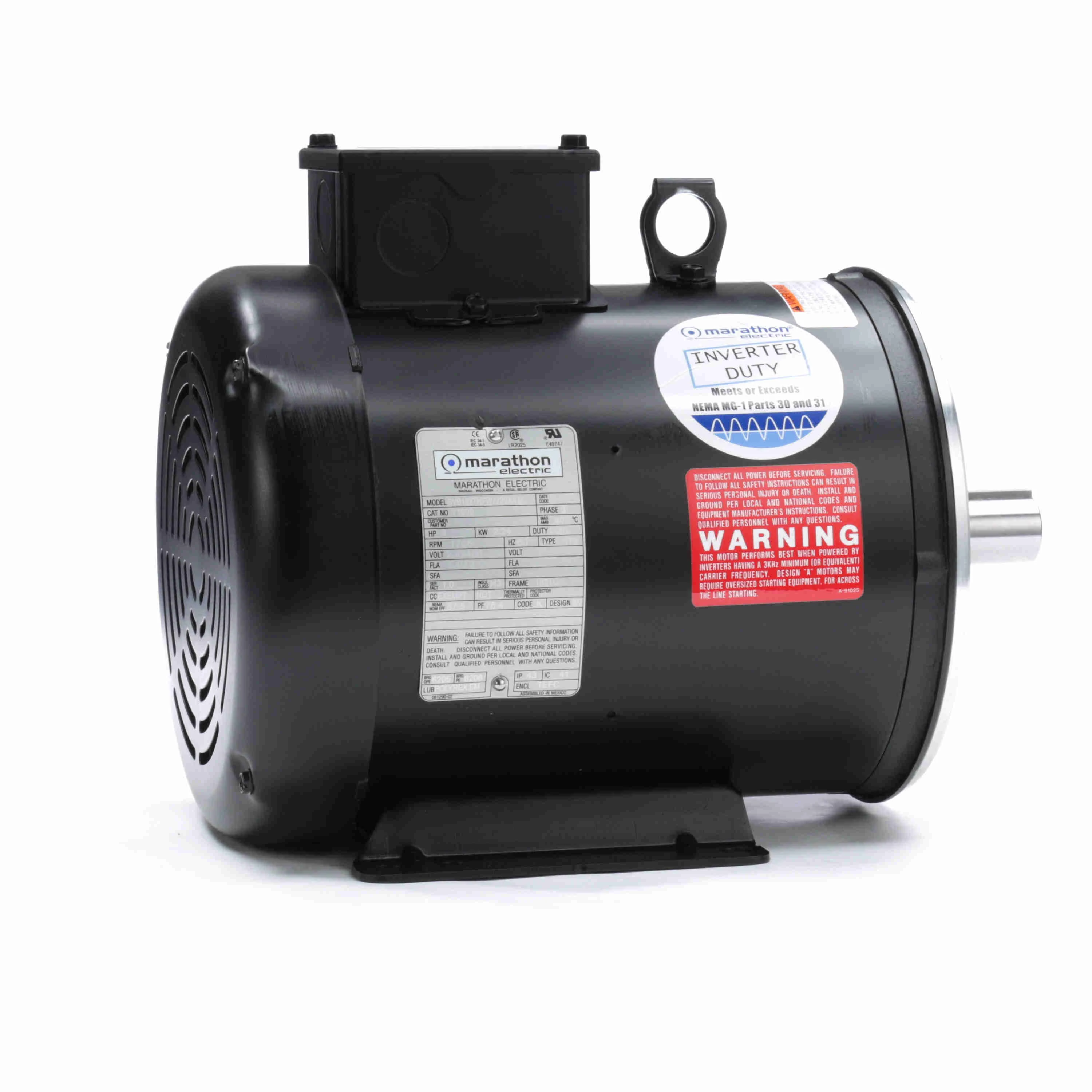

182THFW7729 | 230/460V AC | 3 hp | 1765 RPM | Rigid Base | 8.4/4.2A | 182TC | 87.5% | - | €1,721.08 | |
 |

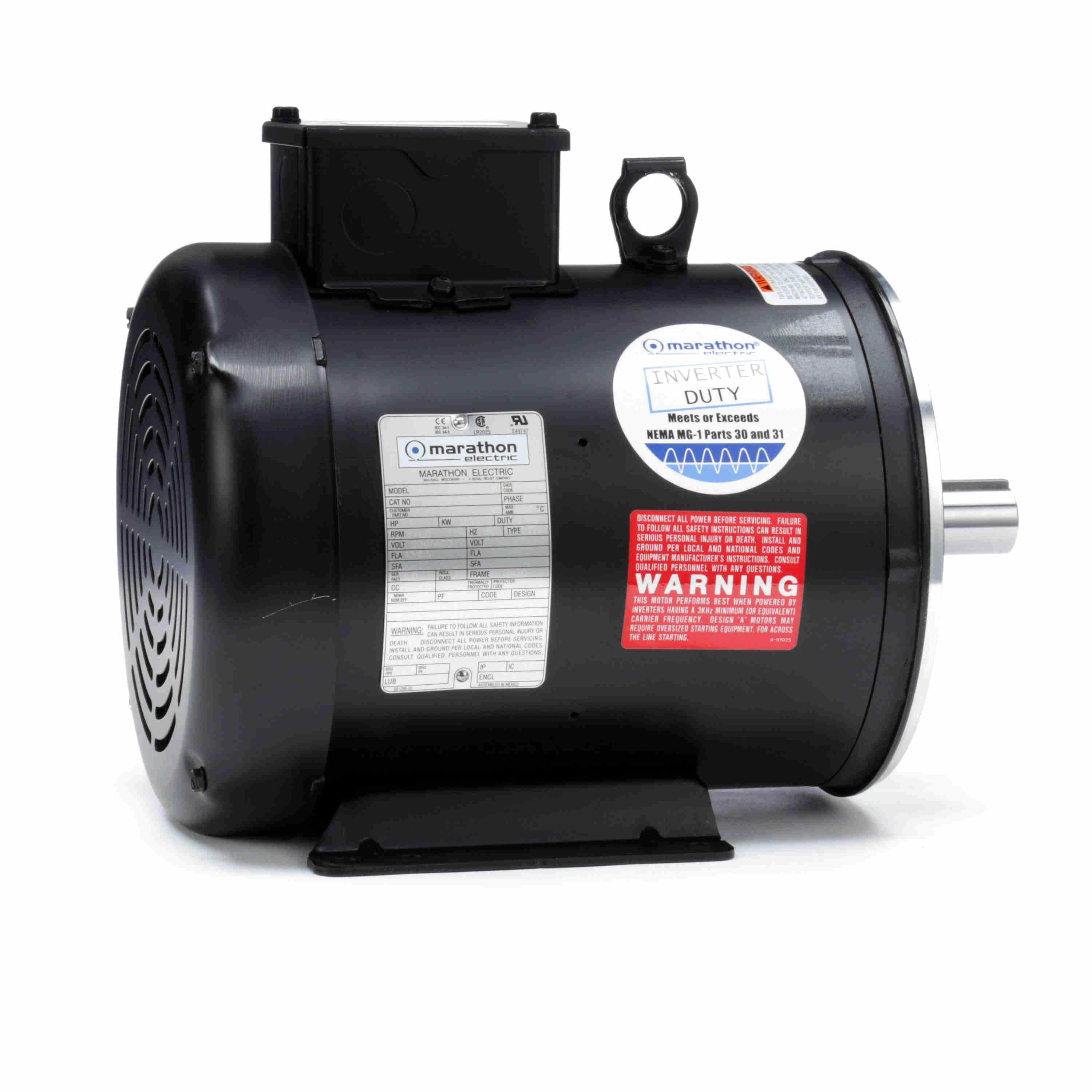

184THFW7726 | 230/460V AC | 5 hp | 1760 RPM | Rigid Base | 13/6.5A | 184TC | 87.5% | - | €2,204.24 | |
 |
145THTR5329 | 230/460V AC | 1 1/2 hp | 1755 RPM | Rigid Base | 4.8/2.4A | 145TC | - | 5400 RPM | €909.69 | |
 |

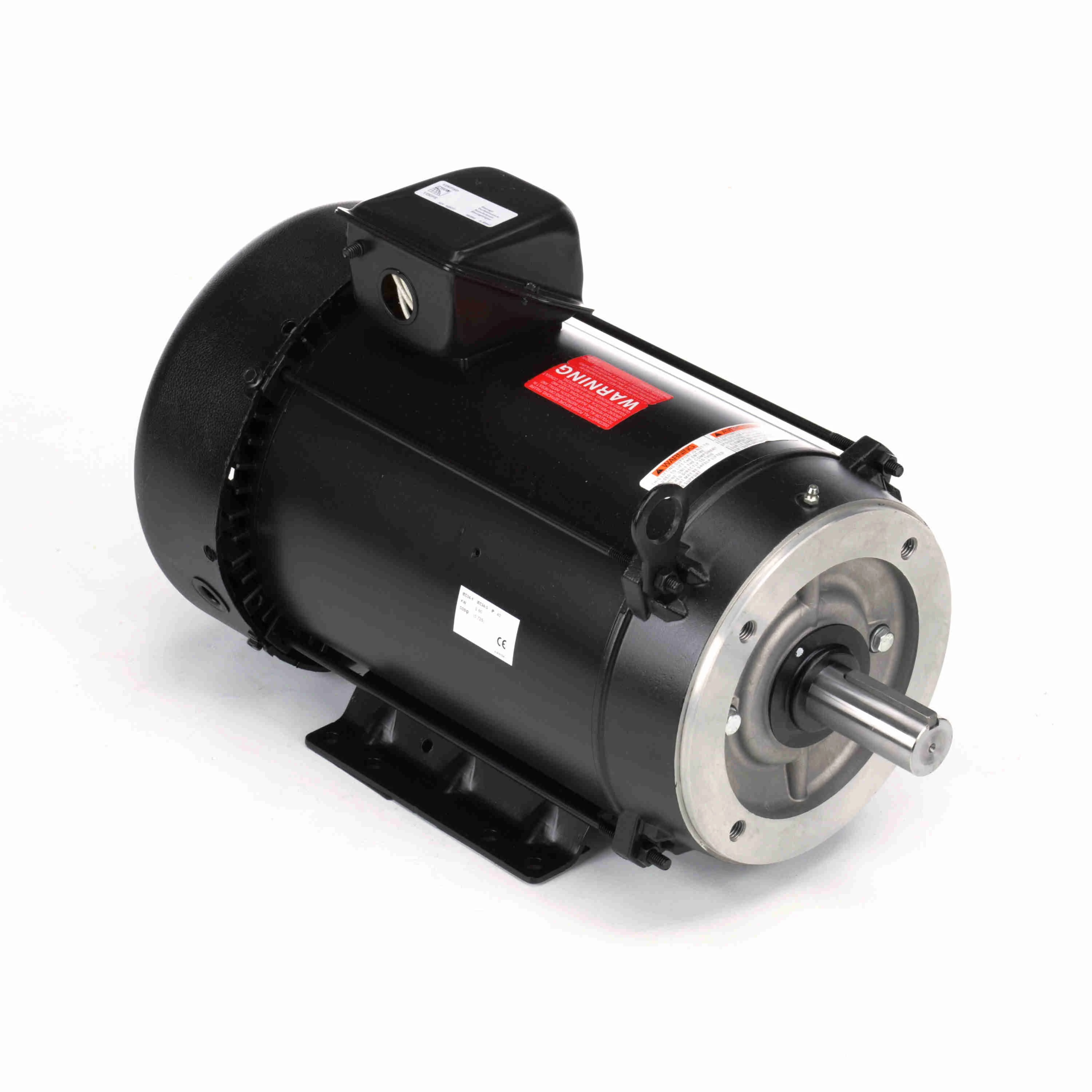

213THFW7726 | 230/460V AC | 7 1/2 hp | 1770 RPM | Rigid Base | 21.4/10.7A | 213TC | 89.5% | - | €2,817.63 | |
 |

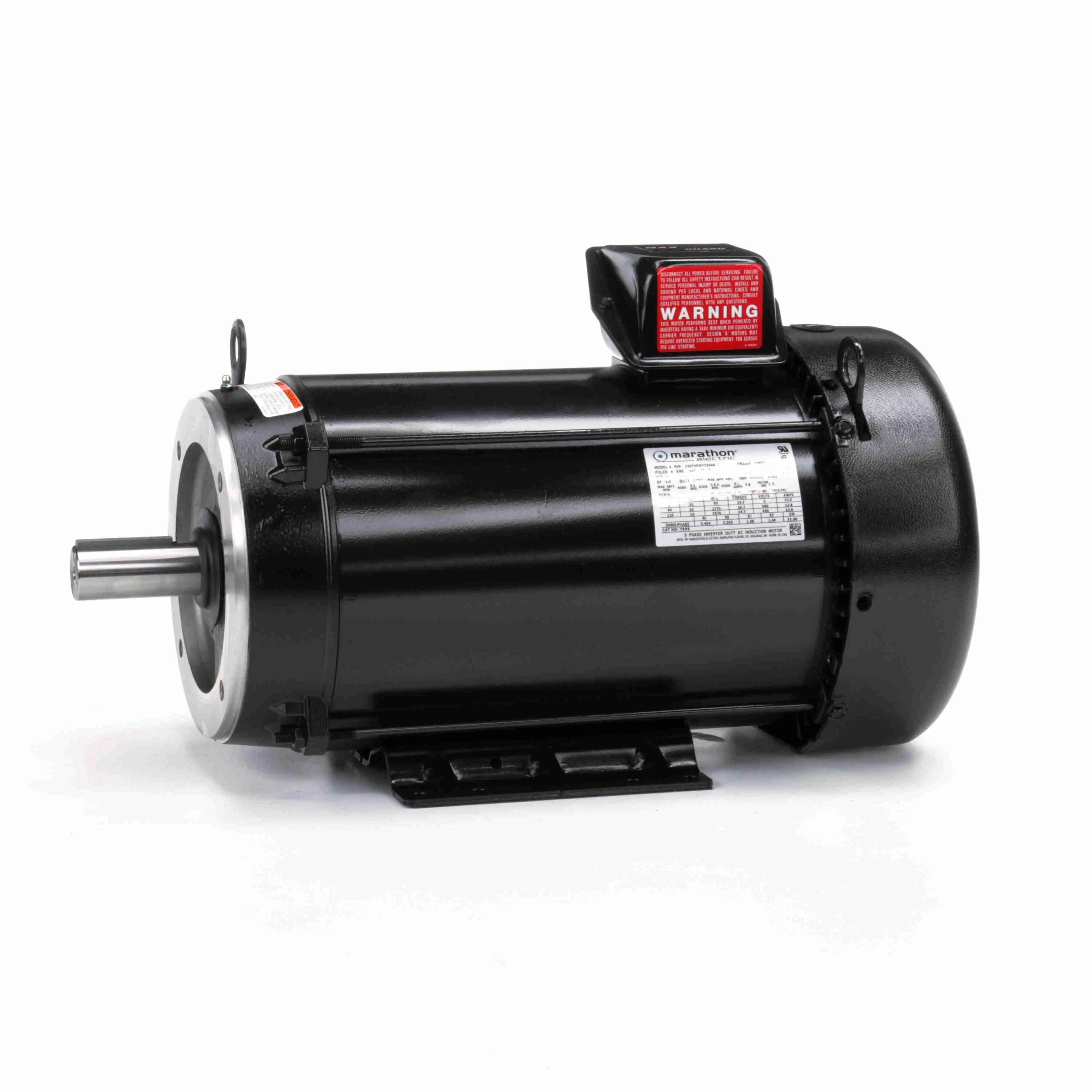

215THFW7726 | 230/460V AC | 10 hp | 1770 RPM | Rigid Base | 27.6/13.8A | - | 91% | - | €3,606.14 | |
 |
056H17F2021 | 230/460V AC | 1 hp | 1725 RPM | Rigid Base | 3.2/1.6A | 56C | 78.5% | 5400 RPM | €741.02 | |
 |
056H17T2017 | 230/460V AC | 1/2 hp | 1725 RPM | Rigid Base | 1.8/0.9A | 56C | 74% | 5400 RPM | €746.30 |
