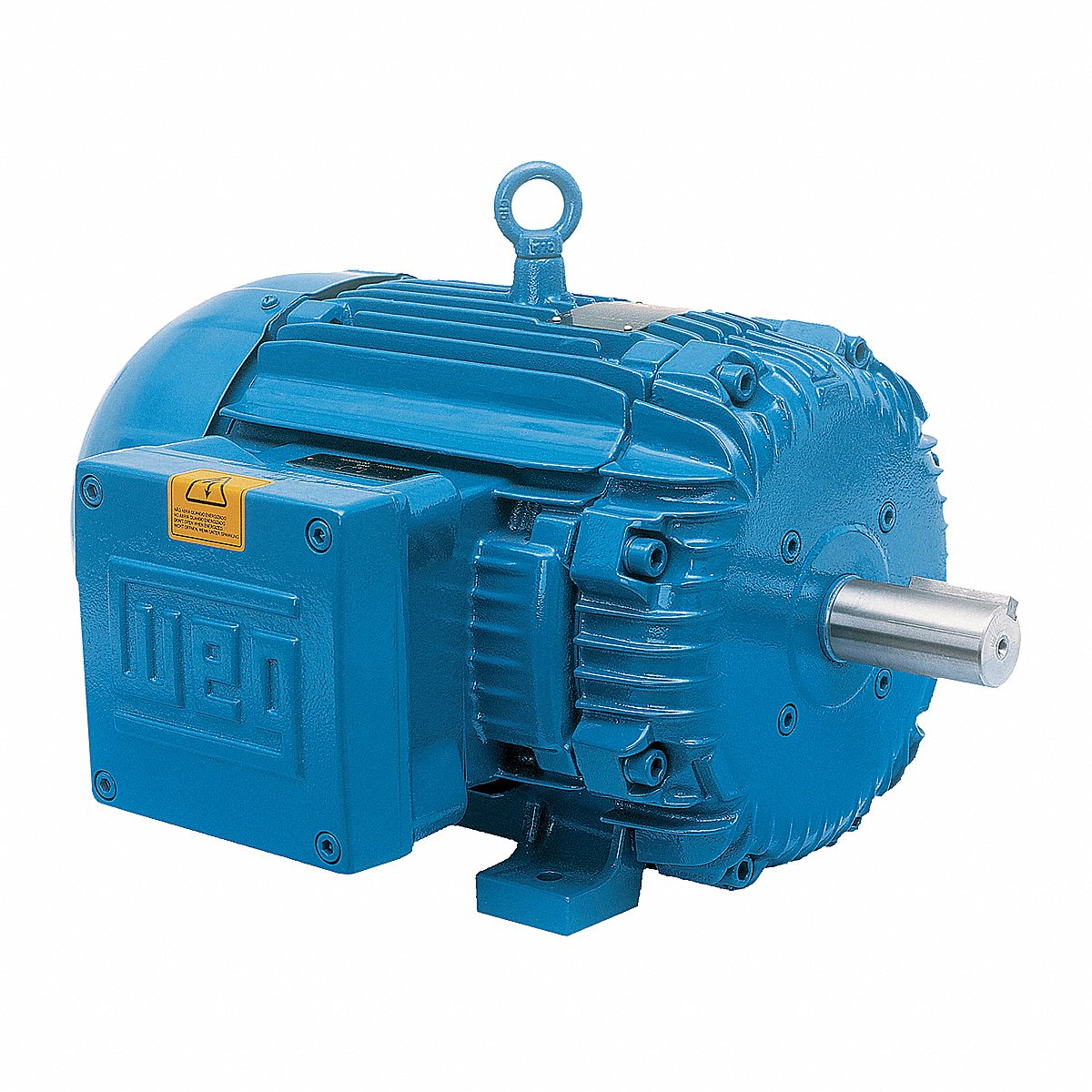

WEG 20036XT3G447TS 14315330 Explosion Proof Motor, 200 HP, 3600 RPM, 460 V, 3 Phase, XPFC, 447TS Frame, Footed
3600 rpm
200 hp
460V
Get it by Wednesday, Apr 1
5.00% off
€43,923.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 40°C |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 270% |
| Cc Number | CC029A |
| Conduit Box Location | Exterior |
| Connection Cables Quantity | 12 |
| Drain | Sinterized, Exd |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 95.8% |
| Efficiency @ 50% | 94.1% |
| Efficiency @ 75% | 95.4% |
| Efficiency Group | Premium |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
| Frame | 447TS |
| Frame Material | Cast Iron |
| Frame Size | 447Ts |
| Frequency | 60 Hz |
| Full Load Amps | 221A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Grounding Lugs | Double |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Horsepower | 200 hp |
| Hp | 200 hp |
| Hz | 60 Hz |
| Impregnation Method | Constant Resin Flow |
| Ins. Class | Class F |
| Insulation Class | Class F |
| L.r. Amperes | 1613A |
| Length Less Shaft | 38 13/16" |
| Locked Rotor Time (cold) | 66 sec. |
| Locked Rotor Time (hot) | 37 sec. |
| Locked Rotor Torque | 260% |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Type | NPT |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 104°F |
| Moment Of Inertia (j) | 44.6 lbs.-sq. ft. |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3570 RPM |
| Nema Design | B |
| No Load Amps | 53A |
| No. Of Speeds | 1 |
| Noise | 87 dBA |
| Noise Level | 87 dBA |
| Nominal Efficiency | 95.8% |
| Number | Cc029A |
| Number Of Poles | 2 |
| Overall Length | 43 9/16" |
| Overload Protection | No |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.84 |
| Power Factor 75% | 0.88 |
| Power Factor_100% | 0.89 |
| Product Datasheet | weg-20036xt3g447ts.pdf |
| Rated Current | 221A |
| Rated Speed | 3575 RPM |
| Rated Voltage | 460V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Stainless Steel |
| Service Factor | 1.15 |
| Shaft Dia. | 3 3/8" |
| Shaft Length | 4 3/4" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 0.69% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Code | T3C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 29 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 1195.2 |
| Ship height (cm) | 95 |
| Ship length (cm) | 170 |
| Ship width (cm) | 109.98 |
| HS code | 8501538040 |
Documentation:
Product Variants
| Model | Voltage | Frame | Nameplate Rpm | Hp | Motor Application | Hazardous Location Class | Synchronous Speed | Flange | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118XT3E143T | 230/460/380V | 143T | 1765 RPM | 1 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,315.11 | |
| 00156XT3E143T | 230/460/380V | 143T | 3500 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 3600 RPM | Without | €1,328.90 | |
| 00158XT3E145T | 230/460/380V | 145T | 1760 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,363.94 | |
| 00152XT3E182T | 230/460/380V | 182T | 1165 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 1200 RPM | Without | €1,706.85 | |
| 00236XT3E145T | 230/460/380V | 145T | 3480 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 3600 RPM | Without | €1,362.00 | |
| 00218XT3E145T | 230/460/380V | 145T | 1750 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,404.90 | |
| 00212XT3E184T | 230/460/380V | 184T | 1165 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 1200 RPM | Without | €1,719.18 |
