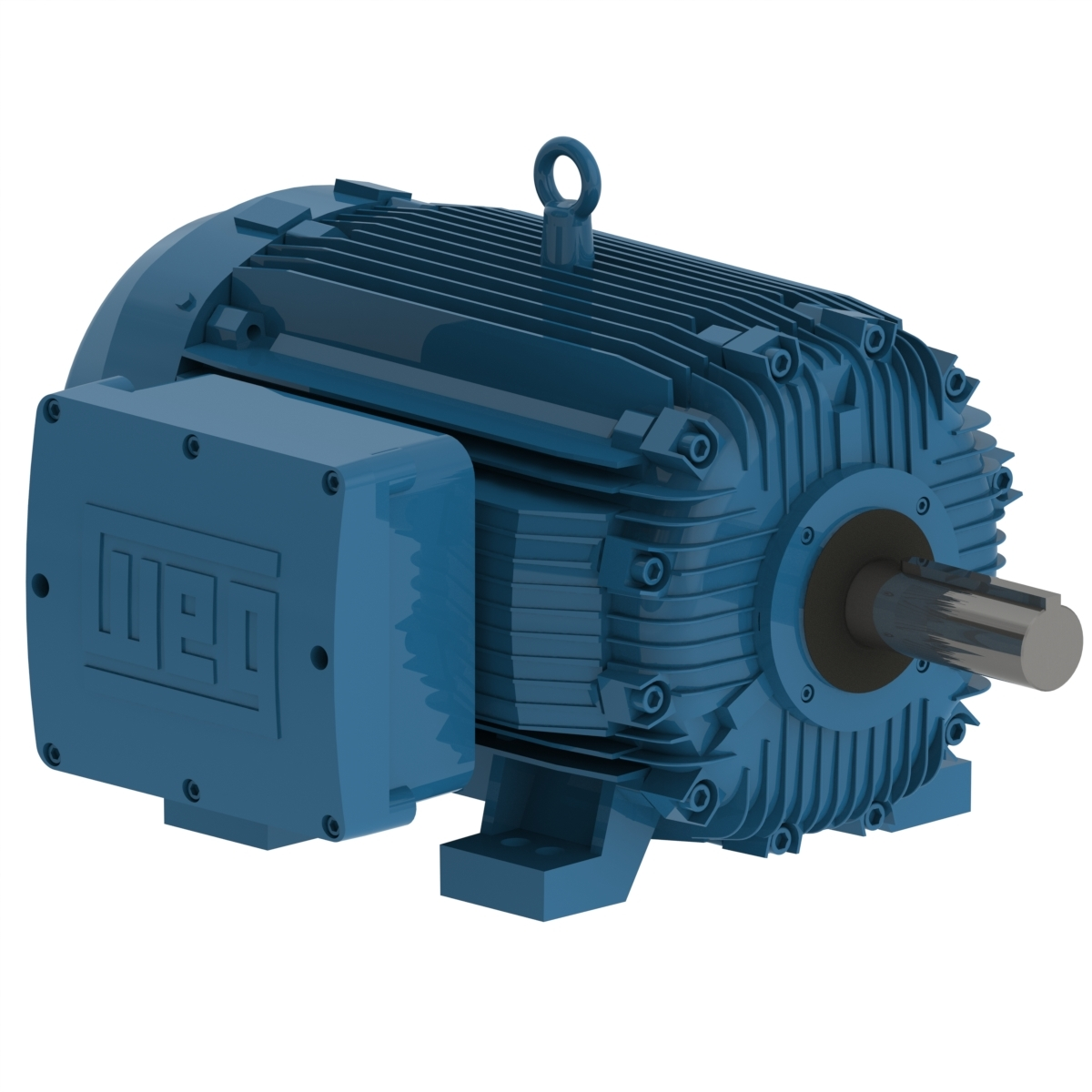

WEG 07509XT3E444T Electric Motor, 75Hp, 60Hz, 890 Rpm | BB6YVV

WEG 07509XT3E444T 12408372 Electric Motor, 75Hp, 60Hz, 890 Rpm

Item: BB6YVVModel: 07509XT3E444TCross Ref: 12408372
Check Availability
In Stock

Get it by Friday, Dec 19

€33,329.25 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hazardous Location Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 210%
Cold Locked Rotor Time 32 sec.
Connection Cables Quantity 12
Cooling IC411
Design B
Drain Sinterized, EXD
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency At 1 % 80%
Efficiency At 50 % 66%
Efficiency At 75 % 76%
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Aluminum
Flange Without
Frame Material Cast Iron
Frequency 50/60 Hz
Grounding Lugs Double
Horsepower 75 hp
Hot Locked Rotor Time 18 sec.
Hz 60 Hz
Impregnation Method Constant Resin Flow
Insulation Class Class F
L. R. Amps 1125/562A
Locked Rotor Torque 170%
Lrc 6.1X(Code G)
Main Terminal Box Hole Type NPT
Moment Of Inertia 73.6 lbs.-sq. ft.
Motor Shaft Rotation Clockwise/Counter Clockwise
Mounting Type F-1
Nameplate Rpm 890 RPM
No Load Amps 76/38A
No. Of Main Terminal Box Holes 2
No. Of Poles 8
Noise Level 64 dBA
Output 75 hp
Output Rating 55 kW
Overload Protector Without Overload Protector
Painting RAL 5009 202P (ISO 12944 - C4)
Phase 3
Power Factor At 1 % 93.6
Power Factor At 50 % 93.6
Power Factor At 75 % 94.1
Rated Current 184/92.2A
Rated Torque 443 lbs.-ft.
Rated Voltage 230/460V AC
Regreasing System At Drive End And Non Drive End
Rotation CW/CCW
Rpm 890 RPM
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 4140
Slip 1.11%
Starting Method Direct On Line
Synchronous Speed 900 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/380V
Winding Thermal Protection Thermostat - 2 wires 1 per phase 155°C

Shipping Info:

Ship weight (kg) 934.65
Ship height (cm)31.5
Ship length (cm)46.99
Ship width (cm)37.34
Country of OriginUS

Product Variants

ProductModelVoltageFrameNameplate RpmHpMotor ApplicationHazardous Location ClassSynchronous SpeedFlangePrice
WEG 00118XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1 Hp, T4 | AE2NMW 4YPR7 00118XT3E143T230/460/380V143T1765 RPM1 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,315.11
WEG 00156XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMX 4YPR9 00156XT3E143T230/460/380V143T3500 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G3600 RPMWithout€1,328.90
WEG 00158XT3E145T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMY 4YPT1 00158XT3E145T230/460/380V145T1760 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,363.94
WEG 00152XT3E182T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMZ 4YPT2 00152XT3E182T230/460/380V182T1165 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G1200 RPMWithout€1,706.85
WEG 00236XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNA 4YPT3 00236XT3E145T230/460/380V145T3480 RPM2 hpHazardous Location1 C, D / 2 F, G3600 RPMWithout€1,362.00
WEG 00218XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNB 4YPT4 00218XT3E145T230/460/380V145T1750 RPM2 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,404.90
WEG 00212XT3E184T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNC 4YPT5 00212XT3E184T230/460/380V184T1165 RPM2 hpHazardous Location1 C, D / 2 F, G1200 RPMWithout€1,719.18
