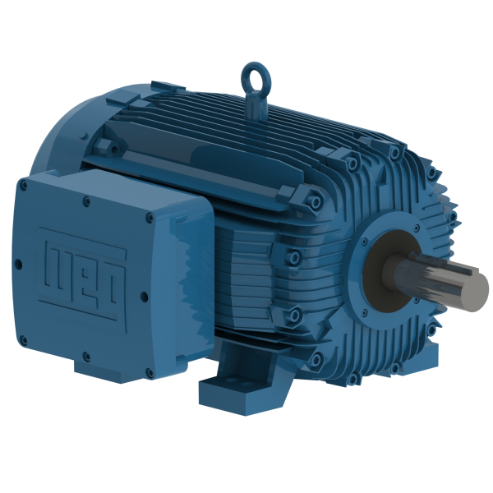

WEG 40012XT3G586/7 14356602 Explosion Proof Motor, 400 HP, 6 Poles, 586/7T Frame, 3 Phase, 460V, 60 Hz, Foot-mounted
1200 rpm
400 hp
460V
Get it by Tuesday, Aug 18
€86,459.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 468A , 479A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 200% , 229% |
| Cold Locked Rotor Time | 36 sec. |
| Connection Cables Quantity | 6 |
| Cooling | IC411 |
| De Bearing Seal | Viton Oil Seal |
| Degree Of Protection | IP55 |
| Drain | Sinterized, EXD |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency | 50% |
| Efficiency 50% | 70% |
| Efficiency @ 1 % | 82% |
| Efficiency @ 100% | 95.8% |
| Efficiency @ 75 % | 78% |
| Enclosure Rating | IC411 |
| Enclosure Type | XP |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
| Frame | 586/7T |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 60 Hz |
| Full Load Amps | 479A |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 20 sec. |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 2876A , 3043A |
| Locked Rotor Time(hot) | 20 sec. |
| Locked Rotor Torque | 200% , 220% |
| Lrc | 6.0X(Code G) , 6.5x(Code G) |
| Main Terminal Box Hole | 2 x NPT 3" |
| Main Terminal Box Hole Size | 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Stainless Steel |
| Moment Of Inertia | 368 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | CW, CCW |
| Mounting | Foot-Mounted, F-1 |
| Mounting Type | F-1 |
| Nameplate Speed | 1192 RPM |
| Nde Bearing Seal | Viton Seal |
| No Load Amps | 145A , 175A |
| No. Of Main Terminal Box Holes | 2 |
| No. Of Poles | 6 |
| Noise | 77 dBA |
| Noise Level | 73 dBA , 77 dBA |
| Output | 400 hp |
| Output Hp | 400 hp |
| Output Rating | 260 kW , 300 kW |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL 5009 202P (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.82 |
| Power Factor @ 1 % | 95.8 |
| Power Factor @ 50 % | 93.6 |
| Power Factor @ 75 % | 95 |
| Rated Speed | 993 RPM |
| Rated Torque | 1850 lbs.-ft. |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 4140 Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.67% , 0.7% |
| Speed | 1100-1200 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 1741 lbs.-ft. , 1760 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 415V , 460V , 460V AC |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C , Thermostat 2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 2422.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 155.93 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Frame | Hp | Motor Application | Hazardous Location Class | Enclosure Type | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118XT3E143T | 230/460/380V | 143T | 1 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 4 | 1800 RPM | €1,315.11 | |
| 00156XT3E143T | 230/460/380V | 143T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 2 | 3600 RPM | €1,328.90 | |
| 00158XT3E145T | 230/460/380V | 145T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 4 | 1800 RPM | €1,363.94 | |
| 00152XT3E182T | 230/460/380V | 182T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 6 | 1200 RPM | €1,706.85 | |
| 00236XT3E145T | 230/460/380V | 145T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 2 | 3600 RPM | €1,362.00 | |
| 00218XT3E145T | 230/460/380V | 145T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 4 | 1800 RPM | €1,404.90 | |
| 00212XT3E184T | 230/460/380V | 184T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 6 | 1200 RPM | €1,719.18 |
