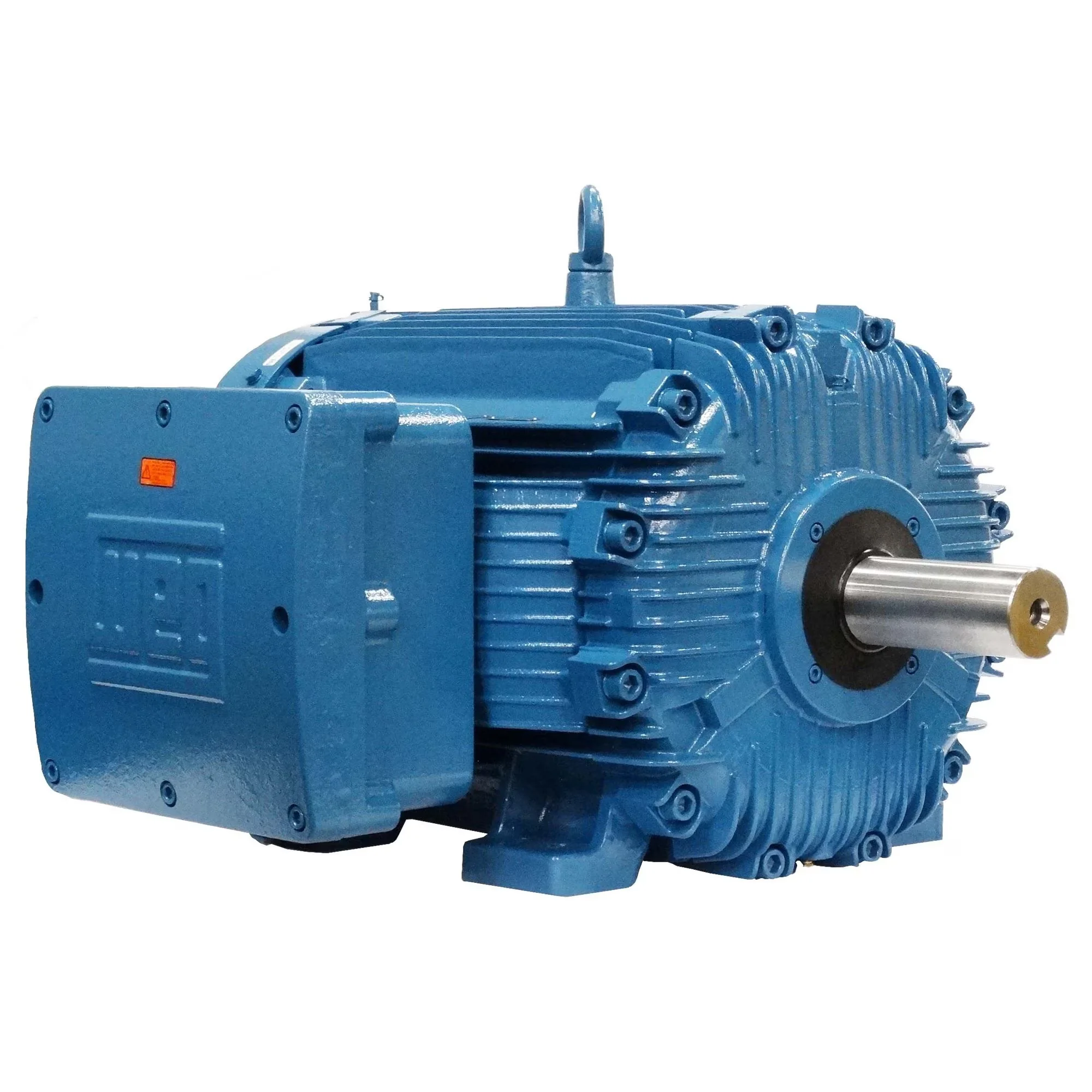

WEG 00112XT3H145T Electric Motor, 1Hp, 60Hz, 1200 Rpm | BB9HAL

WEG 00112XT3H145T 14591814 Explosion Proof Motor, 1 HP, 1200 RPM, 575 V, 3 Phase, XPFC, 145T Frame, Footed, Explosion Proof

Item: BB9HALModel: 00112XT3H145TCross Ref: 14591814
Check Availability
In Stock

Get it by Tuesday, Aug 18

€1,178.75 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hazardous Location Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 1.3A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 280%
Cold Locked Rotor Time 50 sec.
Connection Cables Quantity 3
Cooling IC411
Design B
Drip Cover Without
Duty Cycle Continuous
Efficiency 50% 51%
Efficiency @ 1 % 70%
Efficiency @ 75 % 63%
Enclosure Type XP
Fan Cover Material Steel
Fan Material Plastic
Flange Without
Frame 143/5T
Frame Material Cast Iron
Frame Size 145T
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 28 sec.
Hp 1 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 8.08A
Locked Rotor Torque 260%
Lrc 6.2X(Code K)
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.1595 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Shaft Rotation CW, CCW
Mounting Type F-1
Nameplate Speed 1150 RPM
No Load Amps 0.8A
No. Of Poles 6
Noise Level 50 dBA
Output 1 hp
Output Rating 0.75 kW
Overload Protector Without Overload Protector
Painting RAL 5009 202P (ISO 12944 - C4)
Phase 3
Power Factor @ 1 % 82.5
Power Factor @ 50 % 77
Power Factor @ 75 % 82
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 4.17%
Speed 1100-1200 RPM
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 4.57 lbs.-ft.
Tropicalized Painting Without
Voltage 575V , 575V AC
Winding Thermal Protection Thermostat - 2 wires 1 per phase 155°C

Shipping Info:

Ship weight (kg) 33.75
Ship height (cm)31.5
Ship length (cm)46.99
Ship width (cm)37.34
Country of OriginUS

Product Variants

ProductModelVoltageFrameHpMotor ApplicationHazardous Location ClassEnclosure TypeNo. Of PolesSynchronous SpeedPrice
WEG 00118XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1 Hp, T4 | AE2NMW 4YPR7 00118XT3E143T230/460/380V143T1 hpHazardous Location1 C, D / 2 F, GTefc41800 RPM€1,315.11
WEG 00156XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMX 4YPR9 00156XT3E143T230/460/380V143T1 1/2 hpHazardous Location1 C, D / 2 F, GTefc23600 RPM€1,328.90
WEG 00158XT3E145T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMY 4YPT1 00158XT3E145T230/460/380V145T1 1/2 hpHazardous Location1 C, D / 2 F, GTefc41800 RPM€1,363.94
WEG 00152XT3E182T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMZ 4YPT2 00152XT3E182T230/460/380V182T1 1/2 hpHazardous Location1 C, D / 2 F, GTefc61200 RPM€1,706.85
WEG 00236XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNA 4YPT3 00236XT3E145T230/460/380V145T2 hpHazardous Location1 C, D / 2 F, GTefc23600 RPM€1,362.00
WEG 00218XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNB 4YPT4 00218XT3E145T230/460/380V145T2 hpHazardous Location1 C, D / 2 F, GTefc41800 RPM€1,404.90
WEG 00212XT3E184T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNC 4YPT5 00212XT3E184T230/460/380V184T2 hpHazardous Location1 C, D / 2 F, GTefc61200 RPM€1,719.18
