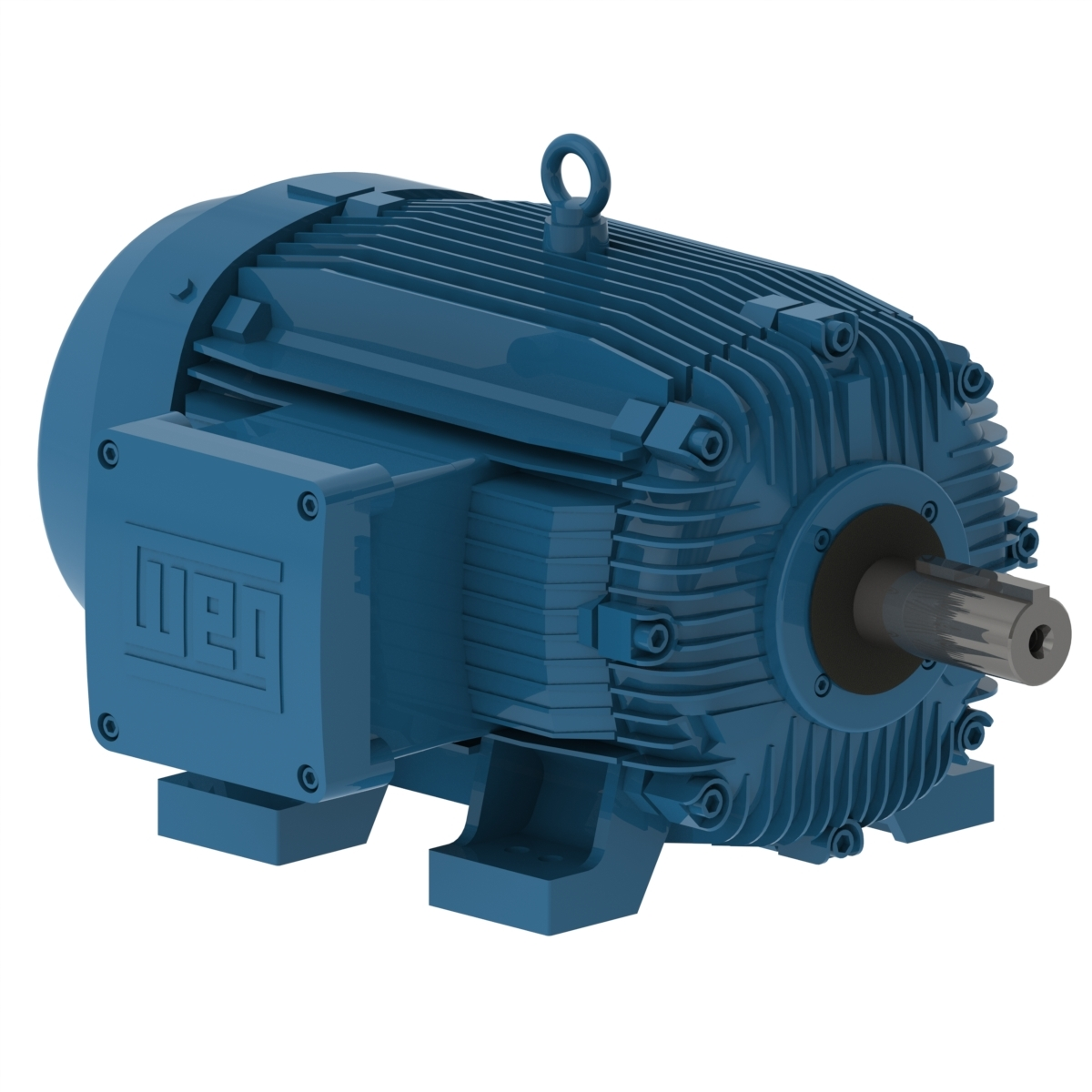

WEG 05009XT3E404T Electric Motor, 50Hp, 60Hz, 885 Rpm | BB3YLX

WEG 05009XT3E404T 12408368 Explosion Proof Motor, 50 HP, 8 Poles, 404/5T Frame, 3 Phase, 230/460//380V, 60//50 Hz, Foot-mounted

Item: BB3YLXModel: 05009XT3E404TCross Ref: 12408368
Check Availability
In Stock

Get it by Monday, Aug 17

€25,710.06 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hazardous Location Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 136/68A , 68/136A
Balancing Method 1/2 Key , 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 210%
Cable Press Material Sem
Cold Locked Rotor Time 21 sec. , 36 sec.
Connection Cables Quantity 12
Cooling IC411
De Bearing Seal Oil Seal
Degree Of Protection IP55
Design B
Drain Sinterized, EXD
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency 50% 67% , 92.4%
Efficiency 75% 93%
Efficiency @ 1 % 73%
Efficiency @ 100% 93.6%
Efficiency @ 75 % 73%
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Aluminum
Flange Without
Frame 404/5T
Frame Material Cast Iron
Frame Size 404/5T
Frequency 50 Hz , 50/60 Hz , 60 Hz
Full Load Amps 68/136-150A
Grade Grade 316
Grounding Lugs Double
Grounding Lugs Type Double
Hot Locked Rotor Time 12 sec.
Hp 50 hp
Impregnation Method Constant Resin Flow
Insulation Class Class F
L. R. Amps 496/993A , 519A , 993/496A
Locked Rotor Time (cold) 21 sec.
Locked Rotor Time(hot) 12 sec. , 20 sec.
Locked Rotor Torque 220%
Lrc 7.3X(Code J) , 8.1x(Code L)
Main Terminal Box Hole 3"
Main Terminal Box Hole Size 3"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Material Stainless Steel
Moment Of Inertia 34.6 lbs.-sq. ft.
Moment Of Inertia (j) 34.6 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Shaft Rotation CW, CCW
Mounting F-1
Mounting Type F-1
Nameplate Speed 885 RPM
Nde Bearing Seal Lip Seal
No Load Amps 27.5/55A , 55/27.5A
No. Of Poles 8
Noise 62 dBA
Noise Level 62 dBA
Output 50 hp
Output Rating 30 kW , 37 kW
Overload Protection No
Overload Protector Without Overload Protector
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer , RAL 5009 202P (ISO 12944 - C4)
Phase 3
Power Factor 75%
Power Factor 100% 0.73
Power Factor 50% 0.67
Power Factor 75% 0.73
Power Factor @ 1 % 93.6
Power Factor @ 50 % 92.4
Power Factor @ 75 % 93
Product Datasheet weg-05009xt3e404t.pdf
Rated Torque 284 lbs.-ft.
Regreasing System At Drive End And Non Drive End , At Drive End And Non-Drive End
Rotation CW, CCW
Screw Cap Stainless Steel
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 4140
Slip 1.67%
Speed 885 RPM
Starting Method Direct On Line
Synchronous Speed 900 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 293 lbs.-ft. , 297 lbs.-ft.
Tropicalized Painting Without
Voltage 230/460/380V , 230/460V AC , 415V
Winding Thermal Protection Thermostat - 2 wires 1 per phase 155°C , Thermostat 2 Wires 1 Per Phase 155°C

Shipping Info:

Ship weight (kg) 602.1
Ship height (cm)31.5
Ship length (cm)46.99
Ship width (cm)37.34
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrameHpMotor ApplicationHazardous Location ClassEnclosure TypeNo. Of PolesSynchronous SpeedPrice
WEG 00118XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1 Hp, T4 | AE2NMW 4YPR7 00118XT3E143T230/460/380V143T1 hpHazardous Location1 C, D / 2 F, GTefc41800 RPM€1,315.11
WEG 00156XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMX 4YPR9 00156XT3E143T230/460/380V143T1 1/2 hpHazardous Location1 C, D / 2 F, GTefc23600 RPM€1,328.90
WEG 00158XT3E145T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMY 4YPT1 00158XT3E145T230/460/380V145T1 1/2 hpHazardous Location1 C, D / 2 F, GTefc41800 RPM€1,363.94
WEG 00152XT3E182T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMZ 4YPT2 00152XT3E182T230/460/380V182T1 1/2 hpHazardous Location1 C, D / 2 F, GTefc61200 RPM€1,706.85
WEG 00236XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNA 4YPT3 00236XT3E145T230/460/380V145T2 hpHazardous Location1 C, D / 2 F, GTefc23600 RPM€1,362.00
WEG 00218XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNB 4YPT4 00218XT3E145T230/460/380V145T2 hpHazardous Location1 C, D / 2 F, GTefc41800 RPM€1,404.90
WEG 00212XT3E184T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNC 4YPT5 00212XT3E184T230/460/380V184T2 hpHazardous Location1 C, D / 2 F, GTefc61200 RPM€1,719.18
