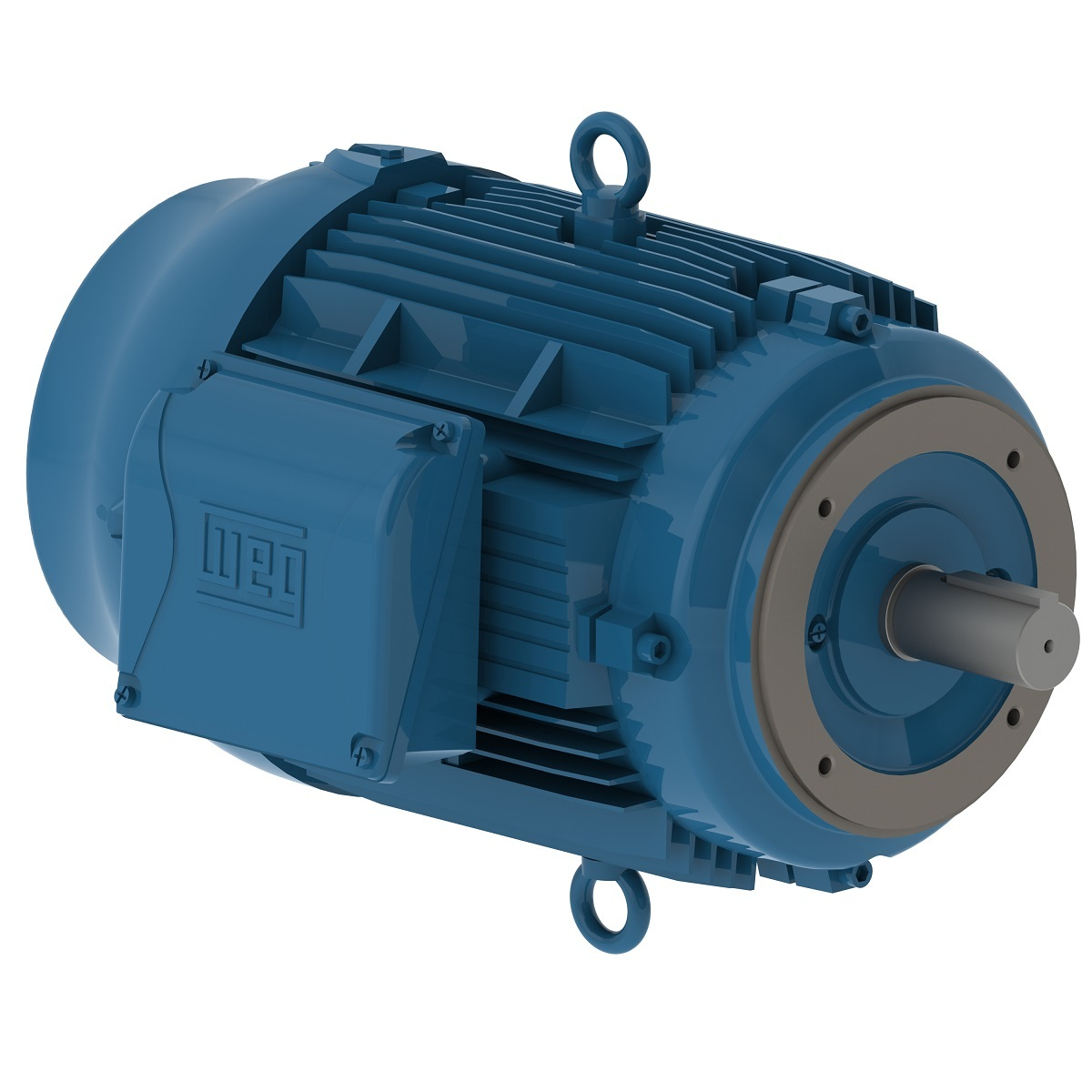

WEG 02018ET3HR256TC-W22 14387119 General Purpose Motor, TEFC Cast Iron 256TC Frame, 20 HP, 1770 RPM, 575 V
20 hp
256TC
1800 rpm
Get it by Friday, Jul 10
€2,702.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 19.3A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break Down Torque | 260% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 54 sec. |
| Connection Cables Quantity | 6 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 68% , 91.7% |
| Efficiency 75% | 92.4% |
| Efficiency @ 1 % | 84% |
| Efficiency @ 100% | 93% |
| Efficiency @ 75 % | 79% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 256TC |
| Frame Material | Cast Iron |
| Frame Size | 256TC |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 30 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 133A |
| Locked Rotor Time (cold) | 54 sec. |
| Locked Rotor Time(hot) | 30 sec. |
| Locked Rotor Torque | 240% |
| Lrc | 6.9X(Code H) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 3.1 lbs.-sq. ft. |
| Moment Of Inertia (j) | 3.1 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1770 RPM |
| Mounting | F-1 , Footless |
| No Load Amps | 7.68A |
| No. Of Poles | 4 |
| Noise Level | 64 dBA |
| Output | 20 hp |
| Output Rating | 20 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.84 |
| Power Factor 50% | 0.68 |
| Power Factor 75% | 0.79 |
| Power Factor @ 1 % | 93 |
| Power Factor @ 50 % | 91.7 |
| Power Factor @ 75 % | 92.4 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Speed | 1700-1800 RPM , 1770 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 59.3 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 575V , 575V AC |
Shipping Info:
| Ship weight (kg) | 169.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Hp | Frequency | Service Factor | Full Load Amps | Frame | No. Of Poles | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3ERSR143TC | 208-230/460V | 1 hp | - | - | - | 143TC | - | - | - | RFQ
|
| 00518EP3ERSR184TC | 230/460V | 5 hp | 60 Hz | 1 | 6.9/13.8A | 182TC | 4 | 3.9/7.8A | - | RFQ
|
| 00118ES3HD56CFL | 575V | 1 hp | - | - | - | 56CFL | - | - | - | RFQ
|
| 02036EP3ERSR256TC | 230/460V | - | 60 Hz | 1 | 23.7/47.4A | 254TC | 2 | 7.3/14.6A | - | RFQ
|
| 00218ET3ERSR145TC | 208-230/460V | 2 hp | - | - | - | 143TC | - | - | - | RFQ
|
| 00212EP3ERSR184TC | 230/460V | - | 60 Hz | 1 | 3.2/6.4A | 182TC | 6 | 2.1/4.2A | €478.24 | |
| 01036EP3ERSR215TC | 230/460V | 10 hp | 60 Hz | 1 | 11.8/23.6A | 215TC | 2 | 4/8A | - | RFQ
|
