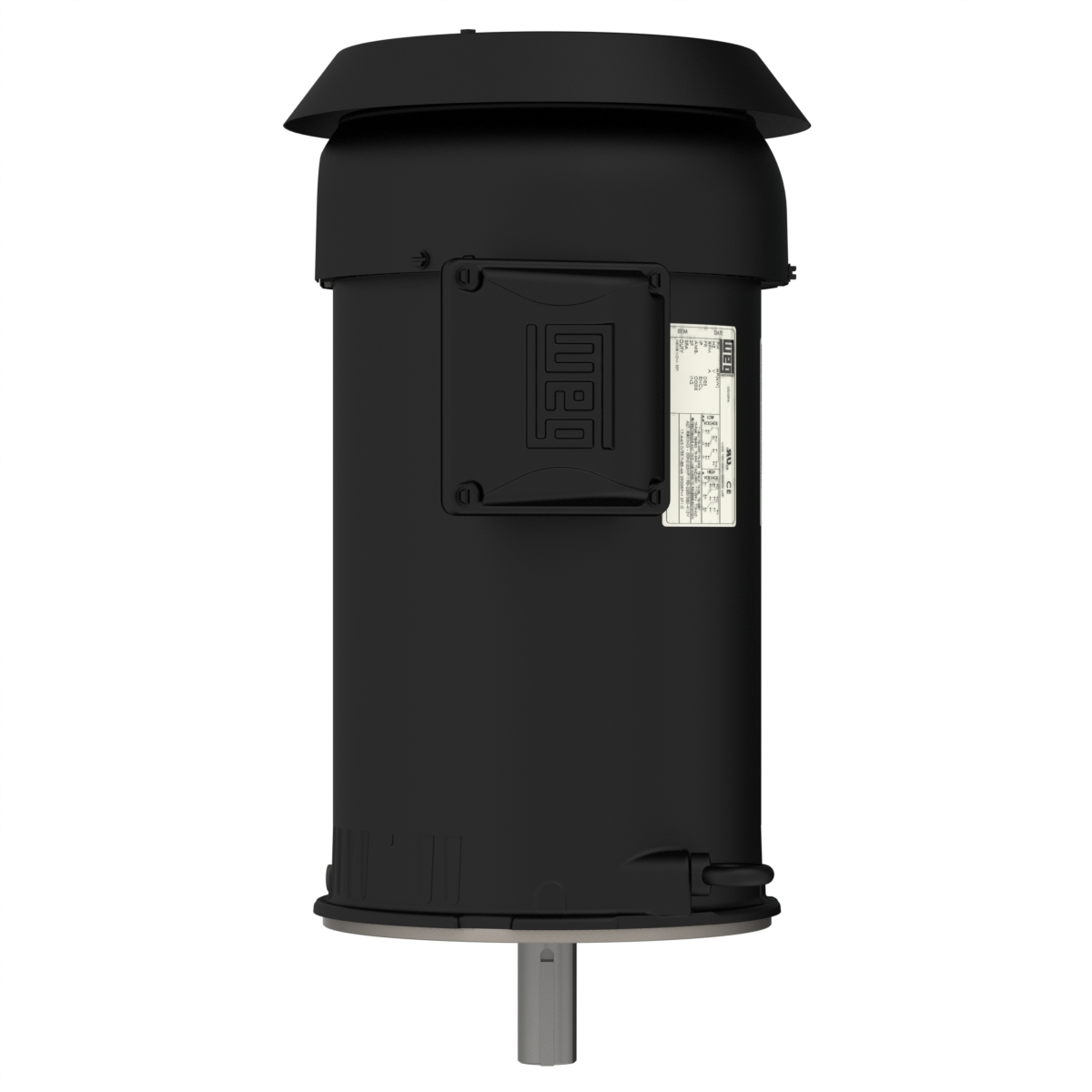

WEG 00318ET3E182JMV-S 13443988 Pump Motor, 3 HP, 1800 RPM, 208-230/460V, TEFC, 182JMV, Footless, Close CoupLED Pump, Vertical
3 hp
182JMV
1800 rpm
Get it by Friday, Aug 21
€1,288.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.81/7.62A |
| Application | Closed Coupled |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 37 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 4:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency | 89.5% |
| Efficiency 50% | 87.5% |
| Efficiency 75% | 88.5% |
| Efficiency @ 100% | 89.5% |
| Enclosure | IC411 |
| Enclosure Iec | IP55 |
| Enclosure Nema Rating | Totally Enclosed Fan Cooled |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame Material | Rolled Steel |
| Frame Size | 182/4JM |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hp | 3 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 33.5/67.1A , 34.6A |
| Locked Rotor Time (cold) | 32 sec. |
| Locked Rotor Time(hot) | 18 sec. , 21 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8x(Code K) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 0.4017 lbs.-sq. ft. |
| Mounting | W-6 |
| Mounting Arrangement | W6 |
| Mounting Orientation | Vertical |
| Nde Bearing Seal | No |
| Nema Frame | NEMA 182-4JM |
| Nema Mount | C Face No Base |
| No Load Amps | 2/4A |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output Hp | 3 hp |
| Output Kw | 2.2 kW |
| Output Rating | 3 hp |
| Output Speed | 1765/1455 RPM |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.61 |
| Power Factor 75% | 0.74 |
| Product Datasheet | weg-00318et3e182jmv-s.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 1.94% |
| Speed | 1700-1800 RPM , 1765 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Code | T3 = 200°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 8.93 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 415V |
Shipping Info:
| Ship weight (kg) | 42.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Voltage | Hp | Frequency | Service Factor | Full Load Amps | Frame | No. Of Poles | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3ERSR143TC | 208-230/460V | 1 hp | - | - | - | 143TC | - | - | - | RFQ
|
| 00518EP3ERSR184TC | 230/460V | 5 hp | 60 Hz | 1 | 6.9/13.8A | 182TC | 4 | Class F | - | RFQ
|
| 00118ES3HD56CFL | 575V | 1 hp | - | - | - | 56CFL | - | - | - | RFQ
|
| 02036EP3ERSR256TC | 230/460V | - | 60 Hz | 1 | 23.7/47.4A | 254TC | 2 | Class F | - | RFQ
|
| 00218ET3ERSR145TC | 208-230/460V | 2 hp | - | - | - | 143TC | - | - | - | RFQ
|
| 00212EP3ERSR184TC | 230/460V | - | 60 Hz | 1 | 3.2/6.4A | 182TC | 6 | Class F | €478.24 | |
| 01036EP3ERSR215TC | 230/460V | 10 hp | 60 Hz | 1 | 11.8/23.6A | 215TC | 2 | Class F | - | RFQ
|
