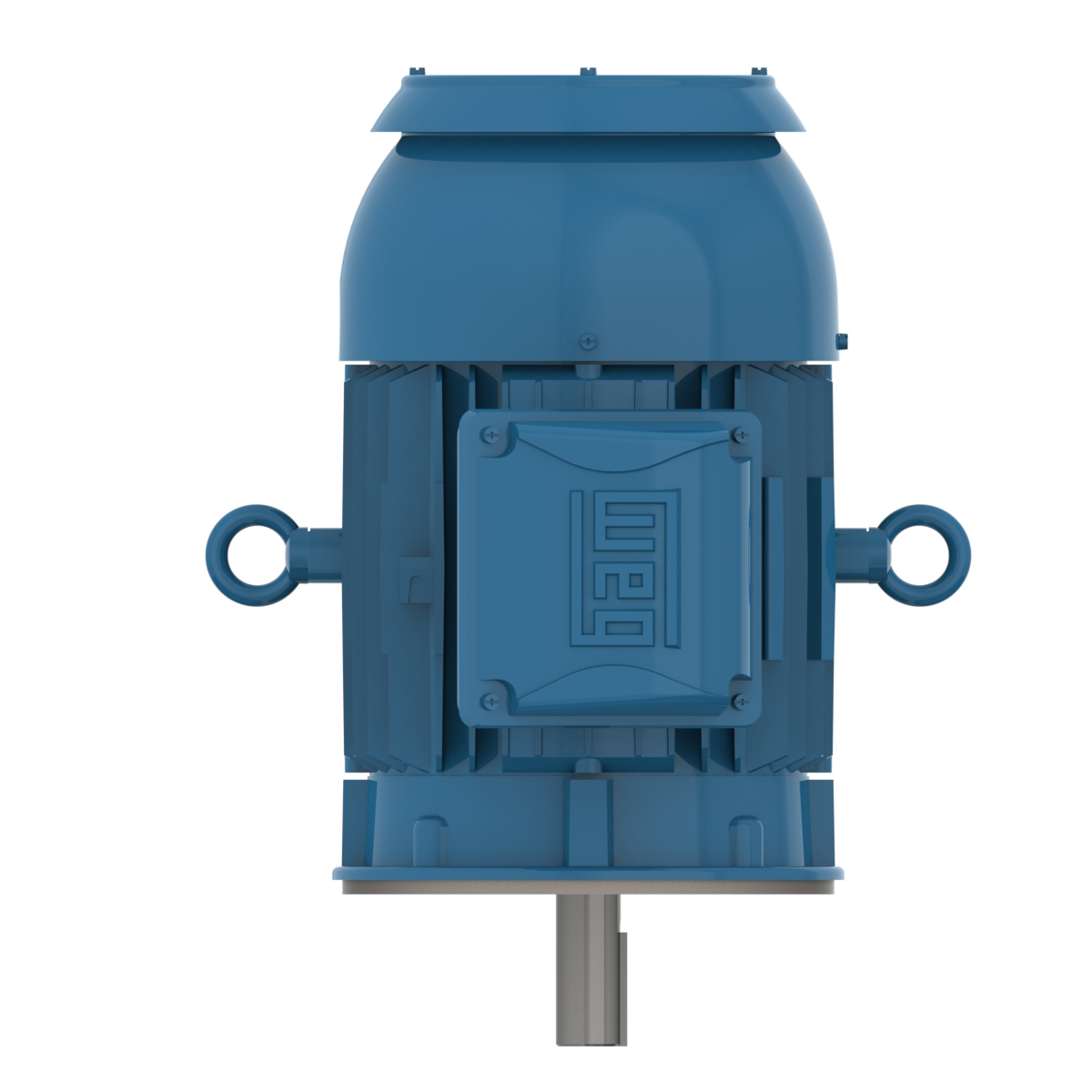

WEG 00718ET3ER213TC-W22 12789604 General Purpose Motor, TEFC Cast Iron 213TC Frame, 7.5 HP, 1465 RPM, 415 V
7.5 hp
213TC
1800 rpm
Get it by Tuesday, Jul 14
€1,420.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 10.3A |
| Application | General Purpose |
| Bearing Cap | Yes |
| Break Down Torque | 290% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 20:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | Cont.(S1) |
| Enclosure Iec | IP55 |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 213TC |
| Frame Material | Cast Iron |
| Frame Size Nema | NEMA 213tc |
| Frequency | 50/60 Hz |
| Full Load Amps | 9.18A |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Hp | 7 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Duty |
| L. R. Amps | 69A |
| Locked Rotor Time(hot) | 15 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 6.7x(Code H) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 1.34 lbs.-sq. ft. |
| Motor Mounting Type | Footless |
| Mount Arrangement | W6 |
| Mount Orientation | Vertical |
| Mounting | Footless, W-6 |
| Nameplate Speed | 1800 RPM |
| Nde Bearing Seal | V Ring |
| No Load Amps | 4.7A |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output Rating | 5.5 kW |
| Output Speed | 1765 RPM |
| Overall Length | 19.399 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1465 RPM |
| Rated Torque | 26.9 lbs.-ft. |
| Rotation | CW And CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.33% |
| Speed | 1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Code | 200°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 415V |
| Vt Speed Range | 1000:1 |
| Xp Atex Zone | Iic |
Shipping Info:
| Ship weight (kg) | 73.8 |
| Ship length (cm) | 49.27 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Hp | Frequency | Service Factor | Full Load Amps | Frame | No. Of Poles | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3ERSR143TC | 208-230/460V | 1 hp | - | - | - | 143TC | - | - | - | RFQ
|
| 00518EP3ERSR184TC | 230/460V | 5 hp | 60 Hz | 1 | 6.9/13.8A | 182TC | 4 | 3.9/7.8A | - | RFQ
|
| 00118ES3HD56CFL | 575V | 1 hp | - | - | - | 56CFL | - | - | - | RFQ
|
| 02036EP3ERSR256TC | 230/460V | - | 60 Hz | 1 | 23.7/47.4A | 254TC | 2 | 7.3/14.6A | - | RFQ
|
| 00218ET3ERSR145TC | 208-230/460V | 2 hp | - | - | - | 143TC | - | - | - | RFQ
|
| 00212EP3ERSR184TC | 230/460V | - | 60 Hz | 1 | 3.2/6.4A | 182TC | 6 | 2.1/4.2A | €478.24 | |
| 01036EP3ERSR215TC | 230/460V | 10 hp | 60 Hz | 1 | 11.8/23.6A | 215TC | 2 | 4/8A | - | RFQ
|
